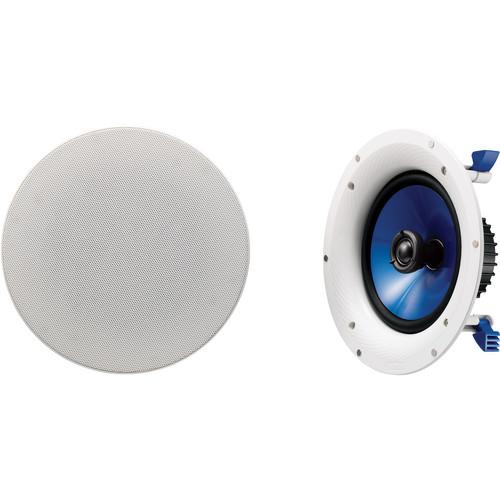

User Manual for Yamaha NS-IC800 8" In-Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the Yamaha NS-IC800 8" In-Ceiling Speaker
- Product category: In-Ceiling Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha In-Ceiling Speakers
|
User manual for the Yamaha NS-IC800 8" In-Ceiling Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The NS-IC800 from Yamaha is a compact in-ceiling speaker ideal for discreet installations in home theaters, bedrooms, living rooms, and more. The coaxial 2-way speaker design has an 8" blue polypropylene mica cone woofer and a fluid-cooled soft dome tweeter to provide clear audio with a wide frequency response. The tweeter can be swiveled for precise aiming and the most effective high frequency output. The grille is paintable and has integrated magnets for quick attachment or removal. The speaker has a large mounting clamp with non-slip tread to firmly grip walls or ceilings for secure installation. - Compact design is ideal for discreet installations
- Coaxial 2-way speaker design has an 8" blue polypropylene mica cone woofer and a fluid-cooled soft dome tweeter to provide clear audio with a wide frequency response
- The tweeter can be swiveled for precise aiming and the most effective high frequency output
- The grille is paintable and has integrated magnets for quick attachment or removal
- The speaker has a large mounting clamp with non-slip tread to firmly grip walls or ceilings for secure installation
UPC: 027108937823 In the Box Yamaha NS-IC800 8" In-Ceiling Speaker (Pair, White) 2 x Magnetic Grilles 2 x Mounting Clamps 1-Year Limited Warranty User Manual PDF 584.8kbzvetyrtsuuqvqacccvcarxcwrdx Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha NS-IC800 8" In-Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha NS-IC800 Specs | Type | 2-Way, Coaxial (Open Back Type) | | Woofer | 8" (203 mm) Blue Polypropylene Mica Cone Woofer | | Tweeter | 1" (25 mm) Fluid-Cooled Soft Dome Swivel Tweeter | | Frequency Response | 50 Hz - 28 kHz (-10 dB) | | Input | Nominal: 50 W
Maximum: 140 W | | Sensitivity | 90 dB / 2.83 V, 1 m | | Crossover Frequency | 3.5 kHz | | Required Ceiling Board Thickness | 0.2 - 1.2" (5 - 30 mm) | | Cut-Out Diameter | 9.65" (245 mm) | | Speaker Diameter | 10.71" (272 mm) | | Speaker Grille Diameter | 11.14" (283 mm) | | Cone Depth | 4.47" (113.5 mm) | | Total Speaker Depth | 4.72" (120 mm) with grille | | Speaker Weight | 4.2 lb (1.9 kg) with grille | | | | Package Weight | 10.9 lb | | Box Dimensions (LxWxH) | 14.1 x 13.5 x 13.0" |
