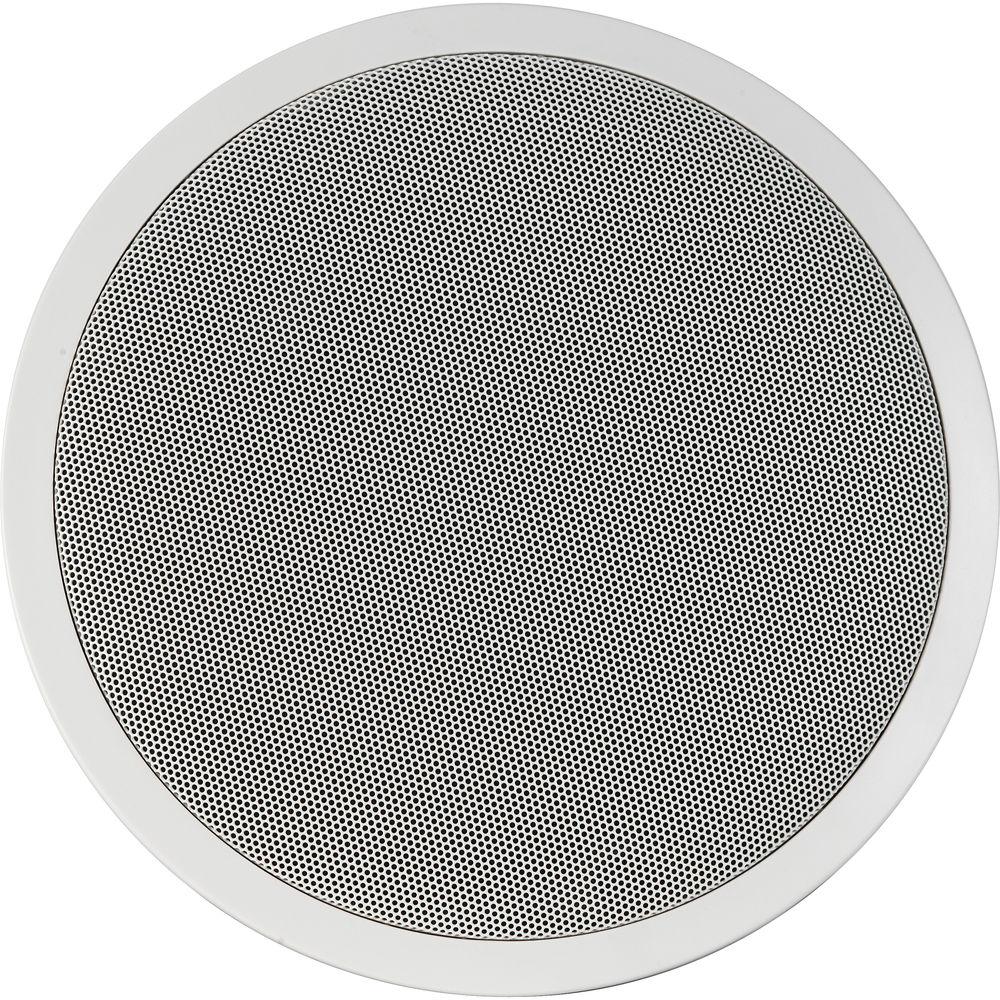

User Manual for Yamaha NS-IW560C 2-Way In-Ceiling Speaker System for Custom Professionals Click to enlarge the picture
Contents of the user manual for the Yamaha NS-IW560C 2-Way In-Ceiling Speaker System
- Product category: In-Ceiling Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha In-Ceiling Speakers
 |
User manual for the Yamaha NS-IW560C 2-Way In-Ceiling Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

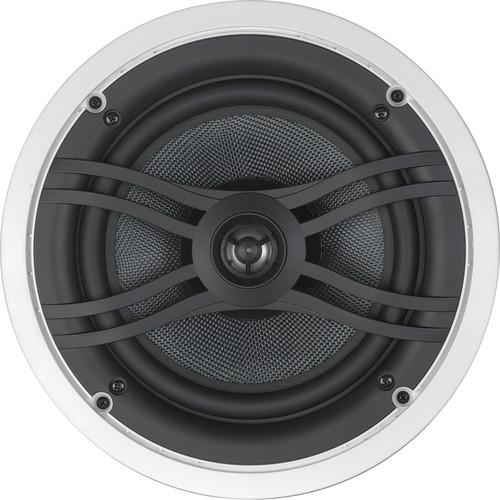

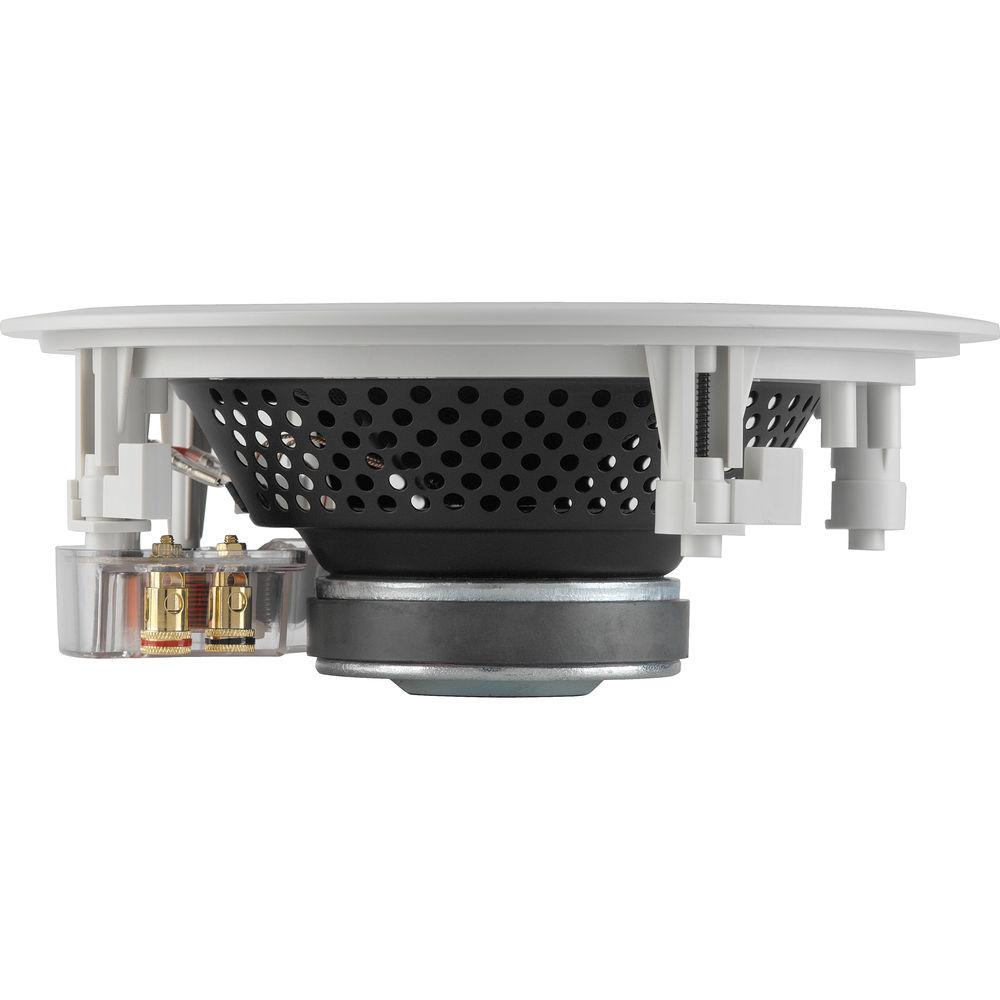

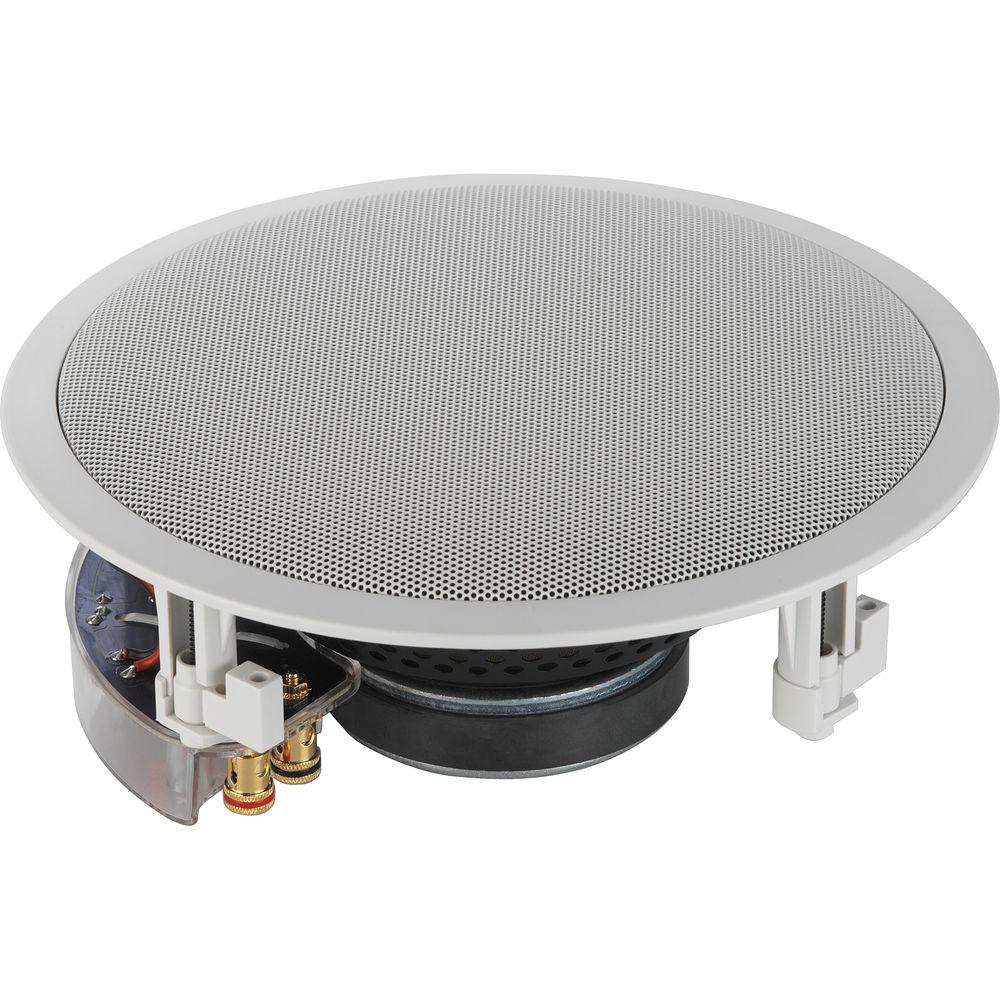

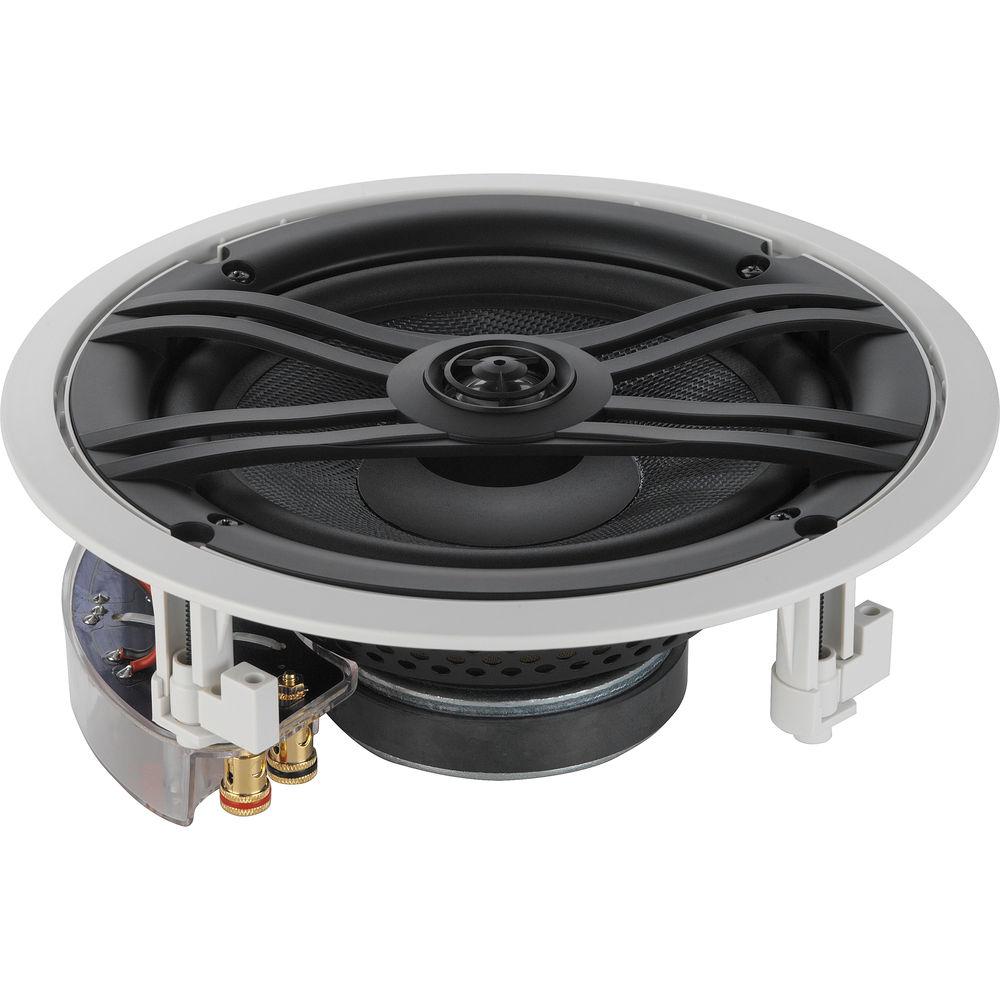

Product description The NS-IW560C 2-Way In-Ceiling Speaker System from Yamaha comes as a pair of two in-ceiling speakers. These speakers deliver professional quality audio thanks to the high-quality materials used for drivers: Kevlar for the woofer and titanium for the tweeter. These speakers are easy to install using the included gold-plated, push-type, speaker terminals, paintable grills/frames, a cutout template, and a paint protective cover. You can swivel the tweeter and the midrange driver to aim high frequency sound towards the main listening position by simply pressing on the edge of the tweeter to change the direction it faces. The NS-IW560C Speaker System features a customized high-quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and has the capacity to prevent the deterioration of transients as they pass through the network. - Natural sound ceiling speaker system is ideal for custom applications
- Low distortion, high-capacity, high-quality customized crossover network
- 8" (20.3cm) Kevlar cone woofers
- 1" (2.5cm) titanium dome tweeter
- Gold-plated push-type speaker terminals
- 150W maximum input capability
- Paintable grill with protective cover included
UPC: 027108104492 In the Box Yamaha NS-IW560C 2-Way In-Ceiling Speaker System for Custom Professionals (Pair) 2 x Speaker Grill Template Cutout Paint Protective Cover 2 x Glue Strip Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha NS-IW560C 2-Way In-Ceiling Speaker System for Custom Professionals in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha NS-IW560C Specs | Recommended Uses | In-ceiling front / surround speakers | | Type | 2-way in-ceiling | | Woofers | 8" (20.3 cm) Kevlar cone woofer | | Tweeter | 1" (2.5 cm) Titanium dome tweeter
Swivel tweeter and mid-range driver | | Grille | Yes, paintable with protective cover | | Frequency Response | 45 Hz to 28 kHz | | Impedance | 8 Ω | | Sensitivity | 88 dB, 2.83 V/m | | Crossover Frequency | 6 kHz | | Input Power | Maximum: 150 W
Nominal: 50 W | | Mounting Depth | 3.72" (1.83 cm) | | Dimensions (W x H x D) | 10.28 x 4.41" (26.11 x 11.19 cm) | | Weight | 4.5 lb (2.0 kg) each speaker | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 12.5 x 11.5 x 11.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
