User Manual for Yamaha NS-IW660 3-Way In-Wall Speaker System for Custom Professionals Click to enlarge the picture
Contents of the user manual for the Yamaha NS-IW660 3-Way In-Wall Speaker System
- Product category: In-Wall Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha In-Wall Speakers
 |
User manual for the Yamaha NS-IW660 3-Way In-Wall Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

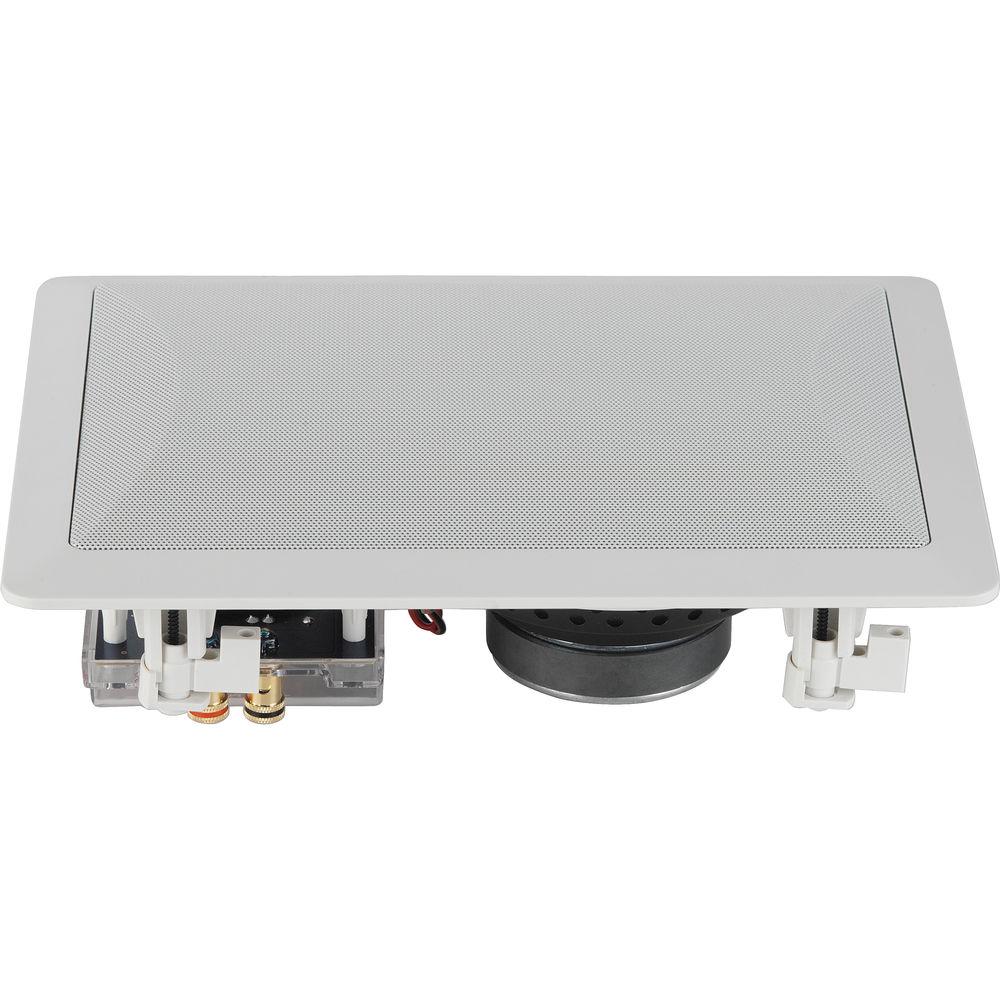

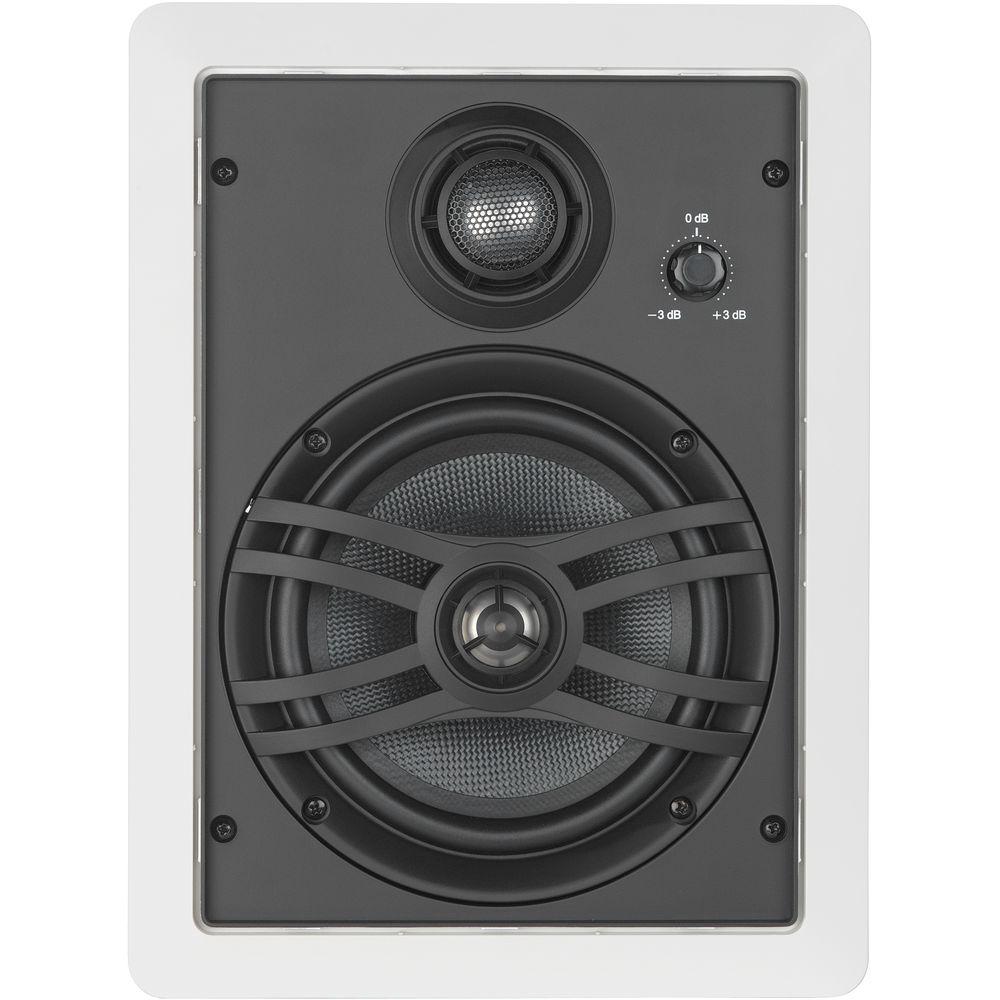

Product description The NS-IW660 3-Way In-Wall Speaker System from Yamaha comes as a pair of two easy-to-install in-wall front/center speakers. System features a customized high-quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and prevent the deterioration of transients as they pass through the network. It delivers high quality sound for the most demanding custom applications. The NS-IW660 Speaker System features a 6.5" Kevlar cone woofer, 1.6" aluminum dome midrange driver, and 1" titanium dome tweeter. The gold-plated push-type speaker terminals, paintable grilles/frames, cutout template, and paint protective cover ease installation. The tweeter and midrange diver can be swiveled to aim high-frequency sounds towards the main listening position by simply pressing on the edge of the tweeter to change the direction it faces. The high-frequency level of the tweeter can be changed by using a high-level adjustor to suit your taste or installation environment. - Natural sound in-wall speaker system suited for custom applications
- Designed for front and center channels

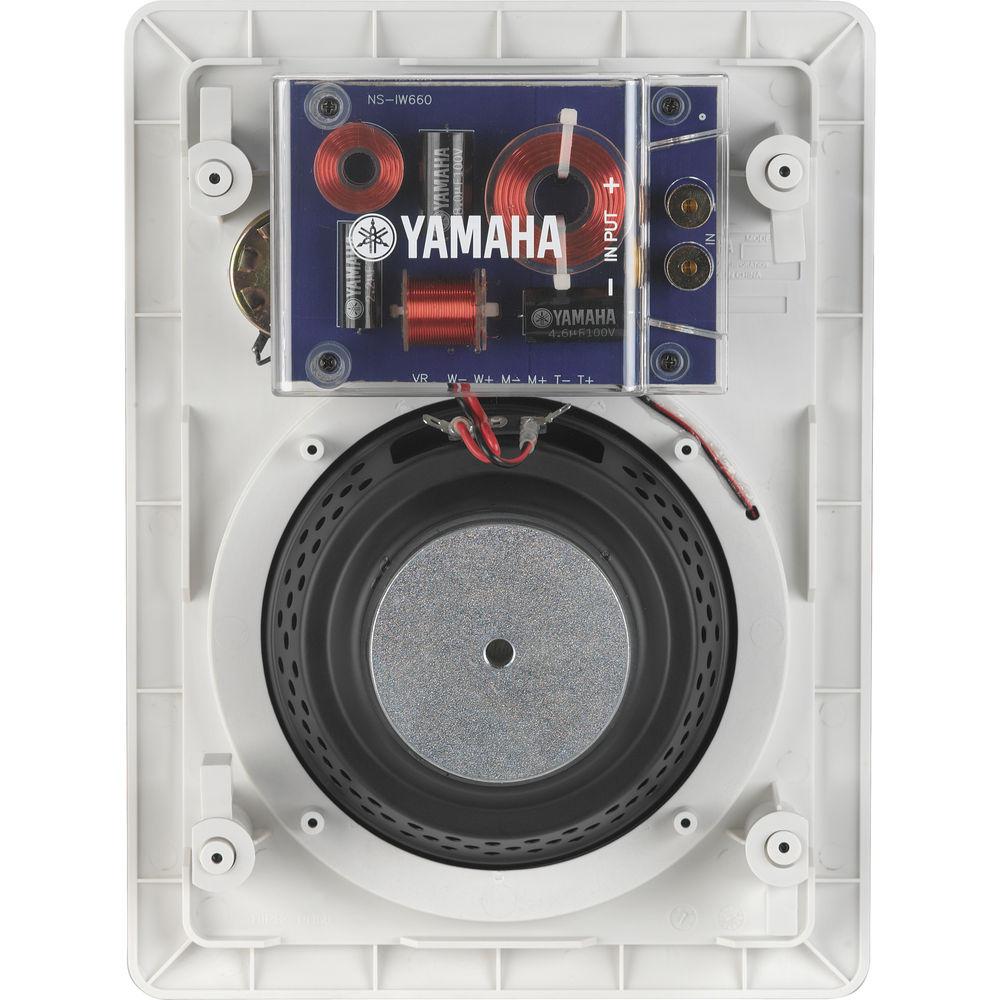

- Low distortion, high-capacity, high-quality customized crossover network
- 6.5" (16.5cm) Kevlar cone woofer
- 1.6" (4.1cm) aluminum dome midrange driver
- 1" (2.5cm) titanium dome tweeter

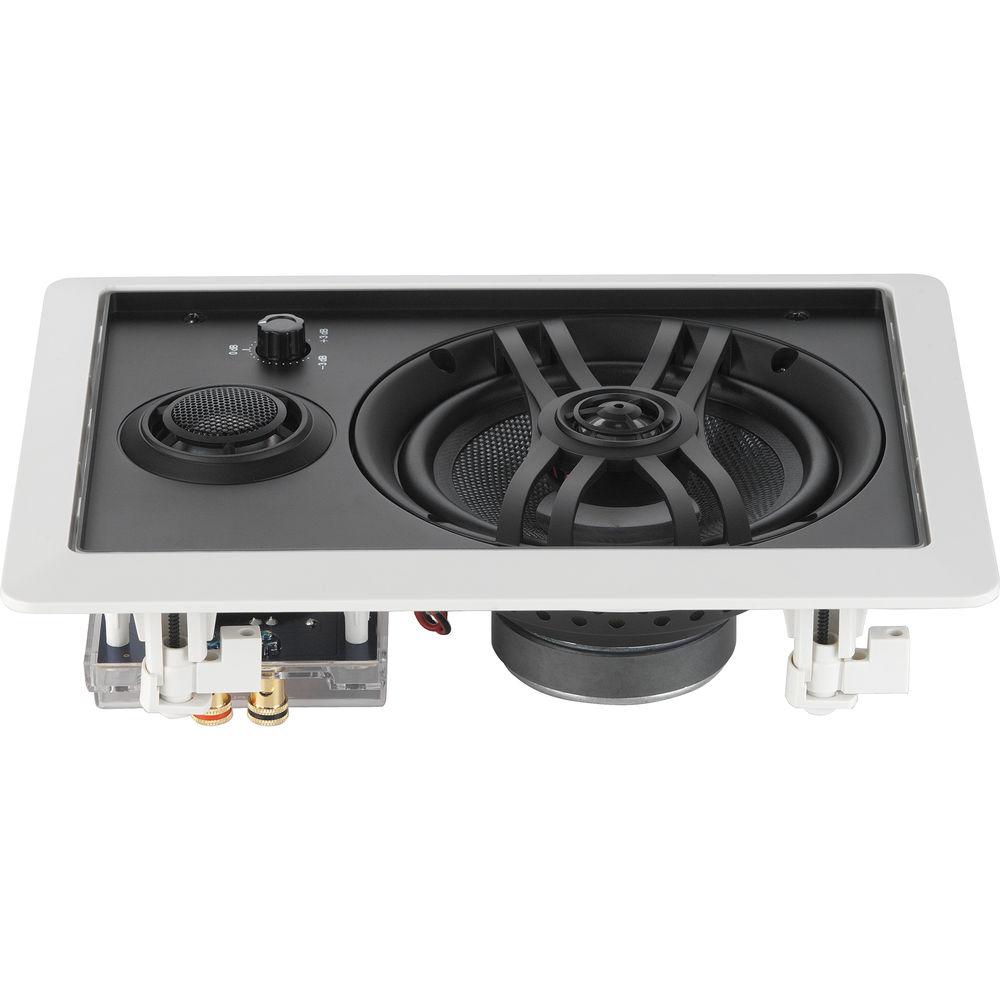

- Swivel tweeter and midrange driver

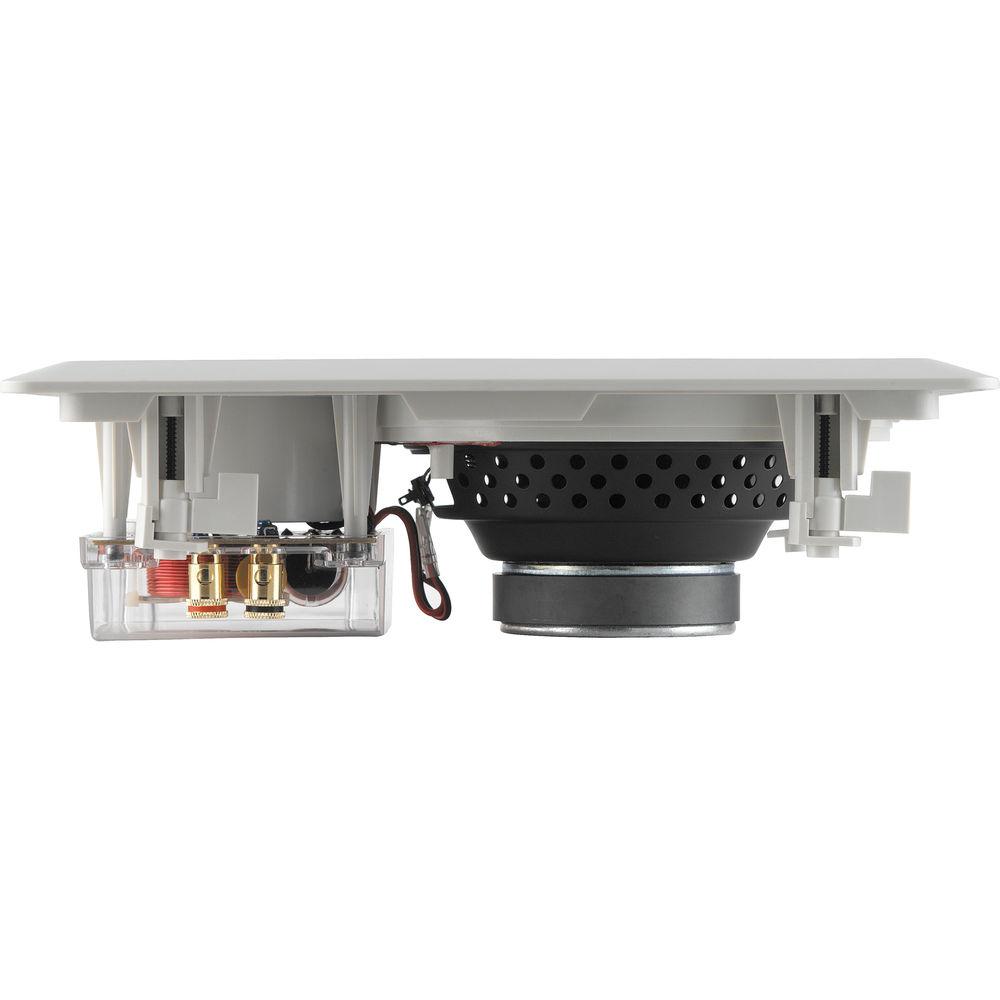

- Gold-plated push-type speaker terminals
- 150W maximum input capability

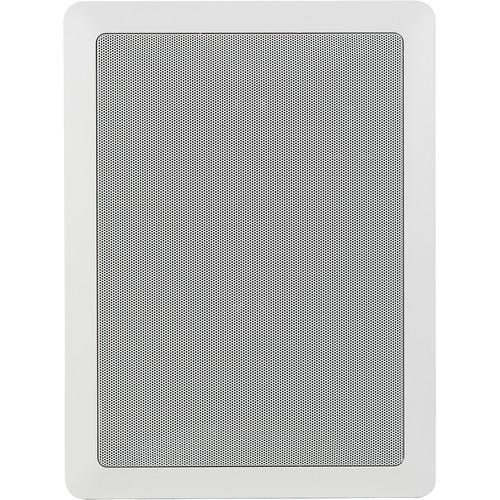

- Paintable grille with protective cover included
UPC: 027108104485 In the Box Yamaha NS-IW660 3-Way In-Wall Speaker System for Custom Professionals (Pair) 2 x Speaker Grille Cutout Template 2 x Paint Protective Cover 2 x Glue Strip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha NS-IW660 3-Way In-Wall Speaker System for Custom Professionals in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha NS-IW660 Specs | Type | 3-way in-wall front / surround speakers | | Woofers | 6.5" (16.5 cm) Kevlar cone woofer | | Driver | Midrange Driver: 1.6" (4.1 cm) aluminum dome driver | | Tweeter | 1.0" (2.5 cm) Titanium dome tweeter
Swivel tweeter and midrange driver | | Frequency Response | 50 Hz to 28 kHz | | Frequency Control | 3 to -6 dB | | Impedance | 8 Ω | | Sensitivity | 88 dB, 2.83 V/m | | Crossover Frequency | 3.5 to 7 kHz | | Grille | Yes, paintable with protective cover | | Input Power | Maximum: 150 W
Nominal: 50 W | | Mounting Depth | 3.1" (7.9 cm) | | Dimensions (W x H x D) | 11.31 x 8.91 x 3.81" (28.73 x 22.62 x 9.68 cm) | | Weight | 4.4 lb (2.0 kg) each speaker | | | | Package Weight | 10.45 lb | | Box Dimensions (LxWxH) | 13.622 x 11.102 x 10.945" |
