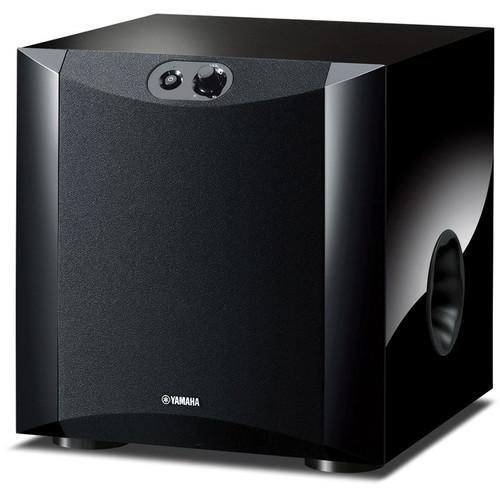

User Manual for Yamaha NS-SW200PN 8" 130W Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Yamaha NS-SW200PN 8" 130W Powered Subwoofer
- Product category: Subwoofers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Subwoofers
|
User manual for the Yamaha NS-SW200PN 8" 130W Powered Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description Experience powerful bass impact from music and movies with the NS-SW200PN 8" 130W Powered Subwoofer from Yamaha in piano black.. This dynamic subwoofer features a front-firing 8" cone woofer and is powered by a capable 130W amplifier. With a frequency response of 28 - 200 Hz, this subwoofer is designed to handle a wide variety of listening material. Advanced YST II technology is onboard for enhanced sonic accuracy.
The Yamaha NS-SW200PN offers multiple connection options including direct LFE and line-level inputs. The rear-mounted system control interface allows you to connect the subwoofer to compatible amplifiers for automatic power on and off; a system control cable is included. As an added convenience, this subwoofer features front panel controls, which allow you to easily adjust the subwoofer's volume level, as well as a power button and LED indicator. - PWM Digital Drive High Efficiency Amplifier and Dual Feedback Circuit
- The built-in power amplifier is engineered to deliver a stable power output of 130W with high efficiency while minimizing power consumption and heat production. It does not require an output filter coil, resulting in reduced noise and distortion. High speed transient response is also enhanced. The dual feedback circuit reduces distortion by applying feedback twice, resulting in optimal sound clarity.
- Twisted Flare Port
- Compared to conventional ports, the Twisted Flare Port is engineered for a greater reduction of air turbulence noise, contributing to clear and accurate low frequency reproduction. The flared and gently twisted shape evenly diffuses the air flow through the port.
- Advanced YST II for Awesome Deep Bass
- Developed by Yamaha, the Advanced YST II (Yamaha Active Servo Technology II) combines negative-impedance and constant-current principles to drive the speaker cone for tighter control than the previous version. Using advanced negative impedance converter (ANIC) circuits, this system dynamically optimizes effective speaker impedance to maintain linearity. This contributes to a stable and accurate low range response as well as high sound quality.
- Auto Power Standby
- If no signal is input from the amplifier for a fixed period of time, the subwoofer automatically switches to a standby state. When a signal from the amplifier is detected, power turns on automatically. This is designed to limit energy consumption.
- Cabinet Design
- The subwoofer features a round shape on the front surface and panels on both sides. These accents are designed to give the subwoofer a neat appearance.
- Other Features
-
- Low standby power consumption of 0.3 W
- Auto power standby switch (high, low, and off)
- Phase control (normal or reverse)
- High-cut adjustment knob
UPC: 027108945781 In the Box Yamaha NS-SW200PN 8" 130W Powered Subwoofer (Piano Black) 16.4' System Control Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha NS-SW200PN 8" 130W Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha NS-SW200 Specs | Amplifier Power | 130 W (100 Hz, 5 ohms, 10 % THD) | | Driver | 8" (20 cm) Cone | | Magnetically Shielded | Yes | | Connectors | 1 x LFE Input
1 x System Control
1 x Left and Right Line Level Inputs
2 x Left and Right Speaker inputs
2 x Left Right Speaker outputs | | LED Indicators | Yes, front | | Power Consumption | 67 W | | Standby Power Consumption | 0.3 W or Less | | Power Requirements | 110 - 120 VAC, 60 Hz | | Dimensions (W x H x D) | 11.4 x 12.0 x 13.8" / 290.0 x 306.0 x 351.0 mm | | Weight | 24.7 lb / 11.2 kg | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 16.7 x 14.8 x 11.2" |
