User Manual for Yamaha P-255WH Digital Piano Click to enlarge the picture
Contents of the user manual for the Yamaha P-255WH Digital Piano
- Product category: Digital Pianos Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Digital Pianos
 |
User manual for the Yamaha P-255WH Digital Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

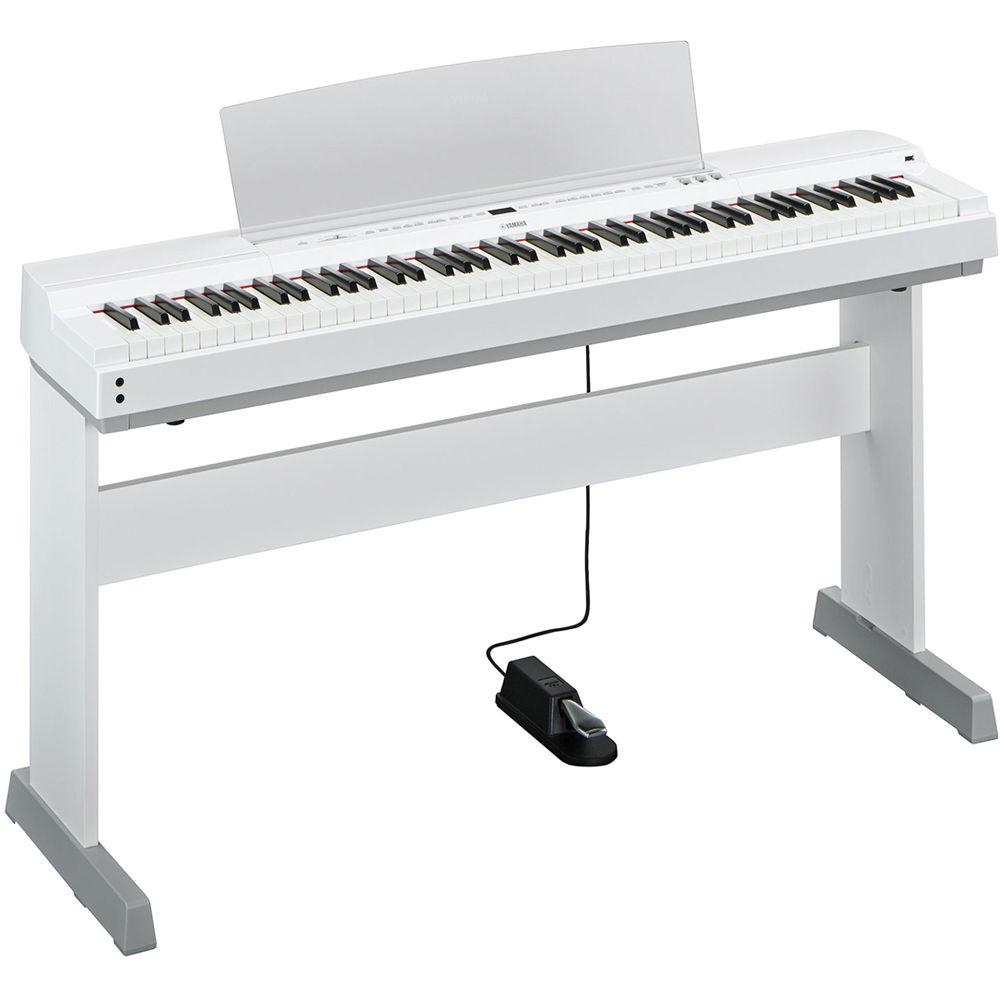

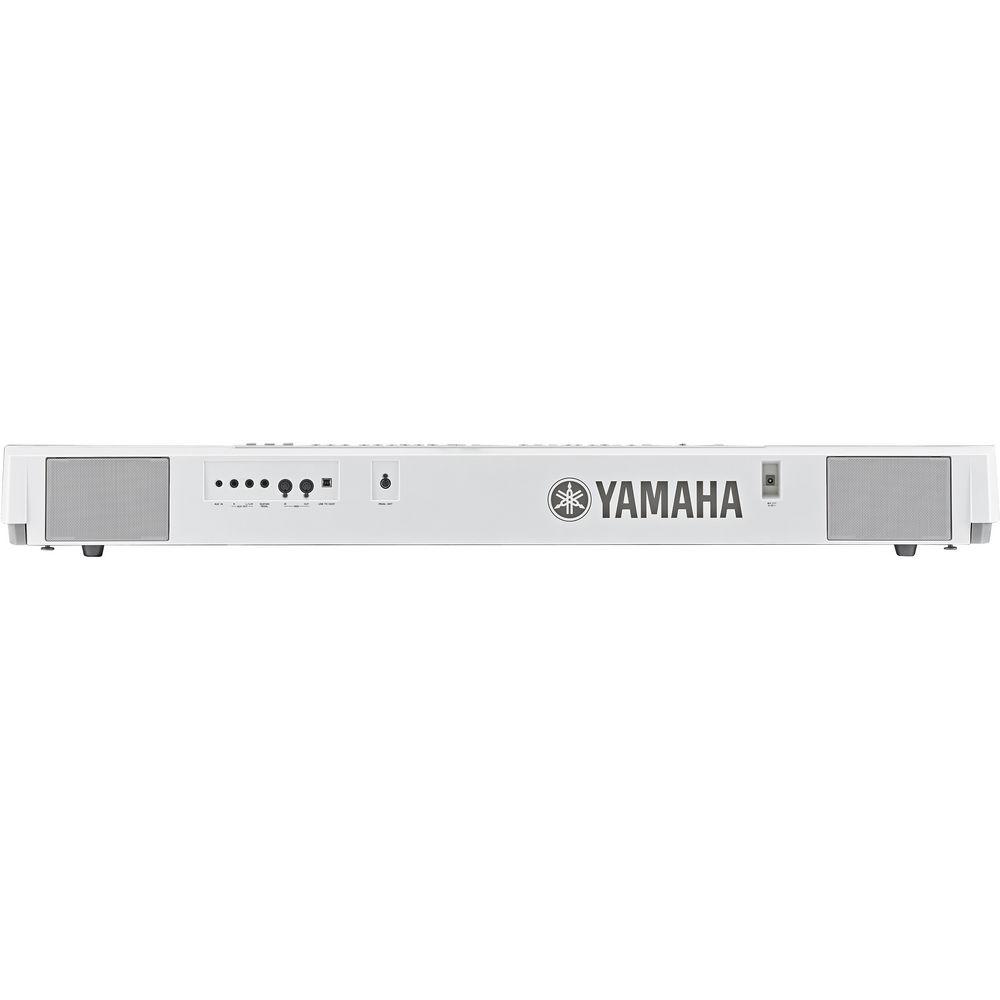

Product description The white P-255WH from Yamaha is an 88-key digital piano that features the company's Pure CF Sound Engine (same engine as found on the Clavinova pianos) and a GH (Graded Hammer) keyboard that together deliver a genuine piano playing experience. Source samples were taken from Yamaha's concert grand pianos resulting in an authentic grand piano sound with dynamic bass, warm mid-range and clear highs. The instrument is housed in a slim and elegant cabinet.
The piano sound reproduction features three enhancements that further support the authenticity. Key-off sampling reproduces the slight change in sound at the instant when fingers are removed from the keys with different key-off sounds produced for staccato and sostenuto playing. Sustain sampling recreates the resonance of the soundboard and strings when the damper pedal is used and is further dependent on how much the pedal is pressed down. Finally, string resonance reproduces the sound of other strings resonating when a particular note is struck.
A regular grand piano uses different-sized hammers for the different-sized strings with subsequent differing weights. The GH keyboard utilizes technology to reproduce the true "feel" of a grand piano keyboard action, with heavier touch in the lower keys, lighter touch in the higher keys, and subtle gradations of weight and response throughout. Dual amplifiers drive two built-in high-performance speakers. Ideas and performances can be shared or stored utilizing an optional USB flash drive via the rear panel USB connector. And dual headphone outputs allow for quiet student/teacher lessons or for playing duets. - GH (Graded Hammer) keyboard mimics the different-sized hammers for the different-sized strings of a real piano
- White keys feature synthetic ivory keytops with good moisture absorption properties, meaning that fingers won't slip even when playing for extended periods of time
- Pure CF Sound Engine features the recorded sounds of Yamaha concert grand pianos
- Key-off sampling reproduces the slight change in sound at the instant fingers are removed from the keys with different key-off sounds produced for staccato and sostenuto playing
- Sustain Sampling captures the resonance of the soundboard and strings when the damper pedal is operated and depending on how much the pedal is pressed down
- String Resonance captures the effect that is generated when the hammer of a grand piano strikes its string and the other strings sympathetically resonate
- Reverb, chorus, and other effects
- Rhythm track functionality with ten different rhythm patterns that are suited to pop, jazz, bossa nova, and many other types of music regularly performed on the piano
- Rhythm tracks each have dedicated intros and endings
- Record up to ten user songs with two tracks each (songs are stored in WAV format)
- Transpose keyboard one octave, up or down
- Easily adjust the voice, volume, and other settings based on where the instrument will be played
- Sound Boost instantly provides a louder sound with greater presence
- Share or store ideas and performances utilizing an optional USB flash drive
- Includes a damper pedal and music rest
- When connected to external speakers, the built-in speakers can be muted
- The control panel can be temporarily locked to prevent settings being changed by accidentally pressing buttons while playing, especially useful in live performance situations
- Controller App for iPhone or iPad (free download) allows for controlling a wide range of the piano's functions with an easy-to-use, touch-screen interface - graphically choose which voices to layer, adjust the split point, manage songs you record to a USB device and more, all with the touch of a finger (requires additional cable purchase)
In the Box Yamaha P-255WH Digital Piano (White) External Power Supply FC4 Sustain Pedal Music Rest Three (3) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha P-255WH Digital Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha P-255 Specs | Keyboard | 88-Note with Graded Hammer (GH) Action with Synthetic Ivory Keytops
Selectable hard, medium, soft, or fixed touch sensitivity | | Polyphony | 256-note maximum | | Multitimbral | Dual layers
Split | | Synthesis Method | Pure CF Sound Engine
Stereo sustain samples
Key-off samples
String resonance
Damper resonance | | Presets | 24 (4 x grand piano, 4 x electric piano, 4 x organ, 4 x harpsichord/clavi/vibraphone, 8 x others) | | Songs | 50 x Piano preset songs
24 x Voice demo song
10 x User recordable songs
2 x Tracks per song
Song Playback: SMF format 0 and 1
Song Recording: SMF format 0
Data Capacity: Approximately 1.5 MB (approximately 550 KB/song)
Song Functions: Part Cancel, A-B repeat, start/stop with pedal, changing voice and tempo after recording
Songs Audio: 80 minutes/song
Compatible Data Format: Recording/playback 16-bit/44.1 kHz WAV | | Effects | Reverb (Room, Hall1, Hall2, Stage)
Chorus
Phaser
Tremolo / Auto Pan
Rotary Speaker
Equalizer 3-bands
Sound Boost (3 types) | | Controllers | 1 x Sustain pedal (included) | | Functions | Metronome, 32~280 BPM range
Transpose one octave, down/up
Tuning
7 x Scale types | | Connectors | 2 x 1/4" / 6.3 mm TRS Aux Out
1 x 1/8" / 3.5 mm TRS stereo mini Aux In
2 x 1/4" / 6.3 mm TRS headphone
2 x 5-pin DIN MIDI I/O
1 x 1/4" / 6.3 mm TS Sustain Pedal
1 x USB Type A (USB to Device)
1 x USB Type B (USB to Host)
1 x 7-pin mini DIN Pedal Unit | | Storage | Internal: Approximately 1 MB
USB: USB Flash Memory (optional) | | Display | 7-segment LED | | Amplifier | 2 x 15 W | | Speakers | 2 x Circular speakers (3.94" / 10 cm)
2 x Circular tweeters (1" / 2.5 cm) | | Power Requirements | 16 VDC from included external power supply (120 VAC)
15 W consumption | | Dimensions (WxDxH) | 52.5 x 13.8 x 5.8" / 1333 x 351 x 148 mm | | Weight | 38.1 lb / 17.3 kg | | | | Package Weight | 52.0 lb | | Box Dimensions (LxWxH) | 59.0 x 19.0 x 10.0" |
