User Manual for Yamaha P-515 88-Key Portable Digital Piano Home Studio Kit Click to enlarge the picture
Contents of the user manual for the Yamaha P-515 88-Key Portable Digital Piano
- Product category: Digital Pianos Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Digital Pianos
|
User manual for the Yamaha P-515 88-Key Portable Digital Piano contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

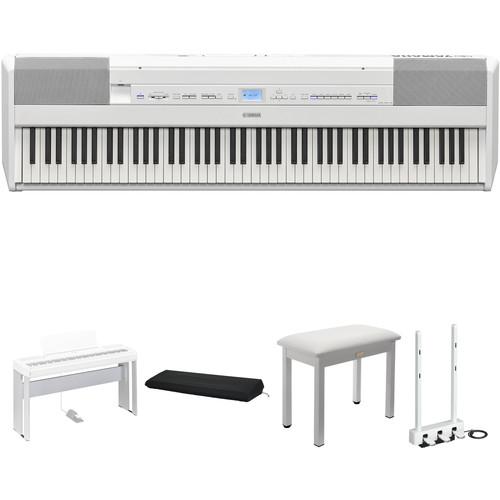

Product description The white Yamaha P-515 88-Key Portable Digital Piano Home Studio Kit from B&H includes the Yamaha compact and portable digital piano with built-in speakers, a Yamaha L-515 matching wood stand for the piano, a Gator Cases GKC-1648 dust cover, an Auray PBM-FF metal frame piano bench, and a Yamaha YALP1WH 3-pedal unit for the digital piano; more accessories include a music rest, a PA-300C AC power adapter and a FC4A piano-style switching sustain pedal. This kit can be used in small ensembles, jazz trios, in dorm rooms, or for the practice room at home. - Yamaha P-515 88-Key Portable Digital Piano (White) The white Yamaha P-515 offers piano sounds created with samples from two of the world's finest pianos, the Yamaha CFX concert grand and the Vienna-made Bösendorfer Imperial grand, built into a slim and portable digital piano. It features an 88-key keyboard with Natural Wood X (NWX) weighted keys (as found in traditional pianos) and Enhanced Virtual Resonance Modeling (VRM) technology (the distinctive reverberation generated by a concert grand piano), and delivers an authentic piano-playing experience, great whether you're learning to play or if you are an experienced player.The P-515 is equipped with a built-in speaker system that delivers a clear and immersive sound for playing at home or even in small venues. There are two headphone jacks for practicing quietly, playing duets, or teaching a student. The headphones support Binaural Sampling and Stereophonic Optimizer technologies, which recreate the three-dimensional perspective of the player position through headphones, as well as a sensation that the sound is coming directly from the piano, rather than from the headphones.The piano offers 40 voices including eleven pianos, along with electric pianos, organs, strings, and more. The Piano Room function lets you create and save a custom piano sound by adjusting the various parameters such as lid position, string resonance, damper resonance, touch response, and more. In addition to a simple metronome, the P-515 also comes with 40 rhythm patterns in a variety of musical genres for playing along with drums and bass accompaniments. An onboard recorder allows composers/songwriters to record their songs as WAV and/or MIDI files and transfer them to a computer via the USB ports.The P-515 is integrated with the company's Smart Pianist app (available separately), which allows you to access the songs in your iOS device's music library and create a chord chart, so you can play along with recordings of your personal favorite songs. A built-in Bluetooth audio receiver enables you to turn the unit into a sound system and stream music from your phone, tablet, or Bluetooth-enabled device.The keyboard ships with an FC4A piano-style switching sustain pedal, a music rest, and a PA-300C AC power adapter.
|
Upload User Manual
Have you got an user manual for the Yamaha P-515 88-Key Portable Digital Piano Home Studio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Yamaha P-515 88-Key Portable Digital Piano (White)
| | | Keyboard | 88 Keys, Graded/Scaled-Hammer Action | | Touch Response | 5 Levels of Sensitivity, Plus Fixed | | | | Number of Sound Presets | 520 x Sounds
18 x Drum Kits | | Number of Song Presets | 21 x Demo
50 x Factory
250 x User | | Effects | Chorus, Reverb | | Maximum Polyphony | 256 Notes | | Performance Functions | Dual Zone, Duet Mode, Transpose, Tuning Adjustment | | | | Practice Features | Metronome, Auto Power Off | | | | Standard MIDI File (SMF) Formats | Format 0, 1 (Playback)
Format 0 (Record) | | Audio Recording Formats | WAV, 44.1 kHz / 16-Bit | | Max Audio Recording Time | 80 Minutes per Song | | | | I/O | 2 x 1/4" TRS Headphone Output
1 x 5-Pin MIDI Input
1 x 5-Pin MIDI Output
1 x 1/8" / 3.5 mm Aux Input
2 x 1/4" Aux Output | | Pedal Support | 1 x 1/4" Sustain
1 x Proprietary Multi-Pedal | | Data Port | 1 x USB Type-B (Computer Transfer)
1 x USB Type-A (External Memory) | | Bluetooth | Yes (Audio, MIDI) | | | | Amplifiers | 2 x 15 W
2 x 5 W | | Round Speakers | 2 x 0.9" / 2.5 cm | | Oval Speakers | 2 x 4.72 x 2.36" / 12 x 6 cm | | | | AC/DC Power Adapter | PA-300C, 16 VDC (Included) | | Power Consumption | 15 W | | | | Display | LCD | | Dimensions | 52.6 x 5.7 x 14.8" / 133.6 x 14.5 x 37.6 cm | | Weight | 48.5 lb / 22.0 kg | | | | Box Dimensions (LxWxH) | 56.5 x 21.0 x 12.0" | - Yamaha L515 Matching Wood Stand for P-515 Piano (White)
| Compatible with | P-515 | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 61.2 x 18.3 x 7.45" | - Gator Cases GKC-1648 Dust Cover
| Number of Keys | 88 Keys | | Closure Type | Drawstring | | Exterior Material | Spandex | | Interior Dimensions | 48 x 16" / 121.9 x 40.6 cm | | Weight | 0.5 lb / 0.2 kg | | | | Box Dimensions (LxWxH) | 7.5 x 5.5 x 1.5" | - Auray PBM-FW Metal Frame Piano Bench (White)
| Material of Construction | Metal with leatherette cushion | | Weight Capacity (Maximum) | 300 lb / 136.1 kg | | Dimensions (H x D x W) | 20.0 x 13.0 x 22.5" / 50.8 x 33.0 x 57.1 cm | | Weight | 17.7 lb / 8.0 kg | | | | Box Dimensions (LxWxH) | 24.5 x 11.0 x 10.0" | - Yamaha LP-1 3-Pedal Unit for P-125 Digital Pianos (White)
| Pedals | Sustain, sostenuto, and soft | | Connectors | Multi-pin DIN | | Construction Material | Metal | | Dimensions (W x D x H) | 11.9 x 5.8 x 23.4" / 30.1 x 14.7 x 59.4 cm | | Weight | 5.3 lb / 2.4 kg | | | | Box Dimensions (LxWxH) | 23.0 x 10.5 x 9.5" |
