User Manual for Yamaha Pad Set for the DTX920K and DTX760K Electronic Drum Kits Click to enlarge the picture
Contents of the user manual for the Yamaha Pad Set for the DTX920K
- Product category: Electronic Drums Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Electronic Drums
 |
User manual for the Yamaha Pad Set for the DTX920K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

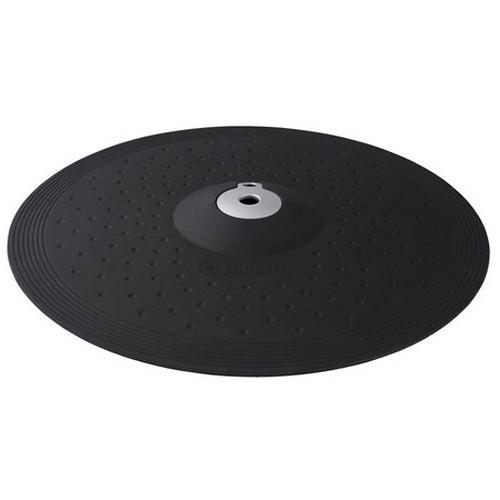

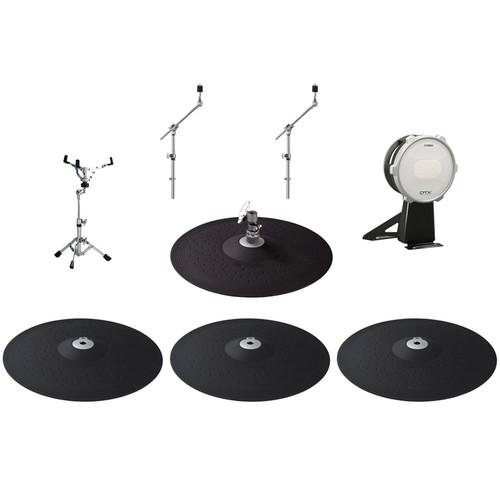

Product description This Pad Set for the DTX920K and DTX760K from Yamaha includes two electronic crash pads, two boom-arm cymbal holders, one electronic ride pad, one electronic hi-hat pad, one electronic kick-tower pad, one snare stand, and a set of cables. It has been conveniently bundled into one package. - PCY135 3-Zone Electronic Cymbal Pad The Yamaha PCY135 3-Zone Electronic Cymbal Pad is intended for the DTXTREME III electronic drum kit. The pad features 3 triggering zones and ships with a stereo cable. UPC: 086792879994
- PCY155 3-Zone Electronic Cymbal Pad for DTXTREME III The Yamaha PCY155 3-Zone Electronic Cymbal Pad is intended for the DTXTREME III electronic drum kit. The pad features 3 triggering zones and ships with a stereo cable. UPC: 086792879987

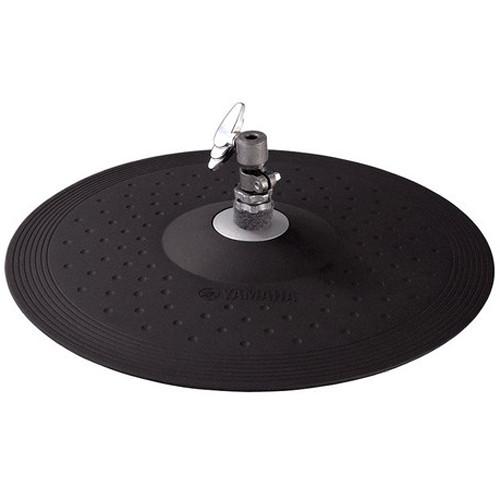

- RHH 135 Hi-Hat Cymbal The Yamaha RHH 135 Hi-Hat Cymbal is intended for use with the Yamaha DTXTREME III electronic drum kit. The cymbal features rubber construction for fast and natural action, and ships with a stereo connecting cable. UPC: 086792880006

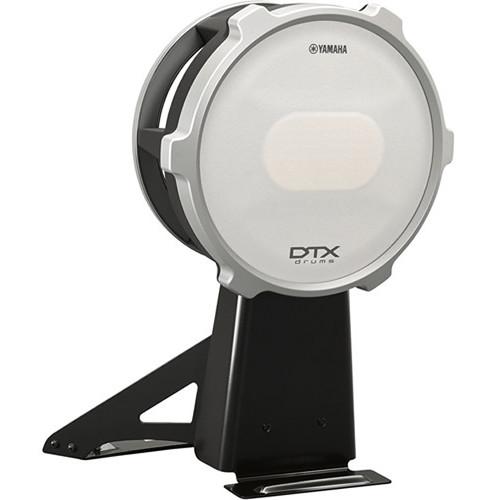

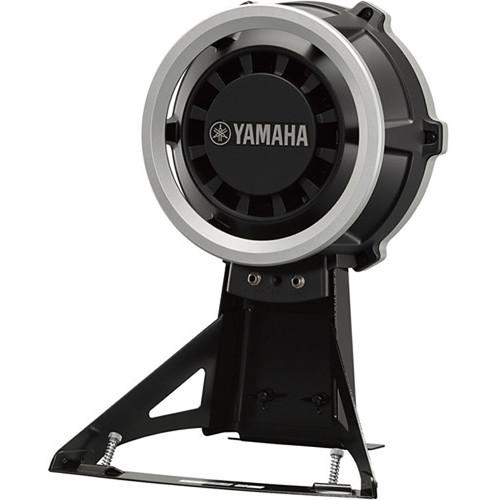

- KP100 Electronic Kick Pad Designed for DTX drum kits, the Yamaha KP100 Electronic Kick Pad features a softer, more responsive head for an improved feel that will enhance your overall performance. The head has been reinforced with a protective coating, which adds durability and extends its life expectancy, regardless of your playing style. The drumhead provides an enlarged surface area that easily accommodates a double foot pedal and offers improved stability and accuracy. Extensive research and development has resulted in a design that features a smooth depression surrounding the drumhead, effectively preventing vibrations from being transmitted to the surrounding body and lowering the overall noise impact to the performance/practice area. The KP100 ships with a TRS cable and two anti-slip stoppers. UPC: 086792996288

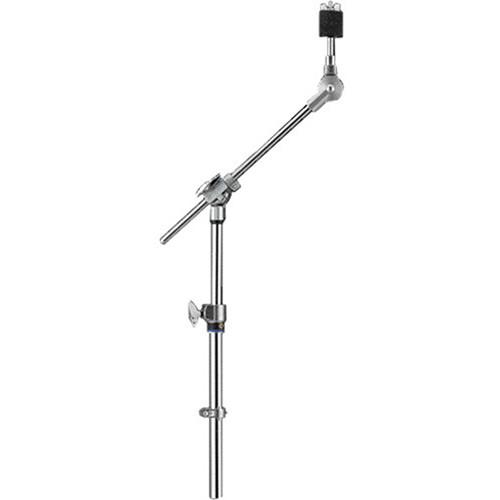

- CH-750W Short Boom Arm Cymbal/Cowbell Holder Yamaha's CH-750W Short Cymbal/Cowbell Holder is a 6" hide-away boom with memory lock and a vertical tilter. The boom tilter clamp holds the boom securely and it features a two-stage vertical height adjustment.

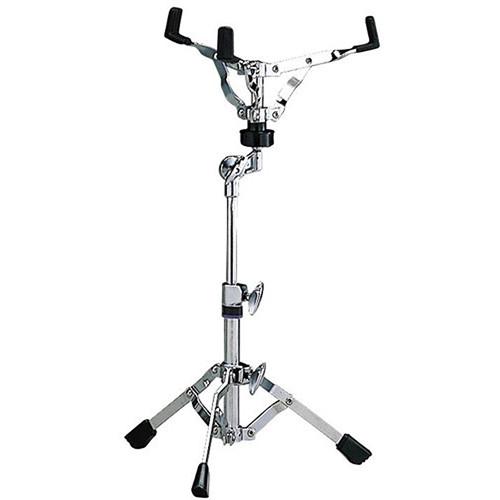

- SS662 Compact Snare Drum Stand The Yamaha SS662 Compact Snare Drum Stand is a light yet rugged, and will accommodate single-braced snare drums measuring up to 12". The stand will also mount the Yamaha DD65. UPC: 086792879529
In the Box Bundle Items 2 x PCY135 3-Zone Electronic Cymbal Pad ydsrecuuzabyzvedr PCY155 3-Zone Electronic Cymbal Pad for DTXTREME III RHH 135 Hi-Hat Cymbal KP100 Electronic Kick Pad - 2 x Anti-Slip Stoppers (including Springs)
2 x CH-750W Short Boom Arm Cymbal/Cowbell Holder ydsrecuuzabyzvedr SS662 Compact Snare Drum Stand
Also Includes - Set of Cables
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha Pad Set for the DTX920K and DTX760K Electronic Drum Kits in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PCY135 3-Zone Electronic Cymbal Pad
| | | Box Dimensions (LxWxH) | 16.8 x 16.0 x 3.8" | - PCY155 3-Zone Electronic Cymbal Pad for DTXTREME III
| | | Box Dimensions (LxWxH) | 16.7 x 15.9 x 3.8" | - RHH 135 Hi-Hat Cymbal
| | | Box Dimensions (LxWxH) | 16.8 x 16.0 x 3.8" | - KP100 Electronic Kick Pad
| Sensor | Piezoelectric trigger-sensor element | | Input & Output | Input: 1/4" / 6.35 mm TS jack
Output: 1/4" / 6.35 mm TRS jack | | Dimensions (W x D x H) | 13.4 x 11.3 x 18.3" / 340.0 x 288.0 x 464.0 mm | | Weight | 11.0 lb / 5.0 kg | | | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 10.0" | - CH-750W Short Boom Arm Cymbal/Cowbell Holder
| Tilt | Center Tilter
Type: Boom Tilter Mechanism | | Height | 6" (15.24 cm) | | | | Box Dimensions (LxWxH) | 23.7 x 11.3 x 3.7" | - SS662 Compact Snare Drum Stand
| | | Box Dimensions (LxWxH) | 15.9 x 6.4 x 4.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
