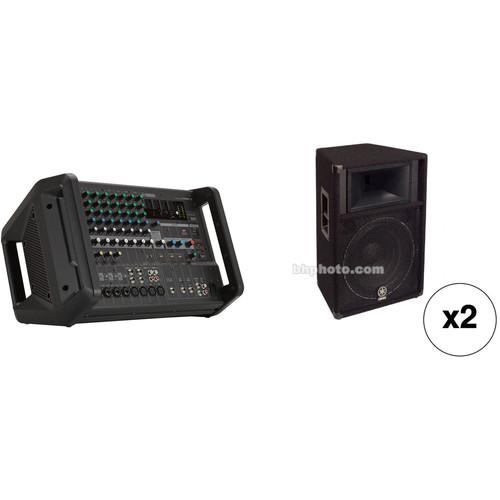

User Manual for Yamaha Portable Powered Mixer and Passive PA Speakers Kit Click to enlarge the picture
Contents of the user manual for the Yamaha Portable Powered Mixer and Passive
- Product category: Sound Reinforcement Mixers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Sound Reinforcement Mixers
|
User manual for the Yamaha Portable Powered Mixer and Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The Portable Powered Mixer and Passive PA Speakers Kit from B&H is a portable PA setup designed to provide flexible connectivity and high-powered sound reinforcement for bands, theater groups, and audio engineers in rehearsal spaces, clubs, concert venues, and other live stage applications. It includes one Yamaha EMX 5 powered mixer, two Yamaha S115V passive PA speakers, and an IEC power cord. Carry handles on the mixer and speakers allow easy portability between gigs.The EMX 5 mixer features 12 inputs–eight microphone inputs and four stereo line inputs. XLR, RCA coaxial, 3.5mm, and 1/4” input jacks enable compatible connectivity with a variety of sources. Quickly reign in strong peaks via one-knob compression on the first four channels. Use the feedback suppressor to minimize vibe-killing screeches. 24 built-in effects give you plenty of ways to enhance your sound. With 3-band EQ on each channel and one-knob EQ on the master bus, you can efficiently tweak the tonal balance before it is sent to the integrated 1260W amplifier.Each S115V passive PA speaker features a 15” woofer, 2” titanium tweeter, and 500W RMS power handling. The 129 dB maximum SPL ensures that you won’t have to worry about not being heard. - Yamaha EMX 5 12-Input Powered Mixer The Yamaha EMX 5 is a 12-input powered mixer with an integrated 1260W amplifier, eight mic/line inputs, four stereo line inputs, and two Aux sends. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1-4 offer XLR-1/4" combo jacks. Channels 5 through 12 provide mono XLR inputs, with channels 5-8 offering 1/4" inputs and 9-12 offering an additional set of stereo RCA inputs. Channels 11/12 also include an 1/8" stereo mini-jack for connecting portable music players.
The EMX 5 includes a single knob compressor on channels 1-4, an integrated feedback suppressor, and a built-in multi-effects processor with SPX series algorithms. Additionally, the mixer offers a Master EQ, which provides a single knob to control the level of low end. At the far left, the speech setting cuts low frequencies, while the middle position is neutral for music playback. The far right setting provides a Bass Boost to enhance music playback. Optional accessories available include a foot switch for effects bypass and a rack-mount kit. The EMX 5 ships with a standard IEC power cord. -
- 1260-watt power amplifier for versatility in a wide variety of performance applications
- Compatible with 4 Ohm and 8 Ohm speakers
- 12-channel mixer with four mono mic/line and four mono/stereo line input channels, supporting a wide range of inputs
- Channels 1-4 offer a single knob compressor
- Channels 1-3 offer an 80 Hz high-pass filter to reduce microphone rumble
- Channel 4 offers a Hi-Z input for guitar
- Two Aux sends via balanced 1/4" outputs. Aux 2 also sends to internal effects engine
- Yamaha’s high-quality SPX multi-effects, providing optimum processing for instruments or vocals
- Feedback Suppressor, which automatically cuts and prevents undesirable feedback noise
- Independent three-band equalizer on each channel for tonal adjustment and sound control
- Master EQ with setting for speech and music playback
- Stereo Output: Two balanced 1/4" outputs for connecting to powered speakers or an additional amplifier
- Recording Output: Stereo RCA for connecting to a recorder
UPC: 889025106221 - 2 x Yamaha S115V Club Series V Two-Way PA Speaker (Single) The Yamaha S115V continues the tradition of Yamaha's popular Club Series Speakers with improvements being made in almost every facet of the cabinet. Better driver components, a stronger grill, improved crossover network, and dual Speakon connectors all contribute to a better overall sonic performance.Improvements in the drivers include higher power handling capabilities and a Constant Directivity Horn. This type of horn design provides smoother and better overall coverage both on and off axis.Equipped with two strong metal handles and a pole mount for easy stand mounting, the S115V is built from sturdy, high-density pine particleboard, and houses a crossover network and protection circuits designed to protect the drivers from damage.Yamaha took much consideration in selecting components that met their exact tolerances, and the result is a new series of speakers that certainly improves on an already popular and proven product.
- 500 Watts Continuous Power
- 2-inch Titanium Tweeter Driver
- Constant Directivity Horn
- Oxygen-free copper voice coils for extended life
- Built in the U.S. from environmentally friendly southern pine particleboard
UPC: 086792728148 In the Box - EMX 5 12-Input Powered Mixer vwurfzavfd
- AC Power Cord
- Limited 1-Year Warranty
- 2 x S115V Club Series V 500-Watt Two-Way Passive PA Speaker with 15" Woofer (Single)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha Portable Powered Mixer and Passive PA Speakers Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Yamaha EMX 5 12-Input Powered Mixer
| Input Connectors | Channels 1-4: 4x Combo XLR-1/4" / 6.35 mm Channels 5/6: 1x XLR, 2x 1/4" / 6.35 mm Channels 7/8: 1x XLR, 2x 1/4" / 6.35 mm Channels 9/10: 1x XLR, 2x RCA Channels 11/12: 1x XLR, 2x RCA, 1x 1/8" / 3.5 mm stereo mini-jack | Load Impedance | Channels 1-4 (XLR Mic/Line): 3 kOhms actual, 50-600 Ohms nominal with mics Channels 1-4 (1/4" Mic/Line): 8 kOhms, 600 Ohms line Channel 4 (1/4", Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal Channels 5-12 (XLR): 2 kOhms actual, 50 - 600 Ohms lines nominal Channels 5-12 (1/4", RCA, 1/8"): 10 kOhms actual, 600 Ohms nominal | Input Level | Sensitivity Channel 1-4 (XLR, Mic): -60 dBu (0.775 mV) Channel 1-4 (XLR, Line): -30 dBu (24.5 mV) Channel 1-4 (1/4", Mic): -50 dBu (2.45 mV) Channel 1-4 (1/4", Line): -20 dBu (77.5 mV) Channel 4 (Hi-Z Engaged, Mic): -50 dBu (2.45 mV) Channel 4 (Hi-Z Engaged, Line): -20 dBu (77.5 mV) Channels 5-12 (XLR): -60 dBu (0.775 mV) Channels 5-8 (1/4"): -20 dBu (77.5 mV) Channels 9-12 (RCA, 1/8"): -8 dBu (316 mV) Nominal Channel 1-4 (XLR, Mic): -43 dBu (5.48 mV) Channel 1-4 (XLR, Line): -13 dBu (173 mV) Channel 1-4 (1/4", Mic): -33 dBu (17.3 mV) Channel 1-4 (1/4", Line): -3 dBu (548 mV) Channel 4 (Hi-Z Engaged, Mic): -33 dBu (17.3 mV) Channel 4 (Hi-Z Engaged, Line): -3 dBu (548 mV) Channels 5-12 (XLR): -43 dBu (5.48 mV) Channels 5-12 (1/4", RCA, 1/8"): -3 dBu (548 mV) Maximum Before Clip Channel 1-4 (XLR, Mic): -15 dBu (138 mV) Channel 1-4 (XLR, Line): +15 dBu (4.36 V) Channel 1-4 (1/4", Mic): -5 dBu (436 mV) Channel 1-4 (1/4", Line): +25 dBu (13.8 V) Channel 4 (Hi-Z Engaged, Mic): -5 dBu (436 mV) Channel 4 (Hi-Z Engaged, Line): +20 dBu (7.75 V) Channels 5-12 (XLR): -15 dBu (138 mV) Channels 5-12 (1/4", RCA, 1/8"): +25 dBu (13.8 V) | | Output Connectors | Stereo Out (L/R): 2x 1/4" / 6.35 mm balanced Aux Sends (1/2): 2x 1/4" / 6.35 mm balanced Rec Out (L/R): 2x RCA unbalanced | Impedance | Stereo Out (L/R): 600 Ohms actual, 10 kOhms Lines Aux Sends (1/2): 600 Ohms actual, 10 kOhms Lines Rec Out (L/R): 600 Ohms actual, 10 kOhms Lines | Output Level | Stereo Out (L/R): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping Aux Sends (1/2): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping Rec Out (L/R): -10 dBV (0.308 V) nominal, +18 dBV (7.75 V) max before clipping | | Connectors | Speakers A/B: Neutrik speakON NL4, 1/4" / 6.35 mm phone jack | Impedance | Actual Source Impedance: < 0.1 Ohms For Use with Nominal: 4 Ohm speakers, 8 Ohm speakers | Output Level | 4 Ohm Speakers: 500 W (1 Hz THD+N < 1%), 630 W (1 kHz THD+N < 10% [CEA2006]) 8 Ohm Speakers: 370 W (1 Hz THD+N < 1%), 460 W (1 kHz THD+N < 10% [CEA2006]) | | Output Power | 1 kHz THD+N < 10% (CEA2006): 630 W + 630 W (4 Ohms), 460 W + 460 W (8 Ohms) 1 kHz THD+N < 1%: 500 W + 500 W (4 Ohms), 370 W + 370 W (8 Ohms) | Frequency Response | Frequency Response Refer to the nominal output level @ 1 kHz Input to Speakers: +1/-3 dB (40 Hz to 20 kHz) Input to Stereo Out, Aux 1/2 Send: +0.5/-1.0 dB (20 Hz to 20 kHz) | THD + N | Input to Speakers: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) Input to Stereo Out, Aux 1/2 Send: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz) | Crosstalk | (1 kHz): -85 dB | Input Channels | Mono (Mic/Line): 8 Stereo: (Line): 4 Total: 12 | Output Channels | Speakers: A/B Aux 1 Send Aux 2 Send Stereo Out: L/R Rec Out: L/R | Bus | Stereo: 1 Aux: 2 (including FX) | Pad | Channels 1-4: 30 dB | Hi-Z Input | Channel 4: Supported | HPF | High Pass Filter (Channels 1-3): 80 Hz, -12 dB/octave | EQ Section | High: 10 kHz +15/-15 dB Mid: 2.5 kHz +15/-15 dB Low: 100 Hz +15/-15 dB | Compressor | Single knob compressor | Audio Level Meter | 7 points (-20, -10, -6, 0, +6, +10, Peak) | Built-in Effects | SPX Algorithm: 24 programs | Output Channel Function | Master EQ (Speech to Music) Monitor EQ Feedback Suppressor | Phantom Power | +48 V | Footswitch Input | Effect mute on/off | Protection | Load Protection: DC-fault Amplifier Protection: Overheat protection, overcurrent protection, integral power protection Power Supply Protection: Overheat protection, overcurrent protection | Power | Power Requirements: 100-240 VAC, 50/60 Hz Power Consumption: 42 W (Idle) / 210 W (1/8 power) | Operating Temperature | 32 to 104°F / 0 to 40°C | Dimensions (W × H × D) | 18.3 x 12.1 x 12.8" / 464.8 x 307.3 x 325.1 mm | Weight | 20.9 lb / 9.5 kg | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 14.0" | - 2 x Yamaha S115V Club Series V Two-Way PA Speaker (Single)
| Configuration | Passive 2-Way | Total Power Capacity | 500 W RMS | System Impedance | 8 Ohms | | HF Driver | 1 x 2" / 50.1 mm Titanium Tweeter | LF Driver | 1 x 15" / 38.1 cm Woofer | | Frequency Response | 55 Hz to 15 kHz | Maximum SPL | 129 dB | | Audio I/O | 2 x speakON 2 x 1/4" | | Construction Material | Particle Board | Dimensions | 19.0 x 28.0 x 15.0" / 483.0 x 711.0 x 381.0 mm | Weight | 60 lb / 27 kg | | Box Dimensions (LxWxH) | 31.0 x 21.5 x 17.0" |
