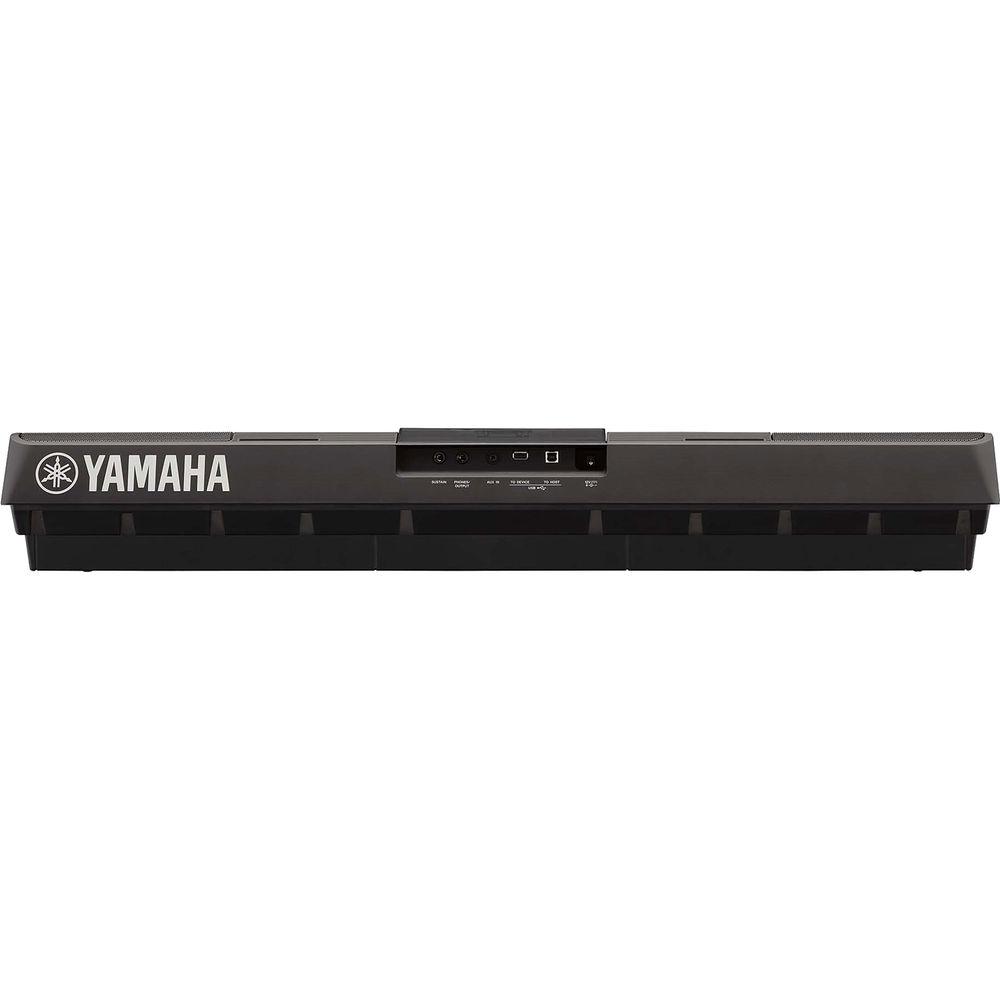

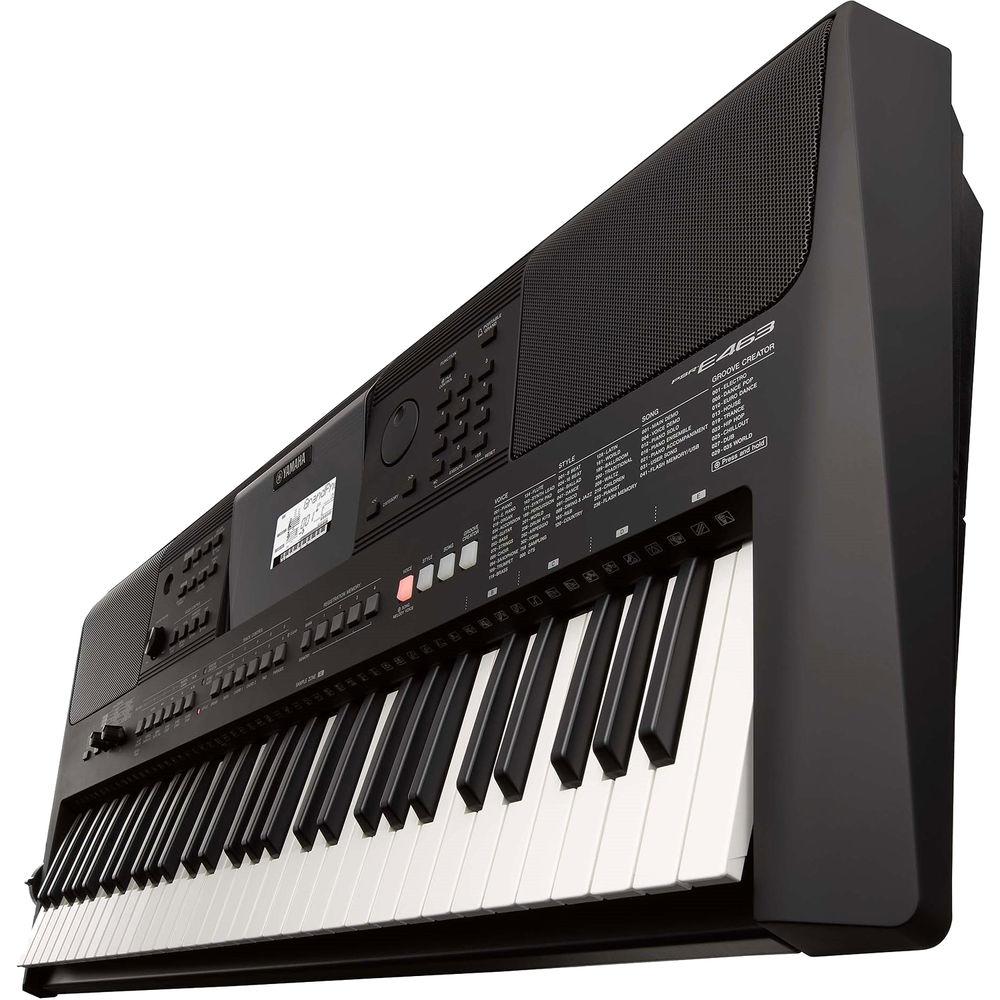

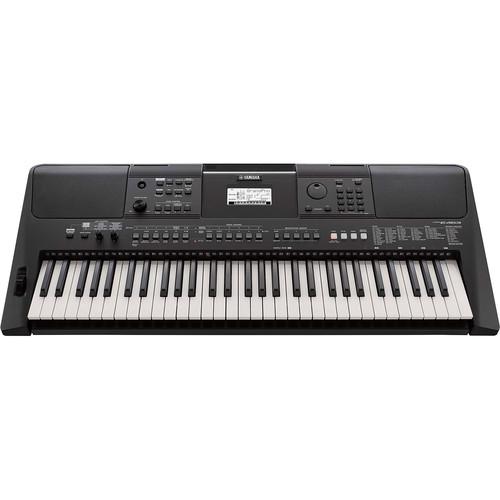

User Manual for Yamaha PSR-E463 61-Key Touch Response Portable Keyboard Click to enlarge the picture
Contents of the user manual for the Yamaha PSR-E463 61-Key Touch Response Portable
- Product category: Portable Keyboards Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Portable Keyboards
 |
User manual for the Yamaha PSR-E463 61-Key Touch Response Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description Yamaha PSR-E Comparison Guide: Part 1 Read More The PSR-E463 61-Key Touch Response Portable Keyboard from Yamaha is an entry-level keyboard for performing various styles of music. It features on-board speakers and easy-to-use professional features such as assignable live control knobs, Quick Sampling, Groove Creator, and a USB audio recorder. The library of 758 instrument voices and 235 auto-accompaniment styles allow you to enjoy playing any musical genre.Change sound on-the-fly by switching the effect destination. There are two assignable real-time control knobs that let you filter and adjust your sound like an analog synthesizer. The 10 DSP effects can be assigned to the knobs and controlled for dynamic, expressive live performances. A pitch bend wheel adjusts the pitch of guitar, sax, and trumpet sounds to bring them to life.Finally, you can record your performances to a USB flash drive, and the built-in USB to device terminal on the instrument lets you load and save your settings, as well as transfer the data to your computer. A music rest is also included. This keyboard runs on 6 AA batteries or an AC adapter (not included). Note: The optional power supply is not included with the PSR-E463. The PA-150 AC Power Adapter or equivalent is available separately. - Quick Sampling
- Capture your own sounds and play them back from the keyboard by capturing audio through the Aux in and edit using the easy-to-operate Quick Sampling function.
- Groove Creator
- You can perform the latest music styles from the keyboard like a DJ; lay down a beat, tweak the groove, and adjust the mix to get the dance party started. Groove Creator supports Western EDM (Electronic Dance Music) and various world-wide EDM grooves, allowing you to find just what you're looking for.
- Sound
- The PSR-E463 features a comprehensive library of 758 instrument voices that will allow you to enjoy playing any musical genre. 235 auto accompaniment styles provide real-time band backing tracks based on the chords you play.
- Built-In Speakers
- 6W + 6W amplifiers drive the high-definition 4.7" bass reflex speakers, offering clarity and detail.
- Intuitive Live Control Knob Interface
- Two assignable, real-time control knobs let you filter and adjust your sound just like an analog synthesizer. 10 DSP effects can be assigned and controlled by the knobs for dynamic and expressive live performance. The pitch bend wheel adjusts the pitch of the sound bringing voices like the guitar, sax and trumpet to life. The Target button changes sounds on-the-fly by switching the effect destination.
- Arpeggio Function
- The 150 arpeggio patterns adjust and morph around the notes and chords you play on the keyboard allowing for almost limitless creativity.
- Connectivity
- The PSR-E463 features audio transfer through the USB TO HOST terminal, allowing you to record your performance to your computer or smart device. Connect an external audio player to the Aux in jack and you can play along with your favorite tunes
UPC: 889025116145 In the Box Yamaha PSR-E463 61-Key Touch Response Portable Keyboard Music Rest Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha PSR-E463 61-Key Touch Response Portable Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha PSR-E463 Specs | | | Keyboard | 61 Keys, Synth Action | | Touch Response | 3 Levels of Sensitivity, Plus Fixed | | Expression Controls | 1 x Pitch Bend | | | | Number of Sound Presets | 758 | | Number of Song Presets | 10 x User
30 x Factory | | Effects | Chorus, EQ, Reverb | | Maximum Polyphony | 48 Notes | | Performance Functions | Arpeggiator, Split/Layer, Temperament Adjustment, Transpose, Tuning Adjustment | | | | Number of Style Presets | 235 x Factory
10 x User | | Number of Rhythm Presets | 35 | | Types | One Touch, Multi-Finger | | Practice Features | Lessons, Chord Dictionary, Metronome, Auto Power Off | | | | Supported MIDI Standards | GM, XGlite | | Standard MIDI File (SMF) Formats | Format 0, 1 (Record) | | MIDI Note Memory and Resolution | 19,000 Notes | | Audio Recording Formats | WAV, 44.1 kHz / 16-Bit | | Max Audio Recording Time | 80 Minutes per Song | | | | I/O | 1 x 1/8" / 3.5 mm TRS Aux Input
1 x 1/4" TRS Headphone Output | | Pedal Support | 1 x 1/4" Sustain | | Data Port | 1 x USB Type-B (Computer Transfer)
1 x USB Type-A (External Memory) | | | | Amplifiers | 2 x 6 W | | Round Speakers | 2 x 4.7" / 11.9 cm | | | | AC/DC Power Adapter | PA-150, 12 VDC (or Equivalent-Not Included) | | Power Consumption | 8 W | | Battery Type | 6 x AA | | | | Display | LCD | | Dimensions | 37.2 x 5.5 x 15.9" / 946.0 x 139.0 x 404.0 mm | | Weight | 14.6 lb / 6.6 kg | | | | Package Weight | 20.65 lb | | Box Dimensions (LxWxH) | 41.4 x 19.5 x 8.5" |
