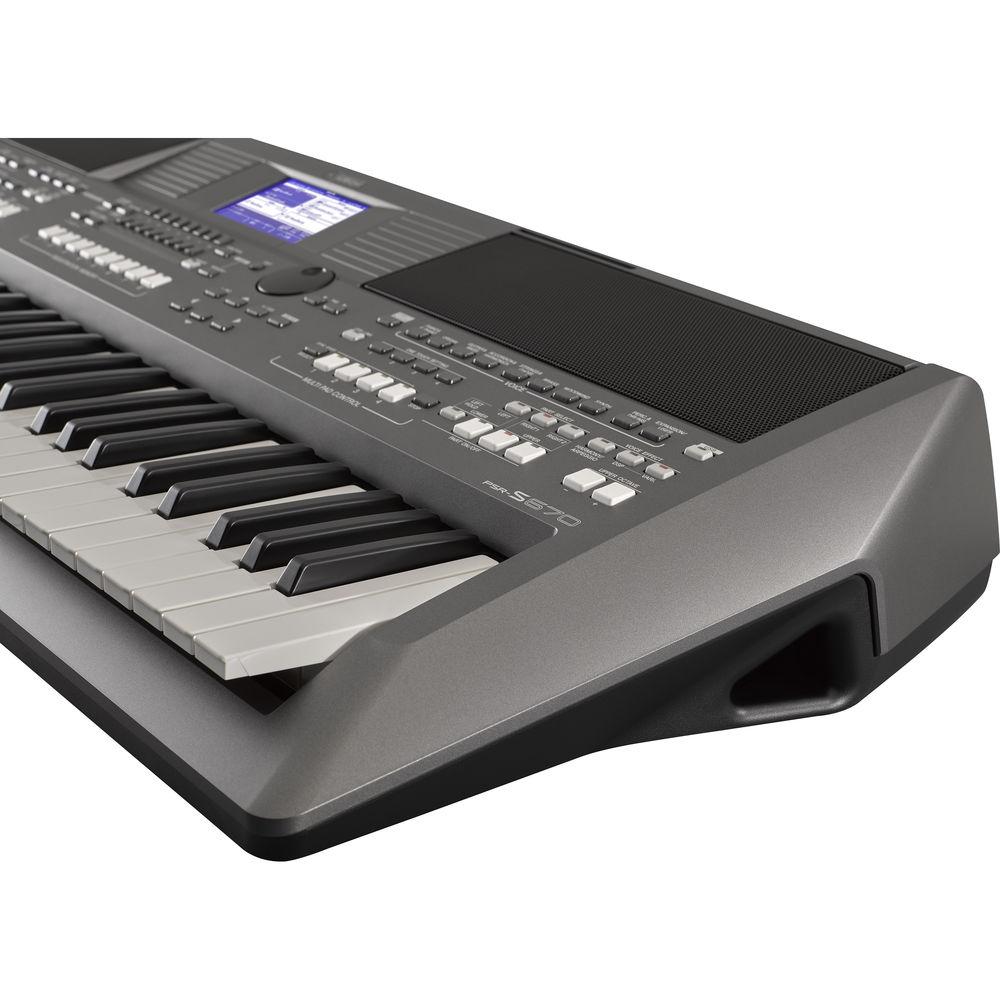

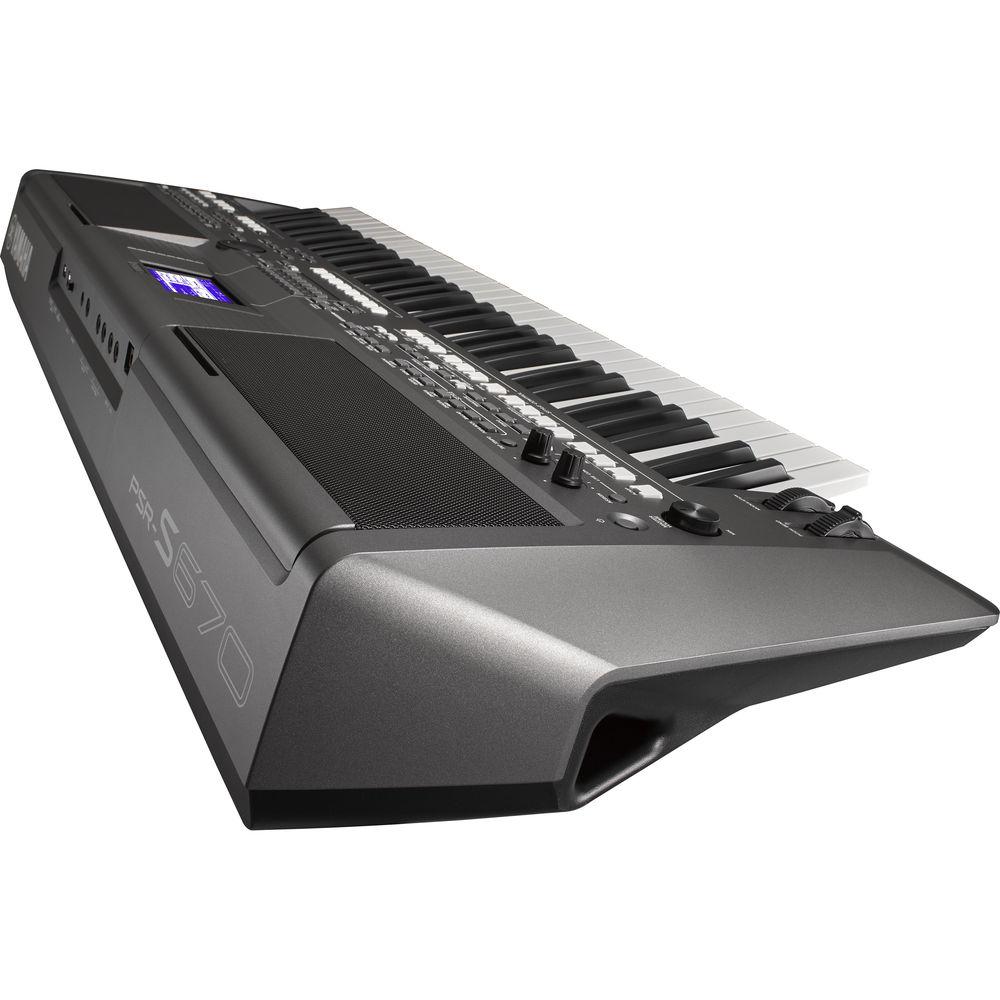

Product description Yamaha PSR Comparison Guide: Part 2 Read More The PSR-S670 from Yamaha is a more entry-level arranger workstation that combines a wide range of sounds together with powerful performance features. Covering a multitude of styles, the keyboard brings the experience of performing in a band to the solo keyboard player. Two assignable live controllers, a modulation wheel and two assignable foot-pedal inputs ensure total control over voices, styles, effects, and other functions during live performance.
A new DJ Styles concept features a collection of chord progressions that eliminate the need for continuous chord changes with the left hand. And to enhance practicing and performance, Yamaha Chord Tracker app for iPhone and iPad (sold separately) instantly identifies and extracts any chord sequence from an audio track stored on the keyboard. Sound expansion is available using the on-board expansion memory.
Audio data can be played back using the USB Audio Player, or triggered using the Audio Link Multi-Pad function, providing even more creative options. The unit also has an auxiliary input jack to connect an audio player, and a dedicated line output that makes it easy to use the keyboard with a PA system or audio interface. - 416 voices, including MegaVoices, 34 Drum/SFX kits, and 480 XG voices
- Authentic sampled sounds including acoustic and electric pianos, and electronic sounds perfect for today's dance music

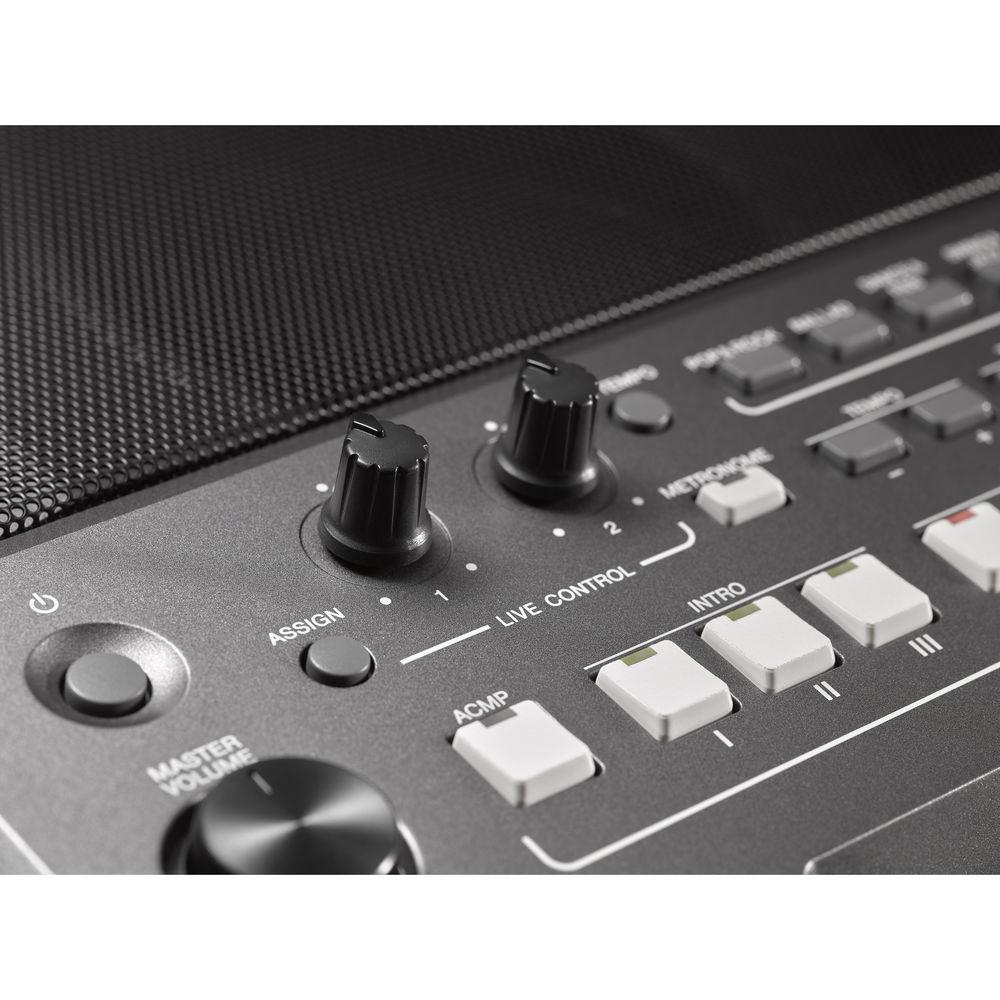

- Two live controllers for instant control over effects and other functions, including filter, arpeggio, and track mute
- 230 styles, including all-new DJ styles
- Arpeggio function for instant access to a library of arpeggiated synthesizer phrases, and more
- Authentic voices and styles from around the world
- Expansion Memory - add new Voices, drum kits and styles for extra versatility and enhanced performance
UPC: 086792997773 In the Box Yamaha PSR-S670 - Arranger Workstation External Power Supply Music Rest Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha PSR-S670 - Arranger Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha PSRS670 Specs | Control Interface | Keyboard
Keys: 61
Type: Organ, initial touch
Touch Response: Hard1, Hard2, Medium, Soft1, Soft2
Other Controllers
Pitch Bend
Modulation
2 x Assignable control knobs
Display
Type: QVGA 4.3 inch LCD
Size: 320 x 240 dots
Color: Monochrome
Language: English, German, French, Spanish, Italian, Japanese
Panel Languages: English | | Voices | Tone Generation: AWM Stereo Sampling
Polyphony: 128
Presets: 416 Voices + 34 Drum/SFX Kits + 480 XG Voices
Compatibility: XG, GS (for song playback), GM, GM2
Expandability: Approximately 32 MB maximum Expansion Voice
Part: Right 1, Right 2, Left | | Effects | Types
Reverb: 44 Presets + 3 Users
Chorus: 71 Presets + 3 Users
DSP: 283 Presets + 10 User
Master Compressor: 5 Presets + 2 User
Master EQ: 5 Presets + 2 User
Arpeggio | | Accompaniment Styles | Preset
Styles: 230
Fingering: Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control: 3 x Intro, 4 x Main Variation, 4 x Fill, Break, 3 x Ending
Other Features
Music Finder: 1,200 Records
One Touch Setting (OTS): 4 for each Style
Expandability
Expansion Style: Yes
Expansion Audio Style: Approximately 128 MB maximum
Compatibility
Style File Format, Style File Format GE | | Songs | Preset
4 Sample songs
Recording
Number of songs: Unlimited (dependent on drive capacity)
Tracks: 16
Data Capacity: Approximately 300 kB per song
Recording Function: Quick recording, multi recording, step recording
Compatible Data Format
Playback: SMF (Format 0 and 1), XF
Recording: SMF (Format 0) | | Multi Pads | Number of Preset Multi-Pad Banks: 179 banks x 4 pads
Audio Link | | Functions | Registration
Number of Buttons: 8
Control: Registration Sequence, Freeze
Lesson/Guide
Lesson/Guide: Guide Mode, Any Key, Karao-Key, Your Tempo
Demo/Help
Demonstration
Overall Controls
Metronome
Tempo Range: 5 to 500 BPM, tap tempo
Transpose: -12 to +12
Tuning: 414.8 - 440 - 466.8 Hz
Octave button
9 x Scale types
Miscellaneous
Direct Access
Voices
Harmony/Echo
Panel Sustain
Mono/Poly
Styles
Style Creator (no step edit)
Style Recommender
OTS Information
Songs
Song Creator
Score Display Function
Lyrics Display Function
Multi Pads
Multi-Pad Creator
Audio Recorder/Player
Maximum Recording Time: 80 minutes per song
Recording: WAV format 44.1 kHz sample rate, 16-bit resolution, stereo)
Playback: WAV format 44.1 kHz sample rate, 16-bit resolution, stereo) | | Storage and Connectivity | Storage
Internal Memory: Approximately 2 MB
External Drives: USB flash memory (via USB to Device)

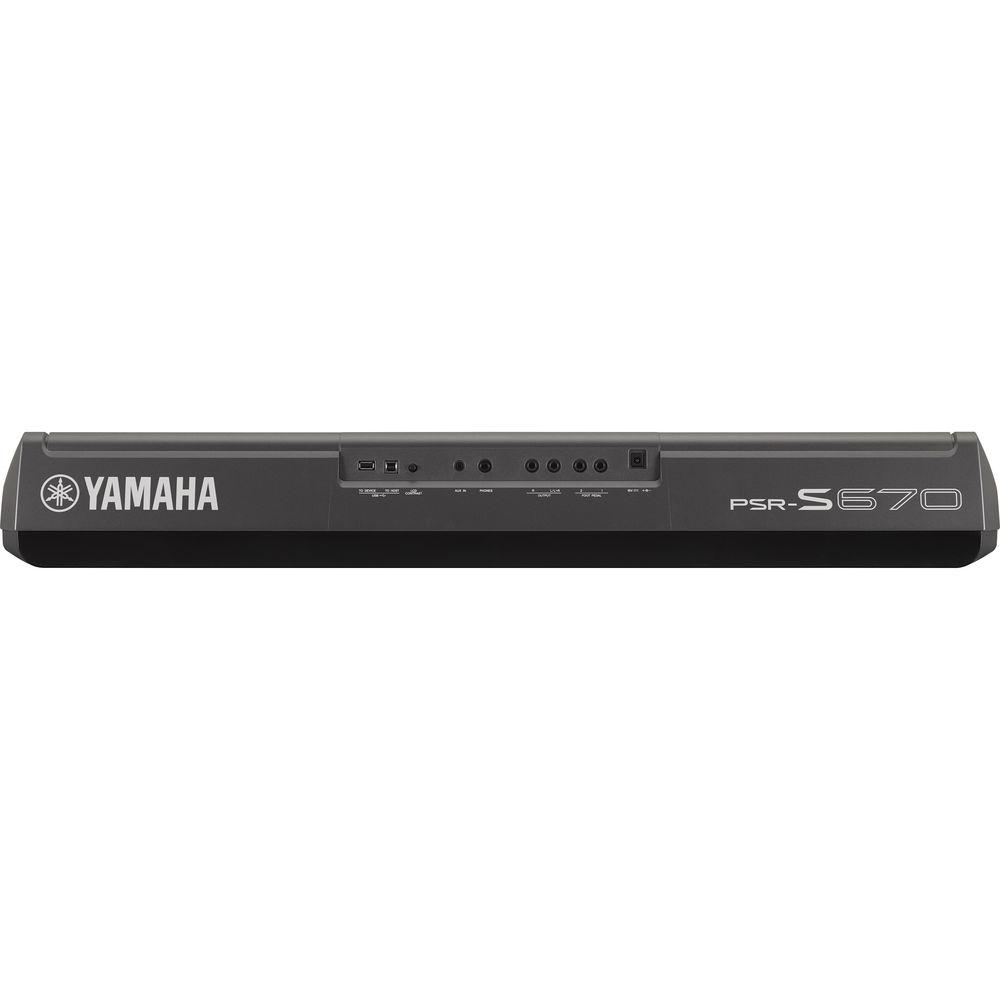

Connectivity
Headphones
Foot Pedal (1 Sustain, 2 Volume, Function Assignable)
AUX In stereo mini jack
L/L+R, R line-out
USB to Device
USB to Host | | Amplifiers and Speakers | Amplifiers: 2 x 15 W
Speakers: 2 x 4.7" (12 cm) | | Color / Finish | Metallic dark grey | | Power Requirements | PA-300C or equivalent
15 W power consumption
Auto Power Off function | | Dimensions (WxDxH) | 39.5 x 16.1 x 5.3" (1003 x 409 x 135 mm) | | Weight | 17.9 lb (8.1 kg) | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 43.0 x 20.5 x 9.0" |
