User Manual for Yamaha PSR-S775 Arranger Workstation Keyboard Click to enlarge the picture
Contents of the user manual for the Yamaha PSR-S775 Arranger Workstation Keyboard
- Product category: Arranger Keyboards Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Arranger Keyboards
 |
User manual for the Yamaha PSR-S775 Arranger Workstation Keyboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

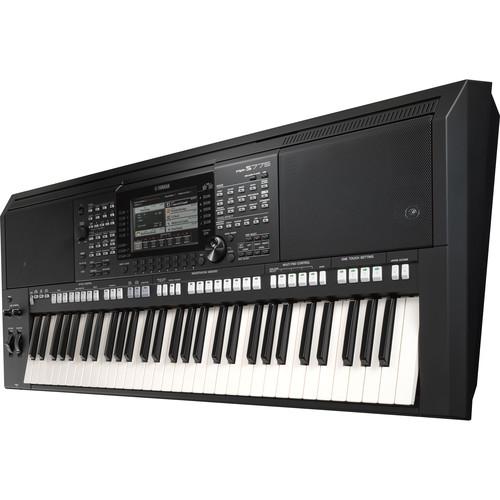

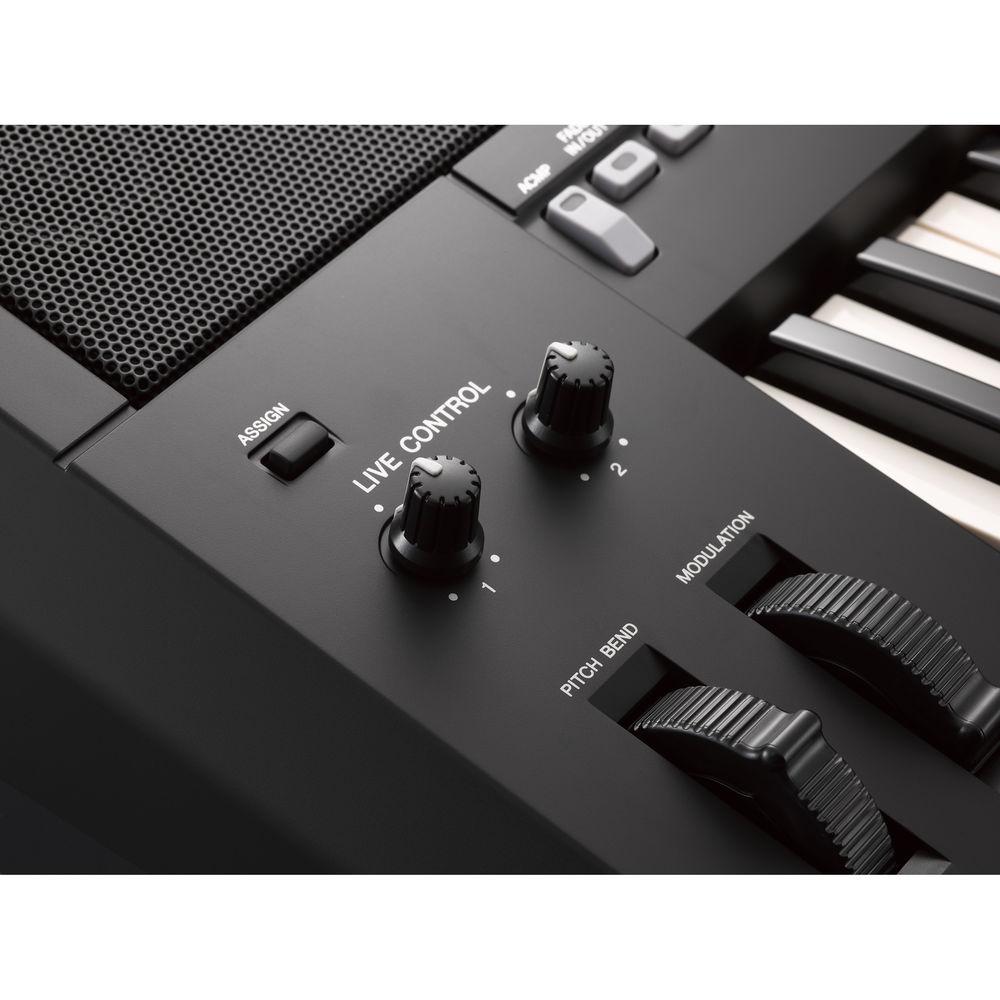

Product description Yamaha PSR Comparison Guide: Part 2 Read More rsdzzxztqvzsqbxawbrsqsc The Yamaha PSR-S775 is a 61-note arranger workstation keyboard that combines a wide range of sounds together with powerful performance features, providing the experience of performing in a band to the solo keyboard player. Two assignable live controllers, a modulation wheel and two assignable foot-pedal inputs ensure total control over voices, styles, effects, and other functions during live performance.
A new DJ Styles concept features a collection of chord progressions that eliminate the need for continuous chord changes with the left hand. And to enhance practicing and performance, the optional Yamaha Chord Tracker app for iPhone and iPad instantly identifies and extracts any chord sequence from an audio track stored on the keyboard. Sound expansion is available using the 280MB of on-board expansion memory.
The unit comes equipped with a microphone/guitar input that allows for adding vocals or guitar to a live performance. Plug in a microphone and assign any of the effects to the vocals. Or connect a guitar and adjust the parameters to suit. Whether enhancing a live performance with backing tracks from the music library, or livening up a party with some karaoke, the time stretch, pitch shift, and vocal cancel functions of the USB audio player will enhance any musical event. The Yamaha PSR-S775 includes a music rest and a power supply. -
- 1460 Voices, including Super Articulation voices and Organ flutes, 50 Drum/SFX kits, and 480 XG voices
- 433 Styles, including 30 Session Styles, 15 DJ styles and 1 Free Play
- Half bar fill-in and Mono legato function
- 280 MB on-board memory for expansion data
- Mic/Guitar input for use when singing or collaborating with other performers
- USB audio playback with time stretch, pitch shift, vocal cancel and MP3 lyrics display functions
UPC: 889025114752 In the Box Yamaha PSR-S775 Arranger Workstation Keyboard Music Rest Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha PSR-S775 Arranger Workstation Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha PSR-S775 Specs | Control Interface | Keyboard
Keys: 61
Type: Organ, initial touch
Touch Response: Hard1, Hard2, Medium, Soft1, Soft2
Other Controllers
Pitch Bend
Modulation
2 x Assignable control knobs
Display
Type: TFT Color Wide VGA LCD
Size: 7.0" / 17.8 cm
Language: English, German, French, Spanish, Italian
Panel Languages: English | | Voices | Tone Generation: AWM stereo sampling
Polyphony: 128
Presets: 930 voices + 50 drum/SFX kits + 480 XG Voices
Featured Voices: 76 S.Art, 23 Mega Voices, 28 Sweet Voices, 64 Cool Voices, 81 Live Voices, 20 Organ Flutes
Compatibility: XG, GS (for song playback), GM, GM2
Expandability: Approximately 280 MB maximum expansion voice with voice set editing
Part: Right 1, Right 2, Left | | Effects | Types
Reverb: 52 presets + 3 users
Chorus: 106 presets + 3 users
DSP: 295 presets (with VCM) + 10 user
Master Compressor: 5 presets + 2 user
Master EQ: 5 presets + 2 user
Part EQ: 27 parts
Mic/Guitar Effects: Noise Gate, Compressor, 3-Band EQ
Arpeggio | | Accompaniment Styles | Preset
Styles: 433
387 Pro Styles, 30 Session Styles, 15 DJ Styles, 1 Free Play
Fingering: Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control: 3 x Intro, 4 x Main Variation, 4 x Fill, Break, 3 x Ending
Other Features
Music Finder: 1,200 Records
One Touch Setting (OTS): 4 for each Style
Expandability
Expansion Style: Yes
Compatibility
Style File Format, Style File Format GE | | Songs | Preset
5 Sample songs
Recording
Number of songs: Unlimited (dependent on drive capacity)
Tracks: 16
Data Capacity: Approximately 300 kB per song
Recording Function: Quick recording, multi recording, step recording
Compatible Data Format
Playback: SMF (Format 0 and 1), XF
Recording: SMF (Format 0) | | Multi Pads | Number of Preset Multi-Pad Banks: 188 banks x 4 pads
Audio Link | | Functions | Registration
Number of Buttons: 8
Control: Registration Sequence, Freeze
Lesson/Guide
Lesson/Guide: Follow Lights, Any Key, Karao-Key, Your Tempo
Performance Assistant Technology (PAT): Yes
Demo/Help
Demonstration
Overall Controls
Metronome
Tempo Range: 5 to 500 BPM, tap tempo
Transpose: -12 to +12
Tuning: 414.8 - 440 - 466.8 Hz
Octave button
9 x Scale types
Miscellaneous
Direct access
Text display function
Wallpaper customization
Voices
Harmony/Echo (with arpeggio)
Panel Sustain
Mono/Poly
Voice information
Styles
Style Creator
Style Recommender
OTS Information
Songs
Song Creator
Score Display Function
Lyrics Display Function
Multi Pads
Multi-Pad creator
Audio Recorder/Player
Maximum Recording Time: 80 minutes per song
Recording: WAV format 44.1 kHz sample rate, 16-bit resolution, stereo)
Playback: WAV format 44.1 kHz sample rate, 16-bit resolution, stereo), mp3 (MPEG-1 Audio Layer-3 44.1/48 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo)
Time Stretch
Lyrics Display Function
Pitch Shift
Vocal Cancel | | Storage and Connectivity | Storage
Internal Memory: Approximately 13 MB
External Drives: USB flash memory (via USB to Device)
Connectivity
Headphones: 1 x 1/4" / 6.3 mm
Foot Pedal (1 Sustain, 2 Articulation, Function Assignable): 2 x 1/4" / 6.3 mm
1 x Microphone/Guitar In: 1/4" / 6.3 mm
MIDI In/Out: 2 x 5-pin DIN
AUX In stereo mini jack 1/8" / 3.5 mm
L/L+R, R Line-Out: 2 x 1/4" / 6.3 mm
USB to Device
USB to Host | | Amplifiers and Speakers | Amplifiers: 2 x 15 W
Speakers: 2 x 5.1" / 13 cm, 2 x 2" / 5 cm | | Power Requirements | PA-300C or equivalent
19 W power consumption
Auto Power Off function | | Dimensions (W × H × D) | 39.4 x 5.8 x 17.2" / 1002 x 148 x 437 mm | | Weight | 24.5 lb / 11.1 kg | | | | Package Weight | 36.25 lb | | Box Dimensions (LxWxH) | 46.0 x 21.0 x 9.0" |
