User Manual for Yamaha PX10 Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Yamaha PX10 Stereo Power Amplifier
- Product category: Power Amplifiers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Power Amplifiers
 |
User manual for the Yamaha PX10 Stereo Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

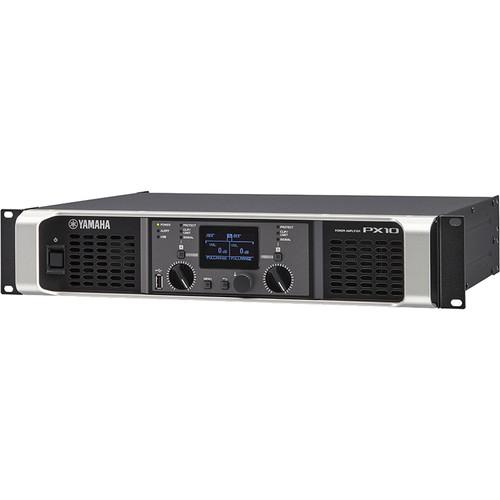

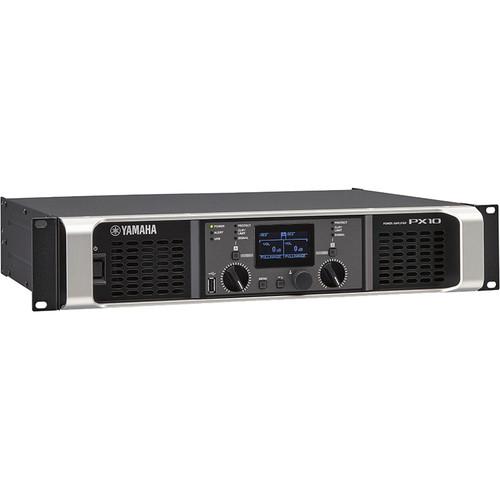

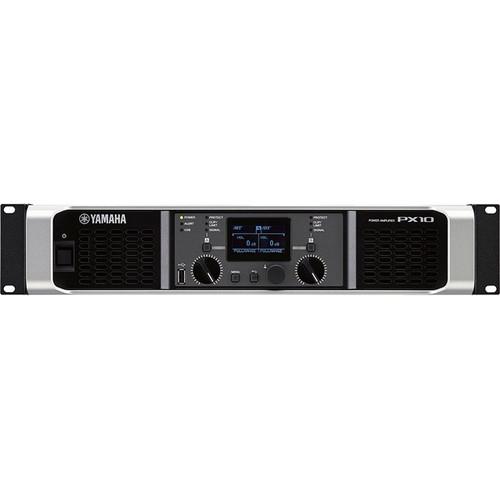

Product description The Yamaha PX10 Stereo Power Amplifier delivers 1000W at 8 Ohms in a lightweight chassis and is suitable for a wide variety of sound-reinforcement applications. Part of the company's PX Series of power amplifiers, it features a Class-D engine with a single custom LSI chip, and uses PLL technology for higher efficiency and lower noise. The on-board DSP functions include a PEQ, a delay, a crossover, and a limiter. They allow for detailed configuration of parameters such as input & output routing, input sensitivity, amp gain, and speaker impedance. The D-Control multi-band dynamic processor delivers a clear and consistent sound at any output level by shaping the frequency response of each speaker for either front-of-house or monitor configurations. The Configuration Wizard helps save time during setup by assigning optimized speaker settings that match your system configuration. It can be used in basic mode for quick setup or advanced mode for more precise control over DSP parameters. You can store up to eight presets, which can be saved to a USB drive for use with other amplifiers and setups. For secure operation, the panel-locking function ensures that your settings remain safe. With its sturdy frame and carrying handle, the PX10 is built to withstand extended road use. -
- Class-D amplifier engine with single custom LSI chip and PLL technology
- Configuration Wizard allows for configuration of the system by assigning optimized speaker settings which can be saved as presets
- Digital routing of inputs & output (dual, parallel, single & SUM)
- DSP functions include PEQ, crossover, filters, delay & limiter, accessed via an LCD display
- D-Contour multi-band dynamic processing shapes the frequency response of speakers for specific applications
- Basic mode for quick setup and Advanced mode for more precise control
- Flexible connectivity with XLR & 1/4" TRS inputs and binding post, SpeakON & 1/4" TS outputs
- Presets can be saved to USB drive for use with other amplifiers and setups
- Panel-locking function to keep settings safe
- Two 16-step variable-speed fans
- Lightweight chassis
UPC: 086792999890 In the Box Yamaha PX10 Stereo Power Amplifier (1000W at 8 Ohms) AC Power Cord USB Cap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha PX10 Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha PX10 Specs | Output Power | 1000 W per channel at 8 Ohms
1200 W per channel at 4 Ohms
700 W per channel at 2 Ohms | | Amplifier Type | Class-D, balanced output circuit (BLT) | | THD + N | 0.1% at 1 kHz, 10 W
0.3% at 1 kHz, half power | | Frequency Response | 20 Hz to 20 kHz, ±1.0 dB (1 W at 8 Ohms) | | Crosstalk | ≤ -60 dB | | S/N Ratio | 101 dB | | Voltage Gain / Sensitivity | At 8 Ohms, Maximum Volume:
32.0 dB / +9.3 dBu (Gain Setting: 32 dB)
26.0 dB / +15.3 dBu (Gain Setting: 26 dB)
37.3 dB / +4 dBu (Gain Setting: 4 dB)
27.3 dB / +14 dBu (Gain Setting: 14 dB) | | Cooling | 2 x 16-step variable-speed fan (front-to-rear flow) | | Maximum Input Voltage | +24 dBu | | Input Impedance | 20 kOhms (Balanced)
10 kOhms (Unbalanced) | | Sampling Frequency | 48 kHz | | Converters | A/D: 24-bit linear, 128 times over-sampling
D/A: 24-bit linear, 128 times over-sampling | | Signal Processing | - Input summing
- D-contour: FOH / MAIN
- Monitor
- OFF
- Delay: 0 to 74 ms
- HPF / LPF: cutoff frequency 20 Hz to 20 kHz with polarity control
- Speaker Processor: 6-band PEQ / limiter / delay

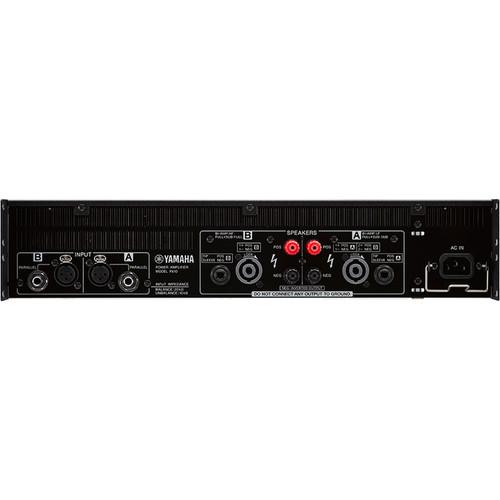

| | Latency | 1.5 ms (analog input to speaker) | | User Presets | 8 user presets | | Factory Presets | Speaker presets for Yamaha passive speakers | | Connectors | Analog Input
2 x XLR-3-31
2 x 1/4 TRS
Speakers
2 x Neutrik SpeakOn NL4
2 x pairs of binding posts
2 x 1/4" TS
1 x AC inlet with AC cord clamp
1 x USB 2.0 Type-A (female) | | Power Requirements | 120 VAC / 60 Hz | | Power Consumption | 310 W at 4 Ohms, 1/8 maximum power
60 W at 4 Ohms, Idle | | Operating Temperature | 32 to 104°F / 0 to +40°C | | Storage Temperature | -4 to 140°F / -20 to +60°C | | Dimensions (W × H × D) | 18.90 x 3.46 x 15.25" / 480 x 88 x 387.4 mm | | Weight | 16.31 lb / 7.4 kg | | | | Package Weight | 20.5 lb | | Box Dimensions (LxWxH) | 21.75 x 21.75 x 7.5" |
