Yamaha R-N803 Stereo Network Receiver

Search your instruction manual in PDF to download

User Manual for Yamaha R-N803 Stereo Network Receiver

Click to enlarge the picture
Yamaha R-N803 Stereo Network Receiver Contents of the user manual for the Yamaha R-N803 Stereo Network Receiver
  • Product category: Receivers Yamaha
  • Brand: Yamaha
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Yamaha Receivers

Yamaha R-N803 Stereo Network Receiver Yamaha R-N803 Stereo Network Receiver Yamaha R-N803 Stereo Network Receiver
User manual for the Yamaha R-N803 Stereo Network Receiver contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Yamaha product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!



Product description

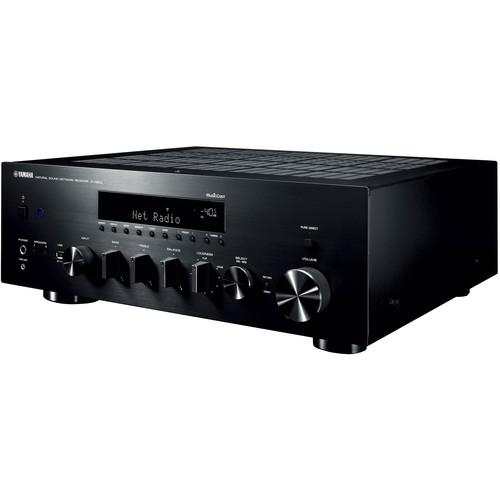

Enjoy music from a variety of sources with the Yamaha R-N803 Stereo Network Receiver. This 2-channel receiver produces up to 100W of RMS power per channel at 8 Ohms. Built-in AirPlay and Bluetooth allow you to wirelessly stream music from compatible audio sources such as computers, smartphones, and tablets. On-board Wi-Fi and Ethernet connectivity gives you the ability to stream music from Internet radio sources and use DLNA technology to share content with compatible networked devices. Furthermore, the free MusicCast app allows you to control the receiver from your favorite smart device.

In addition to the receiver's aforementioned wireless connectivity, the R-N803 has a coaxial, optical, four stereo RCA, and a phono input for connecting different types of audio sources. Its 1/4" headphone output enables private listening when connecting headphones. This receiver's integrated AM and FM tuners allow you to enjoy free over-the-air content. Note: Access to certain Internet-based content may require a subscription to a service.
    ToP-ART Design
  • The ToP-ART (Total Purity Audio Reproduction Technology) design of the R-N803 is engineered to faithfully preserve the integrity of the audio signals by combining a symmetrical left/right circuit layout and signal directness (straight, short signal paths), a rigid, low-vibration chassis, and an "Art Base" resin frame fashioned to absorb and block unnecessary vibration for enhanced sonic purity and accurate stereo imaging of the music.
    Low-Impedance, High-Power Amp
  • The R-N803 utilizes a high-power amp featuring a single push-pull structure using eight bipolar-type power transistors (four each for left and right) as its output terminals. Impedance is lowered by minimizing the lengths of the audio signal paths in the circuit design to achieve an enhanced drive power with a maximum output of 145W per channel.
    YPAO (Yamaha Parametric Room Acoustic Optimizer)
  • The R-N803 is equipped with YPAO technology, which is designed to measure the shape of the room, the material of the wall, and the position of the speaker, then automatically adjust the sound to create the appropriate response and sonic quality. Other YPAO functions are also available, including YPAO - Reflected Sound Control, which is designed to actively correct the early reflection sounds that influence sound quality, and YPAO Volume, engineered to apply high-precision EQ (equalization), with 192 kHz/64-bit operation for an enhanced listening environment. Additionally, after a scheduled future firmware update, you can control the YPAO feature and display the analysis results with the MusicCast app.
    Supports High-Resolution Music
  • The R-N803 is compatible with high-resolution sound sources, such as DSD 5.6 MHz native and AIFF, WAV, FLAC 192 kHz/24-bit, as well as Apple Lossless 96 kHz/24-bit files. It uses a SABRE 9006AS 192 kHz/24-bit DAC (from ESS Technology) to deliver enhanced S/N performance.
    Hi-Fi Everything
  • From your smartphone, networked audio, streaming services, or the TV, you'll enjoy Hi-Fi quality with enhances sonic integrity on everything you hear with the R-N803.
    Digital Audio Input for TV or Blu-ray Players
  • The R-N803 is equipped for digital audio with both optical and coaxial inputs. The optical is for receiving audio from a display, and the coaxial is for receiving audio from a Blu-ray player. The audio stays in the digital domain, helping to provide pure, dynamic sound for all your entertainment sources.
    Vinyl-Ready
  • Enjoy playback of your vinyl records by plugging your turntable into the phono input of the R-N803.
    Fingertip Control
  • Tap, swipe, and control your music with the free MusicCast app, which can also control other optional MusicCast devices.
    Additional Features
    • 505.2 VA power transformer with 12,000uF/71 V block capacitors
    • Pure Direct Mode for enhanced sound purity
    • Compatible with popular music streaming services, including Spotify, TIDAL, and Deezer
    • Trigger control
    • Gapless playback compatibility
    • Energy-saving design for low power consumption
UPC: 027108955889 In the Box Yamaha R-N803 Stereo Network Receiver

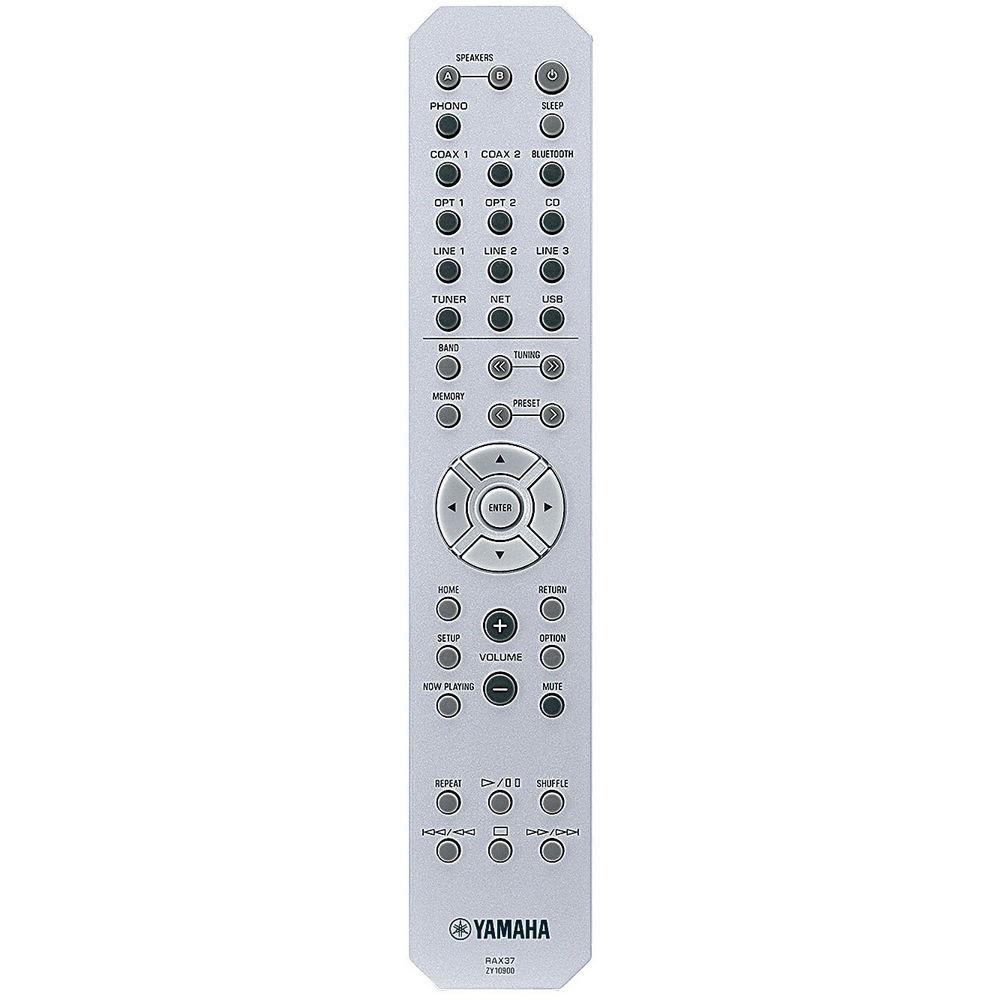

  • Remote Control with Batteries

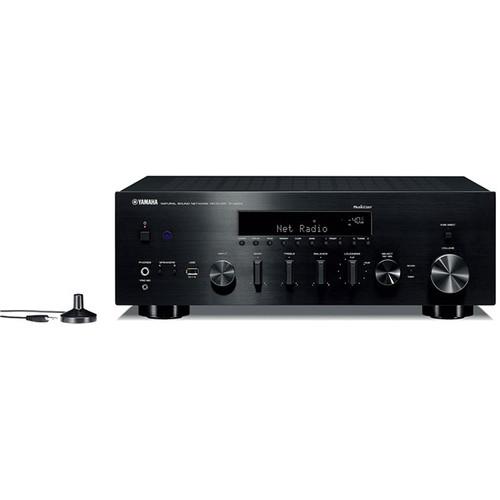

  • YPAO Microphone
  • FM Antenna Cord
  • AM Antenna Cord
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Yamaha R-N803 Stereo Network Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the Yamaha R-N803 Stereo Network Receiver can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Yamaha R-N803 Stereo Network ReceiverDownload PDF User Manual - https://www.search-manual.com/ upload/ yamaha-r-n803-stereo-network-receiver-290163-user-manual.pdf
    (PDF file, 1.88 MB)


    Technical parameters

    Yamaha R-N803BL Specs

    RMS Power Output Minimum RMS: 100 W x 2 @ 8 Ohms, 20 Hz to 20 kHz, 0.019% THD
    Maximum Output Power 145 W x 2 @ 8 Ohms, 1 kHz, 10% THD
    Dynamic Power per Channel At 8/6/4/2 Ohms: 140/170/220/290 W per channel
    Damping Factor (8 Ω) A Speakers, @ 1 kHz: ≥240
    Tuner Type AM/FM
    Wireless Connectivity Wi-Fi with Wireless Direct
    DLNA version 1.5 (DMR)
    Apple AirPlay
    Bluetooth version 2.1 + EDR, A2DP, AVRCP, SBC/AAC (receiving only)
    Supported File Formats MP3, WMA, MPEG4 AAC 48 kHz / 320 kbps, WAV, FLAC, AIFF 192 kHz / 24-bit, ALAC 96 kHz / 24-bit, DSD 2.8 / 5.6 MHz

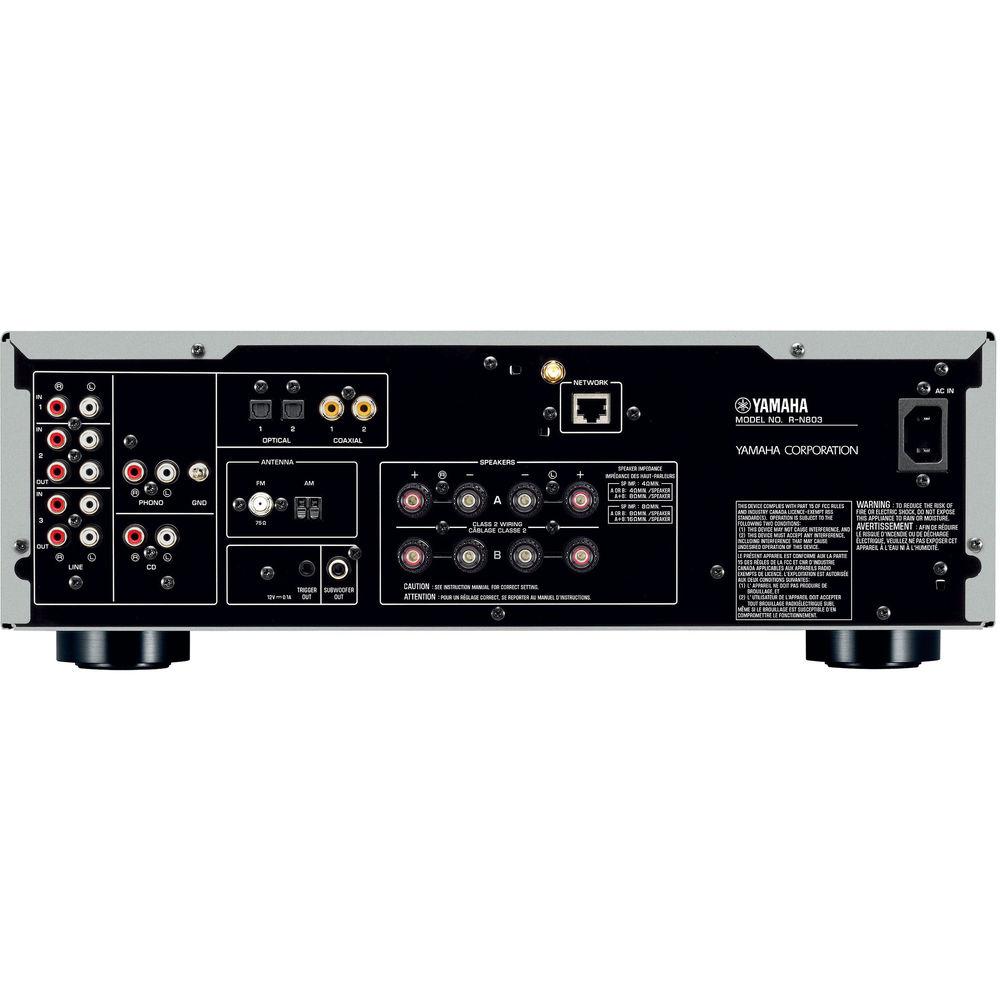

    Inputs 2 x optical TOSLINK
    2 x digital coaxial
    1 x stereo RCA phono with ground screw
    4 x stereo RCA
    1 x USB (front)
    Outputs 2 x stereo RCA
    1 x 1/4" (6.35 mm) headphone (front)
    Other Connectors 1 x Ethernet LAN
    1 x FM antenna
    1 x AM antenna
    1 x mono RCA subwoofer out
    1 x trigger out
    Speaker Connectors 2 (L/R)
    Standby Power Consumption 0.1 W
    Wired/Wi-Fi/Bluetooth, Network Standby On: 1.8 W
    Wireless Direct, Network Standby On: 1.9 W
    Dimensions (W x H x D) Without Antenna: 17.125 x 6 x 15.44" (43.5 x 15.24 x 39.21 cm)
    With Antenna Up: 17.125 x 8.5 x 15.44" (43.5 x 21.59 x 39.21 cm)
    Weight 24.3 lb (11.02 kg)
    Package Weight 29.8 lb
    Box Dimensions (LxWxH) 21.0 x 18.0 x 8.5"
