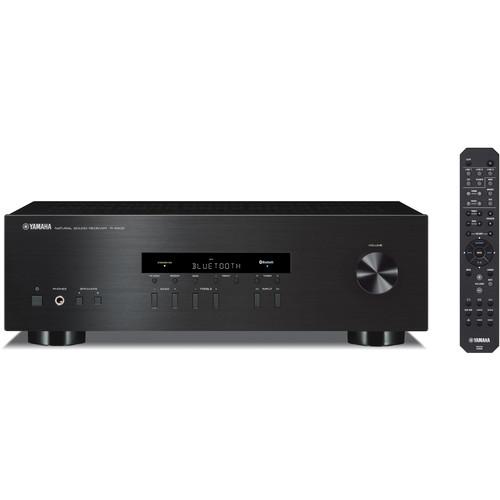

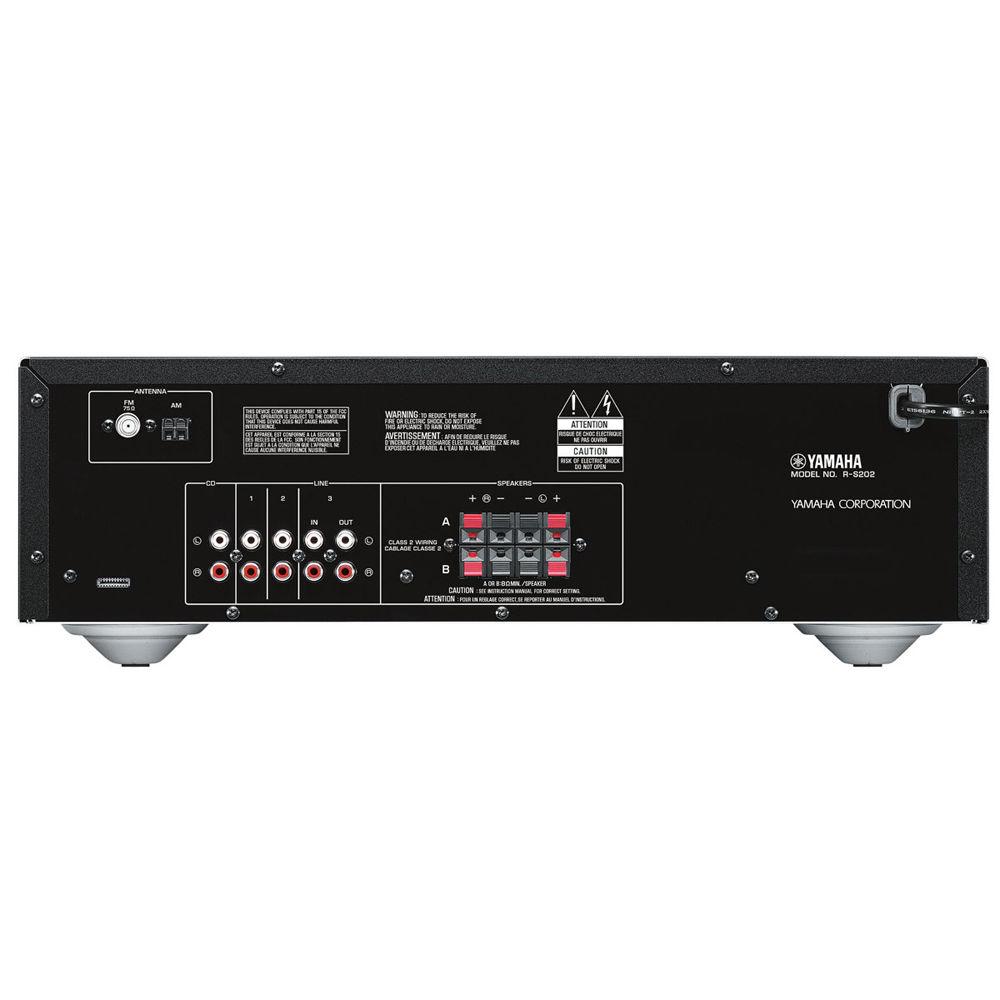

Product description Optimized for stereo sound with simple connectivity, the black Yamaha R-S202 Stereo Receiver features four stereo RCA inputs, one stereo RCA output for recording to an external device like a CD recorder, and a 1/4" headphone output. Its only other wired connections are the speaker outputs, which will allow you to set up two pairs of speakers in an A/B configuration. This will enable you to have either pair active, or both pairs active at the same time. It has Bluetooth built in for wireless streaming from smartphones, tablets, and more. The receiver outputs up to 100W per channel at 8 Ohms and includes an IR remote control - 100W Per Channel Output Power, Optimized Circuit Design
- Along with two 100W (8 Ohm, 40 Hz to 20 kHz, 0.2% THD) channels, the R-S201 Receiver offers a design that minimizes the length of signal routes and optimizes the circuit layout. Positioning the power transformer near the power amplifier circuit reduces power loss while improving peak power supply capacity to enable high volume output. The signal ground and power supply ground are connected at one point, eliminating mutual interference to achieve a higher S/N ratio. The result is sound with enhanced clarity.

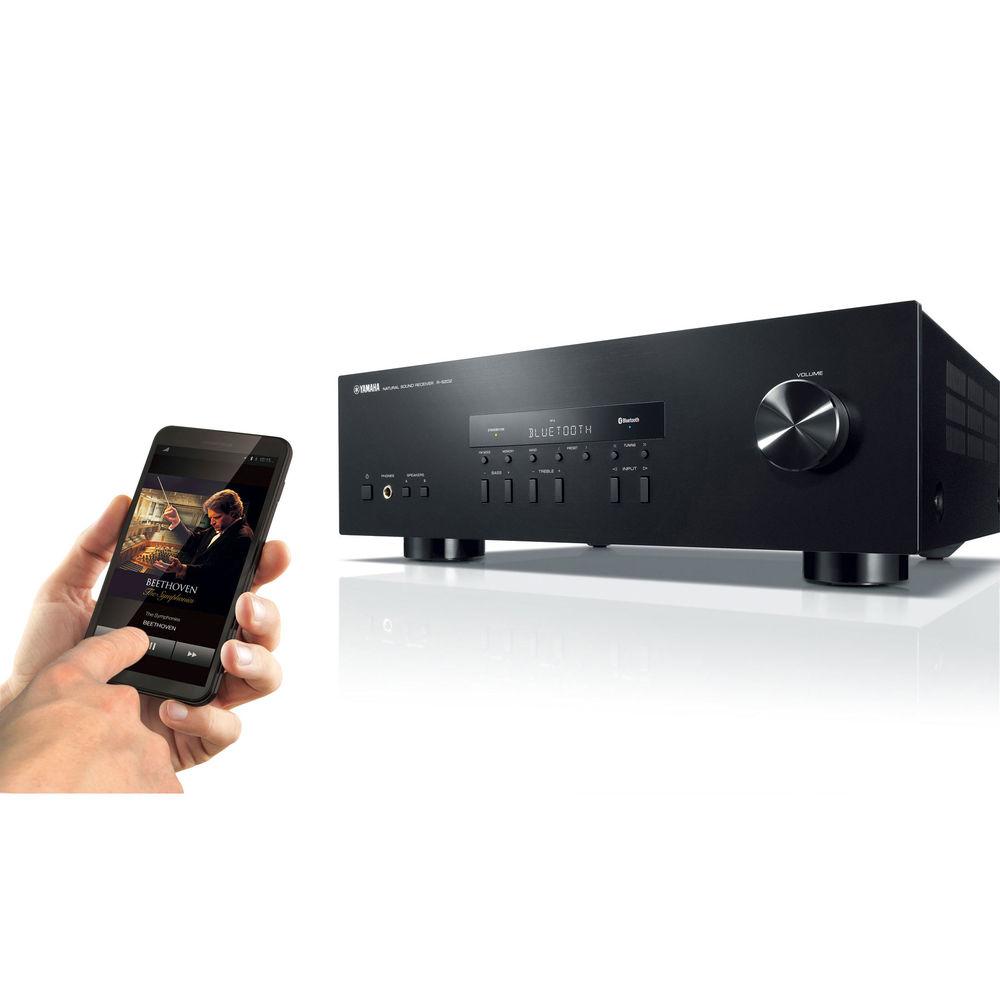

- Bluetooth Streaming Music Services
- The R-S202 provides Bluetooth functionality to let you enjoy streaming music from smartphones and other devices. Use your device to select the songs from your library and enjoy.
- 40-Station AM/FM Preset Tuning
- You can store a total of up to 40 AM and FM stations, then select the station from either the receiver or the remote control. The Auto Preset feature lets you automatically search for and store FM stations within range. Frequencies appear on the display, so even when you want to listen to a new station, you can easily tune to its frequency.
- Natural Sound Reproduction
- The R-S201 Receiver is based on the concept of Natural Sound for reproducing music as it originally sounded.
- Power Saving
- A power management function automatically switches to standby mode when the receiver has not been operated for a long time. It can be set to 2, 4, 8, or 12 hours, or turned off. In addition, the receiver consumes 0.5W in standby mode, offering energy-saving performance.
- Speaker Selector and Speaker Terminals for 2 Systems
- Equipped with speaker terminals for 2 systems, the built-in speaker selector makes it easy to switch between speaker outputs, allowing you to hear the sound from one speaker system (A or B) or from both (A and B).
- Simple Design
- The R-S201 Receiver features a simple design with minimal connections, buttons, and knobs.
- Additional Features
-
- Simplified remote control layout
- Headphone terminal
UPC: 027108954103 In the Box Yamaha R-S202 Stereo Receiver with Bluetooth (Black) Remote Control Limited 2-Year Warranty Manual PDF 460.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha R-S202 Stereo Receiver with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha R-S202 Specs | | | Rated Output Power | 100 W per channel @ 8 Ohms, 40 Hz to 20 kHz, 0.2% THD | | Maximum Output Power | 115 W per channel @ 4 Ohms, 1 kHz, 0.7% THD
JEITA: 140 W per channel @ 8 Ohms, 1 kHz, 10% THD | | Dynamic Power per Channel | 125 W @ 8 Ohms
150 W @ 6 Ohms
165 W @ 4 Ohms
180 W @ 2 Ohms | | Input Sensitivity/Impedance | From CD: 500 mV / 47 kOhms | | Frequency Response | 20 Hz to 20 kHz: 0 ± 0.5 dB
10 Hz to 100 kHz: 0 ± 3.0 dB | | Total Harmonic Distortion | From CD: 20 Hz to 20 kHz, 50 W, 8 Ohms: ≤0.2% | | Signal to Noise Ratio | From CD, IHF-A Network, 500 mV Input Shorted: 100 dB | | | | 50dB Quieting Sensitivity | IHF, 1 kHz, 100% MOD, Mono: 3 μV (20.8 dBf) | | Signal to Noise Ratio | Mono: 71 dB
Stereo: 70 dB | | Number of Presets | 40 | | | | Inputs | 4 x Stereo RCA jacks
1 x AM antenna
1 x FM antenna | | Outputs | 1 x Stereo RCA jack
4 x Spring-clip speaker outputs (L/R, A/B)
1 x 1/4" Headphone jack (front) | | A/B Speaker Selection | A, B, A+B | | Wireless | Bluetooth version 4.1 + EDR | | Bluetooth Profile Support | A2DP, AVRCP | | Bluetooth Codecs | SBC, AAC | | | | Standby Power Consumption | 0.5 W | | Dimensions (W x H x D) | 17.1 x 5.0 x 12.3" (435.00 x 141.00 x 322.00 mm) | | Weight | 14.8 lb (6.7 kg) | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 19.0 x 15.0 x 8.0" |
