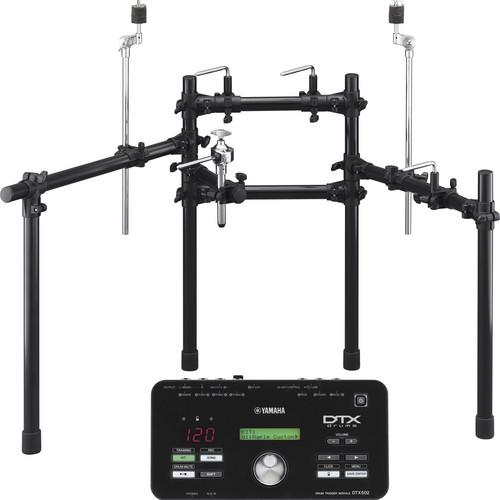

Product description The Yamaha Rack System and Drum Module For DTX522/32/62K Electronic Drum Kits provides you with the basis for assembling a Yamaha DTX electronic drum kit. The system consists of a RS502 steel drum rack and a DTX502 electronic drum kit trigger module. With these two components as a start, you can then attach a set of DTX electronic drum kit pads, or a custom combination of different pads to your liking. The pads attach to the steel drum rack using the included clamps. The pads then plug into the trigger module which allows you to select or import the samples you would like to use with the kit. - Yamaha RS502 Rack System For DTX22K, DTX32K, DTX42K, DTX62K Drum Kits The Yamaha RS502 Rack System For DTX22K, DTX32K, DTX42K, DTX62K Drum Kits is a 1.0 mm steel-pipe drum rack for attaching DTX series drum pads and assembling a DTX kit. The kit comes partially assembled and utilizes 2 wing bolts to attach the drum components to the rack. UPC: 086792973067

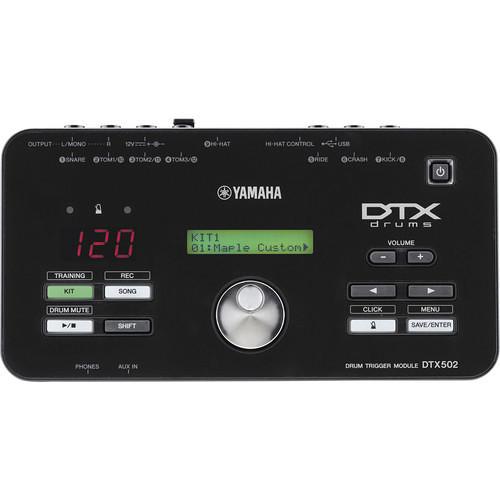

- DTX502 Electronic Drum Trigger Module for DTX522/32/42/62K Drum Kits The Yamaha DTX502 Electronic Drum Trigger Module for DTX522/32/42/62K Drum Kits provides you with the necessary connections, tools, and sound library for controlling the electronic drum pads of a Yamaha DTX522K, DTX532K, DTX542K, or DTX562K electronic drum kit. The module contains over 250 sounds, which is approximately twice that of the previous version. Additionally, you can import your own audio and MIDI samples for a high level of customization. The trigger module is tuned using a laser analysis of different drum strokes to produce a more natural playing experience.
For practice, the unit comes included with eight pre-programmed routines that help you improve your rhythm, timing, accuracy, and endurance. After each routine the system provides you with a score to help you keep track of your progress over time. You can also use the trigger module and your preferred electronic drum pads with an acoustic kit to create a hybrid acoustic-electronic kit. You can mount the drum trigger module to your acoustic hardware using a standard multi-clamp. UPC: 086792972602 In the Box Bundle Items Yamaha RS502 Rack System For DTX22K, DTX32K, DTX42K, DTX62K Drum Kits eczaeddqvvtwrcdzxrcsdw DTX502 Electronic Drum Trigger Module for DTX522/32/42/62K Drum Kits - PA130 - AC Power Adapter for Entry-Level Portable Keyboards
- 2 x Fastening Screws for Module Holder
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha Rack System and Drum Module For DTX522 32 62K Electronic Drum Kits in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Yamaha RS502 Rack System For DTX22K, DTX32K, DTX42K, DTX62K Drum Kits
| Pipe Material | Steel | | Pipe Dimensions | 1.0 mm diameter | | Dimensions (W x D x H) | 44.0 x 40.0 x 44.0" (112 x 102 x 112 cm) | | Weight | Not specified by the manufacturer | | | | Box Dimensions (LxWxH) | 46.5 x 21.7 x 6.7" | - DTX502 Electronic Drum Trigger Module for DTX522/32/42/62K Drum Kits
| | | Polyphony | 32 notes | | Voices | Drum and percussion: 691
Melodies: 128 | | Effects | Reverb: 9
Master EQ: 2 bands | | Drum Kits | Preset: 50
User: 50
Total memory capacity: 1 MB | | | | Notes | Capacity: Approximately 104,000 notes
Total memory capacity of 1 MB | | Resolution | 96 ppq (parts per quarter note) | | Recording type | Real-time replace | | Tracks | 1 track | | Songs | Demo: 1
Practice: 37
Pad: 22
User: 40 | | Sequencing | Proprietary, SMF format 0/1 | | | | Tempo | 30 to 300 BPM
Tap Tempo supported | | Beat | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 | | Timing | Accent, Quarter note, Eighth note, Sixteenth note, Triplet | | Modes | Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fat Blast | | Connectors | OUTPUT [L/MONO] (Standard mono phone)
OUTPUT [R] (Standard mono phone)
Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch)
Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger)
HI-HAT CONTROL (Standard stereo phone)
AUX IN (Stereo Mini)
PHONES (Standard stereo phone)
USB TO HOST | | | | Samples | 20 waves (maximum) | | Data Bits | 16 bits | | Sampling Time | Mono and Stereo: 44.1 kHz, 12 seconds (mono) | | Formats | WAV, AIFF | | | | Dimensions (W x H x D) | 9.88 x 5.12 x 1.89" (251 x 130 x 48.0 mm) | | Weight | 1.34 lb (.60 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 8.8 x 5.2" |
