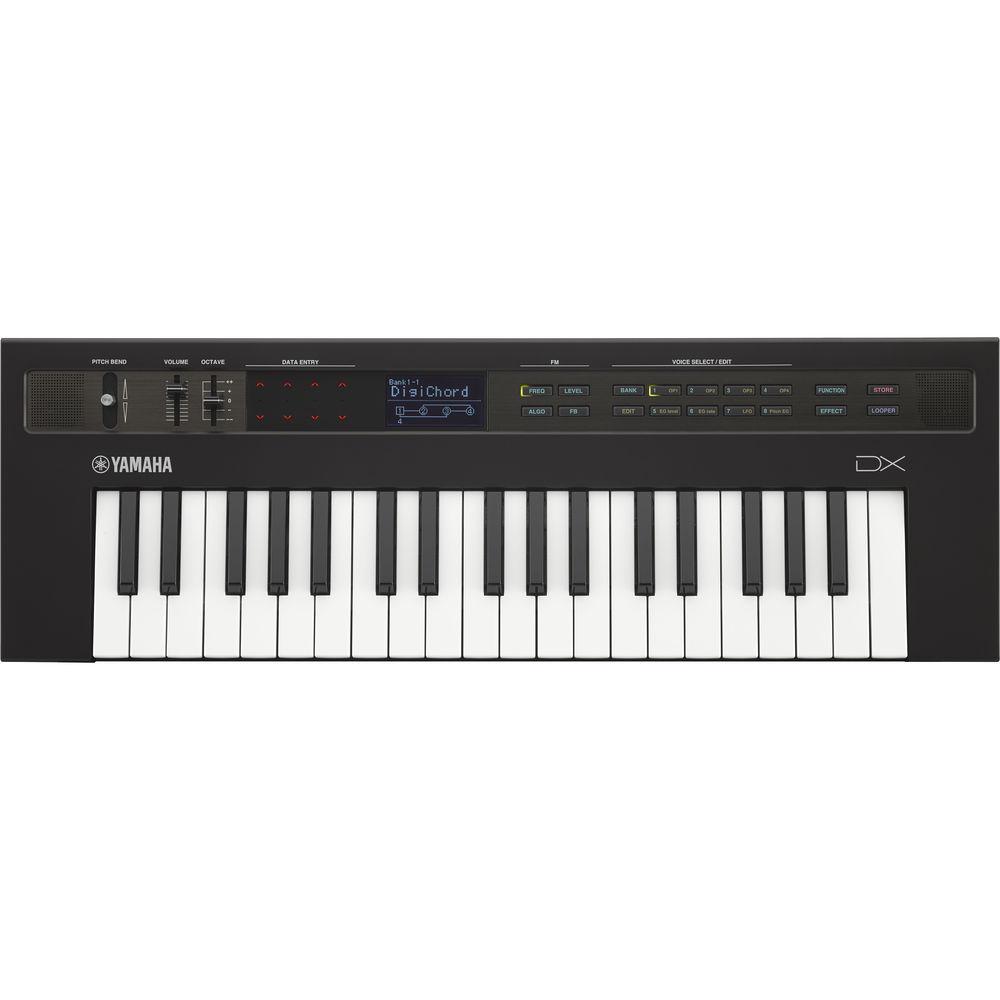

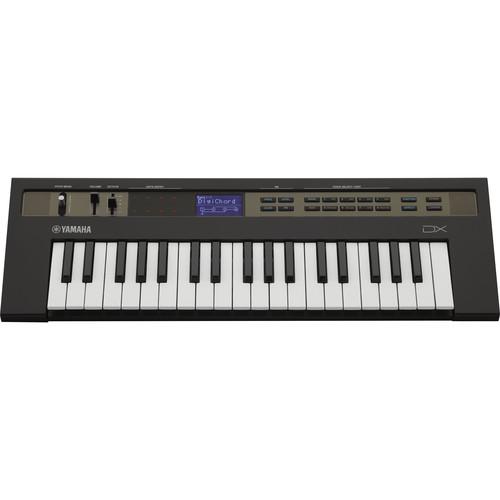

Product description - Quick Listen: Yamaha Reface DX
The Reface DX from Yamaha is a frequency modulation synthesizer offering simple controls and complex sounds in a small size. Based on the DX-7 synthesizer, the DX is a re-imagined interface providing 8-note polyphony with four operators and twelve algorithms that capable of creating a variety of sounds from retro 80's to modern EDM.
The DX's front panel offers a display screen and a multi-touch control interface to access functions, making sound design and exploration fast and easy. The operator section offers four operators arranged with twelve algorithms allowing various combinations of carriers and modulators. Full editing is available within the system menu allowing access to modes, frequency, and detune. Additional parameters include level controls, velocity sensitivity, feedback, and keyboard scaling rate. The envelope generators feature the classic attack, decay, sustain, and release (ADSR) controls. An envelope sets volume levels for carriers, while modulators offer a degree of modulation. The LFO or low-frequency oscillators offer seven waveforms which can modulate any of the operators. There is also a pitch envelope which changes the operator's pitch over time.
Additional features include a pitch-bend lever, built in stereo speakers, a dedicated volume control, an octave slider, and a looper section which operates a phrase looper for recording and playing back multiple, overlaid loop phrases. On-board effects include distortion, touch wah, chorus, flange, phaser, delay, and reverb with additional controls for depth and time. The DX can be switched between mono and poly and offers portamento or glide.
The miniature 37-note keyboard utilizes the same High Quality (HQ) technology as Yamaha's flagship Motif XF workstation keyboard, offering a premium feel and fast response for accurate and natural playing. The DX can be powered by six "AA" batteries and offers a foot control connection for a sustain pedal.

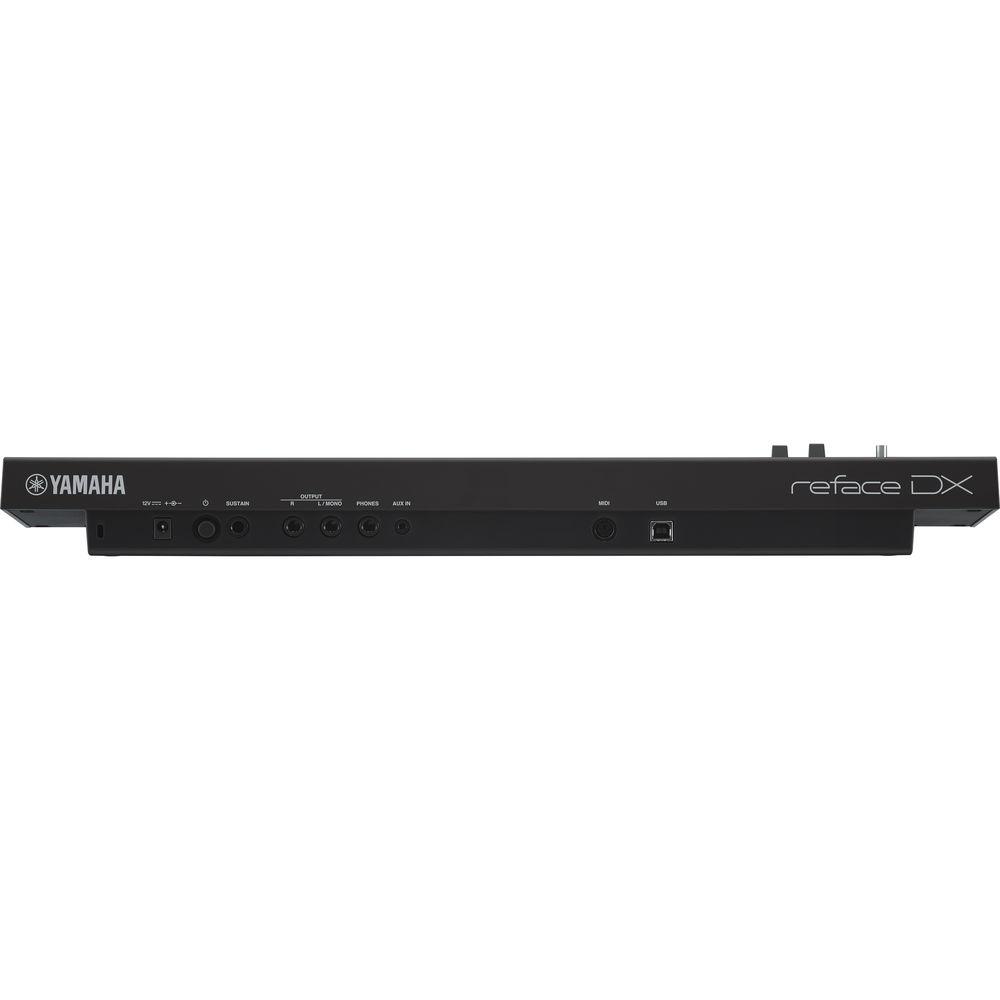

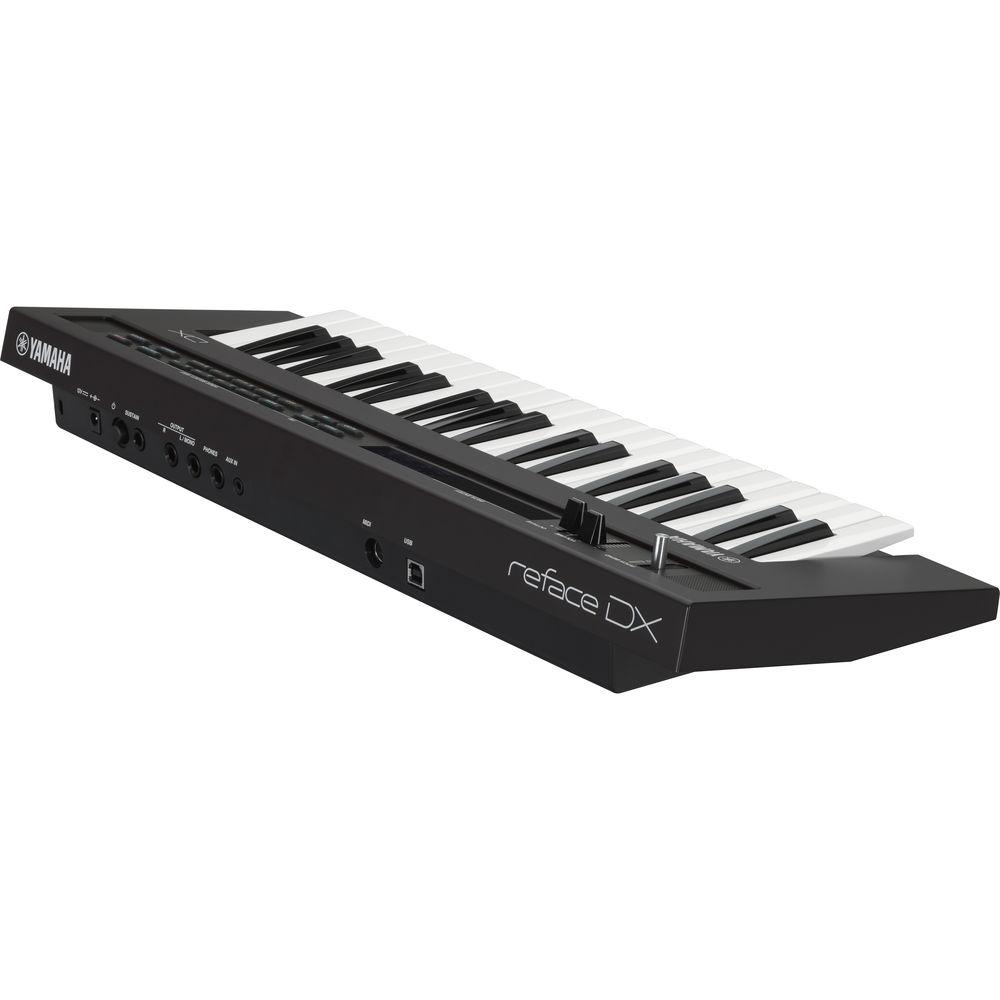

Other connections include two unbalanced 1/4" / 6.35mm outputs, a stereo 1/4" / 6.35mm headphone output, a stereo mini TRS 1/8" / 3.5mm input, and a mini-DIN connector providing MIDI in and out. Additionally, a USB connection is offered for connecting the instrument to a computer or iOS device. There are 32 on-board preset memories and an iOS app is available to work as a librarian with parameters responding to MIDI CC controller data. The DX synthesizer ships with a power adapter and a MIDI breakout cable. - Sound
-
- 4-operator FM sound engine offers dynamic and expressive additive synthesis
- Sound engine offers continuously variable feedback on every operator allowing for a wide-range of sound creation
- Two programmable effects blocks with seven effect types per block including: VCM Touch Wah, VCM Flanger, VCM Phaser, Chorus, Delay, Reverb and Distortion
- Multi-touch control interface offers direct access to four simultaneous parameters
- Control
-
- Keyboard: Based on the FS action found on the flagship Motif XF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing
- Integrated Phrase Looper: Capture song ideas or just jam
- Sustain pedal
- Mobility and Connectivity
-
- Speakers: 2W 1.2" / 3.0 cm stereo speaker system lets you play any place, any time
- Specially designed bass reflex port technology enhances bass response for full, rich sound
- Battery Powered: Uses six "AA" batteries with five hours of life
- USB: USB "To Host" allows MIDI connectivity to your USB-equipped computer or iOS device
- Audio Output: Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more
- Audio Input: A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument
- Soundmondo
-
- Soundmondo is a free sound sharing community that lets you discover, create and share reface Voices and Set Lists using Google Chrome any place, any time you're online
- Powered by Web MIDI, Soundmondo is simple to use - just connect reface to Chrome and you're ready to create or start browsing
UPC: 086792999531 In the Box Yamaha Reface DX - Mobile Mini-Digital FM Synthesizer PA130 - AC Power Adapter for Entry-Level Portable Keyboards MIDI Breakout Cable (Mini-DIN to MIDI In/Out) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha Reface DX - Mobile Mini-Digital FM Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha REFACE DX Specs | | | Number of Keys | 37 | | Type | Mini keys | | Touch | Initial Touch: Yes | | | | Tone Generating Technology | FM - Frequency Modulation | | Polyphony | 8 | | | | Voice Type | Number of Types: 12 (Algorithms) | | Number of Voices | 32 | | Effects | Distortion
Touch Wah
Chorus
Flanger
Phaser
Delay
Reverb | | | | Display Type | Full Dot LCD: 128 x 64 dots | | | | DC In | DC In: 12 VDC jack | | Headphones | Phones: Stereo TRS 1/4" / 6.35 mm | | Output | Output L/Mono: Unbalanced TS 1/4" / 6.35 mm Output R: Unbalanced TS 1/4" / 6.35 mm | | Pedal Type | Sustain | | AUX Input | Mini-stereo TRS 1/8" / 3.5 mm | | USB | USB to Host | | MIDI | Mini-DIN In/Out | | | | Amplifier | 2x 2 W | | Speakers | 2x 1.2" / 3.0 cm | | | | Power Adapter | 12 VDC: PA-130 or equivalent recommended by Yamaha | | Battery | 6x AA size batteries or Ni-MH rechargeable batteries | | Power Consumption | 6 W (When using PA-130 power adapter) | | Auto Power Off | Yes | | | | Dimensions (W x D x H) | 20.9 x 6.9 x 2.4" / 53.0 x 17.5 x 6.0 cm | | Weight | 4.2 lb / 1.9 kg (without batteries) | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 29.134 x 9.134 x 4.016" |
