Product description

MusicCast
• MusicCast allows you to access your music wirelessly in multiple rooms of your home and use the free app to control the system from your smart devices. This receiver allows you to connect additional MusicCast-enabled components such as speakers, soundbars, or Hi-Fi components in other rooms wirelessly.

Access Your Content
• MusicCast allows you to access your digital music library, streaming music services, and Internet radio, as well as Bluetooth sources, your TV sound, and external sources attached to your A/V receiver, such as a Blu-ray Disc or CD player.

4K Ultra HD Pass-Through with HDCP 2.2
• This A/V receiver provides advanced HDMI features, including pass-through of 4K Ultra HD at 60 fps. You can enjoy the high-definition video quality of 4K without degradation, along with HDCP 2.2 copyright compliance, a standard for 4K video transmission.

HDMI with 3D and Audio Return Channel
• The RX-S601 supports 3D video signals. Additionally, the Audio Return Channel function enables audio to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable.

HDMI CEC for Easy Operation
• When the unit is connected to a CEC-compatible TV, it will turn on and off together with the TV, and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote unit to control player functions like skip and stop. All connected devices must be HDMI CEC compatible. Some CEC-compatible TVs / players may not be compatible.

Network Functions
• This A/V receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the A/V receiver to a Mac or Windows PC with WebBrowser Control and have two-way control of Internet radio, Pandora, and Spotify. The AV Controller App (from iTunes or Google Play) lets you control various functions from your iPod, iPhone, iPad or Android phones/tablets.

Built-In Wi-Fi and Wireless Direct
• Built-in Wi-Fi allows for a wireless connection with your wireless router, simplifying system connections for enjoying networked audio (PC/NAS) and music streaming services. If a Wi-Fi router is not available, the Wireless Direct feature not only allows you to stream music directly from your smartphone or tablet via the AV Controller App, AirPlay etc., but also allows for control of the A/V receiver as well.

Apple AirPlay Connectivity
• This A/V receiver supports AirPlay, which means it supports wireless music streaming from an iPod touch, iPhone, or iPad, as well as from iTunes on a Mac or Windows PC. This makes it easy to enjoy music from your mobile devices or computer on your home theater system. You can view metadata such as song title, artist name as well as album art inside the receiver's on-screen display.

Stream Millions of Songs with Spotify Connect
• With the Spotify app on your smartphone, you have instant access to millions of songs. You can stream those songs to your networked Yamaha A/V receiver by using Spotify Connect. Just hit play to start streaming music. When you listen to Spotify outside on your smartphone or tablet and come inside, the song immediately streams to your Yamaha A/V receiver, without interruption to music playback. You can also personalize playlists and receive phone calls while listening to music on Spotify. The Spotify app and premium account are required.

Extensive Audio Codec and Format Support
• This A/V receiver is compatible with many audio formats such as Dolby TrueHD and DTS-HD Master Audio. It is also compatible with high-resolution audio codecs such as DSD, AIFF, FLAC, WAV, and Apple Lossless. You can enjoy these codecs from sources connected to the receiver's USB or from network-connected devices.

AV Controller App
• This A/V receiver lets you use the Yamaha AV Controller App that is downloadable from iTunes, Google Play, or the Amazon Appstore to control the power, volume, input selections, DSP modes, and more from an iPhone or Android device. You can also use as many as 23 different languages and customize the interface by hiding unused icons and renaming functions. A tablet version is also available.

DSP Parameter Adjustment
• This A/V receiver is equipped with a variety of sound programs that utilize original DSP technologies from Yamaha. These sound programs allow you to create sound fields like actual movie theaters or concert halls in your room to enjoy natural stereoscopic sound fields. Use the AV Controller App to adjust the DSP parameters in a basic or advanced mode to match the mood of your favorite movie or music album. Basic mode adjusts the sound space by pinching in and out. The advanced mode allows detailed adjustments of various parameters, such as reverb, initial delay, and liveliness.

USB Digital Connection for iPod and iPhone on the Front Panel
• A USB port on the front panel allows convenient connection of an iPod or iPhone, which also charges the iOS device when connected. Because the digital signal from the iPod and iPhone is transmitted directly to the A/V receiver, there is no signal loss or interference. In addition, you can use the receiver's remote control unit to operate the iPod and iPhone for basic playback control.

Compressed Music Enhancer
• When music is encoded into a digitally compressed format like MP3, the frequency response is compromised. Yamaha's Compressed Music Enhancer employs advanced digital signal processing using algorithms to restore what was lost, so the music sounds the way creator intended. This feature also supports Bluetooth audio sources.

Gapless Playback Compatibility
• Many live and classical albums have no gaps in the music. Gapless playback ensures that there are no pauses between audio files.

YPAO Sound Optimization for Automatic Speaker Setup
• YPAO (Yamaha Parametric Acoustic Optimizer) analyses the room's acoustics and measures various speaker characteristics, then calibrates the audio parameters to achieve optimum sound.

Virtual Cinema Front Provides Virtual 5-Channel Surround Sound
• The Virtual Cinema Front feature allows for more flexibility to arrange your speakers inside the room. Simply place the surround speakers in the front of the listening area to enjoy a virtual 5-channel surround sound with enhanced rear virtual sound localization.

Extra Bass
• Yamaha's low-range enhancement technology delivers rich bass while maintaining good localization and sound balance, even with compact front speakers. When a subwoofer is used, it improves the volume of the entire low range of the speaker system - not only the front speakers, but also enhancing the bass from the subwoofer.

Total Purity Concept

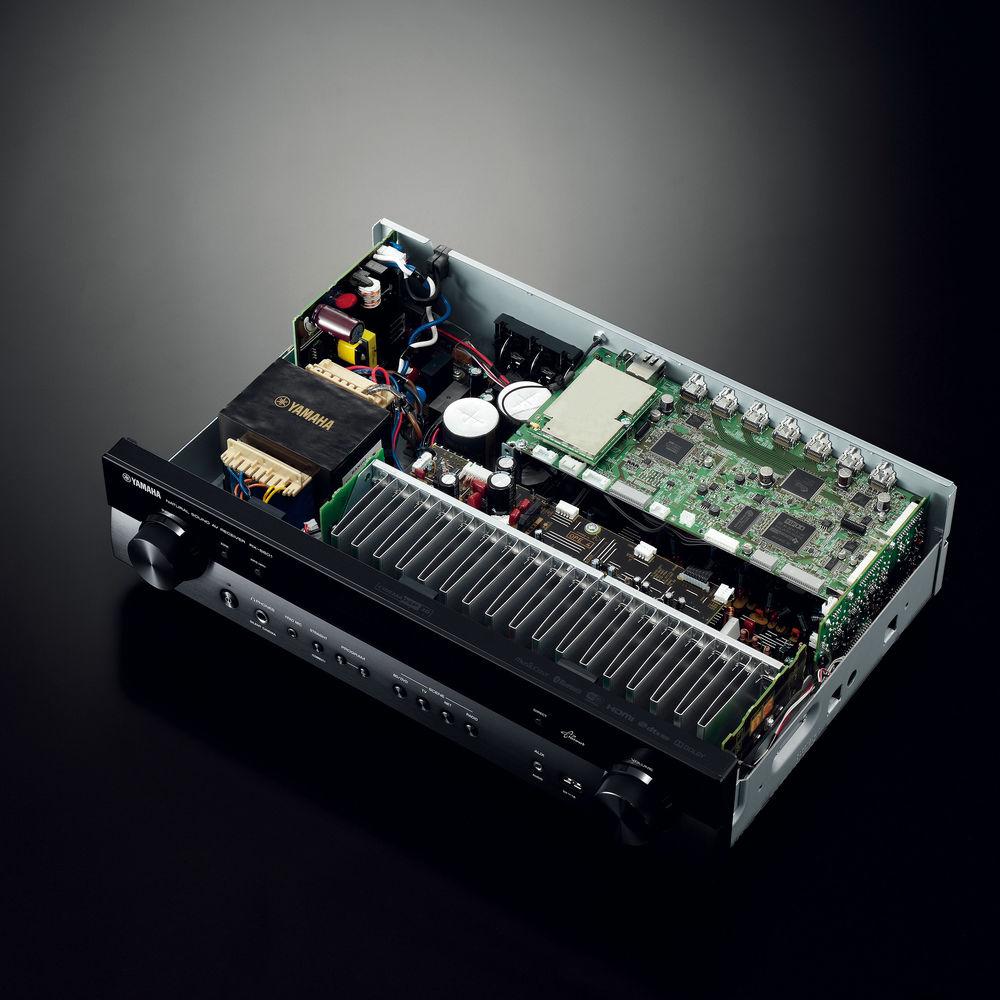

• This model has a fully discrete power amplifier that helps to minimize distortion. It also has independent pure power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heat-sinks are designed to suppress vibration from transistors and sound pressure.

SCENE for One-Touch Start
• Pressing a SCENE button powers on the A/V receiver and selects the input source and DSP mode. You can reset the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.

HD Audio with CINEMA DSP 3D and Virtual Presence Speaker
• Cinema DSP 3D provides a wide, high and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers three-dimensional sound without the actual use of presence speakers.

Subwoofer Trim for Improved Sound Imaging
• The Subwoofer Trim Control enhances the low frequencies by avoiding overlap with the front speaker output. This is designed to produce a clean, focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is "pushed" toward the subwoofer. Subwoofer Trim Control takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.

Adaptive DRC (Dynamic Range Control)
• Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This is designed to deliver clear dialogue, vocals and sound effects at a comfortable level. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials and is ideal for low-volume, late-night listening, when you do not want to disturb others.

Selectable Auto Power Standby
• Auto Power Standby lets you save energy by automatically turning off the receiver's power after 20 minutes, two, four, eight, or 12 hours.

ECO Mode
• ECO mode is designed to reduce power consumption by approximately 20%.

Additional Features
• • Analog discrete amplifier construction, low jitter PLL circuit, and high power output
  • Aluminum front panel and large screw-type speaker terminals
  • Zone 2 audio with Party Mode
