User Manual for Yamaha RX-V2085 9.2-Channel Network A V Receiver

Click to enlarge the picture
Yamaha RX-V2085 9.2-Channel Network A V Receiver Contents of the user manual for the Yamaha RX-V2085 9.2-Channel Network A V
  • Product category: Receivers Yamaha
  • Brand: Yamaha
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Yamaha Receivers

Yamaha RX-V2085 9.2-Channel Network A V Receiver Yamaha RX-V2085 9.2-Channel Network A V Receiver Yamaha RX-V2085 9.2-Channel Network A V Receiver Yamaha RX-V2085 9.2-Channel Network A V Receiver Yamaha RX-V2085 9.2-Channel Network A V Receiver Yamaha RX-V2085 9.2-Channel Network A V Receiver
User manual for the Yamaha RX-V2085 9.2-Channel Network A V contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Yamaha product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!



Product description

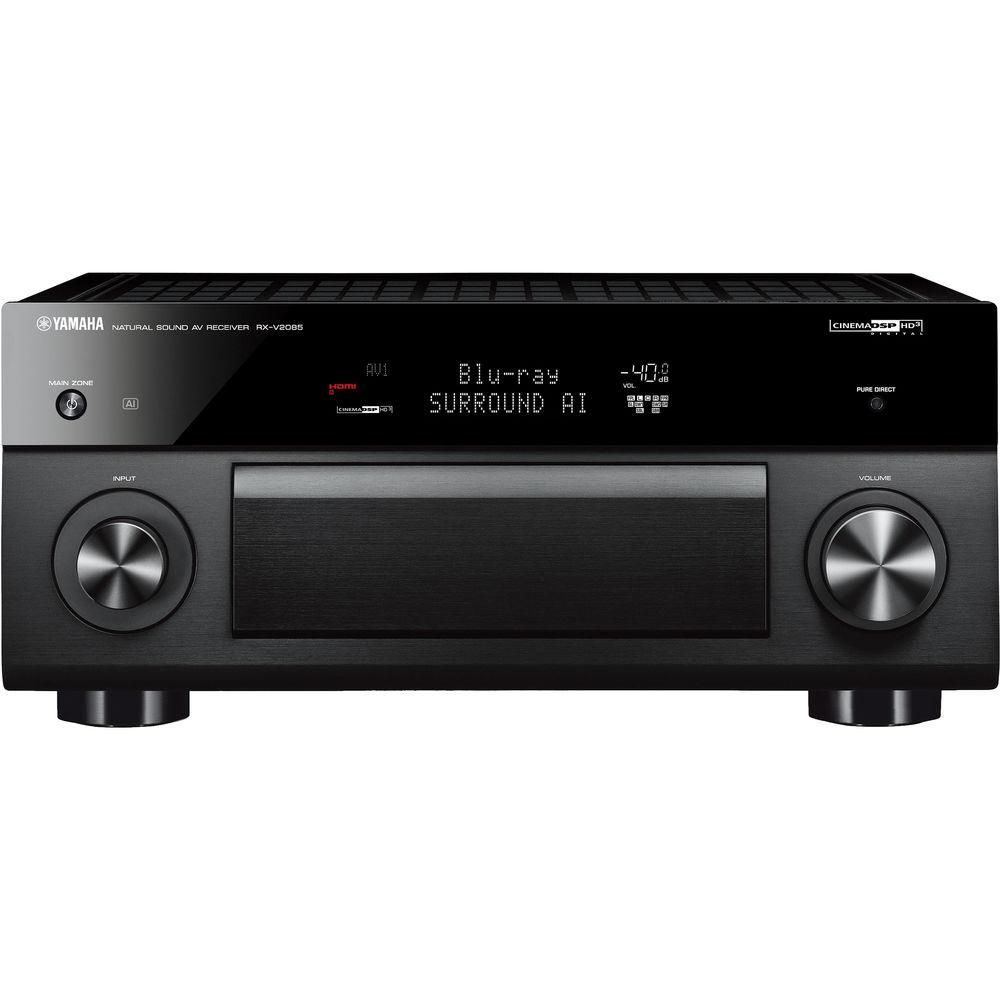

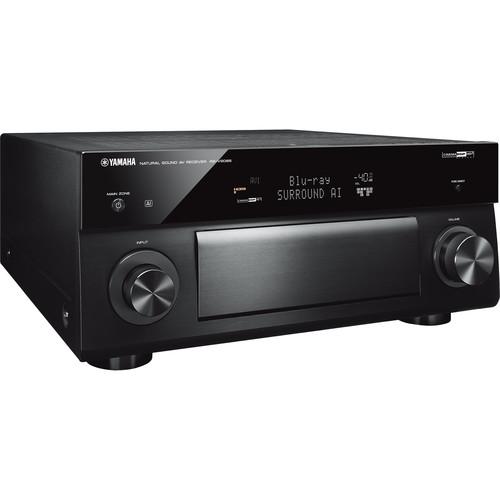

Enjoy immersive multi-channel sound with the Yamaha RX-V2085 9.2-Channel Network A/V Receiver. It delivers up to 140W of power per channel at 8 Ohms and features Dolby Atmos and DTS:X compatibility for object-based audio support. Built-in Bluetooth and AirPlay support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets, while Yamaha's Compressed Music Enhancer helps to deliver optimized sound quality.

Onboard Wi-Fi and Ethernet connectivity allows the RX-V2085 to access music from your connected computer or NAS. Amazon Alexa compatibility enables you to control certain functions of the receiver with just your voice through your Alexa-enabled devices. With seven HDMI inputs and three outputs, this receiver can act as a video switcher for your HD source components. It will pass through HDR UHD 4K signals and will upscale non-UHD signals to near-4K quality for enhanced viewing of lower-resolution sources when paired with a UHD display. The receiver also has a USB port for accessing media stored on USB flash drives. YPAO-RSC multipoint sound optimization will calibrate the receiver to your speakers and room setup for a tailored listening experience. Note: Access to certain Internet-based content may require a subscription to a service.
    Total Purity Concept
  • The Total Purity Concept is designed to encompass high-drive amp technology, high-purity preamplification, anti-vibration technology, and independent, pure power supplies. The receiver has fully discrete power amplifiers that help minimize distortion and adopts pure independent power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heat sinks are designed to suppress vibration from transistors and sound pressure.
    Aluminum Front Panel
  • The RX-V2085 features an aluminum front panel to help shield sensitive circuitry from external noise and electronic radiation generated by dimmer switches, fluorescent lighting, video monitors, and the like. This helps ensure optimum sonic performance in a variety of installation environments.
    Two ESS SABRE DACs (ES9007S)
  • Incorporating dual ES9007S SABRE DACs from ESS Technology helps further enhance the signal-to-noise ratio and achieve up to 120 dB of dynamic range.
    Surround:AI
  • This AI technology built into the DSP analyzes the scene of your content and creates a surround effect to help reproduce it with augmented realism. In real time, this AI analyzes scenes by focusing on distinct sound elements, such as dialogue, background music, ambient sounds, and sound effects, and automatically enhances the surround effect to help provide greater realism.
    HDR & UHD Support Over HDMI
  • This receiver can pass-through UHD video at 60 frames per second, as well as the HDR10, Dolby Vision, and HLG HDR formats for enhanced contrast and colors.
    Three HDMI Outputs
  • With three HDMI outputs, you can simultaneously connect to your display, projector, and other devices to watch two separate video sources at the same time, or broadcast the same video source across all outputs.
    HDMI Zone Switching
  • You can transmit video or audio content to a display or home theater system in another room (Zone 2) via HDMI, allowing you to choose whether you want to enjoy the same content in the main room or different content.
    Wi-Fi, Bluetooth, and AirPlay Compatibility
  • Built-in Wi-Fi allows you to connect the receiver to your wireless router, simplifying system connections for music streaming or enjoying networked audio from your computer or NAS. Bluetooth connectivity is also onboard, allowing you to stream audio from your compatible device into the receiver.
    Dolby Atmos & DTS:X
  • These object-based sound technologies are designed to create realistic surround sound, positioning and moving individual sounds to nearly any virtual point in your room, including overhead.
    7.2-Channel Pre-Outs
  • Connect an external amplifier to drive your speakers for enhanced sound quality.
    Control via the MusicCast App
  • The free MusicCast app puts control of the receiver into the palm of your hand. Access your sources and streaming services, adjust volume and sound settings, and link with other MusicCast devices for simultaneous playback throughout your home.
    Voice Control with Amazon Alexa and MusicCast
  • With Alexa voice control integration, all you have to do is ask. Use any Alexa-enabled device, such as your Echo or Echo Dot, to control either the receiver by itself or multiple MusicCast devices throughout your home.
    Built-In Streaming Services & Spotify Connect
  • Explore a world of music with built-in streaming services, including Spotify Connect, Pandora, SiriusXM Internet Radio, TIDAL, Deezer, Napster, and more. Syncing your playlists and likes from your smart device to the receiver and discovering new music becomes even easier with the receiver.

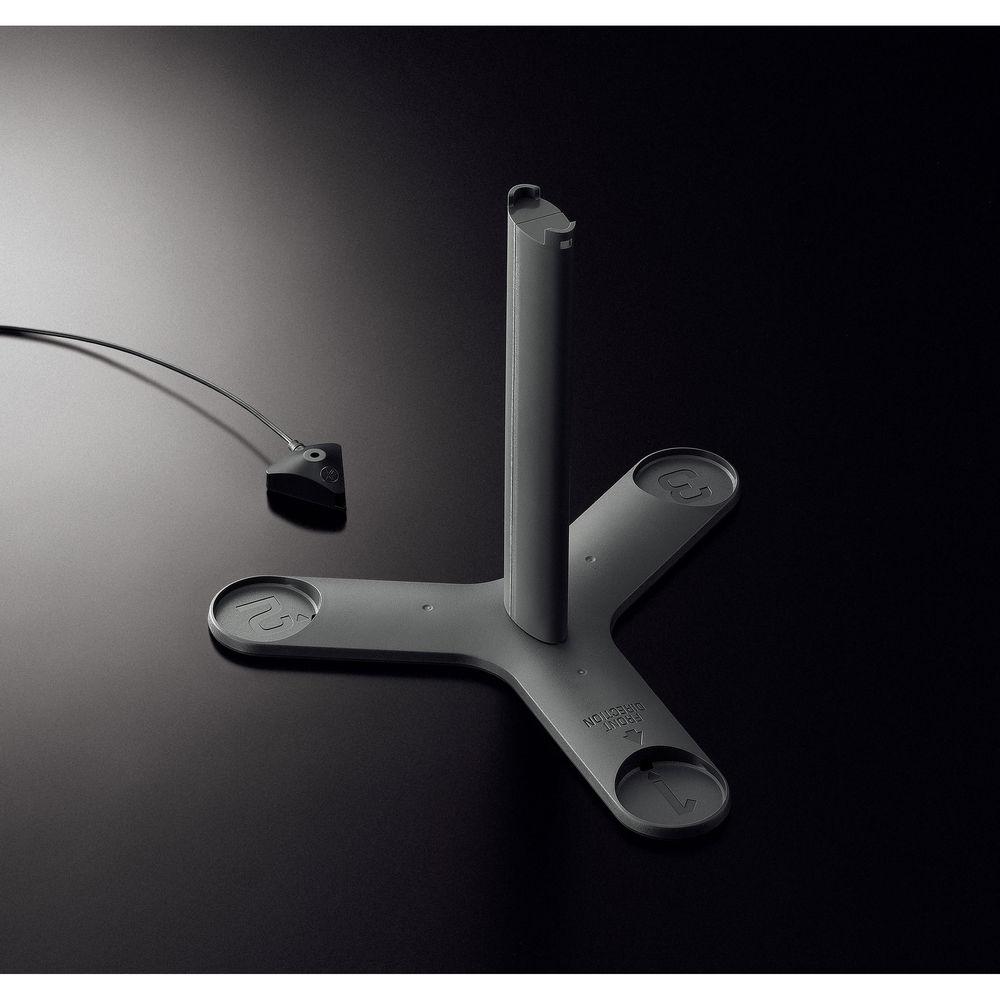

    YPAO-RSC (Reflected Sound Control) with 3D, Multipoint Measurement, and Precision EQ
  • YPAO-RSC analyzes the room acoustics with the included microphone to tune your system for optimal sound in your room. It uses precision EQ calculation to help achieve natural room acoustics. It also uses RSC to correct early reflections for enhanced sound. Additionally, DSP Effect Normalization adjusts the room acoustics according to the reflected sounds of each CINEMA DSP program.
    Phono Input
  • Enjoy music from your vinyl collection with your turntable through the dedicated phono input.
    MusicCast for Whole-Home Music
  • Start with the RX-V2085 receiver in your home theater and expand to other rooms over time with optional MusicCast speakers, soundbars, or hi-fi gear. Stream your music and TV audio throughout the house over your existing Wi-Fi network.
    Wireless Surround Speakers with Optional Equipment
  • After a future firmware update, you'll be able to combine the receiver with optional MusicCast wireless speakers and enjoy the convenience of a home theater with wireless surround speakers in a 5.1-channel setup.
    Additional Features
    • HD3 Cinema DSP with 24 programs
    • Dialogue level adjustment
    • Virtual presence speaker & virtual surround back speaker
    • Dialogue lift (no presence speakers required)
    • Virtual CINEMA FRONT
    • Pure Direct (with video on mode)
    • Compressed Music Enhancer (including for Bluetooth)
    • High-resolution music enhancer
    • YPAO Angle Measurement
    • YPAO Volume
    • Adaptive DRC (Dynamic Range Control)
    • Initial volume and maximum volume setting
    • Bi-amp capability
    • 0 to 500 ms audio delay
    • UHD upscaling via HDMI
    • Analog to HDMI upscaling
    • Video adjustment
    • Deep Color, x.v.Color, 24 Hz refresh rate, and auto lip-sync support
    • HDR10, Dolby Vision, HLG, and BT.2020 support
    • Graphical user interface
    • Eight SCENE PLUS sets
    • Web browser control
    • Party Mode
    • Auto Power Standby
    • ECO Mode
    • eARC capability scheduled to be made available via a future firmware update

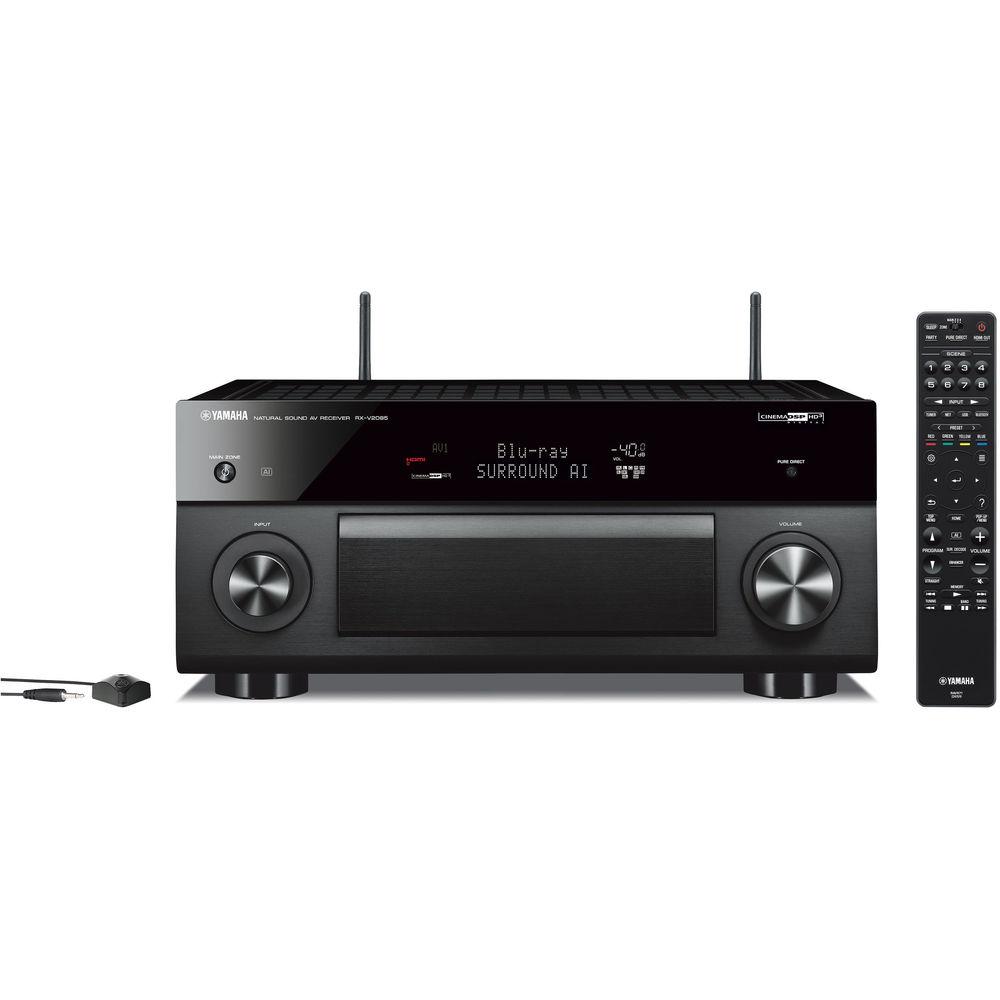

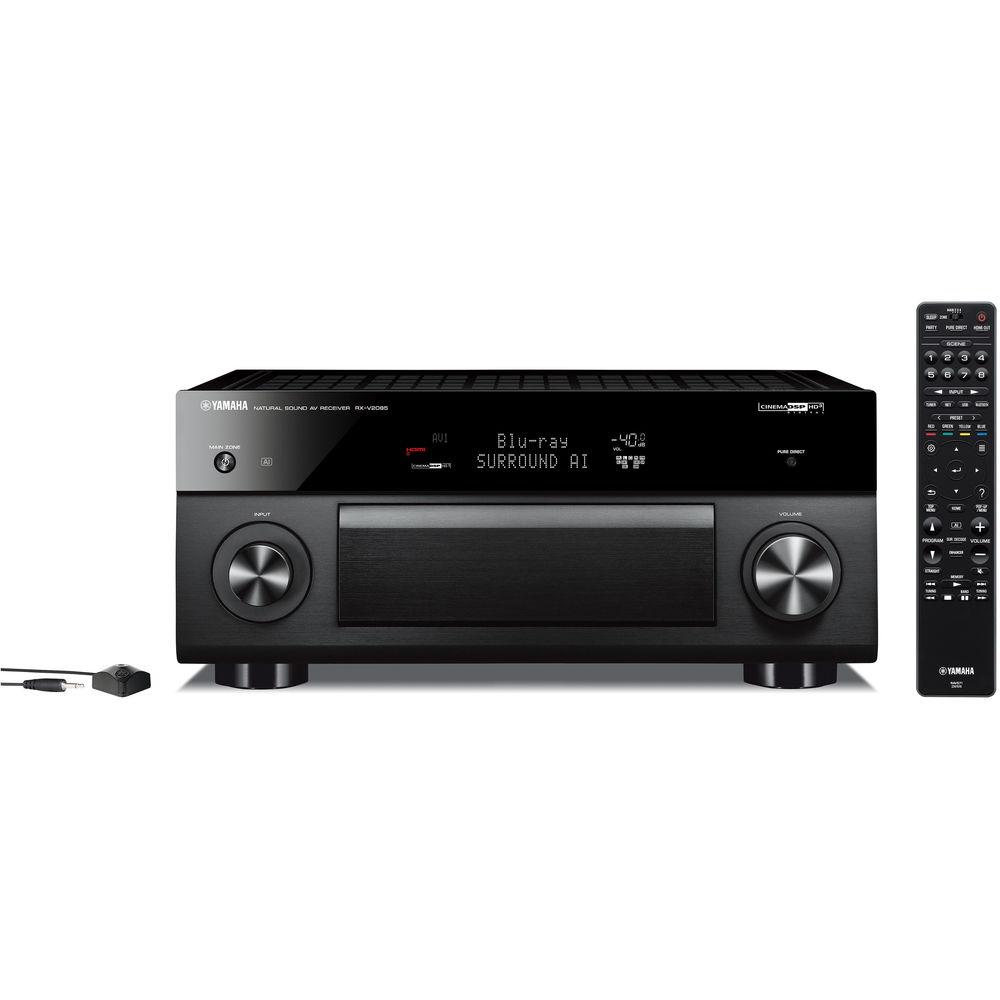

UPC: 027108958187 In the Box Yamaha RX-V2085 9.2-Channel Network A/V Receiver
  • Remote Control
  • YPAO Setup Microphone
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Yamaha RX-V2085 9.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the Yamaha RX-V2085 9.2-Channel Network A V Receiver can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Yamaha RX-V2085 9.2-Channel Network A V ReceiverDownload PDF User Manual - https://www.search-manual.com/ upload/ yamaha-rx-v2085-9-2-channel-network-a-v-receiver-271277-user-manual.pdf
    (PDF file, 8.53 MB)


    Technical parameters

    Yamaha RX-V2085BL Specs

    Output Power 140 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.06% THD, 2 channels driven
    220 W per channel @ 8 Ohms, 1 kHz, 10% THD, 1 channel driven (JEITA)
    Dynamic Power per Channel 165 W @ 8 Ohms (front L/R)
    210 W @ 6 Ohms (front L/R)
    285 W @ 4 Ohms (front L/R)
    405 W @ 2 Ohms (front L/R)
    Channels 9.2
    Object-Based Audio Support Dolby Atmos, DTS:X
    Audio Decoding Dolby TrueHD, Dolby Digital Plus, Dolby Surround, DTS-HD Master Audio
    Pass-Through 4K/60p (4:4:4), HDR10, Dolby Vision, HLG, BT.2020
    HDCP Version HDCP 2.2 on all ports
    Bluetooth Yes (SBC / AAC)
    Wi-Fi Yes, dual-band (2.4 / 5 GHz)
    AirPlay Yes
    Tuner FM

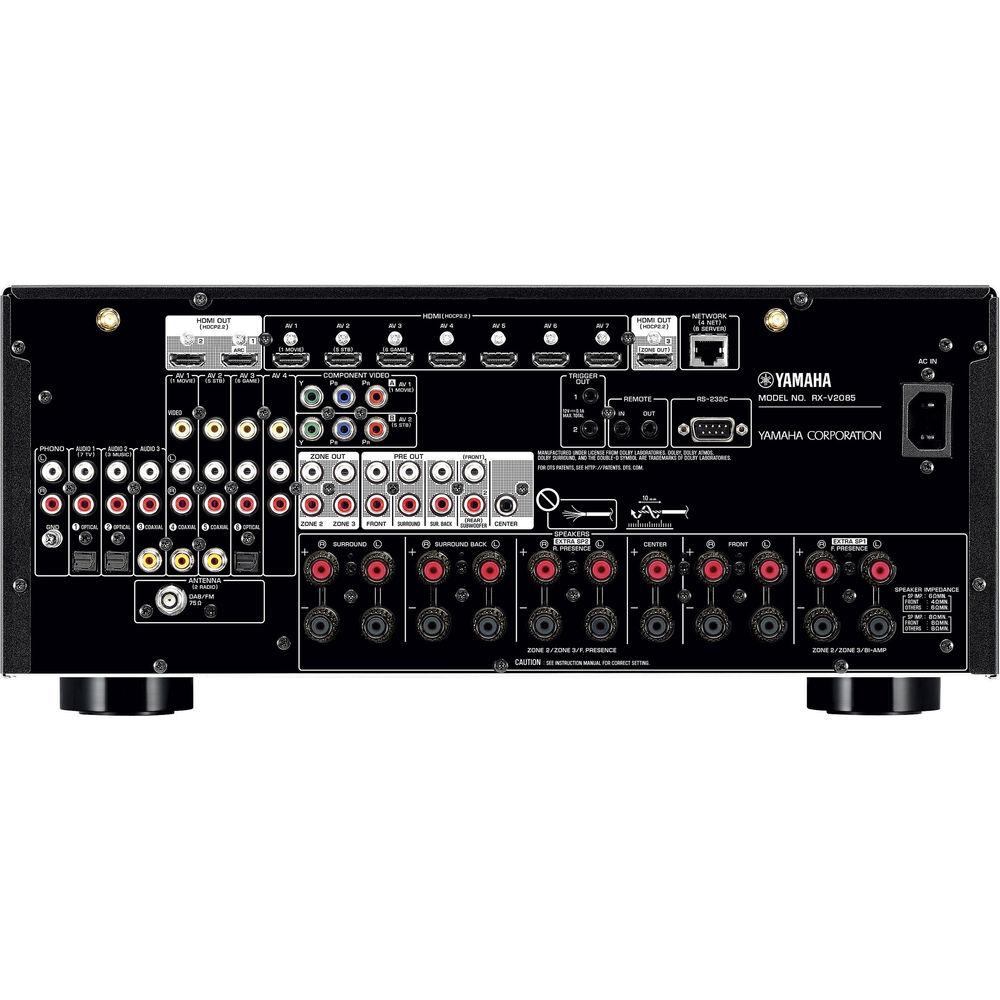

    Inputs 7 x HDMI
    3 x optical TOSLINK
    3 x digital coaxial
    2 x RCA component video
    4 x RCA composite video
    8 x stereo RCA audio (1 front)
    1 x stereo RCA audio (phono, with ground screw)
    Outputs 3 x HDMI
    2 x subwoofer pre-out
    1 x Zone 2 stereo RCA pre-out
    1 x Zone 3 stereo RCA pre-out
    1 x 7-channel RCA pre-out

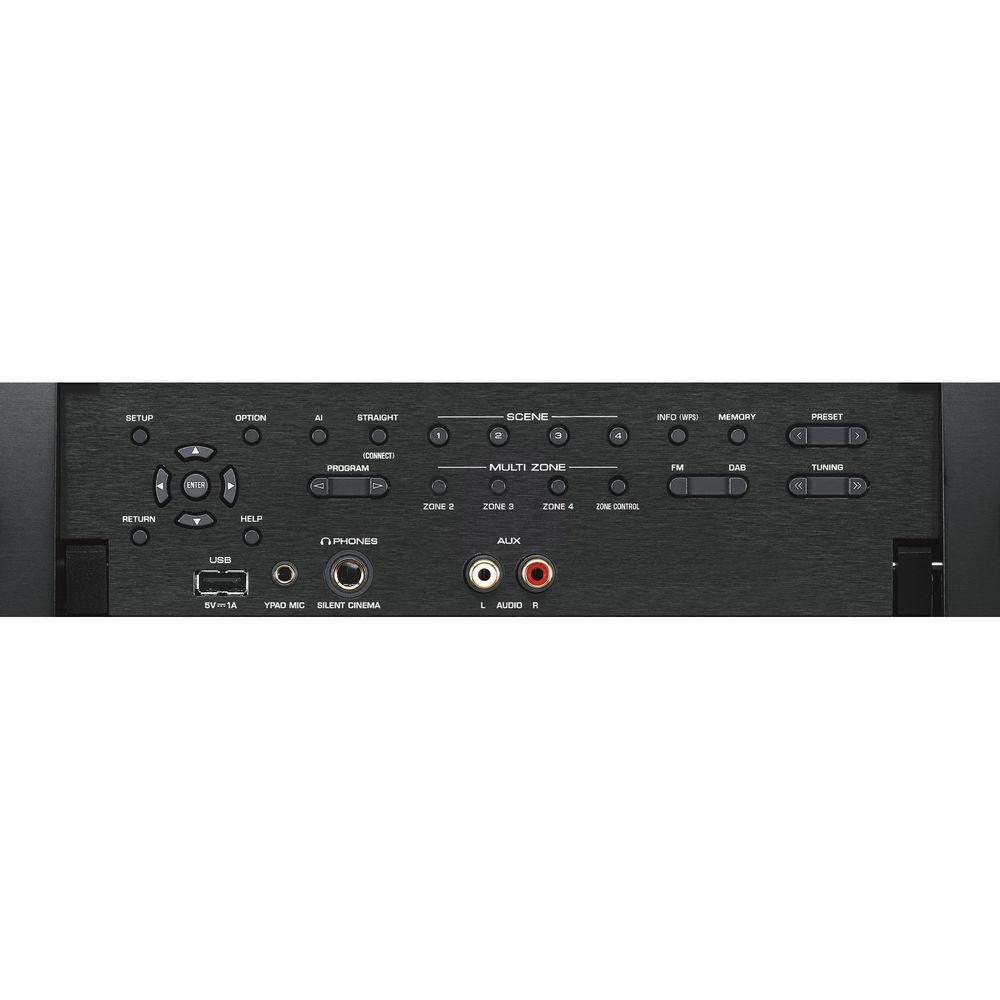

    1 x 1/4" / 6.35 mm headphone (front)
    Other Connectors 1 x FM tuner antenna
    1 x USB (front)
    2 x wireless antennas
    1 x Ethernet LAN
    1 x 1/8" / 3.5 mm calibration mic (front)
    2 x 1/8" / 3.5 mm 12 V trigger out
    1 x 1/8" / 3.5 mm remote in
    1 x 1/8" / 3.5 mm remote out
    1 x 9-pin RS-232C
    Speaker Connectors 11 x binding post pairs
    HDMI CEC Yes
    Audio Return Channel (ARC) Yes
    USB Formats MP3, WMA, WAV, MPEG-4 AAC (up to 48 kHz / 16-bit), ALAC (up to 96 kHz / 24-bit), FLAC (up to 192 kHz / 24-bit), AIFF (up to 192 kHz / 32-bit), DSD (up to 11.2 MHz)
    Power Requirements Not specified by manufacturer
    Standby Power Consumption IR Only: ≤0.1 W
    Dimensions (W x H x D) Without Antenna: 17.125 x 7.5 x 18.625" / 43.5 x 19.05 x 47.31 cm
    With Antenna: 17.125 x 10.25 x 18.625" / 43.5 x 26.04 x 47.31 cm
    Weight (Approximate) 37.5 lb / 17 kg
    Package Weight 43.2 lb
    Box Dimensions (LxWxH) 22.0 x 21.5 x 11.0"
