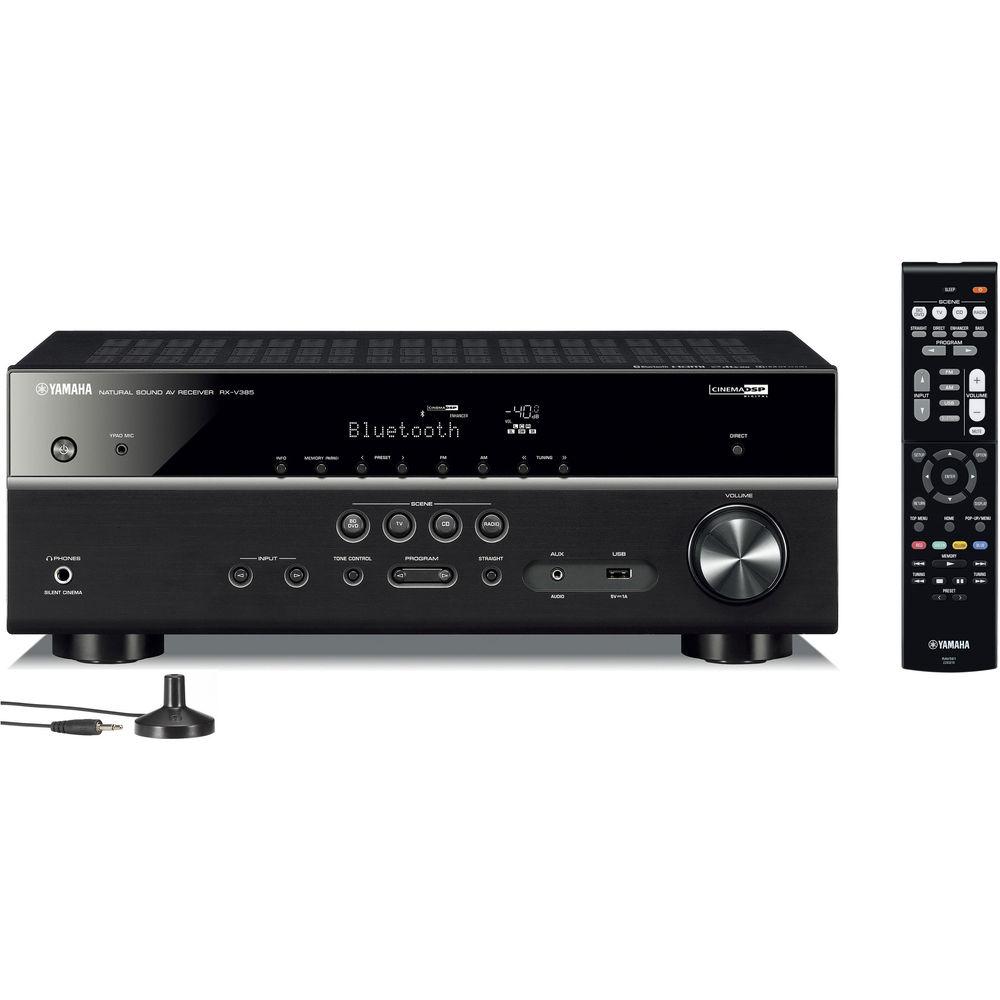

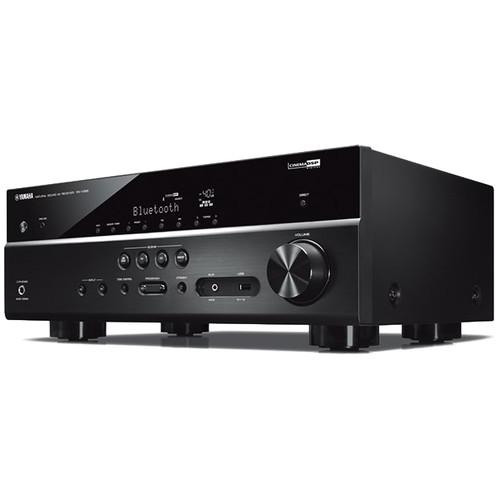

User Manual for Yamaha RX-V385 5.1-Channel A V Receiver Click to enlarge the picture
Contents of the user manual for the Yamaha RX-V385 5.1-Channel A V Receiver
- Product category: Receivers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Receivers
 |
User manual for the Yamaha RX-V385 5.1-Channel A V Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description Enjoy 5.1-channel surround sound with your favorite speaker system and the Yamaha RX-V385 5.1-Channel A/V Receiver. It has Bluetooth built-in for wireless connection to your compatible smart devices, headphones, or speakers. The receiver outputs up to 70W per channel at 8 Ohms and features YPAO sound calibration to tailor the sound to your environment. In addition to Bluetooth, the RX-V385 has four HDMI inputs and one output, all of which support UHD and ARC. It upscales non-UHD HDMI-connected sources to near-4K for an enhanced viewing experience. - CINEMA DSP
- With CINEMA DSP, you can experience a sound field that allows you to transform the dynamics of the listening environment with the acoustics of famous venues from all around the world.
- YPAO Automatic Room Calibration
- Every room is different. YPAO (Yamaha Parametric Room Acoustic Optimizer) is designed to analyze the room acoustics and adjust various audio parameters for optimum sound in just a few minutes Simply place the included microphone where you'll be sitting and run the YPAO calibration.
- YPAO Volume
- YPAO Volume is engineered to adjust high- and low-frequency levels as the volume changes to help keep the sound natural.
- Digital-to-Analog Conversion
- The RX-V385 features Burr-Brown PCM5102A 384 kHz / 32-bit DACs with independent power supplies to help it reproduce all the audio in high-resolution sound sources without noise.
- Bluetooth Connectivity for Wireless Music Streaming
- The RX-V385 is equipped with Bluetooth functionality, allowing you to stream music from your Blu-ray disc, CD, or other source through the receiver to your Bluetooth headphones or speakers. You can pair your devices to the receiver with the included remote control. The receiver also allows you to connect your Bluetooth audio sources for wireless playback.
- Additional Features
-
- Bi-amp-capable via surround speaker outputs
- Compressed Music Enhancer for Bluetooth
- SILENT CINEMA helps you enjoy virtual surround sound with your headphones
- Flexible audio/video input assignment
- 0 to 500 ms audio delay for adjusting lip sync
- UHD upscaling via HDMI
- HDMI 2.1 with eARC compatibility, via future firmware update
- HDR10, Dolby Vision, HLG, and BT.2020 support
UPC: 027108956268 In the Box Yamaha RX-V385 5.1-Channel A/V Receiver Remote Control with Batteries YPAO Microphone FM Antenna AM Antenna Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha RX-V385 5.1-Channel A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha RX-V385BL Specs | | | Power Output | 70 W per channel RMS at 8 Ohms, 20 Hz to 20 kHz, 0.09% THD, 2-channel driven
100 W per channel at 8 Ohms, 1 kHz, 0.9% THD, 1-channel driven
145 W per channel at 6 Ohms, 1 kHz, 10% THD, 1-channel driven | | Dynamic Power per Channel | At 8 Ohms: 110 W
At 6 Ohms: 130 W
At 4 Ohms: 160 W
At 2 Ohms: 180 W | | No. of Channels | 5.1 | | AM/FM Tuner | Yes/Yes | | AM/FM Presets | 40 | | | | 4K Support | UHD 4K pass-through and upscaling via HDMI | | ARC (Audio Return Channel) | Yes | | HDMI CEC Compliant | Yes | | | | Dolby | Dolby TrueHD | | DTS | DTS-HD Master Audio | | Audio Delay | 0 to 500 ms | | | | Inputs | 4 x HDMI
1 x optical TOSLINK
2 x digital coaxial
1 x 1/8" / 3.5 mm aux (front)
3 x RCA composite video

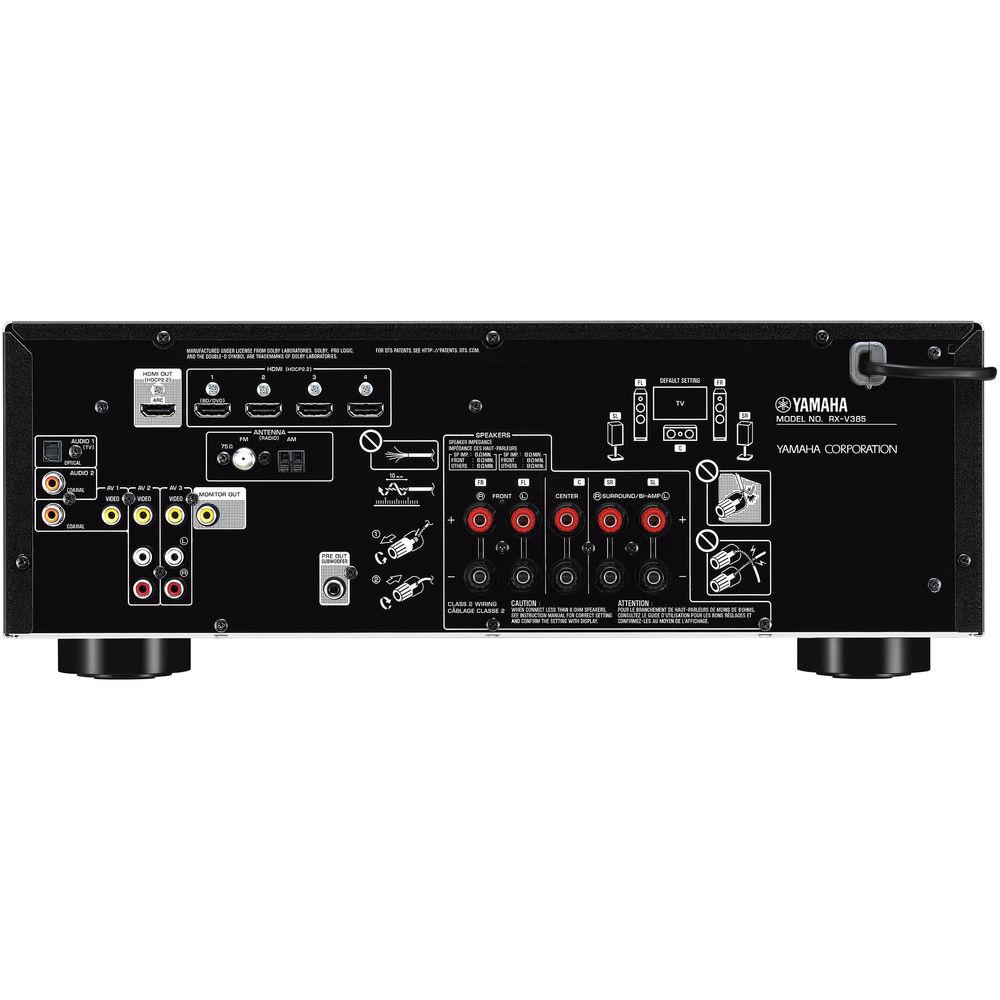

2 x stereo RCA | | Outputs | 1 x HDMI
1 x RCA composite video
1 x 1/4" / 6.35 mm headphone (front) | | Additional Connections | 1 x AM antenna
1 x FM antenna
1 x USB (front) | | HDCP Version | HDCP 2.2 | | Speaker Connectors | 5 x binding post pairs (front L/R, center, surround L/R)
1 x RCA subwoofer pre-out | | Wireless | Bluetooth version 2.1 + EDR | | Bluetooth Profile | A2DP | | Bluetooth Codecs | SBC | | | | Power Requirements | Not specified by manufacturer | | Standby Power Consumption | HDMI CEC Off: 0.3 W
HDMI CEC On: 0.9 W | | Dimensions (W x H x D) | 17.1 x 6 x 12.4" / 43.5 x 15.2 x 31.4 cm | | Weight | 17 lb / 7.7 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 20.5 x 16.0 x 9.0" |
