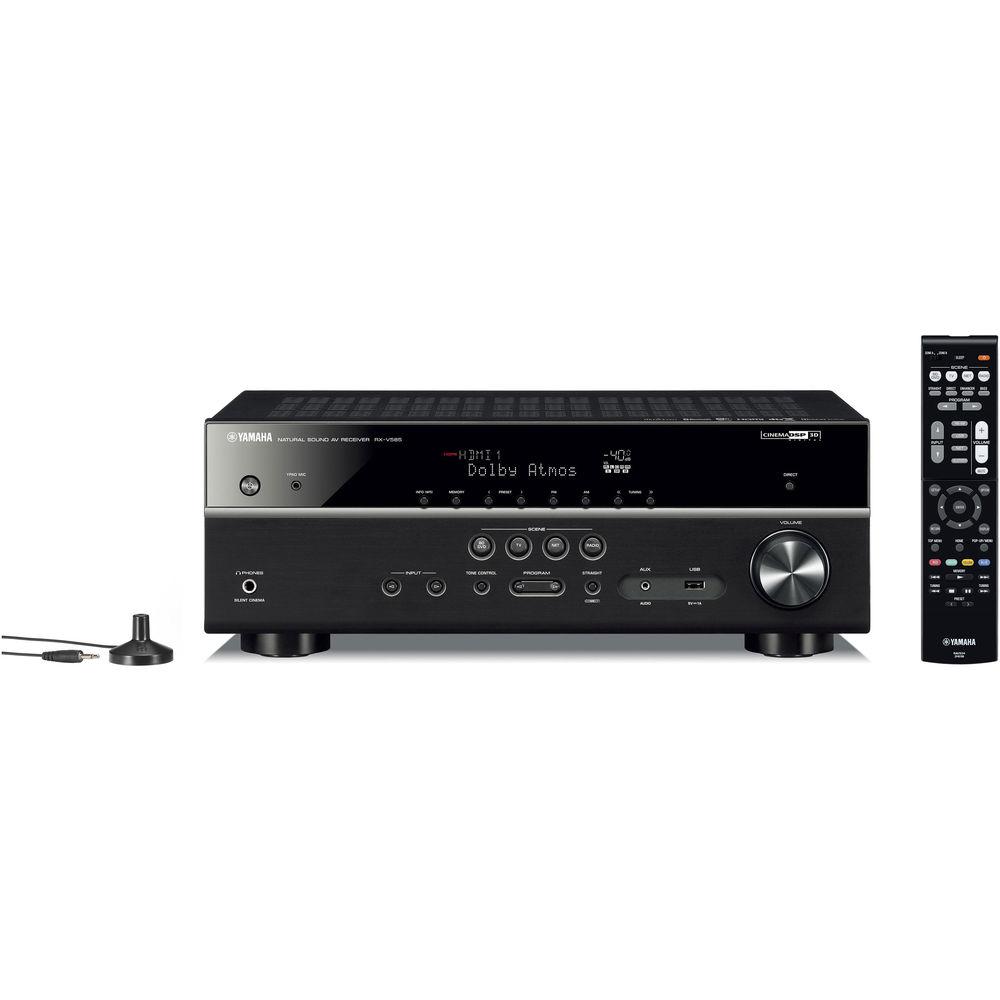

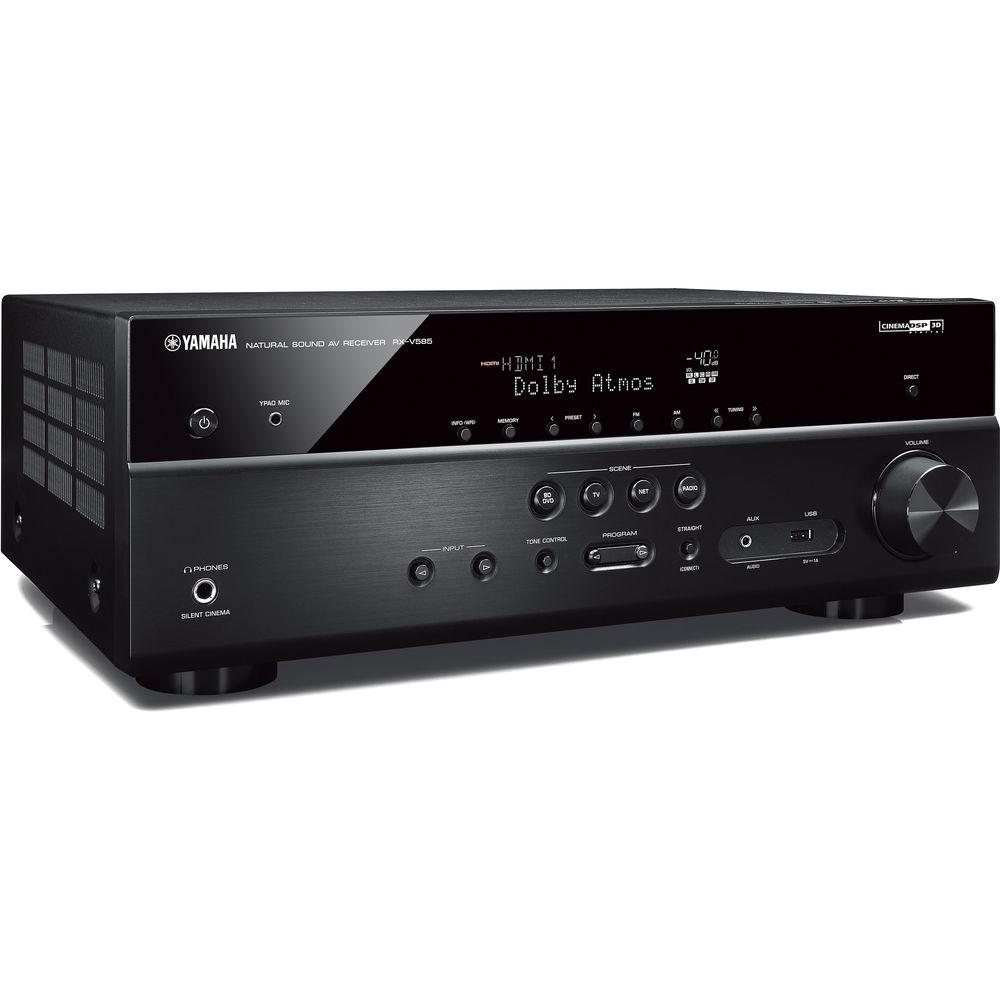

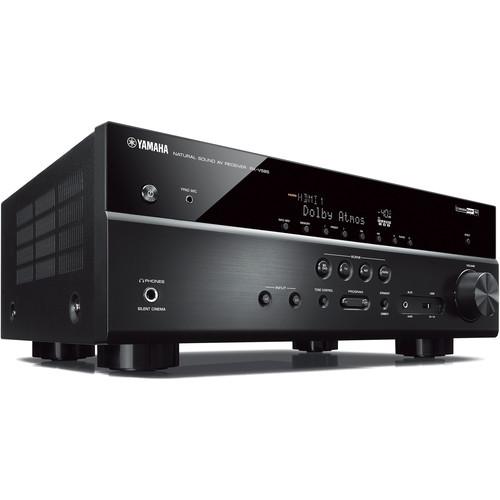

User Manual for Yamaha RX-V585 7.2-Channel MusicCast A V Receiver Click to enlarge the picture
Contents of the user manual for the Yamaha RX-V585 7.2-Channel MusicCast A V
- Product category: Receivers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Receivers
 |
User manual for the Yamaha RX-V585 7.2-Channel MusicCast A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description Enjoy 7.2-channel surround sound and wireless connectivity with your favorite speaker system and the Yamaha RX-V585 7.2-Channel MusicCast A/V Receiver. It has Bluetooth and Wi-Fi built-in for wireless connection to your compatible smart devices. The receiver outputs up to 80W per channel at 8 Ohms and features YPAO sound customization to tailor the sound to your environment.
In addition to its wireless compatibility, the RX-V585 has four HDMI inputs and one output, which support UHD resolution, HDR, and ARC. It also has a USB port on the front for the playback of files stored on flash drives. - Dolby Atmos & DTS:X
- These object-based sound technologies are designed to create multidimensional sound that fills your room with enhanced richness and depth.
- CINEMA DSP 3D Sound Field Reproduction Technology
- CINEMA DSP 3D is designed to provide a wide, high, and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker virtually delivers three-dimensional sound without the use of actual presence speakers.
- MusicCast for Whole-Home Music
- Use all your MusicCast products together or separately – it's up to you. Control it all from one app. Use a soundbar, a wireless speaker, the receiver, or Hi-Fi audio, whatever you prefer. Mix and match, then expand your MusicCast system as you like. Additionally, Amazon Alexa allows you to control all your MusicCast devices with voice commands.
- MusicCast Surround with Optional Equipment
- With optional MusicCast wireless rear speakers, the fuss of hiding wires en route to your rear speakers is removed. You can also add an optional MusicCast wireless subwoofer, which can provide more options for subwoofer placement.
- Amazon Alexa with MusicCast
- Amazon Alexa-enabled devices can control key functions of nearly any MusicCast product using voice commands. Using two types of Alexa skills, the MusicCast Smart Home skill and the MusicCast skill, you can play music, control volume, play playlists, and link rooms together to play music throughout the house.
- SCENE Buttons for One-Touch Start
- Pressing a SCENE button powers on the receiver and selects the input source and DSP mode. You can reset the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than three seconds.
- Additional Features
-
- Streaming music-compatible with Napster, SiriusXM Internet Radio, Pandora, Spotify, TIDAL, Deezer, and Internet radio
- Height speaker configuration (presence, overhead, or Dolby-enabled)
- Dialogue level adjustment and Dialogue Lift
- Burr-Brown PCM5102A DAC
- Dual-band Wi-Fi connectivity for wireless music playback
- Bi-amp capable via surround/Zone B outputs
- YPAO sound calibration with subwoofer EQ [192 kHz / 64-bit YPAO Precision EQ, YPAO-R.S.C. (Reflected Sound Control), YPAO Volume]
- Pure Direct mode for enhanced sound purity
- High-resolution audio support (DSD, FLAC, WAV, AIFF, ALAC)
- DSD audio (2.8 / 5.6 / 11.2 MHz)
- SILENT CINEMA provides simulated surround sound for headphone use
- HDMI input select in pass-through mode
- Designed for flexible audio/video input assignment
- 0 to 500 ms audio delay for lip sync adjustment
- Bluetooth input and output
- 40-station preset AM/FM tuning / auto preset tuning
- UHD, HDR10, Dolby Vision, HLG, BT.2020 support, and UHD upscaling via HDMI
- Video out feature for use with tuner, USB, Bluetooth, AUDIO, and AUX inputs
- HDMI 2.1 support with eARC (Enhanced Audio Return Channel) via future firmware update
- Setup Wizard (AV Setup Guide app)
- Input Skip, DSP Skip, and programmable Remote Keys
- Zone B volume trim and sync mode
UPC: 027108956442 In the Box Yamaha RX-V585 7.2-Channel MusicCast A/V Receiver Remote Control with Batteries YPAO Microphone FM Antenna AM Antenna Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha RX-V585 7.2-Channel MusicCast A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha RX-V585BL Specs | | | Power Output | 80 W per channel at 8 Ohms, 20 Hz to 20 kHz, 0.09% THD, 2-channel driven
115 W per channel at 8 Ohms, 1 kHz, 0.9% THD, 1-channel driven
145 W per channel at 6 Ohms, 1 kHz, 10% THD, 1-channel driven | | Dynamic Power per Channel | At 8 Ohms: 110 W
At 6 Ohms: 130 W
At 4 Ohms: 160 W

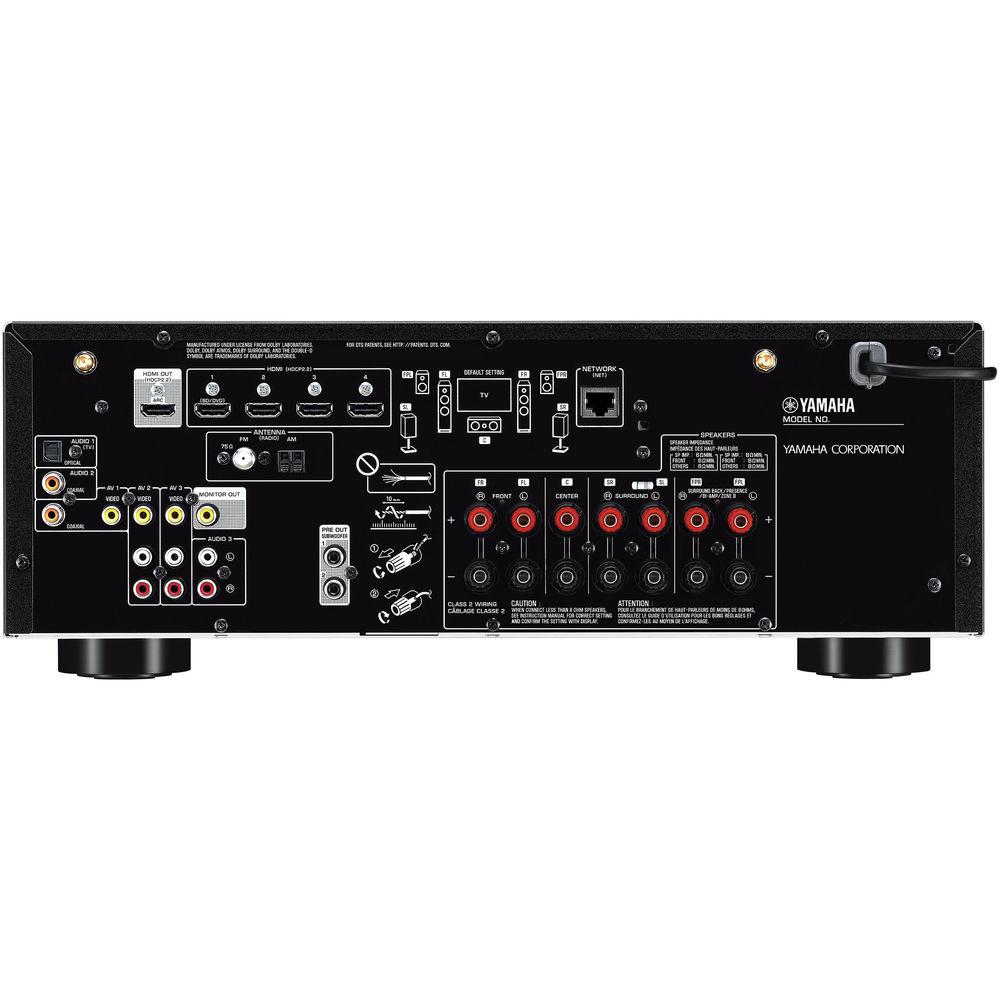

At 2 Ohms: 180 W | | No. of Channels | 7.2 | | AM/FM Tuner | Yes/Yes | | | | Inputs | 4 x HDMI
2 x digital coaxial
1 x optical TOSLINK
1 x USB (front)
3 x stereo RCA
3 x RCA composite video
1 x 1/8" / 3.5 mm aux (front) | | Outputs | 1 x HDMI
1 x RCA composite video
1 x 1/4" / 6.35 mm headphone (front) | | Additional Connections | 1 x AM antenna
1 x FM antenna
1 x YPAO mic (front)
2 x subwoofer pre-out
1 x Ethernet LAN
2 x wireless antenna | | Speaker Connectors | 7 x binding post pairs | | HDMI Version | HDMI 2.1 | | HDCP Version | HDCP 2.2 | | Wi-Fi Bands | Dual-band (2.4 / 5 GHz) | | Bluetooth Specification | Version: 2.1 + EDR
Profiles: A2DP, AVRCP
Codecs: SBC, AAC (receiving only) | | | | Power Requirements | Not specified by manufacturer | | Standby Power Consumption | HDMI CEC Off: 0.3 W
HDMI CEC On: 0.9 W | | Dimensions (W x H x D) | 17.13 x 6.38 x 12.88" / 43.5 x 16.2 x 32.7 cm with antenna down
17.13 x 8.88 x 12.88" / 43.5 x 22.54 x 32.7 cm with antenna up | | Weight | 17.9 lb / 8.1 kg | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 20.5 x 15.5 x 9.0" |
