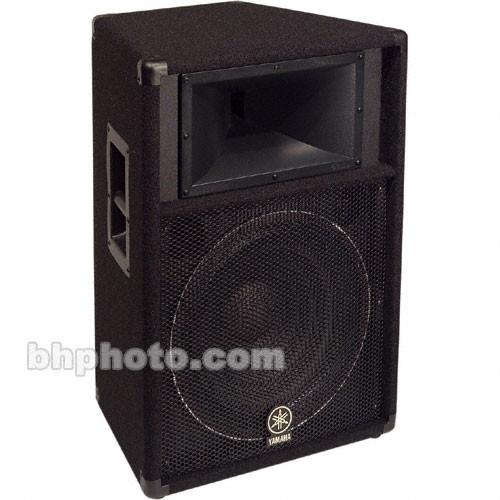

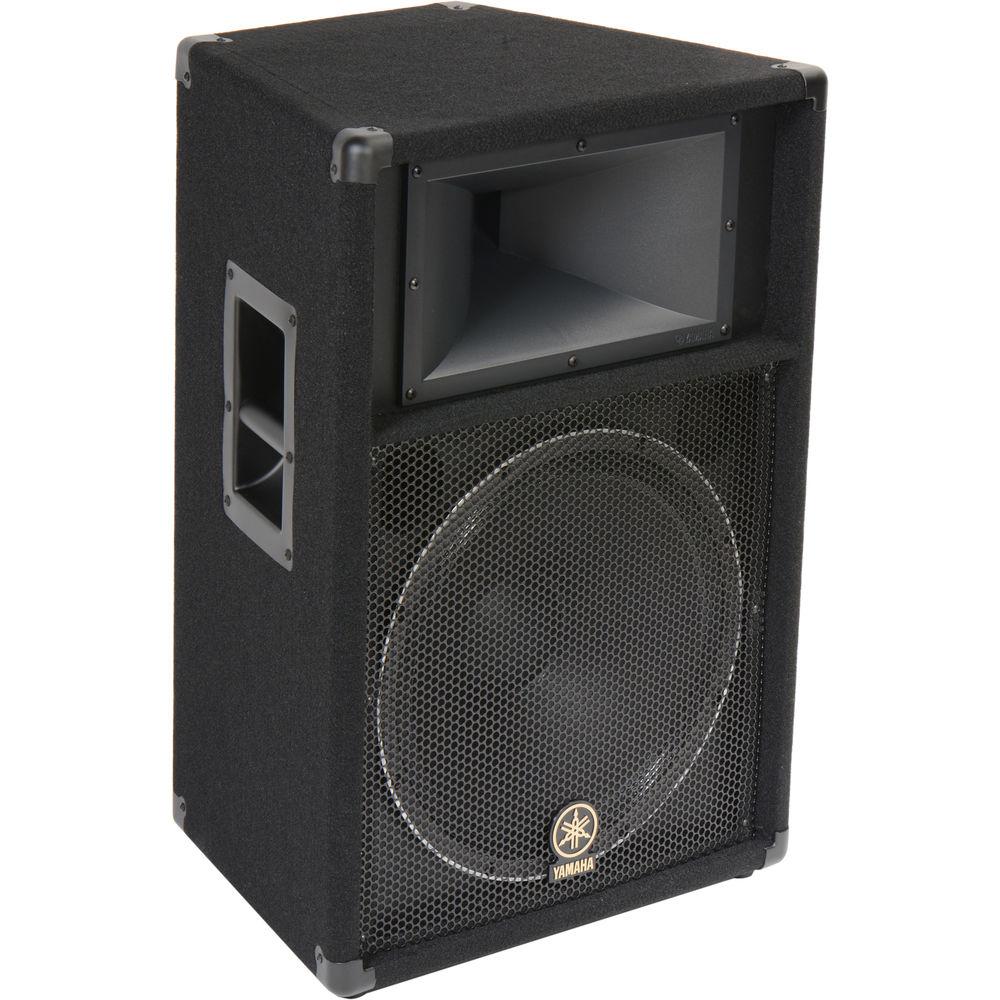

User Manual for Yamaha S115V Club Series V 500-Watt Two-Way Passive PA Speaker with 15" Woofer Click to enlarge the picture
Contents of the user manual for the Yamaha S115V Club Series V 500-Watt
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
 |
User manual for the Yamaha S115V Club Series V 500-Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

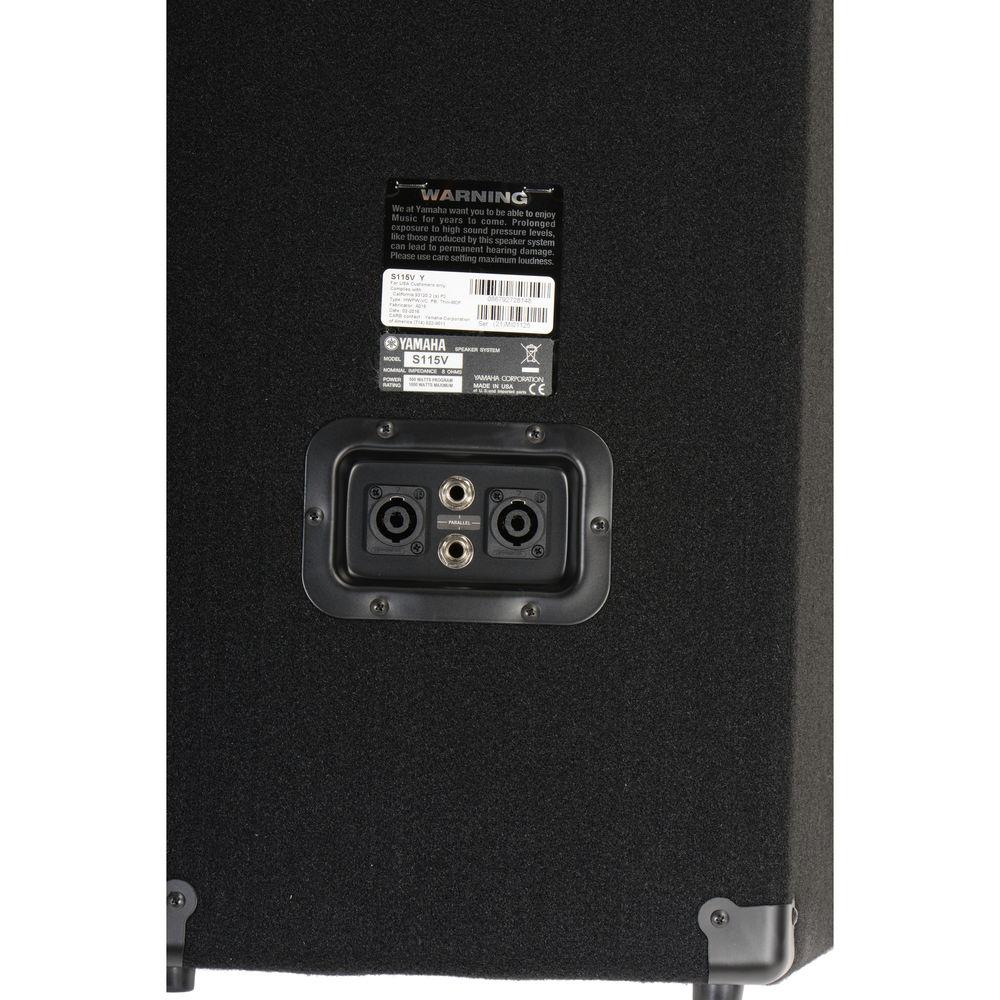

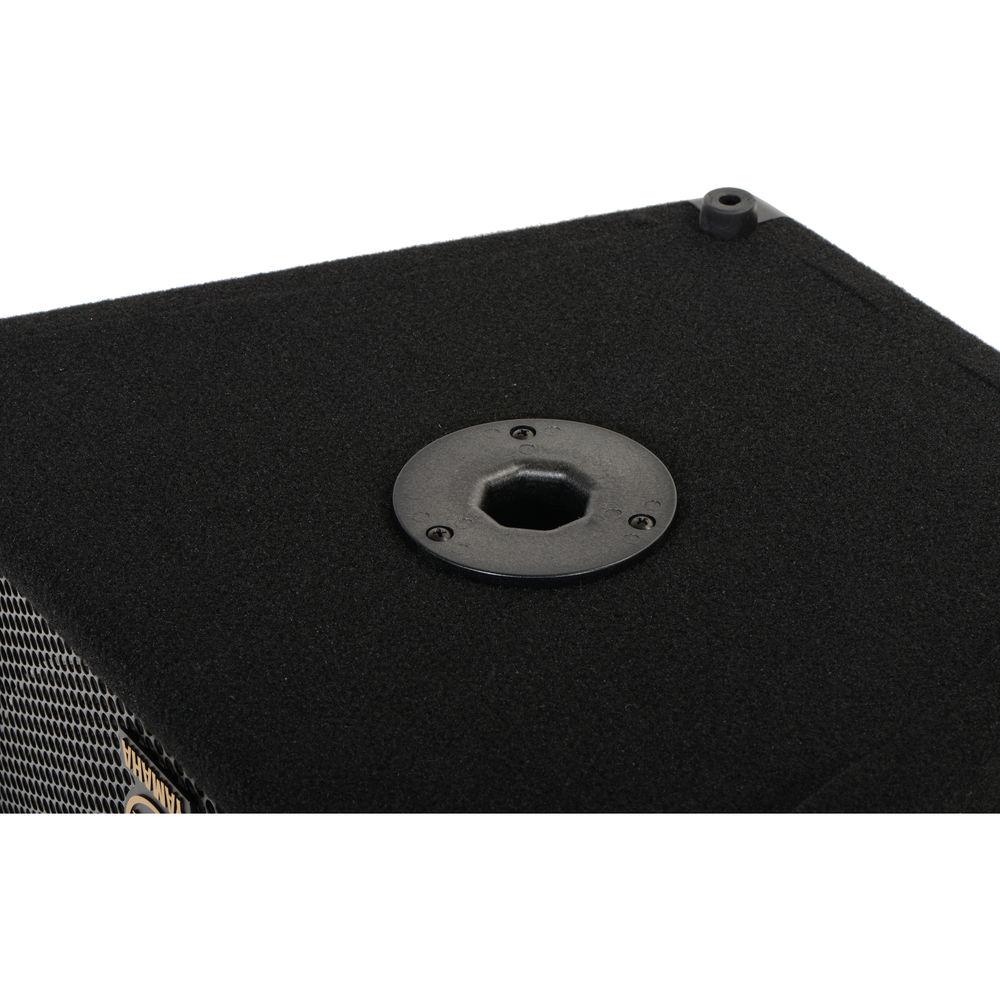

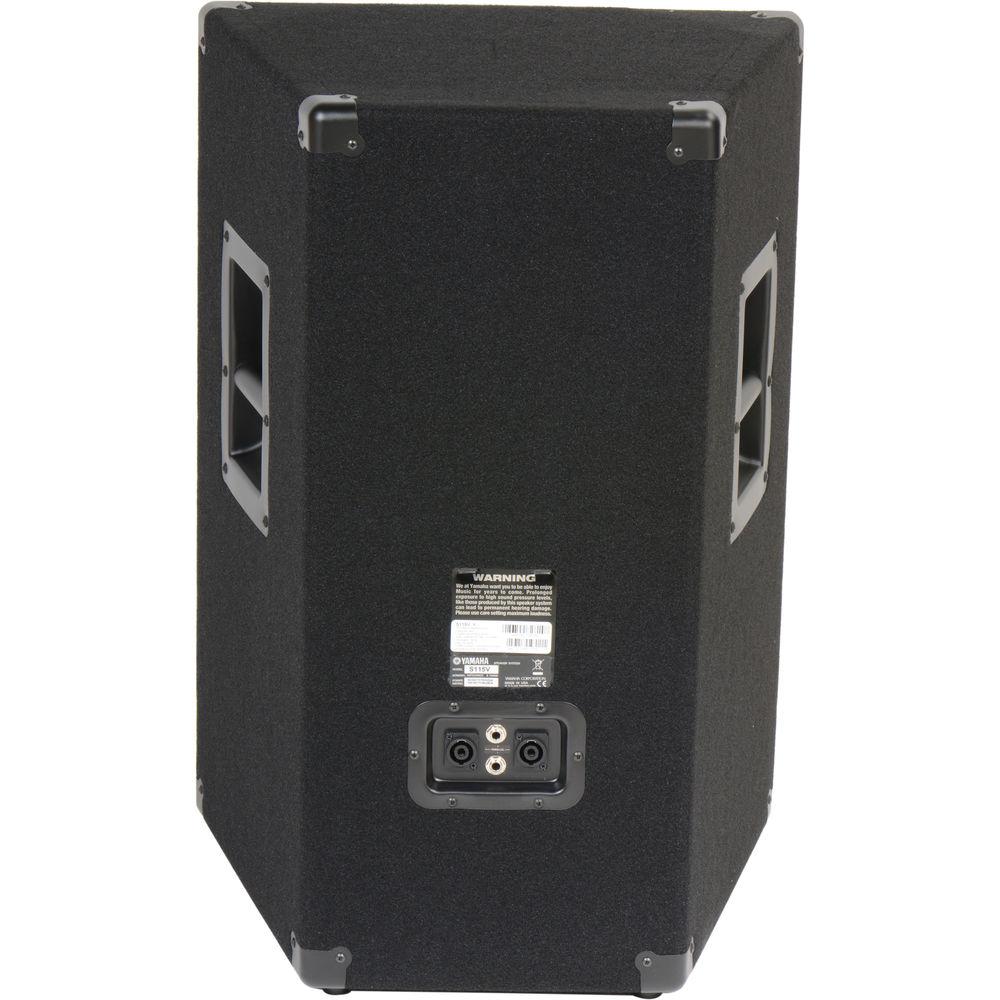

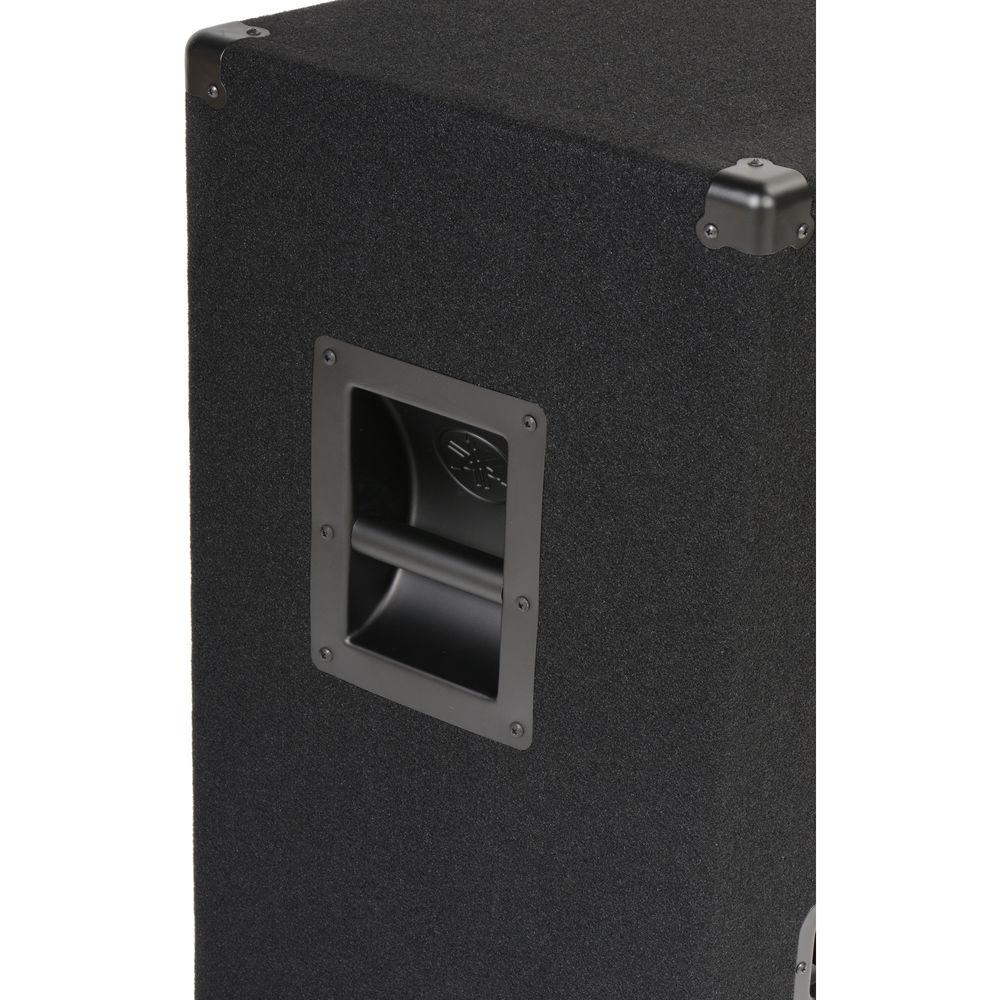

Product description The Yamaha S115V continues the tradition of Yamaha's popular Club Series Speakers with improvements being made in almost every facet of the cabinet. Better driver components, a stronger grill, improved crossover network, and dual Speakon connectors all contribute to a better overall sonic performance.Improvements in the drivers include higher power handling capabilities and a Constant Directivity Horn. This type of horn design provides smoother and better overall coverage both on and off axis.Equipped with two strong metal handles and a pole mount for easy stand mounting, the S115V is built from sturdy, high-density pine particleboard, and houses a crossover network and protection circuits designed to protect the drivers from damage.Yamaha took much consideration in selecting components that met their exact tolerances, and the result is a new series of speakers that certainly improves on an already popular and proven product. - 500 Watts Continuous Power
- 2-inch Titanium Tweeter Driver
- Constant Directivity Horn
- Oxygen-free copper voice coils for extended life
- Built in the U.S. from environmentally friendly southern pine particleboard
UPC: 086792728148 In the Box Yamaha S115V Club Series V 500-Watt Two-Way Passive PA Speaker with 15" Woofer (Single) Limited 3-Year Warranty User Manual PDF 491.4kbbvuqwvvyszecstesxywq Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha S115V Club Series V 500-Watt Two-Way Passive PA Speaker with 15" Woofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha S115V Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 500 W RMS | | System Impedance | 8 Ohms | | | | HF Driver | 1 x 2" / 50.1 mm Titanium Tweeter | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 55 Hz to 15 kHz | | Maximum SPL | 129 dB | | | | Audio I/O | 2 x speakON
2 x 1/4" | | | | Construction Material | Particle Board | | Dimensions | 19.0 x 28.0 x 15.0" / 483.0 x 711.0 x 381.0 mm | | Weight | 60 lb / 27 kg | | | | Package Weight | 69.2 lb | | Box Dimensions (LxWxH) | 31.0 x 21.5 x 17.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
