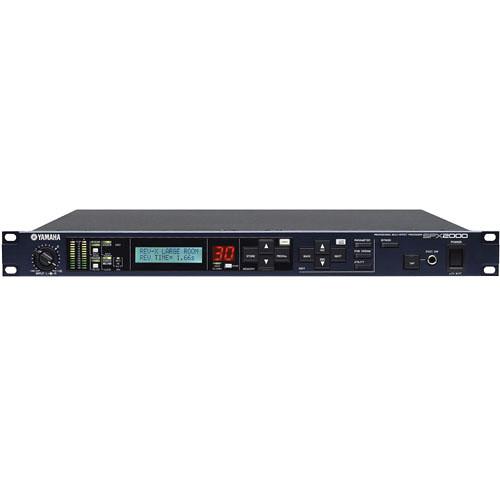

User Manual for Yamaha SPX2000 - Digital Multi Effects Processor Click to enlarge the picture
Contents of the user manual for the Yamaha SPX2000 - Digital Multi Effects
- Product category: Effects Processors Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Effects Processors
|
User manual for the Yamaha SPX2000 - Digital Multi Effects contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The name "SPX" and Yamaha have been synonymous with professional multi-effect processor for more than 15 years. Models like SPX90, SPX90II, SPX900, SPX1000 and SPX990 have been the most commonly found equipment in the studio and sound reinforcement racks. The SPX2000, while inheriting the standard interface and common programs from its predecessors, brings a new dimension to the sound quality with the new "REV-X" reverb algorithm and a 96kHz audio DSP. The heart of SPX2000 hardware is a 96kHz audio DSP, with 32-bit internal processing (58-bit accumulator) which offers abundant processing power for the advanced effect algorithms. The 24-bit 128-times over-sampling AD/DA converters deliver 106dB dynamic range and flat response from 20Hz to 40kHz at 96kHz sampling rate. Both are in line with the DM series Digital Production Console quality. Added to this are seventeen programs made with the new generation "REV-X" reverb algorithms, which deliver rich reverberation tone and smooth decay. Effect classes include Reverb and Early Reflections, Delay and Echo, Pitch Change, Modulation, Filter, Distortion, Combination Effects and Freeze. The SPX2000 LCD offers five back light color variations the user can freely assign to any user programs. The preset programs are colored by effect groups that provide instant recognition of the effect type even from the distance. The unit also provides operation lock mode and is suitable for broad range of applications, from live sound reinforcement to production studios where professional quality effect processing is required. - Multi-Effects
- First class multi-effects processor for studio and live sound reinforcement applications
- Superb Sonic Quality
- Offers abundant processing power for the advanced effect algorithms with 24-bit/96kHz signal chain
- Refined Preset Programs
- Includes "REV-X Hall", "REV-X ROOM" and "REV-X PLATE" with newly introduced parameters like Room Size and Decay envelope that bring much higher definition and finer nuances
- Reliable and Efficient Front Panel User Interface with Colors
- Hardware cosmetics is designed to offer optimum reliability for the engineers on site with two front panel sets of "cross-keys"
- Professional Audio I/O
- Analog connection includes XLR type (w/latch) and quarter inch L + R input and output connectors both with +4dBU/-10dBu selector switch. AES/EBU I/O is also provided as is BNC WordClock input
UPC: 086792726458 In the Box Yamaha SPX2000 - Digital Multi Effects Processor AC Power Cord One (1) Year Warranty
Includes Free - B&H Photo Video - $150 E-Gift Card scswybfrdddswssvsysrebxabydvssev
Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha SPX2000 - Digital Multi Effects Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha SPX2000 Specs | Effects Type | Multi | | Channels | 2 | | Effect Variations | Not specified by manufacturer | | Presets | 122 | | User Memory | 99 | | Inputs | 2 x XLR (analog)
2 x 1/4" TRS phone balanced (Analog)
1 x XLR AES/EBU (digital)
1 x BNC WordClock | | Output | 2 x XLR (analog)
2 x 1/4" TRS phone balanced (Analog)
1 x XLR AES/EBU (digital)
1 x USB to Host | | AD/DA Conversion | 24-bit, 128x oversampling (@fs=44.1, 48kHz)
24-bit, 64x oversampling (@fs=88.2, 96kHz)Internal Clock: 44.1, 48, 88.2, 96kHz
External Clock: Normal Rate :39.69kHz to 50.88kHz
Double rate: 79.38kHz to 101.76kHz | | MIDI | In, Out/Thru | | External Storage | USB to Host
MIDI SysEx | | Display | 16 characters x 2 lines with 5-color back-lit LCD
12 segment (L,R) meter LED | | Frequency Response | 20Hz to 20kHz (0dB + 1.0, -3.0) @48kHz
20Hz to 40kHz (0dB + 1.0, -3.0) @96kHz | | Dynamic Range | 106dB AD + DA, input level VR: Max | | Noise | Not specified by manufacturer | | Dimensions (WxDxH) | 19" x 14 11/16" x 1 3/4" | | Weight | 8.82 lbs | | Specialties | 96kHz audio DSP | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 6.0" |
