Yamaha STAGEPAS 400BT Complete PA System

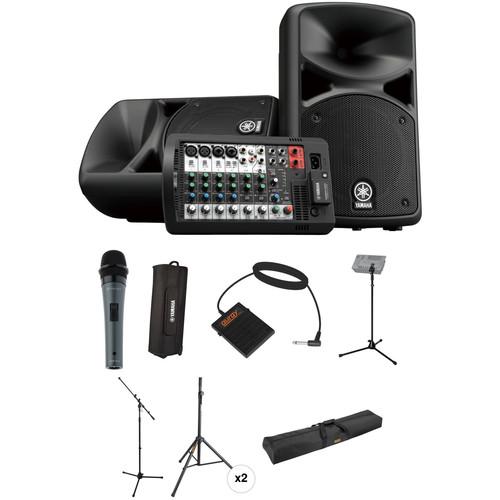

User Manual for Yamaha STAGEPAS 400BT Complete PA System with Touring Package

• Product category: Portable PA Systems Yamaha
• Brand: Yamaha
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Yamaha Portable PA Systems

Product description

• Yamaha STAGEPAS 400BT Portable PA System with Bluetooth The STAGEPAS 400BT Portable PA System with Bluetooth from Yamaha is an all-in-one lightweight PA that is compact enough to carry by hand. It features 400W of output power, a detachable 8-channel mixer, and is flexible enough to be used in a range of environments and applications.The STAGEPAS PA is equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets. Other features include: SPX digital reverb, 1-knob master EQ, and a feedback suppressor to avoid the uncomfortable feedback that plagues so many sound reinforcement novices and professionals. Add more bottom end to your system by connecting a powered subwoofer (sold separately).Finally, delivering 400W of power respectively, the STAGEPAS system offers a major boost in performance, allowing you to meet the demands of a wider range of situations.
  • Bluetooth audio streaming
  • Switchable stereo/mono inputs
  • Detachable 8-channel mixer
  • 400W power output
  • Hi-Z (high-impedance) inputs
  • Monitor and subwoofer outputs
  • 1-knob master EQ with virtual bass boost
  • Phantom power
  • Optional reverb footswitch
  UPC: 889025115346
• Polsen HDM-16-S Handheld Dynamic Performance Microphone The HDM-16-S Handheld Dynamic Performance Microphone from Polsen is a reliable and rugged handheld microphone with an integrated on/off switch. The supercardioid polar pattern and frequency response is optimized for the human voice and can be used for live stage, vocal presentation, and studio applications. The microphone's polar pattern is designed to eliminate off-axis sound. Additionally, an on/off switch lets you quickly silence the mic when necessary. Built with rugged construction, the Polsen HDM-16-S will withstand the rigors of transport and live performances. A 16.4' XLR cable, carry pouch, and a mic clip are also included.
  Optimized for Vocals
  • The HDM-16-S microphone is optimized for live vocal performances. It has a wide frequency response with impressive sensitivity, which makes this microphone capable of capturing singers and presenters with clarity and accuracy.
  Supercardioid Polar Pattern
  • The dynamic supercardioid microphone capsule minimizes background noise, making the HDM-16-S ideal for vocals or speech, whether onstage or in the studio.
  On/Off Switch
  • Don't let your audience hear what you don't want them to hear. The on/off switch is a convenient feature that lets you quickly mute the microphone between songs or during a pause in your presentation.
  Rugged and Portable
  • Take your microphone anywhere. The heavy-duty metal construction will withstand the rigors of transport and onstage use. With the included 16-foot XLR cable, you can plug into any mixing board, sound system, or amplifier with an XLR input jack.
  UPC: 847628598447
• Yamaha Soft Rolling Carry Case for STAGEPAS 400i Portable PA System or 2 MSR100 Powered Speakers (Black) Store, transport and protect your STAGEPAS 400i Portable PA System or two MSR100 Powered Speakers from dirt, dust and bumps with the Soft Rolling Case from Yamaha. Constructed from strong and durable nylon, this case features a zipper closure, and an exterior pocket for accessories. A top handle complemented with two wheels on the bottom is useful for rolling the case over flat ground or hauling into a vehicle. Feet opposite the bottom wheels enable the case to stand upright. Note: Two Soft Rolling Carry Cases are required for transporting the STAGEPAS 400i Portable PA System. UPC: 086792328959
• Auray FP-S1L Universal Sustain Pedal The FP-S1L from Auray is a compact, switch-type universal sustain pedal built with high-quality metal construction. It features switchable polarity, making it compatible with most electronic keyboards that have a 1/4" foot-switch input jack. It is equipped with a non-slip rubber pad on the bottom to keep it in place and it features a 72" cable for comfortable positioning. UPC: 847628580503
• Yamaha M770 Mixer Stand for STAGEPAS Mixers The Yamaha M770 Mixer Stand with adapter is designed to attach MG102C, MG82CX, STAGEPAS 400i, and STAGEPAS 600i Mixers. UPC: 086792313085
• Auray MS-5230T Tripod Microphone Stand with Telescoping Boom The Auray MS-5230T Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5230T mic stand collapses for easy transport. UPC: 847628015593
• 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand The SS-4320 Lightweight Aluminum Speaker Stand from Auray is built to be lightweight, yet stable and durable; a single stand is capable of supporting speakers weighing up to 100 pounds. It features a telescoping center column with five height adjustments ranging from 47 to 78". It also features collapsible legs for portability, as well as non-slip feet for traction on surfaces such as dance floors and stages.
  • Center column fits 1-3/8" speaker mounts and 1-1/2" adapter is included
  • Locking pin fits into any of five predrilled holes to secure desired height setting
  • Center brace connects tripod legs for increased stability
  UPC: 847628015845
• Auray Speaker Stand Bag 51" Interior (Black) The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification.
  Durable Protection
  • The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
  Reliable and Stylish
  • Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
  Easy Transport
  • Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
  UPC: 847628002432

• STAGEPAS 400BT Portable PA System with Bluetooth butxyrvssbuftqfufqdffutfr
• Cover Panel
• 6.6' Power Cord
• 2 x 19.7' Speaker Cables
• 12 x Non-Skid Pads
• 2 x Ferrite Cores
• 2 x Cable Ties
• Limited 1-Year Warranty

• Polsen - HDM-16-S Handheld Dynamic Performance Microphone

• Soft Rolling Carry Case for STAGEPAS 400i Portable PA System or 2 MSR100 Powered Speakers (Black)

• Auray - FP-S1L Universal Sustain Pedal

• M770 Mixer Stand for STAGEPAS Mixers

• Auray - MS-5230T Tripod Microphone Stand with Telescoping Boom

• 2 x Auray - SS-4320 Lightweight Aluminum Speaker Stand

• Auray - Speaker Stand Bag 51" Interior (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Yamaha STAGEPAS 400BT Portable PA System with Bluetooth

  Type	Powered mixer with 2 passive speakers
  Channel	8
  Input Channels	Hi-Z Switch: CH4, ST/Mono switch: Ch 5/6-7/8
  Output Channel Function	Feedback suppressor, 1-knob master EQ

  Inputs	4 x mono mic/line + 4 mono /2 stereo line
  Phantom Power	+30 V (Ch1, 2)
  Outputs	Speakers out (L, R) Monitor out (L/Mono, R) Subwoofer out (mono) with auto HPF
  Bluetooth	Bluetooth ver 4.1, A2DP ver 1.2, Maximum Range: Approx. 32.8' / 10.0 m
  Other Controls	Reverb foot switch
  Input Channel Function	Hi-Z Channel 4 Low Shelving: 100 Hz
  DSP	SPX digital reverb (4 program, parameter control)
  Maximum Output	At 4 Ohms: 400 W (200 W + 200 W) (dynamic), 360 W (180 W + 180 W) (continuous)

  Speaker Type	Two-way, bass-reflex speakers
  Frequency Range	55 Hz to 20 kHz
  Nominal Coverage Angle	H: 90° V: 60° Floor Monitor: 50°
  Components	8" / 20 cm cone 1.0" / 2.54 cm voice coil compression driver
  Maximum Output Level	125 dB SPL / speaker
  Power Requirements	100 to 240 VAC, 50/60 Hz
  Power Consumption	30 W (Idle), 70 W (1/8 power)
  Pole Socket	34.8 to 35.2 mm pole socket with StageLok
  Other Features	Handle: 1 x top
  Dimensions (W x H x D)	Speaker: 11.4 x 18.6 x 10.8" / 28.9 x 47.2 x 27.5 cm Mixer: 12.1 x 7.1 x 4.6" / 30.8 x 18.0 x 11.6 cm
  Weight	40.3 lb / 18.3 kg

  Box Dimensions (LxWxH)	26.5 x 22.0 x 14.9"

• Polsen HDM-16-S Handheld Dynamic Performance Microphone

  Transducer	Dynamic
  Polar Pattern	Supercardioid
  Frequency Response	50 Hz to 16 kHz
  Impedance	600 Ohms ±30% at 1 kHz
  Sensitivity	-54 dB ±3 dB (0 dB= 1 V/Pa @ 1 kHz)
  Output Connector	3-pin XLR
  Cable Length	16.4' (5 m)
  Dimensions (L x Diam)	7 x 2.1" (17.8 x 5.3 cm)
  Weight	0.7 lb (317.5 g)

  Box Dimensions (LxWxH)	8.7 x 4.9 x 2.7"

• Yamaha Soft Rolling Carry Case for STAGEPAS 400i Portable PA System or 2 MSR100 Powered Speakers (Black)

  Type	Bag
  Carrying/Transport Options	Top Handle
  Type of Closure	Zipper
  Number of Casters	2
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	11.4 x 37.5 x 10.9" / 29 x 95.3 x 27.7 cm
  Weight	9.9 lb / 4.5 kg

  Box Dimensions (LxWxH)	20.3 x 14.2 x 6.2"

• Auray FP-S1L Universal Sustain Pedal

  Connector	Right Angle 1/4" TS
  Polarity	+ and -
  Cable Length	72" (182.88 cm)
  Weight	0.60 lb (0.27 kg)

  Box Dimensions (LxWxH)	6.3 x 4.6 x 1.7"

• Yamaha M770 Mixer Stand for STAGEPAS Mixers

  Box Dimensions (LxWxH)	37.5 x 3.3 x 3.25"

• Auray MS-5230T Tripod Microphone Stand with Telescoping Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	19.3 to 33.9" / 49 to 86 cm

  Material	Steel
  Weight	4.6 lb / 2.1 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand

  Type	Speaker Stand
  Load Capacity	100 lb / 45.4 kg
  Mount Size	1-3/8" 1-1/2"
  Height Adjustment Range	47 to 78" / 120 to 198 cm
  Material of Construction	Aluminum
  Weight	5 lb / 2.3 kg

  Box Dimensions (LxWxH)	42.0 x 5.3 x 5.0"

• Auray Speaker Stand Bag 51" Interior (Black)

  Material	Nylon
  Type of Closure	Zipper
  Exterior Dimensions (H × W × D)	52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm
  Carrying/Transport Options	Dual carry handles with padded touch-fastener wrap
  Weight	1.2 lb / 0.5 kg

  Box Dimensions (LxWxH)	16.6 x 10.8 x 2.2"
