User Manual for Yamaha STAGEPAS 400BT Portable PA System with Bluetooth Click to enlarge the picture
Contents of the user manual for the Yamaha STAGEPAS 400BT Portable PA System
- Product category: Portable PA Systems Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Portable PA Systems
 |
User manual for the Yamaha STAGEPAS 400BT Portable PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

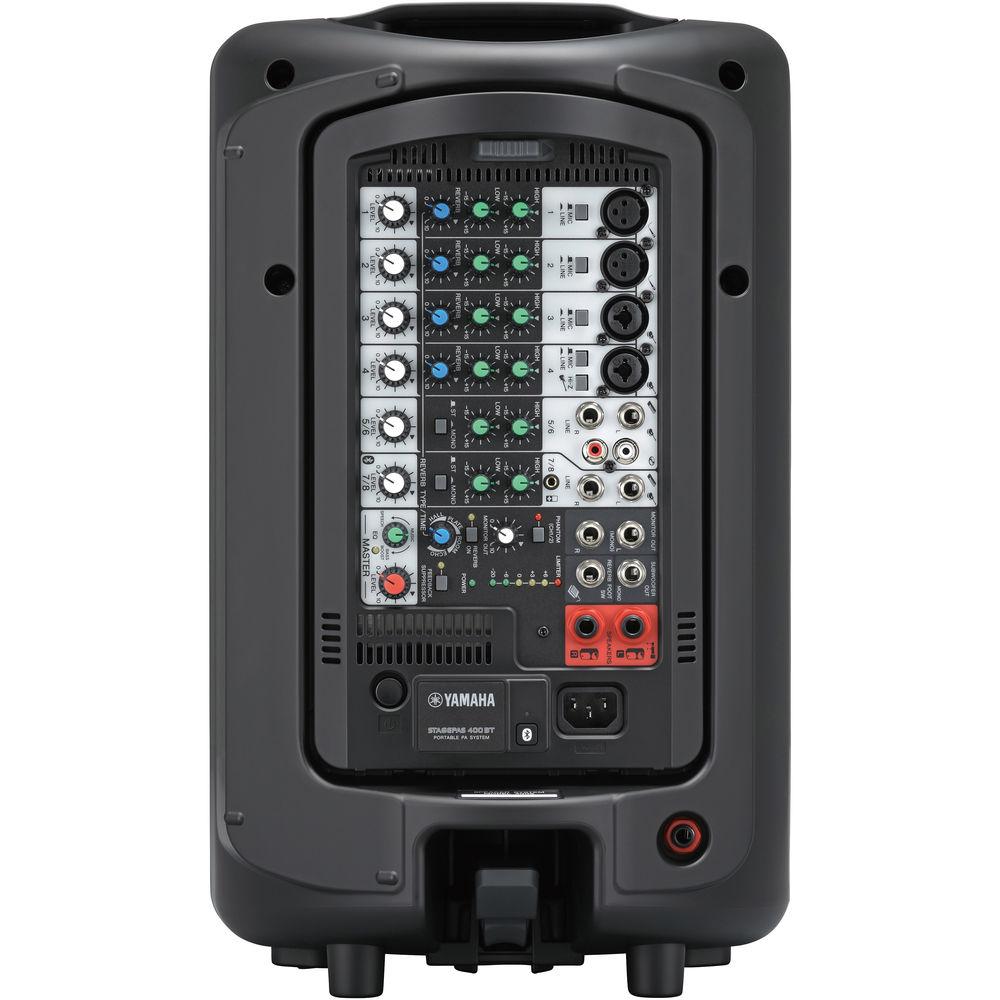

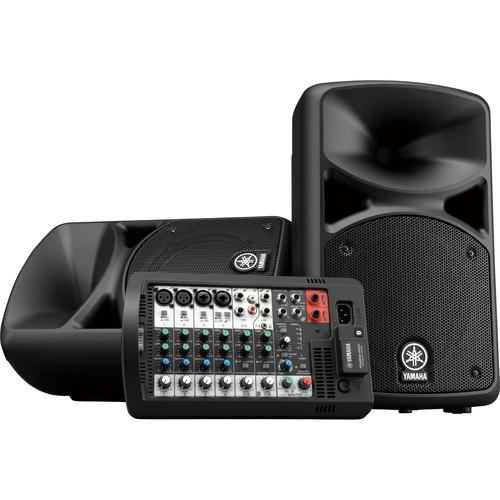

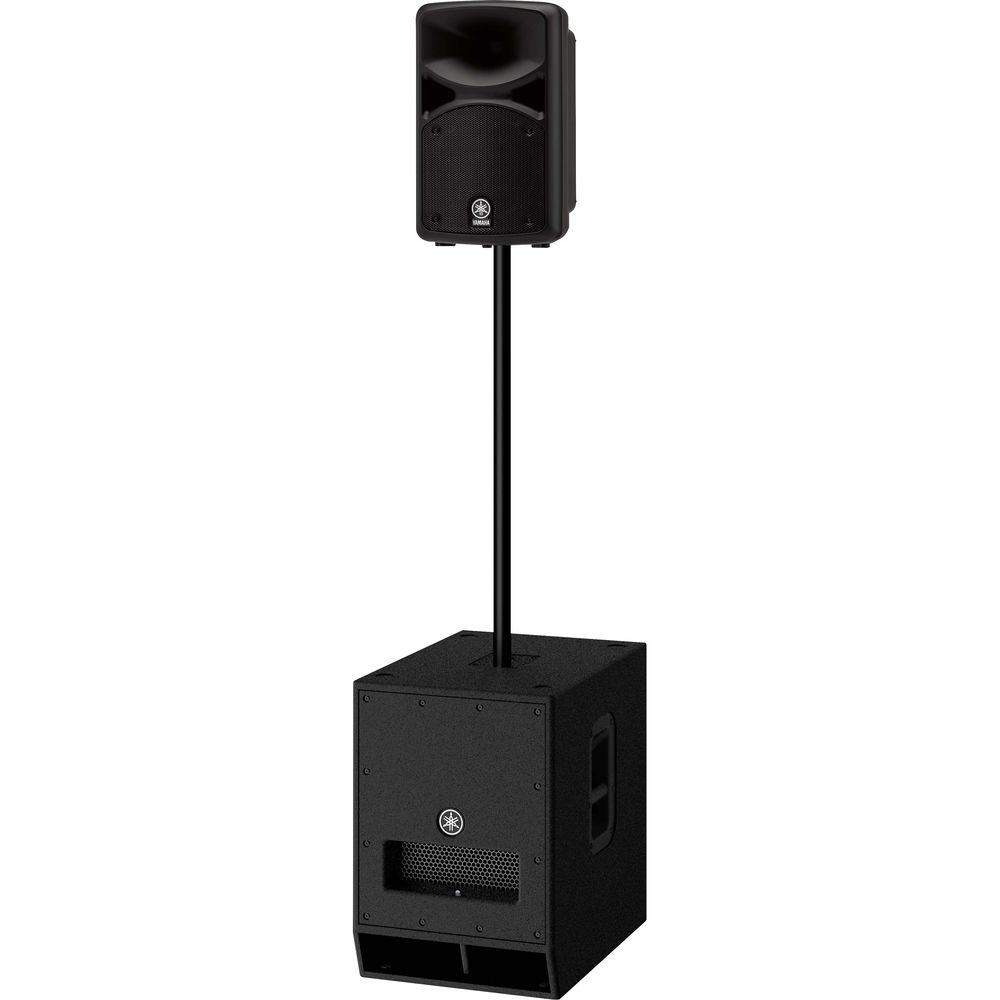

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The STAGEPAS 400BT Portable PA System with Bluetooth from Yamaha is an all-in-one lightweight PA that is compact enough to carry by hand. It features 400W of output power, a detachable 8-channel mixer, and is flexible enough to be used in a range of environments and applications.The STAGEPAS PA is equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets. Other features include: SPX digital reverb, 1-knob master EQ, and a feedback suppressor to avoid the uncomfortable feedback that plagues so many sound reinforcement novices and professionals. Add more bottom end to your system by connecting a powered subwoofer (sold separately).Finally, delivering 400W of power respectively, the STAGEPAS system offers a major boost in performance, allowing you to meet the demands of a wider range of situations. - Bluetooth audio streaming
- Switchable stereo/mono inputs

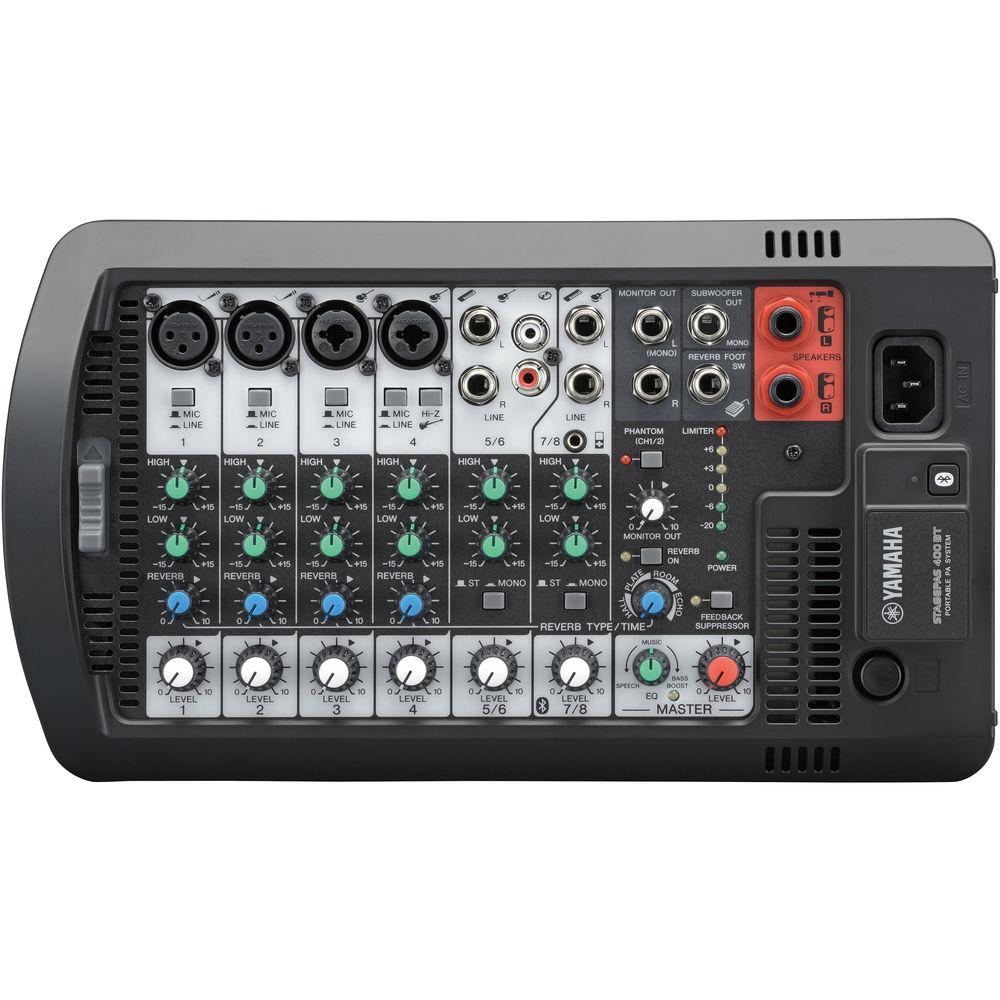

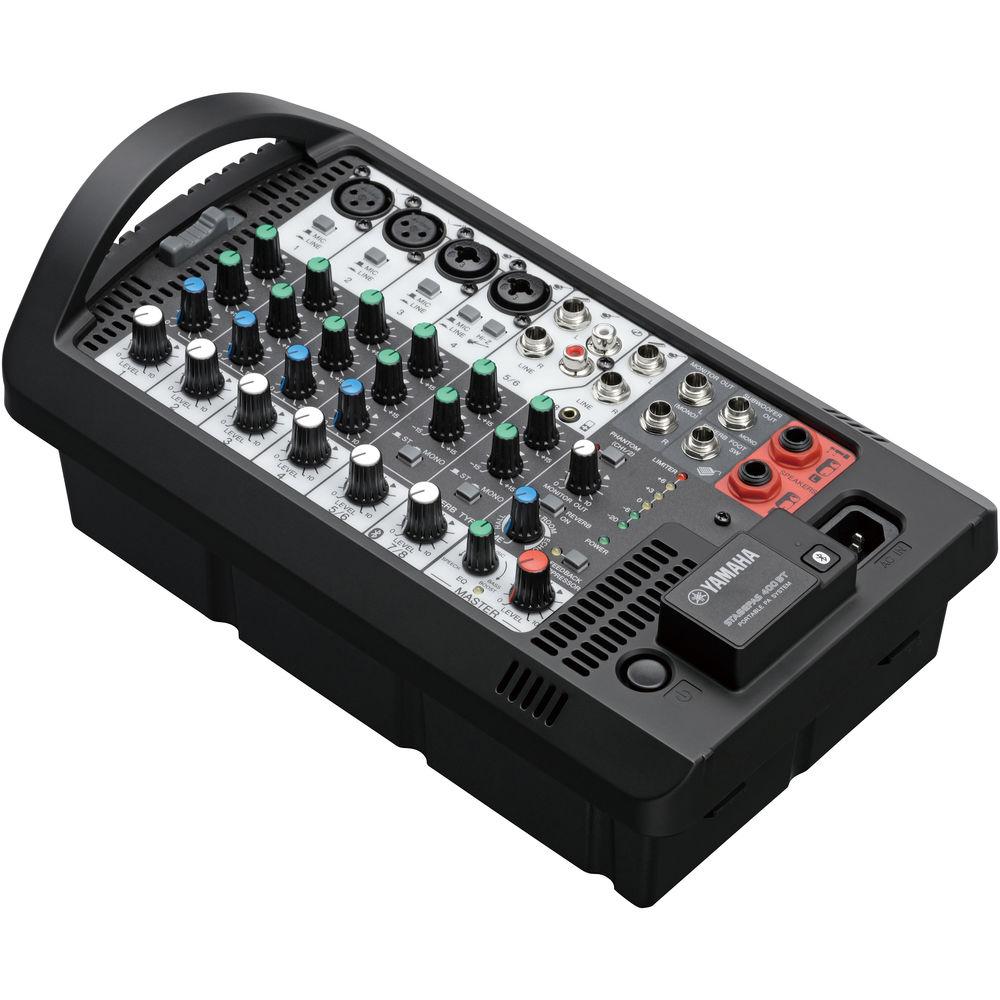

- Detachable 8-channel mixer
- Hi-Z (high-impedance) inputs
- Monitor and subwoofer outputs
- 1-knob master EQ with virtual bass boost
- Optional reverb footswitch

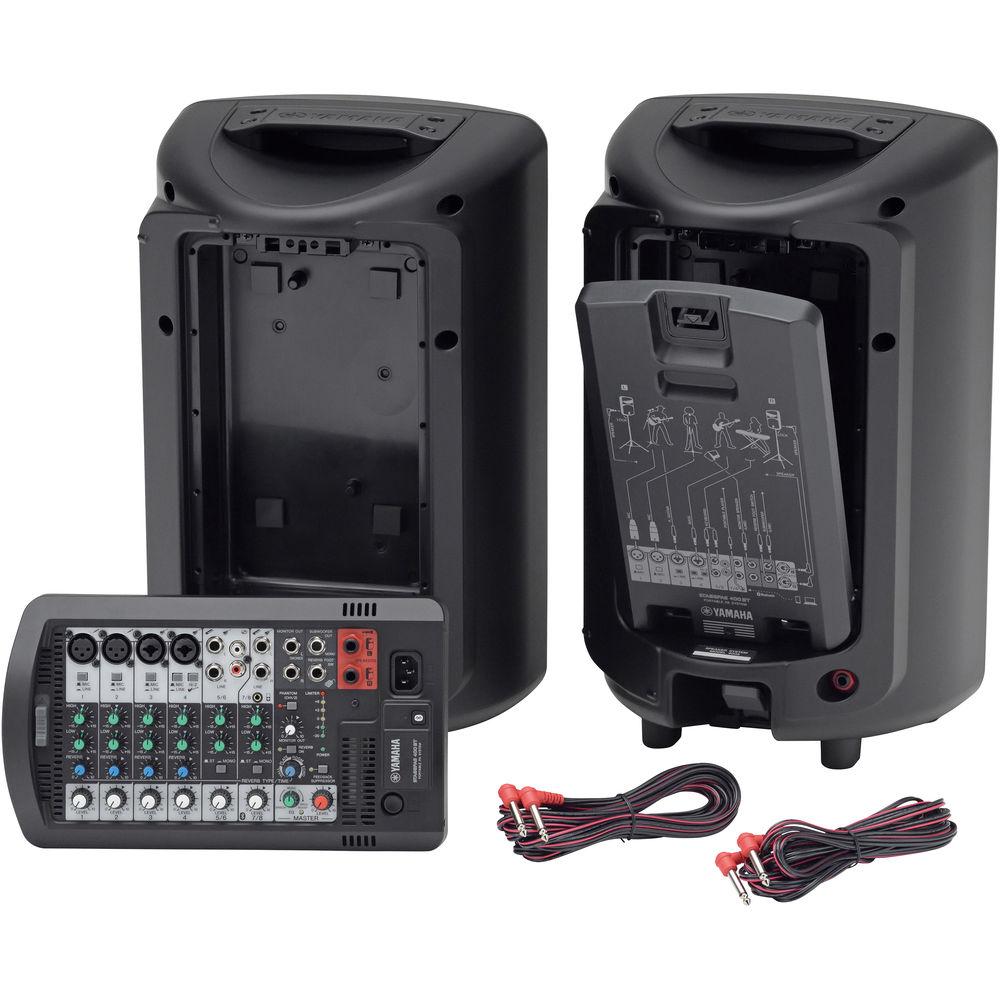

UPC: 889025115346 In the Box Yamaha STAGEPAS 400BT Portable PA System with Bluetooth Cover Panel 6.6' Power Cord 2 x 19.7' Speaker Cables 12 x Non-Skid Pads 2 x Ferrite Cores 2 x Cable Ties Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha STAGEPAS 400BT Portable PA System with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha STAGEPAS 400BT Specs | Type | Powered mixer with 2 passive speakers | | Channel | 8 | | Input Channels | Hi-Z Switch: CH4, ST/Mono switch: Ch 5/6-7/8 | | Output Channel Function | Feedback suppressor, 1-knob master EQ | | | | Inputs | 4 x mono mic/line + 4 mono /2 stereo line | | Phantom Power | +30 V (Ch1, 2) | | Outputs | Speakers out (L, R)
Monitor out (L/Mono, R)
Subwoofer out (mono) with auto HPF | | Bluetooth | Bluetooth ver 4.1, A2DP ver 1.2, Maximum Range: Approx. 32.8' / 10.0 m | | Other Controls | Reverb foot switch | | Input Channel Function | Hi-Z Channel 4
Low Shelving: 100 Hz | | DSP | SPX digital reverb (4 program, parameter control) | | Maximum Output | At 4 Ohms: 400 W (200 W + 200 W) (dynamic), 360 W (180 W + 180 W) (continuous) | | | | Speaker Type | Two-way, bass-reflex speakers | | Frequency Range | 55 Hz to 20 kHz | | Nominal Coverage Angle | H: 90°
V: 60°
Floor Monitor: 50° | | Components | 8" / 20 cm cone
1.0" / 2.54 cm voice coil compression driver | | Maximum Output Level | 125 dB SPL / speaker | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 30 W (Idle), 70 W (1/8 power) | | Pole Socket | 34.8 to 35.2 mm pole socket with StageLok | | Other Features | Handle: 1 x top | | Dimensions (W x H x D) | Speaker: 11.4 x 18.6 x 10.8" / 28.9 x 47.2 x 27.5 cm
Mixer: 12.1 x 7.1 x 4.6" / 30.8 x 18.0 x 11.6 cm | | Weight | 40.3 lb / 18.3 kg | | | | Package Weight | 49.75 lb | | Box Dimensions (LxWxH) | 26.5 x 22.0 x 14.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Yamaha STAGEPAS 400BT Portable PA System with Bluetooth
| Subject: HOW CAN I CONNECT MY MARSHALL CODE 25 TO YAMAHA STAGEPASS 400BT | | Date: 12.08.2021 07:46:16 | Name: Gladstone Mendis | PLEASE NOTE THAT I POSSESS A MARSHALL CODE 25, AND HOW THIS MODULATION AMP COULD BE CONNECTED TO YAMAHA STAGE PASS 400BT, AS MARSHALL CODE 25, HAS NO LINE OUT. ONLY FOOT SWITCH INPUT.
COULD YOU PLEASE ASSIST ME WITH PROPER GUIDANCE PLEASE.
ANTON GLADSTONE MENDIS
+94761104601 | | Post reply |
