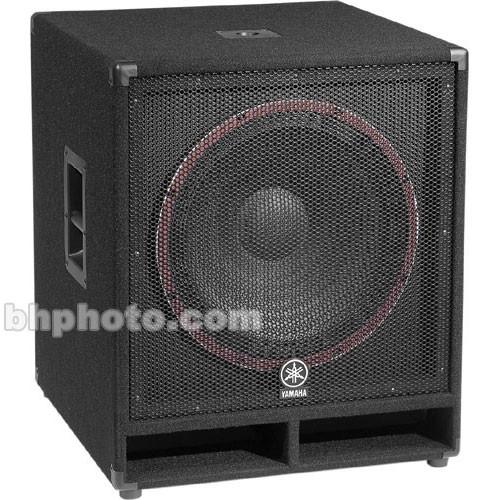

User Manual for Yamaha SW118V - 18" PA Subwoofer Click to enlarge the picture
Contents of the user manual for the Yamaha SW118V - 18" PA Subwoofer
- Product category: PA Speakers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha PA Speakers
|
User manual for the Yamaha SW118V - 18" PA Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description The Yamaha Club Series SW118V is a moderately priced, passive P.A. subwoofer with an 18" cast frame driver housed in a rugged, carpet-covered particle board enclosure with steel reinforced edges, covered by a steel mesh grill. The driver offers a power handling capacity of up to 1200 watts, and the front-ported Bass reflex design enables low end frequency reproduction down to 30 Hz. The SW118V is equipped with high quality Neutrik Speakon and Switchcraft 1/4" connectors, an integral pole socket mounted at the top of the cabinet for mounting a main speaker, and all-steel recessed carrying handles on the side for convenient transportation. The SW118V is recommended as a small event P.A. subwoofer, for club dates, weddings, and other party events, where the music requires a fuller and more prominent low end output from the system. - Rugged, passive P.A. Subwoofer with 18" cast frame driver, recessed side-mounted steel carrying handles and steel grill speaker cover
- Power handling capacity up to 1200 Watts
- Frequency response down to 30Hz with efficient front-ported Bass Reflex design
- Recessed Speakon and 1/4" connectors
- Integral pole socket on top of cabinet for mounting main speaker
UPC: 086792728209 In the Box Yamaha SW118V - 18" PA Subwoofer 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha SW118V - 18" PA Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha SW118V Specs | | | Configuration | Passive Subwoofer | | Total Power Capacity | 600 W RMS
1200 W Peak | | System Impedance | 8 Ohms | | | | LF Driver | 1 x 18" / 457.2 mm Woofer | | | | Frequency Range | 30 Hz to 2 kHz | | Maximum SPL | 127 dB SPL | | Speaker Sensitivity | 96 dB | | | | Audio I/O | 1 x speakON
1 x 1/4" | | | | Construction Material | Carpet, Particle Board | | Dimensions | 22.0 x 32.0 x 25.0" / 558.8 x 812.8 x 635.0 mm | | Weight | 71 lb / 32.2 kg | | | | Package Weight | 90.5 lb | | Box Dimensions (LxWxH) | 31.0 x 27.0 x 26.0" |
