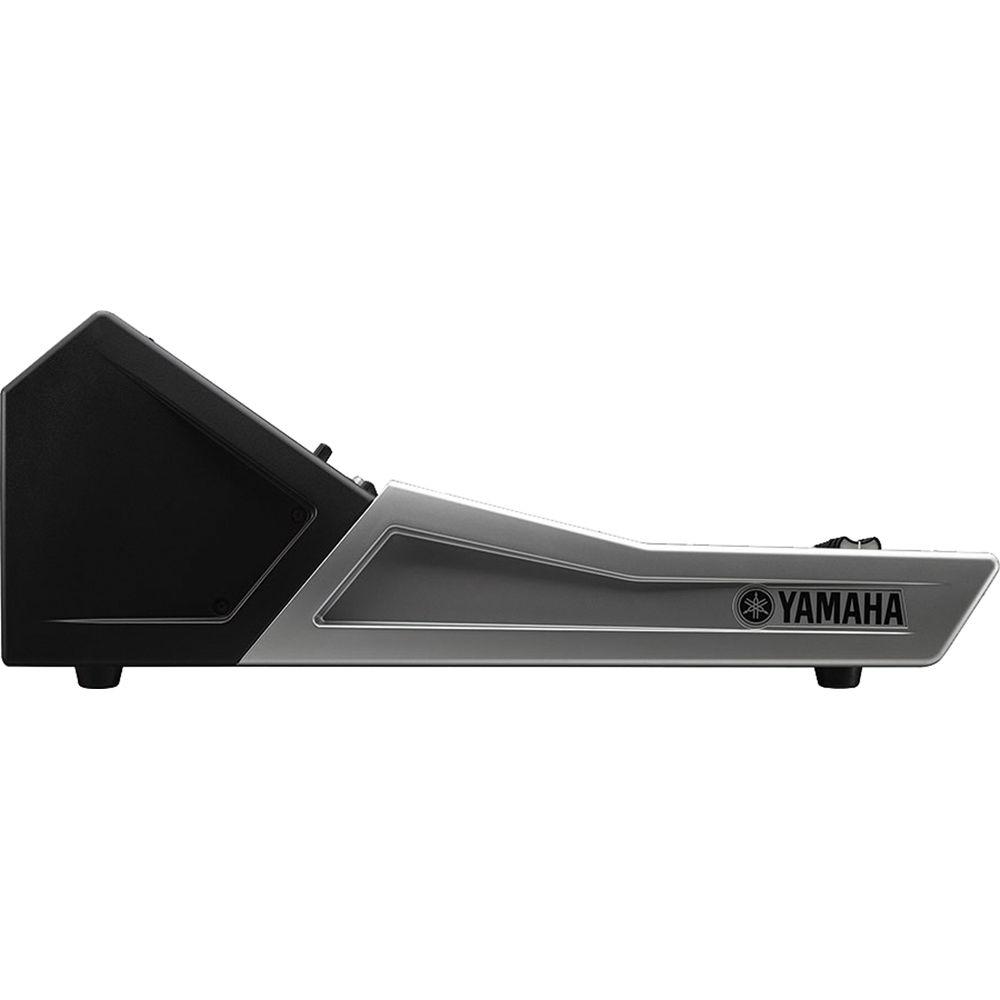

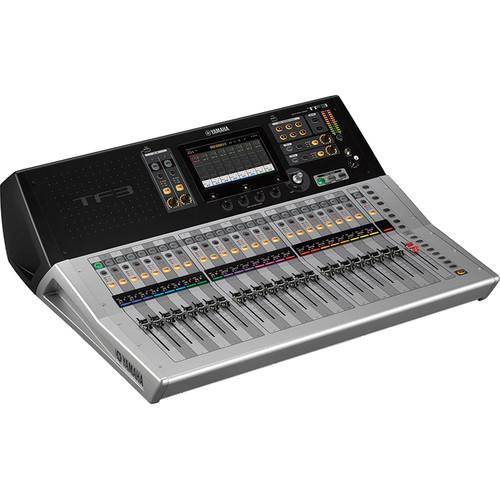

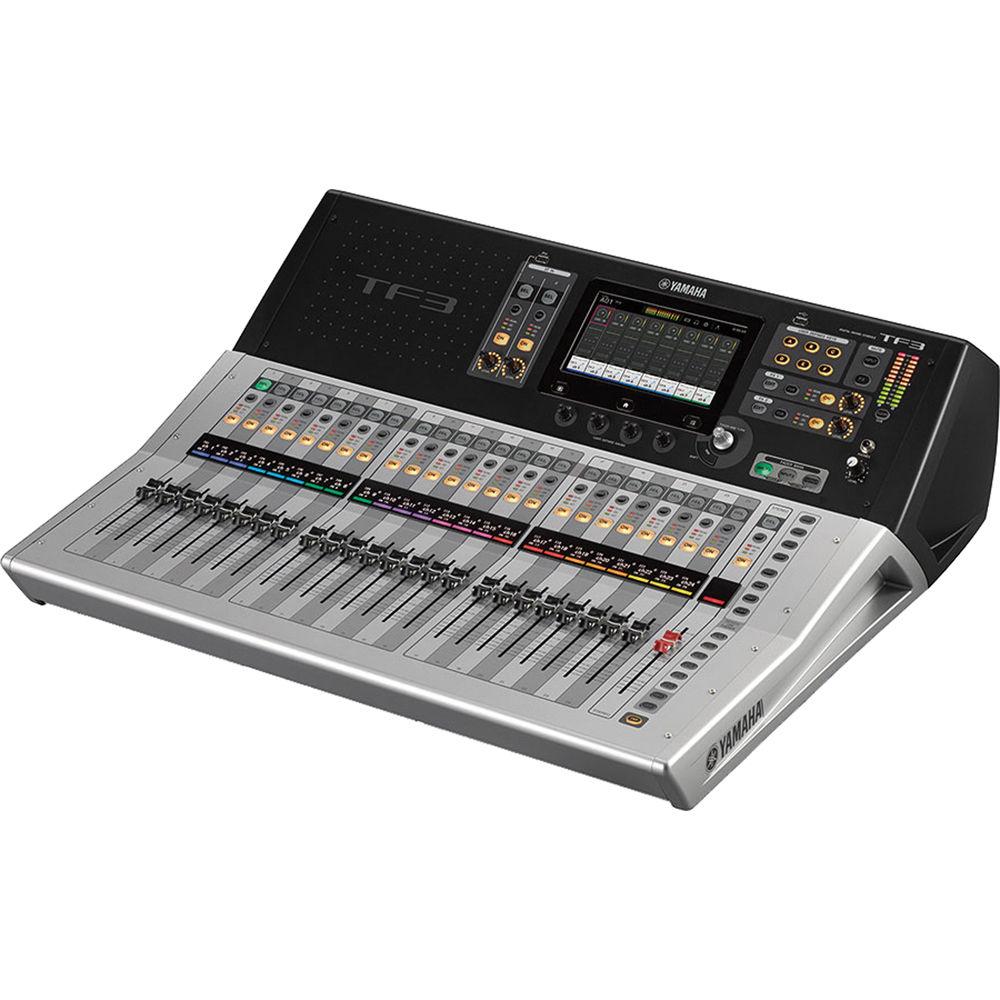

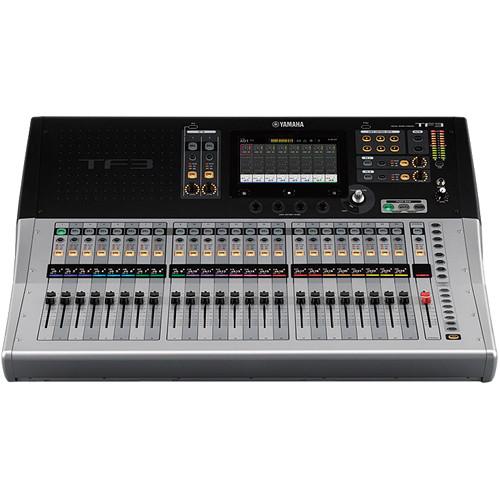

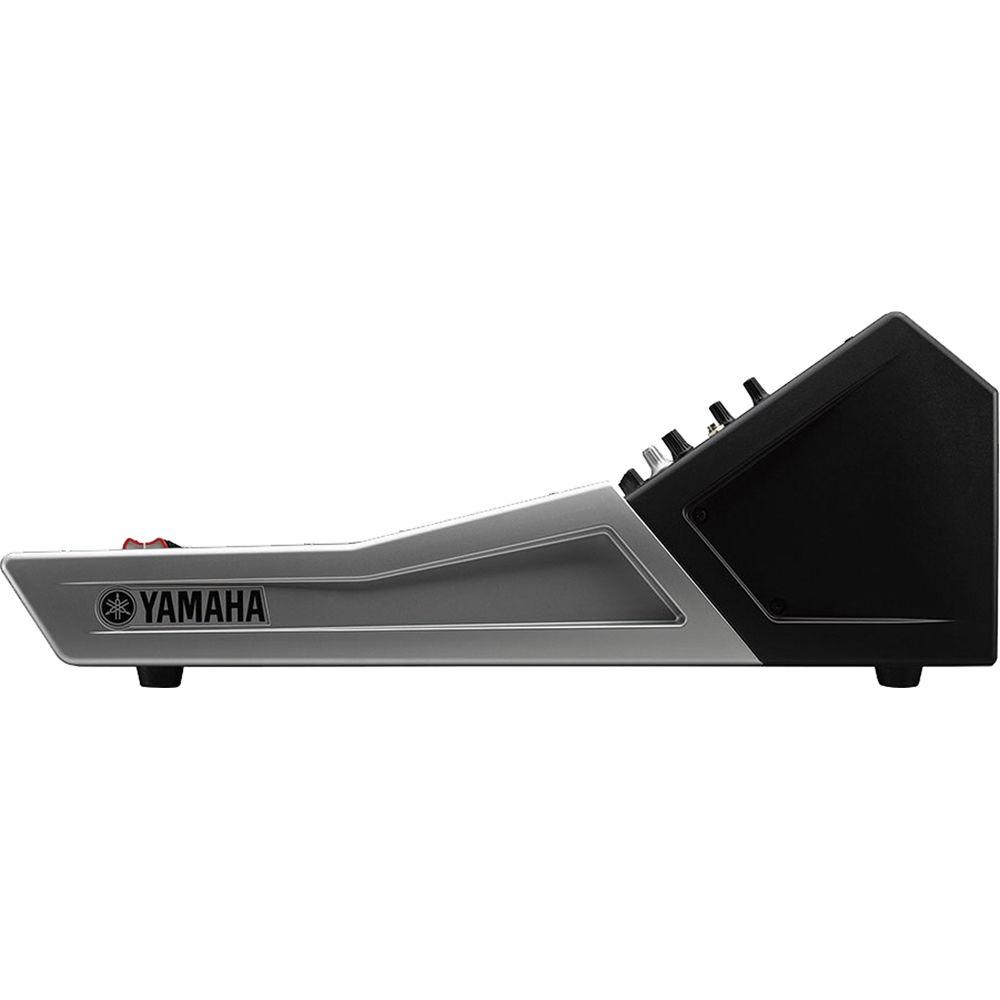

Product description The Yamaha TF3 is a rack-mountable digital audio mixing console that features a touchscreen display, 25 motorized faders, and is expandable up to 48 input channels by adding the optional Tio1608-D I/O rack. Ideal for a multitude of live sound reinforcement scenarios, the TF3 can also be used for live recording, offering 34 x 34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2 x 2 channel recording and playback using any USB storage device.

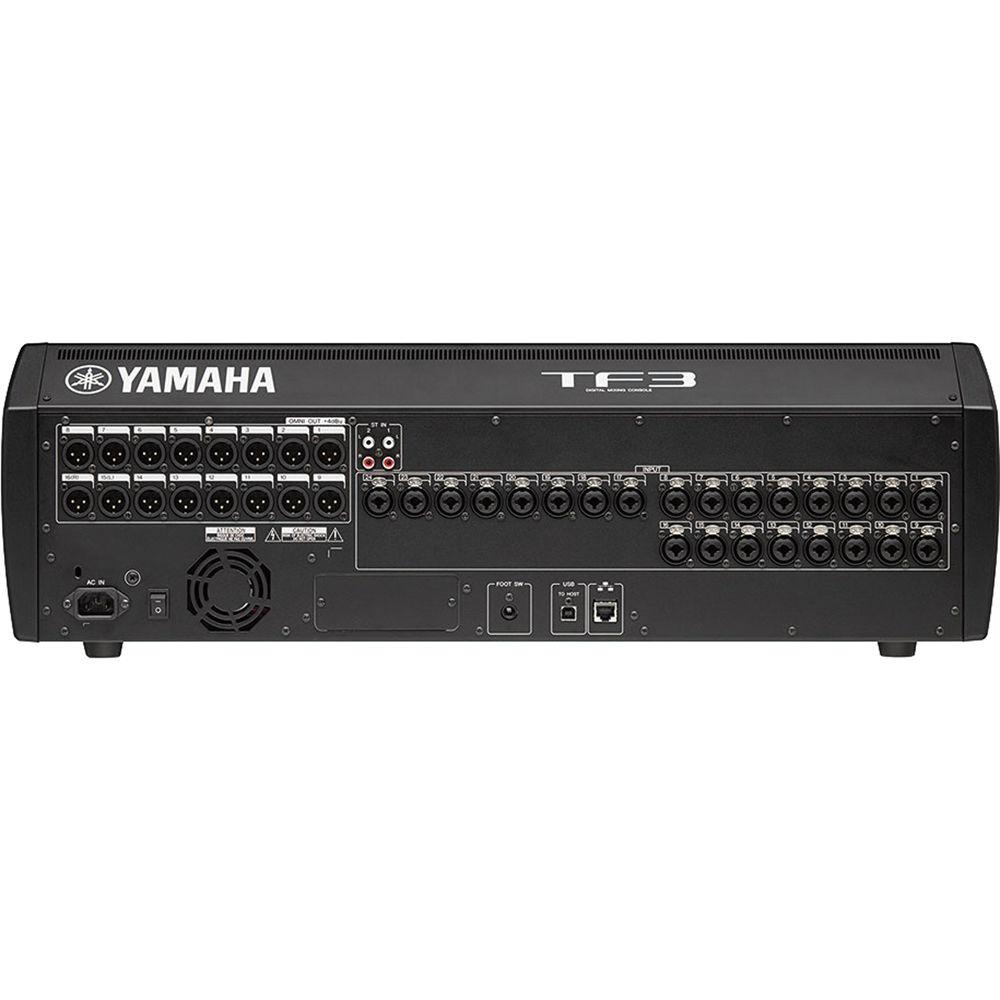

The TF3 console itself provides 24 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as 2 analog RCA stereo line inputs, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression. The TF3 ships with Steinberg's Nuendo Live for advanced multi-tracking and virtual sound check capabilities. Note: Note! Any customer purchasing a TF mixer between January 1st through June 30th, 2016 that doesn't include Nuendo Live may register with Yamaha to receive a free copy. - Features at a Glance:
-
- 25 motor faders (24 channels + 1 master)
- 48 input mixing channels (40 mono + 2 stereo + 2 return)
- 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
- 8 DCA groups with Roll-out
- 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
- 16 analog XLR outputs
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
- Download information for CUBASE AI DAW software
- Optional rackmount kit
- 1 expansion slot for optional NY64-D Dante audio interface card
- Optional Tio1608-D Dante equipped I/O rack with 16 microphone/line inputs and 8 line outputs
UPC: 086792992891 In the Box Yamaha TF3 Digital Mixing Console Power Cord Steinberg's Nuendo Live Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha TF3 Digital Mixing Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha TF3 Specs | Faders | 25 | | Mixer | Input Channels: 48 (40 mono + 2 stereo + 2 return)
Aux Buses: 20 (8 mono + 6 stereo)
Stereo Buses: 1
Sub Buses: 1
Input Channel Functions: 8 DCA Groups | | I/O | Inputs: 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs: 16 (XLR)
Expansion Slots: 1 | | DSP | 8 effects + 10 GEQ | | USB | 34 x 34 USB audio interface, 2-track recording via USB storage device | | Sampling Frequency | 48 kHz, internal | | Signal Delay | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | | Faders | 100 mm motorized, resolution = 10-bit, +10 to -138 dB, -∞ dB all faders | | Total Harmonic Distortion | Less than 0.05% 20 Hz - 20 kHz @ +4 dBu into 600 ohms, INPUT to OMNI OUT, input gain = min. (measured with a -18 dB/octave filter @ 80 kHz) | | Frequency Response | +0.5, -1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @ 1 kHz, INPUT to OMNI OUT | | Dynamic Range | 110 dB typ., DA converter, 107 dB typ., INPUT to OMNI OUT, input gain = min | | Noise | Equivalent Input Noise:-128 dBu typ., input gain = max. (measured with an A-weight filter)
Residual output noise:-85 dBu, ST master off (measured with an A-weight filter) | | Crosstalk | -100 dB (measured with a -30 dB/octave filter @ 22 kHz), adjacent INPUT/OMNI OUT channels, input gain = min | | Power Requirements | 100 - 240 V 50/60 Hz | | Power Consumption | 110 W | | Analog Inputs | Input Terminals: INPUT 1-24, ST IN 1,2
GAIN: -6 dB / +66 dB (INPUT 1-24)
Load Impedance: 7.5 kOhms (INPUT 1-24); 10 kOhms (ST IN 1,2)
For Use With Nominal: 50 - 600 ohm mics or 600 ohm lines (INPUT 1-24); 600 ohm lines (ST IN 1,2)
Sensitivity: -82 dBu (61.6 V), -10 dBu (245 mV) (INPUT 1-24); -30 dBV (31.6 V) (ST IN 1,2)
Nominal: -62 dBu (0.616 mV), +10 dBu (2.45 V) (INPUT 1-24); -10 dBV (316 mV) (INPUT 1-24)
Max. Before Clip: -42 dBu (6.16 mV), +30 dBu (24.5 V) (INPUT 1-24); +10 dBV (3.16 V) (ST IN 1,2)
Connector: Combo Jack (XLR-3-31 type or TRS phone) balanced (INPUT 1-24); RCA pin jack unbalanced (ST IN 1,2) | | Analog Outputs | Output Terminals: OMNI OUT 1-16, PHONES
Source Impedance: 75 ohms (OMNI OUT 1-16); 100 ohms (PHONES)
For Use With Nominal: 600 ohm lines (OMNI OUT 1-16); 40 ohms (PHONES)
GAIN SW: +24 dBu position (default) (OMNI OUT 1-16)
Nominal Output Level: +4 dBu (1.23 V) (OMNI OUT 1-16); 3 mW (PHONES)
Max. Output Level Before Clip: +24 dBu (12.3 V) (OMNI OUT 1-16); 75 mW (PHONES)
Connector: XLR-3-32 type balanced (OMNI OUT 1-16); stereo phone jack (TRS) unbalanced (PHONES) | | Digital Input/Output | Terminals: USB (TO HOST), iPad
Format: USB
Data length 24-bit (USB TO HOST)
Audio: 34 ch input / 34 ch output, PCM (USB TO HOST); Playback: MP3 or WAV file data / Record: WAV file data (iPad)
Connector: USB (B type) (USB TO HOST); USB (A type) (iPad) | | Control I/O | Terminals: NETWORK, FOOT SW
Format:IEEE802.3 (NETWORK)
Level: 10BASE-T/100Base-TX (NETWORK)
Connector: RJ-45 (NETWORK); TS Phone (FOOT SW ) | | Dimensions | 28.2 x 8.9 x 23.6" (716 x 225 x 599 mm) | | Net Weight | 37.5 lb (7.0 kg) | | | | Package Weight | 52.0 lb | | Box Dimensions (LxWxH) | 32.0 x 29.0 x 12.0" |
