User Manual for Yamaha THR10 10W Guitar Amplifier Click to enlarge the picture
Contents of the user manual for the Yamaha THR10 10W Guitar Amplifier
- Product category: Guitar Amplifiers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Guitar Amplifiers
 |
User manual for the Yamaha THR10 10W Guitar Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

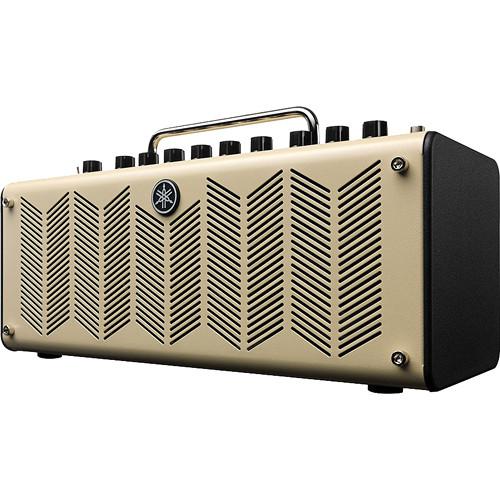

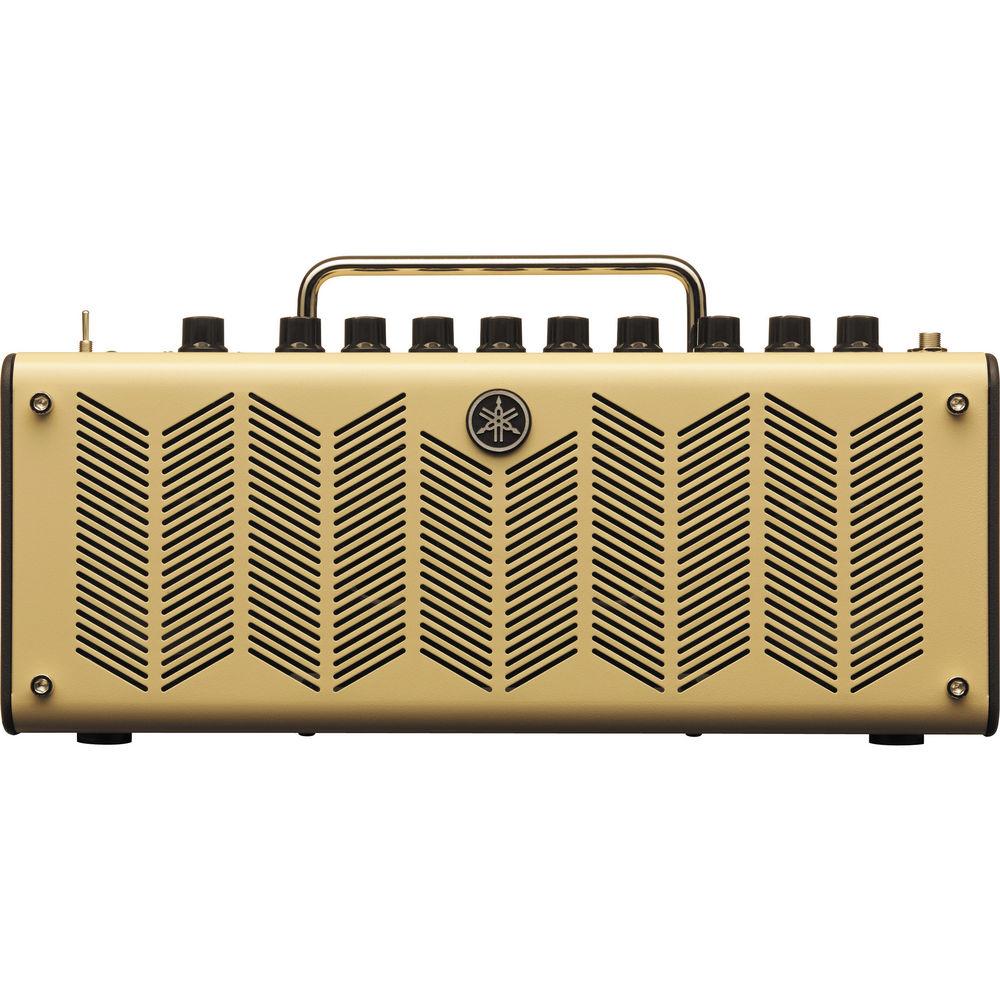

Product description The Yamaha THR10 10 Watt Guitar Amplifier is a portable 10 watt guitar amplifier with built-in amp modeling, effects and tuner. Featuring two 3" speakers, the THR10 can be powered with the included power supply or with eight AA batteries for on the go playing. The Yamaha designed speaker enclosure has been optimized to handle both guitar from its 1/4" input and stereo playback from its 1/8" auxiliary input.
With multiple amp types to select from, including Clean, Crunch, Lead, Brit Hi, and Modern, as well as Bass, Aco and Flat, the THR5 provides you with a variety of tonal choices. A selection of built-in effects such as Chorus, Tremolo, Phaser, Delay, and three types of Reverb allow you to customize your tone further. All of the included effects are based on Yamaha's Virtual Circuitry Modeling technology, or VCM. VCM effects were created to emulate the subtleties of analog effect pedals and amps.
The User Memory function allows you to save up to 5 amp settings, including effects, for quick recall later.
The THR Editor, a software download available from Yamaha, allows you in-depth control of the THR5 that goes beyond the control knobs on the amp itself. It also provides you with a compressor and a noise gate effect for the amp to give you further control of your sound. - Downloadable THR editor software offers in depth editing of amp and effect parameters using a computer
- Compatible with the THR Sessions iPhone app which allows you to slow down and mute the guitar on tracks on your iPhone so you can play along with them
- Included Cubase AI recording software allows you to record straight from the USB port of the THR10 to your computer
- Provides stereo playback from your smart phone or other device through 1/8" AUX jack or direct from your computer via the USB connection

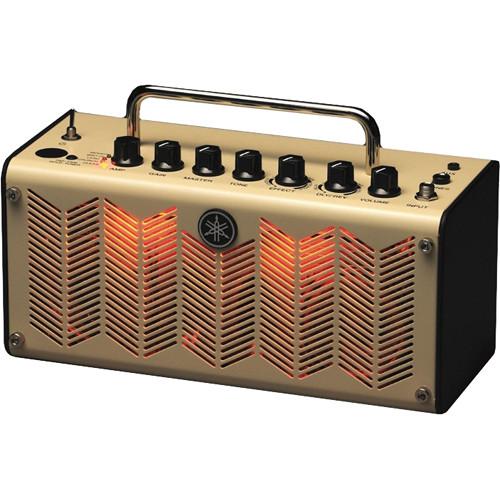

- Virtual Tube Illumination simulates orange tube glow from the metal speaker grille
UPC: 086792960906 In the Box Yamaha THR10 10W Guitar Amplifier Power Adapter USB Cable Stereo 1/8" Mini Cable Cubase AI DVD-Rom Limited 1-Year Warranty User Manual PDF 2.6mbvbqdyabqsdexscxrzavrdf Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha THR10 10W Guitar Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha THR10 Specs | Connections | Input: 1x 1/4"
Headphones: 1x 1/8"
Auxiliary in: 1x 1/8"

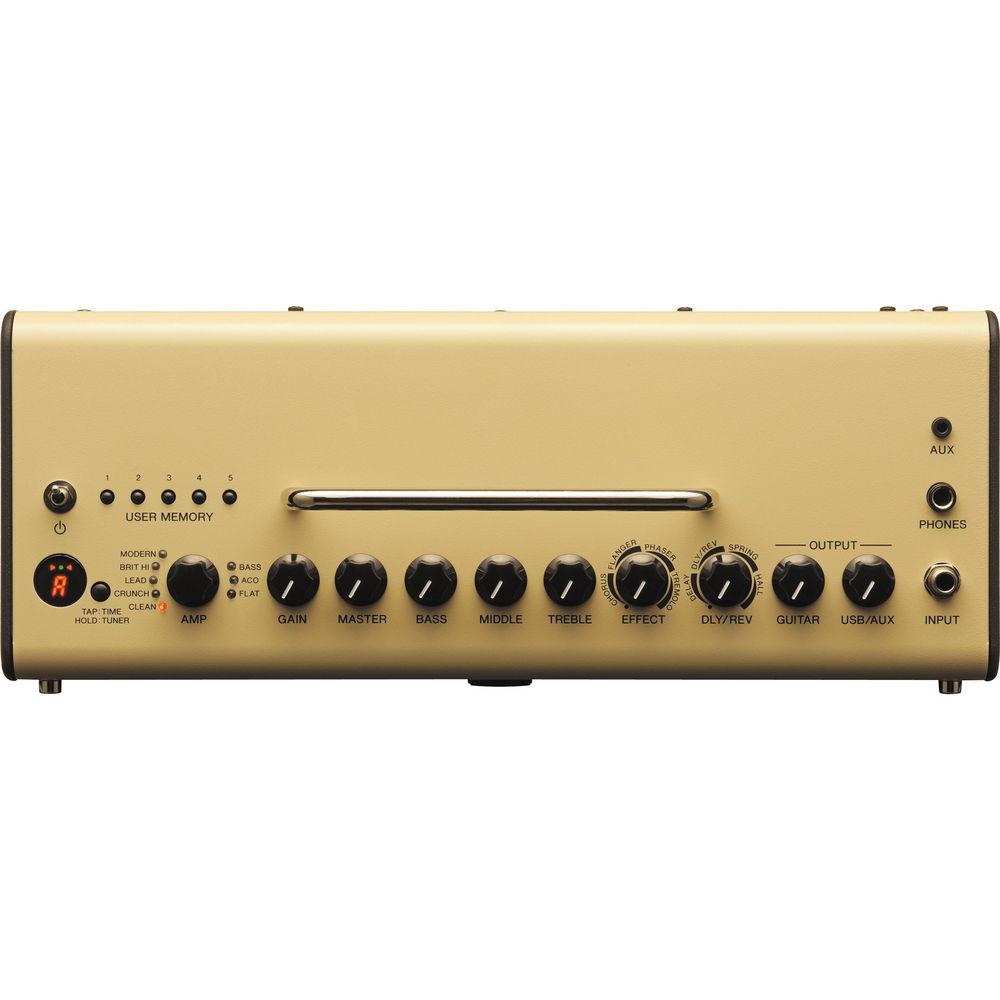

USB 2.0 | | Controls | Amp type knob
Gain knob
Master knob
Bass knob
Middle knob
Treble knob
Effect knob
Delay/Reverb knob
Guitar output knob
USB/aux output knob
Tap tempo/tuner switch | | Input Level | Guitar in: -10 dBu
Aux in: -10 dBu | | Headphone Output | 10 mW | | Speakers | 2x 3" (8 cm) | | Output Level | 10 W (5 W + 5 W) | | Power Source | Power adaptor
AA batteries x8 | | Power Adapter | Input: AC 120 V, 60 Hz
Output: DC 15 V | | Power Consumption | 18 W | | Dimensions (W x H x D) | 14.2 x 7.2 x 5.5" (360 x 183.5 x 140 mm) | | Weight | 6.2 lb (2.8 kg) | | | | Amplifier Type | Clean
Crunch
Lead
Brit Hi
Modern | | Effects | Chorus
Flanger
Tremolo
Delay
Delay/Reverb
Spring/Hall Reverb
Compressor/Noise Gate (available through the THR editor software) | | Tuner | Chromatic | | Memory | 5x user memory recalls | | Display | 1x LED | | A/D Converter | 24-bit
3-bit floating | | D/A Converter | 24-bit | | Sampling Frequency | 44.1 kHz | | | | Package Weight | 9.1 lb | | Box Dimensions (LxWxH) | 16.9 x 10.2 x 9.2" |
