User Manual for Yamaha THR5A Desktop Modeling Acoustic Guitar Amp Click to enlarge the picture
Contents of the user manual for the Yamaha THR5A Desktop Modeling Acoustic Guitar
- Product category: Guitar Amplifiers Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Guitar Amplifiers
 |
User manual for the Yamaha THR5A Desktop Modeling Acoustic Guitar contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

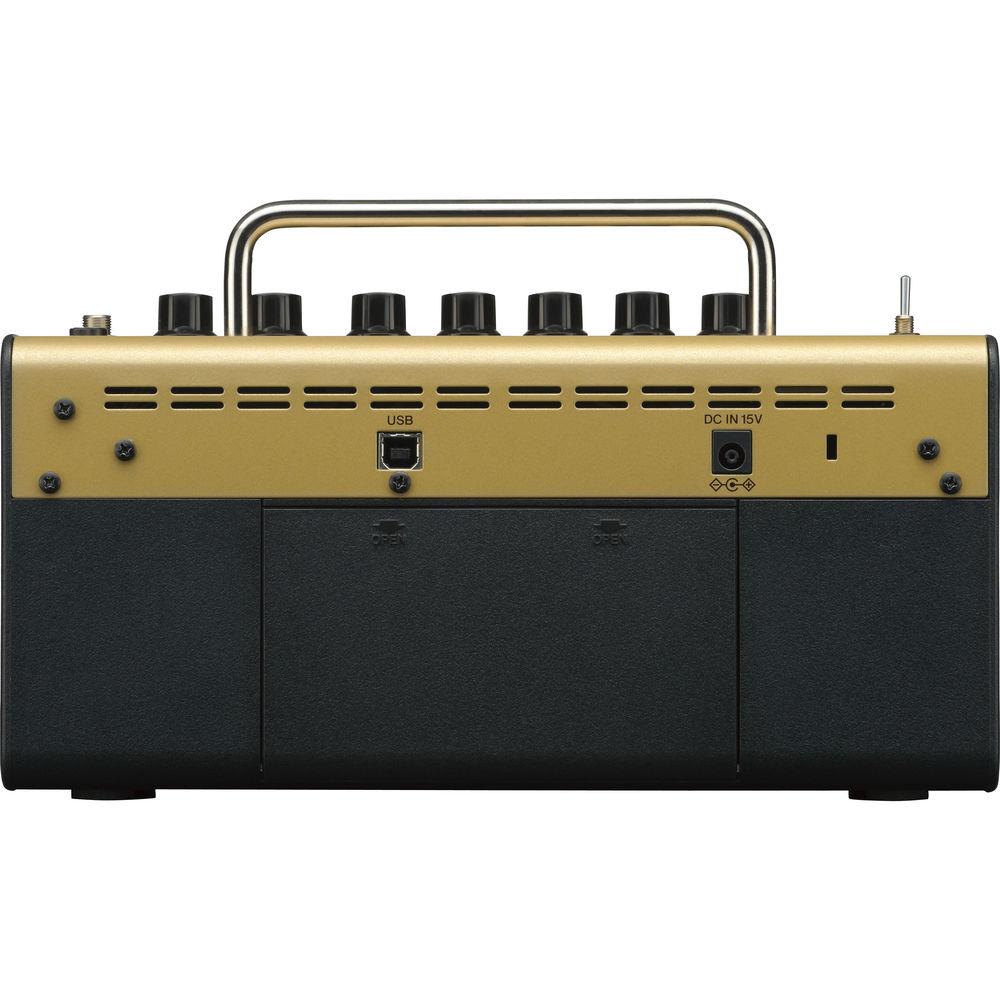

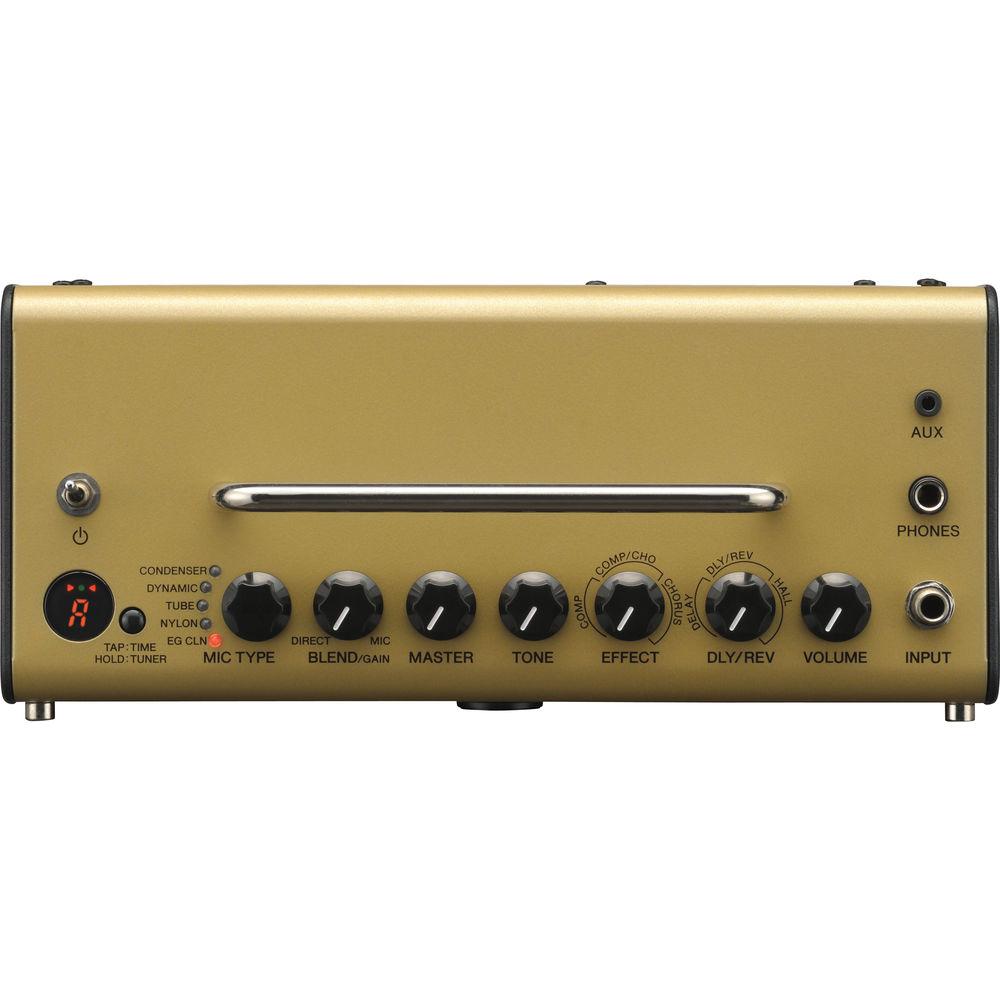

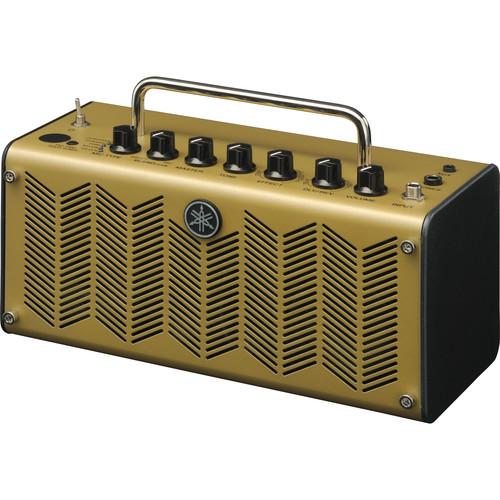

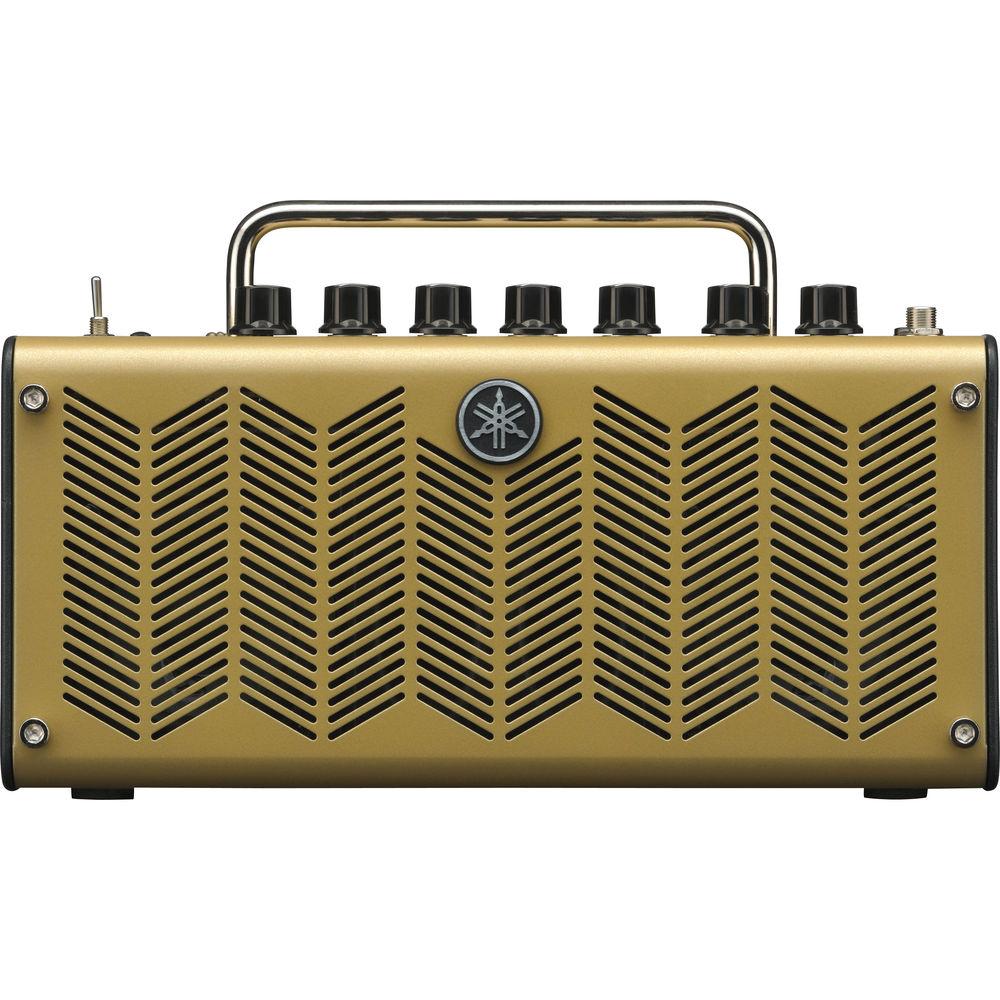

Product description The THR5A from Yamaha is a desktop modeling guitar amp that simulates four different microphone types and is specifically designed for use with electric-acoustic and silent guitars. In contrast to normal stage amplifiers, the THR5A is intended for off-stage uses such as recording and practicing. Equipped with a USB port, the amp is capable of being used in conjunction with your computer for advanced editing of guitar sounds, recording and playback using the included software package. The THR5A is equipped with a 1/4" guitar input as well as an 1/8" aux input that can be used for connecting your mp3 player for jamming along to backing tracks. The two full range 3" speakers are designed to accurately reproduce stereo playback from the 1/8" input as well as the sound of your guitar without the need of any additional speakers or amplification. Engineered to give you a variety of tonal options, the THR5A includes four built-in microphone simulations which include condenser, dynamic, tube and nylon presets. There is also a clean electric guitar amp model for even more possibilities. The THR5A offers a selection of effects that make use of Yamaha's Virtual Circuitry Modeling (VCM) technology, which is designed to emulate yesterday's vintage analog gear within today's digital production environment. The effects include compression, chorus, flanger, tremolo, delay, phaser, reverb and noise gate. The THR5A can be connected to your computer via USB for a variety of advanced functions. For in depth editing of the amplifier's tonal characteristics and unlocking additional effects and parameters, the downloadable THR Editor can be used. In addition, you can record and edit your guitar playing using the included Cubase AI music production software. - Weighs 5 pounds for portability
- Slow down and mute the guitar parts of your favorite songs so you can play along with them using the free THR Sessions iPhone app
- Stereo playback from your smartphone or other device through 1/8" AUX jack or direct from your computer via the USB connection
- Virtual Tube Illumination simulates orange tube glow from the metal speaker grille
- Tap tempo for synching your delay feedback to the rhythm of the song
- Built-in chromatic tuner for easy tuning without the need of a separate tuner
UPC: 086792971001 In the Box Yamaha THR5A Desktop Modeling Acoustic Guitar Amp Power Adapter USB Cable Stereo 1/8" Mini Cable Cubase AI DVD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha THR5A Desktop Modeling Acoustic Guitar Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha THR5A Specs | | | Connections | Input: 1x 1/4" TS
Headphones: 1x 1/4" stereo TRS
Auxiliary in: 1x 1/8" stereo mini
USB 2.0 | | Controls | Mic type knob
Blend/Gain knob
Master knob
Tone knob
Effect knob
Delay/Reverb knob
Volume knob
Tap tempo/tuner switch | | Speakers | 2x 3" (8 cm) | | Output Level | 10 W (5 W + 5 W) | | Power Source | EADP-38EB A or UIB345-1530 Power adaptor (included)
8x AA alkaline batteries | | Dimensions (W x H x D) | 10.7x 6.6x 4.7" (271x 167x 120 mm) | | Weight | 5 lb (2.0 kg) | | | | Presets | Condenser
Dynamic
Tube
Nylon
Electric Guitar Clean | | Effects | Chorus
Flanger*
Tremolo*
Delay
Delay/Reverb
Spring Reverb*
Hall Reverb
Compressor
Phaser*
Compressor/Chorus
Noise Gate*
(*available through the THR editor software) | | Tuner | Chromatic | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 13.0 x 9.0 x 8.0" |
