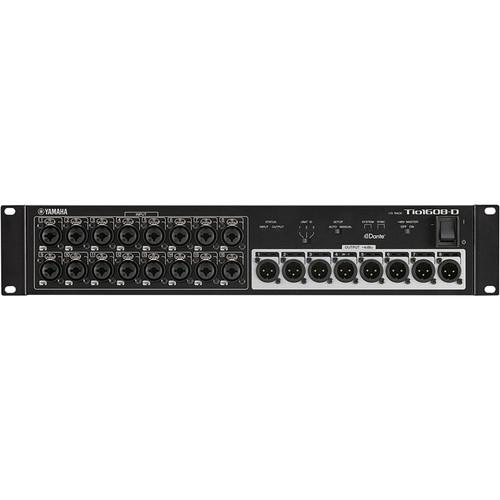

User Manual for Yamaha Tio1608-D Dante-Equipped I O Rack Click to enlarge the picture
Contents of the user manual for the Yamaha Tio1608-D Dante-Equipped I O Rack
- Product category: Digital Mixer Accessories Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Digital Mixer Accessories
|
User manual for the Yamaha Tio1608-D Dante-Equipped I O Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|
Product description Designed to work remotely with Yamaha TF-series consoles, the Tio1608-D is a preamp, I/O rack, and stage box. It uses Dante protocol to transmit multiple channels of audio from the stage to the console over one solitary ethernet cable.
In the purely analog realm, this operation would require a rat's nest of cables or a cumbersome snake; the Tio1608-D's Dante capabilities eliminate the cable clutter. It accomplishes this feat with a low-latency, high-quality transfer of analog signal to digital information—in this case at a sample rate of either 44.1 kHz or 48 kHz, and at a resolution of 24-bit or 32-bit.
This particular stage box provides 16x input channels and 8x output channels for communication via Dante to TF-series consoles; however, you can daisy chain up to three Tio1608-D's simultaneously, resulting in a stage box system of 48x inputs and 24x outputs with one to three cables running to the console, depending on how you rig it. - Front-Panel Overview
- The preamp itself sports 16x combo XLR/TRS jacks (all supporting 48V phantom power) and 8x XLR output jacks. A Quick Config switch allows you to interface automatically with TF-series consoles.
- Rear-Panel Overview
- At the rear of the unit, a fan switch allows you to change the speed of the internal cooling system, while a series of DIP switches determine the unit's startup mode. You'll also notice only two CAT5e connection points: Primary, which is for direct connection to your Dante-enabled console, and Secondary, which is utilized for daisy chaining scenarios.
UPC: 889025101448 In the Box Yamaha Tio1608-D Dante-Equipped I/O Rack Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha Tio1608-D Dante-Equipped I O Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha TIO1608-D Specs | Frequency Response | At a sampling rate of 44.1 kHz or 48 kHz: 20 Hz to 20 kHz, @ 600 Ohms | | Total Harmonic Distortion | At a sample rate of 48 kHz: @ 600 Ohms
+4 dBu at 20 Hz to 20 kHz, gain +66 dB: 0.1%
+4 dBu at 20 Hz to 20 kHz, gain -6 dB: 0.05% | | Hum and Noise | At a sample rate of 48 kHz: @ 600 Ohms
Inputs 1 through 16: -128 dBu, typical
All inputs at nominal level, outputs 1 through 8: -70 dBu, max
Residual output noise channels 1 through 8: -88 dBu, typical | | Dynamic Range | At a sample rate of 48 kHz: @ 600 Ohms
Inputs 1 through 16 / outputs 1 through 8, AD + DA, gain -6 dB: 108 dB
Outputs 1 through 8, DA converter: 112 dB | | Crosstalk @ 1 kHz | -100 dB | | Sampling Frequencies | External Clock: 44.1 kHz / 48 kHz, -200 to 200 ppm | | Power Requirements | 100 to 240 V, 50/60 Hz, 50 W | | Heat Dissipation | 100 to 240 V, 50/60 Hz, 43.5 kcal/h | | Temperature Range | Operating temperature range: 32 to 104°F / 0 to 40°C
Storage temperature range: -4 to 140°F / -20 to 60°C | | Cable Length | AC Cable: 7.9' / 2.5 m | | I/O | 16x balanced combo XLR/TRS input jacks
8x: Balanced XLR output jacks | | Digital I/O | Connection: etherCON Cat5e
Channels: 16x (Tio1608-D to other devices), 8x (other devices to Tio1608-D)
Data Length: 24- or 32-bit
Format: Dante by Audinate | | Dimensions (W × H × D) | 18.9 x 3.5 x 14.3" / 480 x 88 x 364 mm | | Weight | 12.6 / 5.7 kg | | | | Package Weight | 17.15 lb | | Box Dimensions (LxWxH) | 22.1 x 19.3 x 7.5" |
