User Manual for Yamaha TRBX504 4-String Electric Bass Click to enlarge the picture
Contents of the user manual for the Yamaha TRBX504 4-String Electric Bass
- Product category: Bass Guitars Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Bass Guitars
 |
User manual for the Yamaha TRBX504 4-String Electric Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

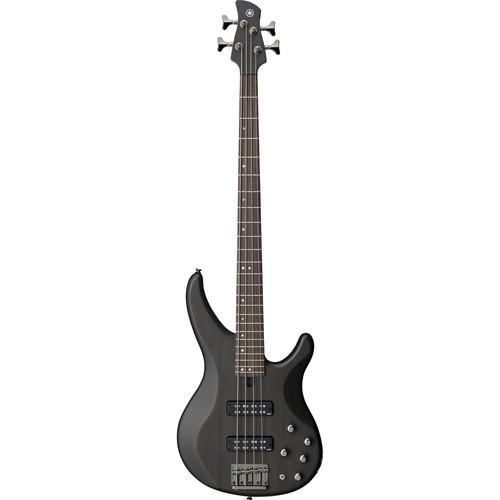

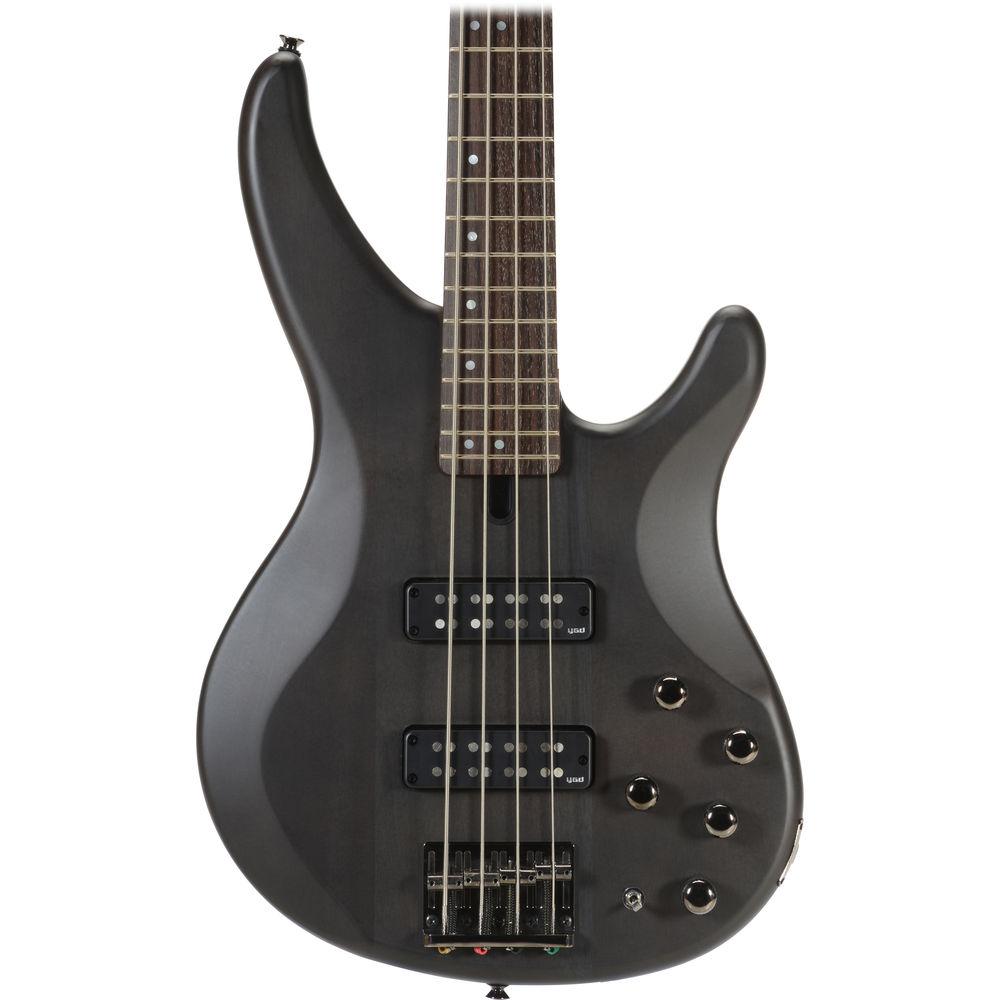

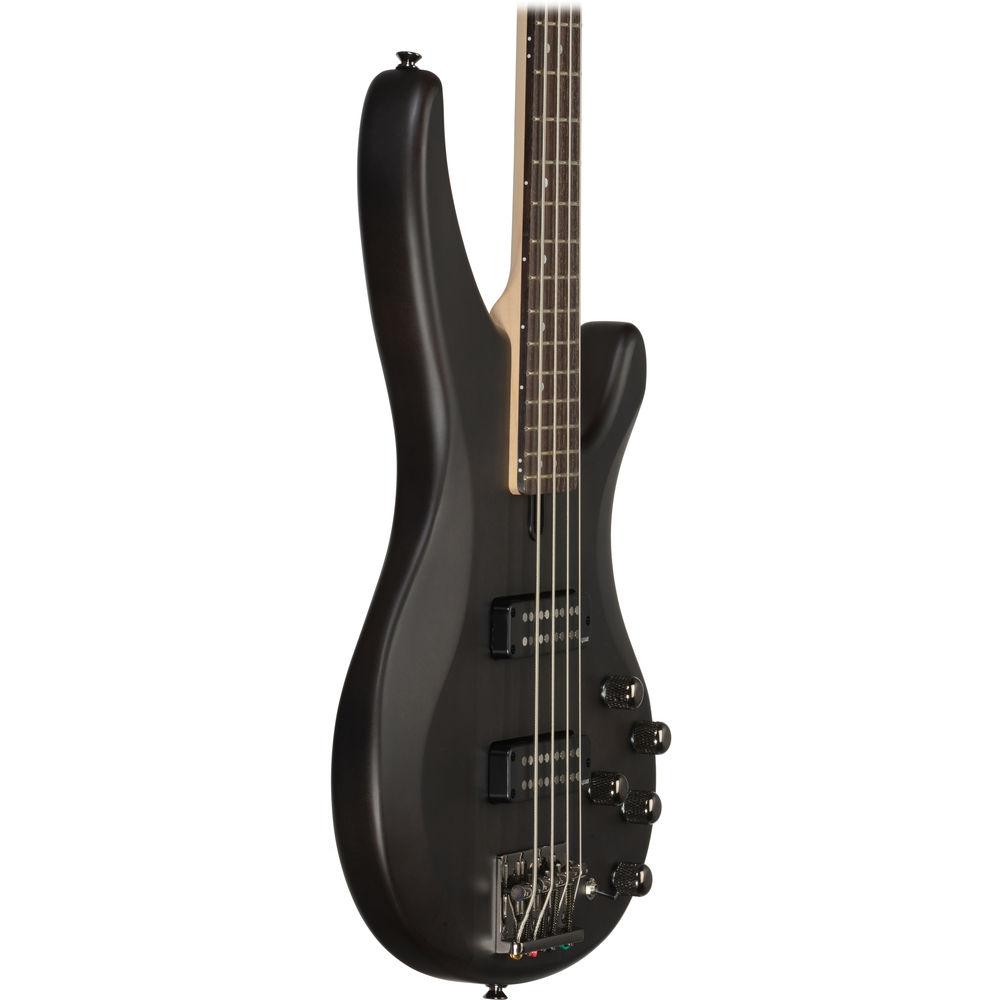

Product description Allowing you to select between an active or passive preamp for a wide variety of available tones, the translucent black TRBX504 4-String Electric Bass from Yamaha features a solid mahogany body with a 5-piece maple and mahogany neck with rosewood fingerboard. Its dual alnico pickups were tuned to match the selectable preamp, and there are treble, middle, and bass controls to further dial in your tone. Its controls are rounded out by its active/passive switch, a pickup blend knob, and a master volume knob. - Body
- The TRBX504 features a sculpted solid mahogany body, with a mass-optimized 3D design for a balance between tone and comfort coupled with even weight distribution

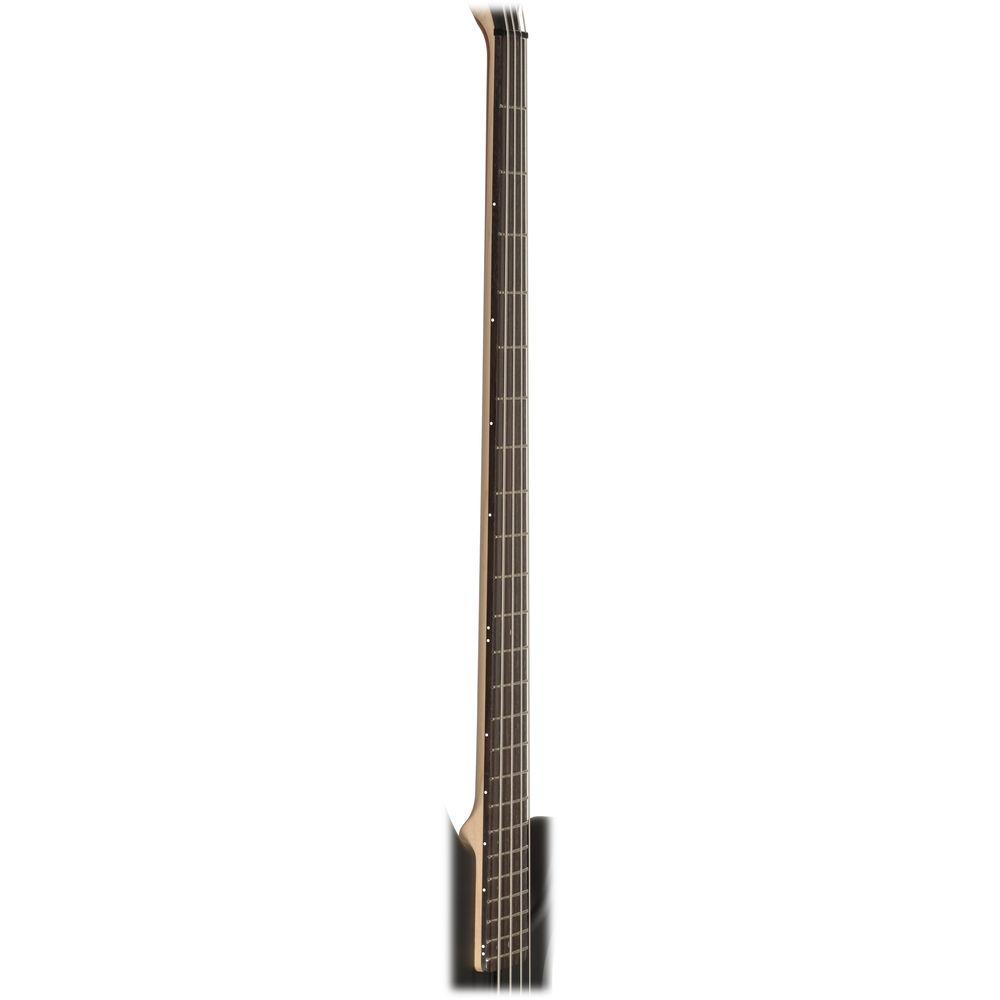

- Neck
- The neck design combines a fast, comfortable profile with 5-piece maple/mahogany laminated construction for stability and improved tone

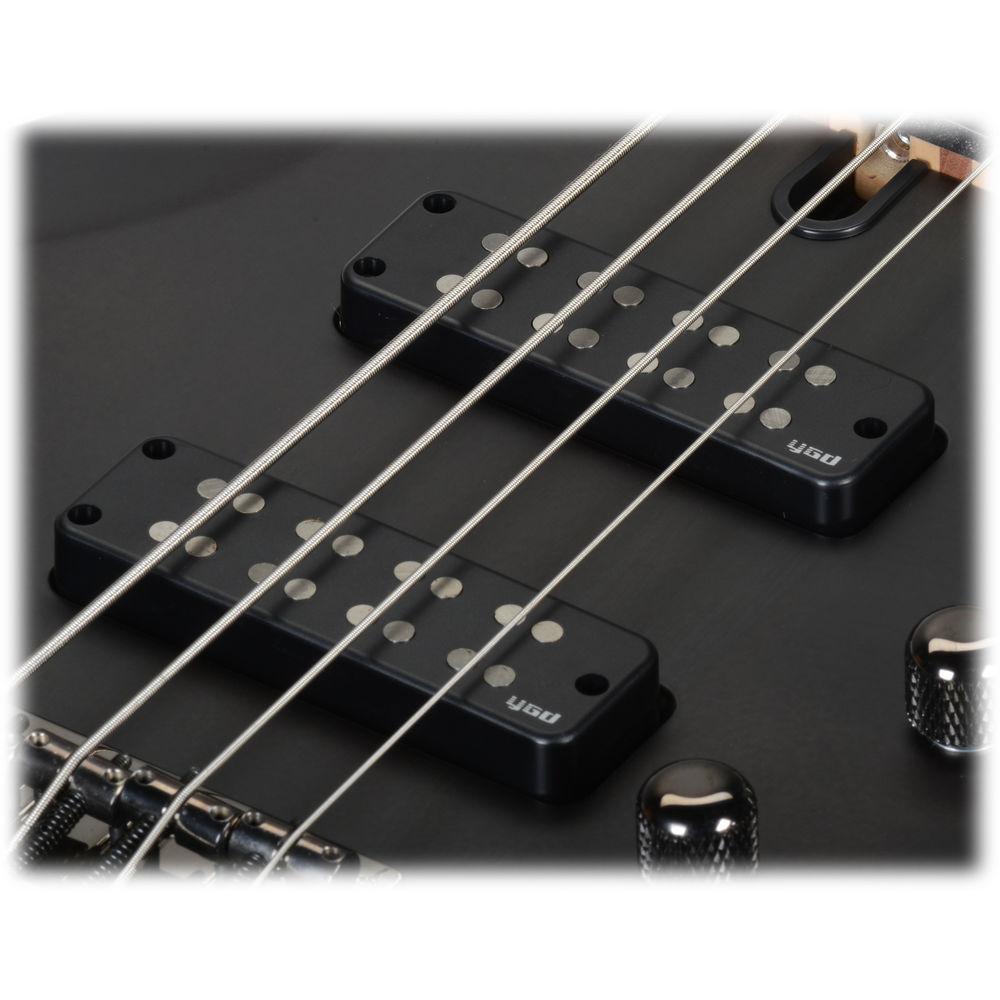

- Pickups
- YGD-designed H5 pickups are defined by a clean, open tone that's matched with the flexibility of the active/passive preamp design. Their quad-polepiece design and alnico magnets give them the power to drive the active circuit, and the sensitivity and subtlety to capture nuance in passive mode
- Electronics

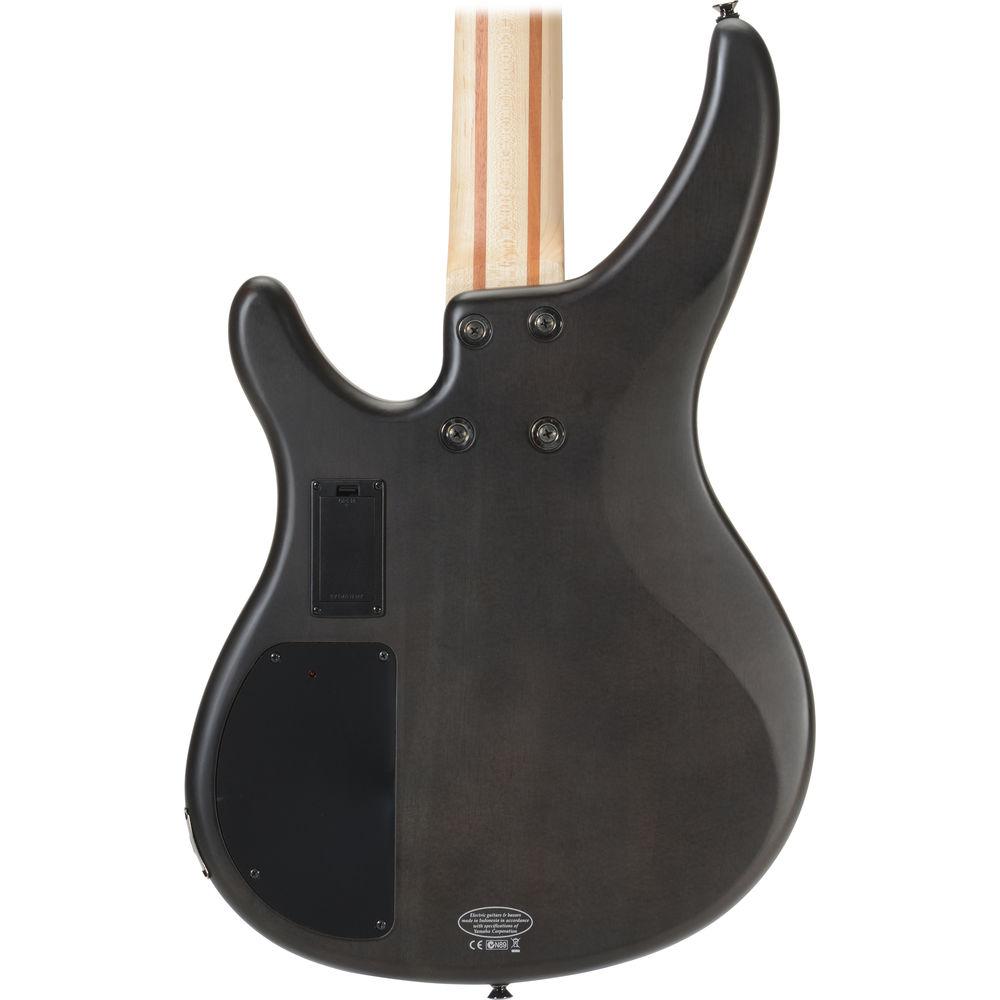

- The TRBX504 features an audiophile-grade active/passive circuit for fine tonal control and flexibility. The design offers a level-matched output whether in passive or active mode and tone-switching circuitry that seamlessly moves from treble control to master passive tone. Gold-plated parts are used for key signal chain contacts, providing increased conductivity and reliability, and a battery alert LED installed on the back panel gives instant indication of low power to eliminate sudden power loss during performance

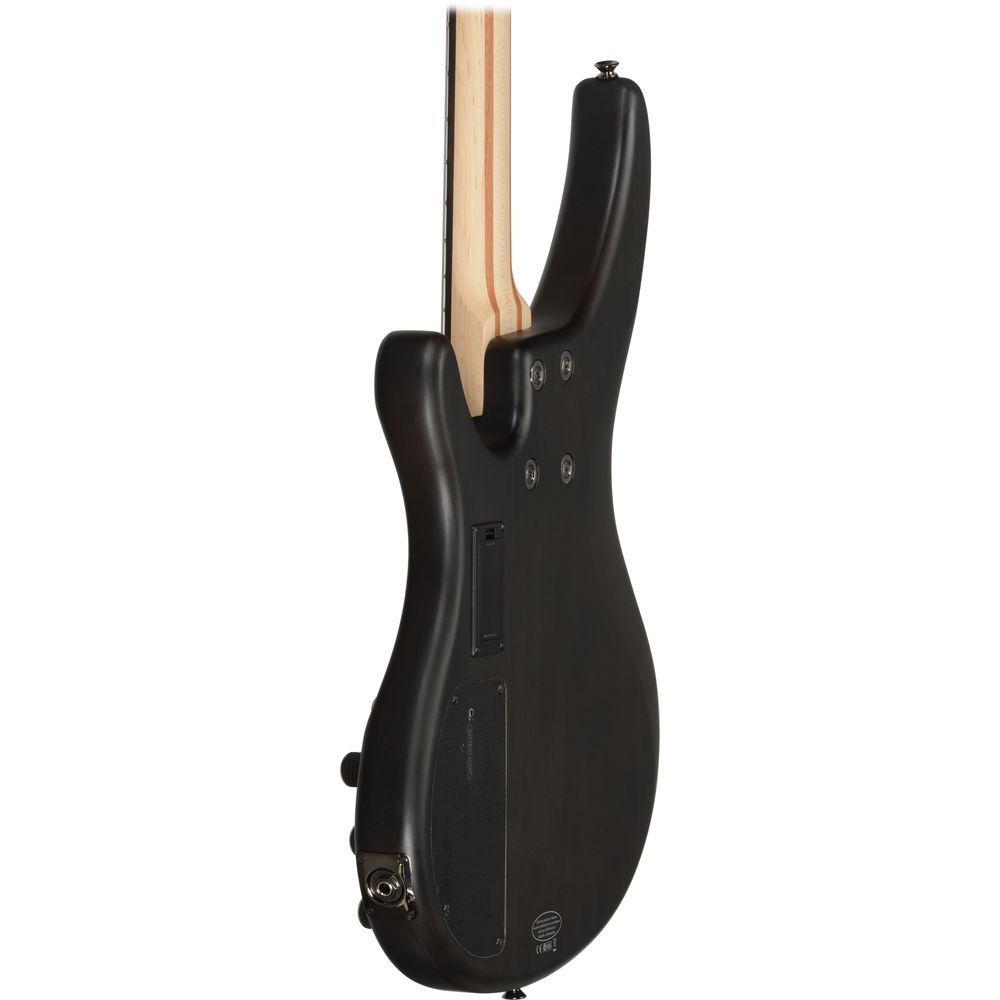

- Neck Joint
- TRBX504 uses a precision-fitted bolt-on neck joint for adjustability and clear, punchy tone. Developed through hundreds of hours of play-testing, the refined neck joint shape balances strength, vibration transfer, and upper-fret access

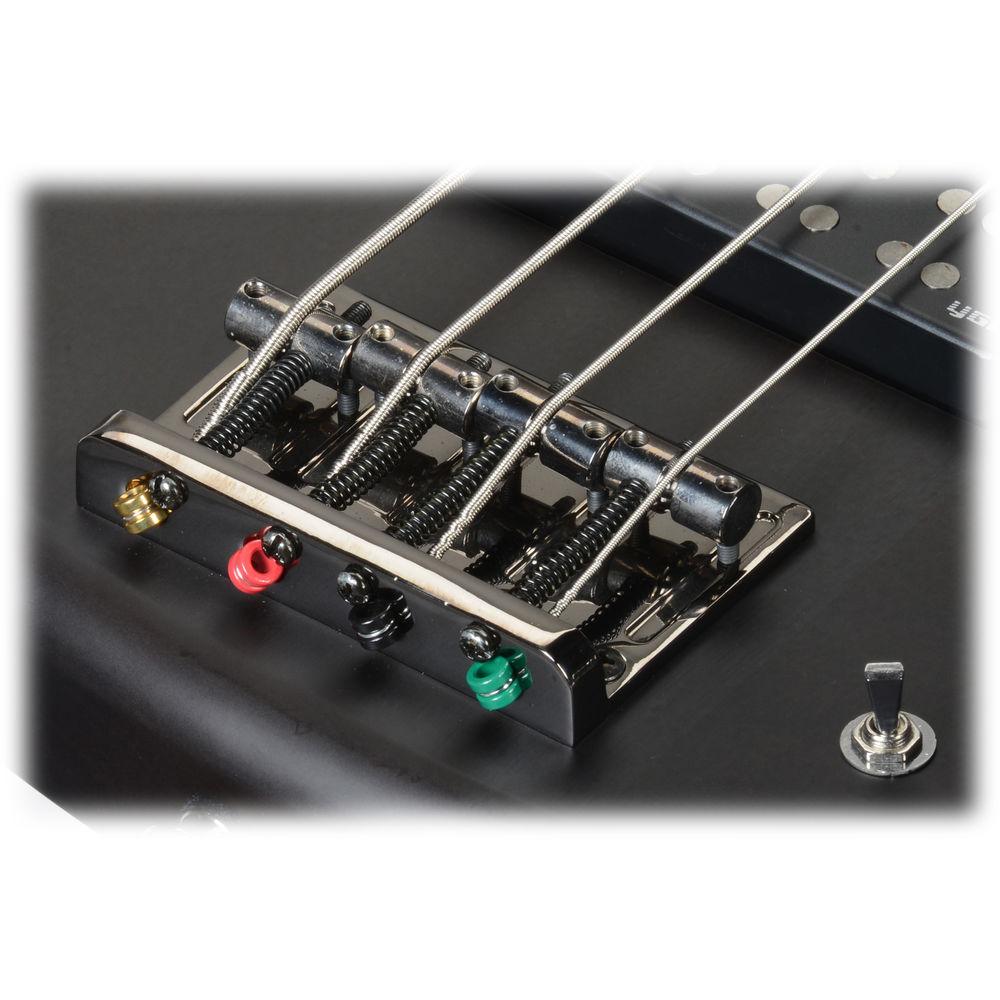

- Bridge
- A high-mass die-cast bridge efficiently transfers string vibrations to the body for full, rich tone combined with adjustability and road-tested durability. 19mm string spacing on the 4-string model offers improved playability for technical slap or finger styles

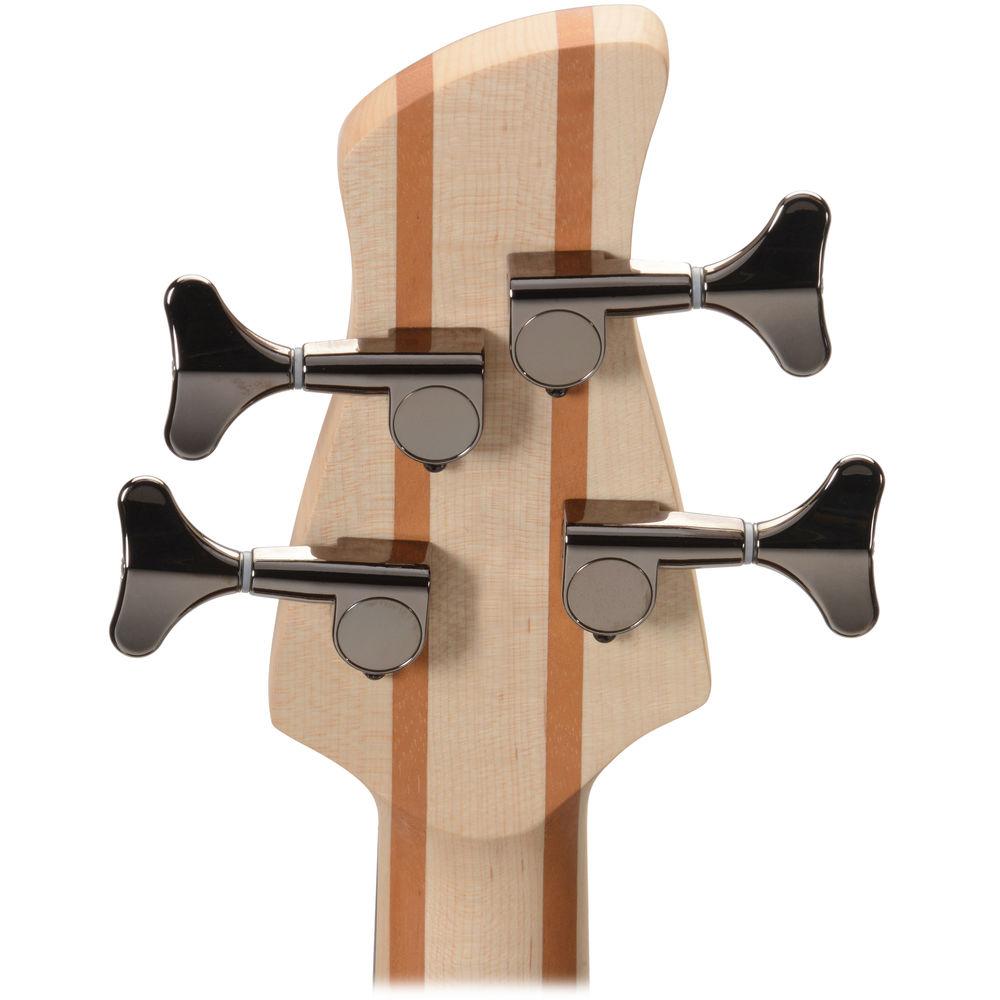

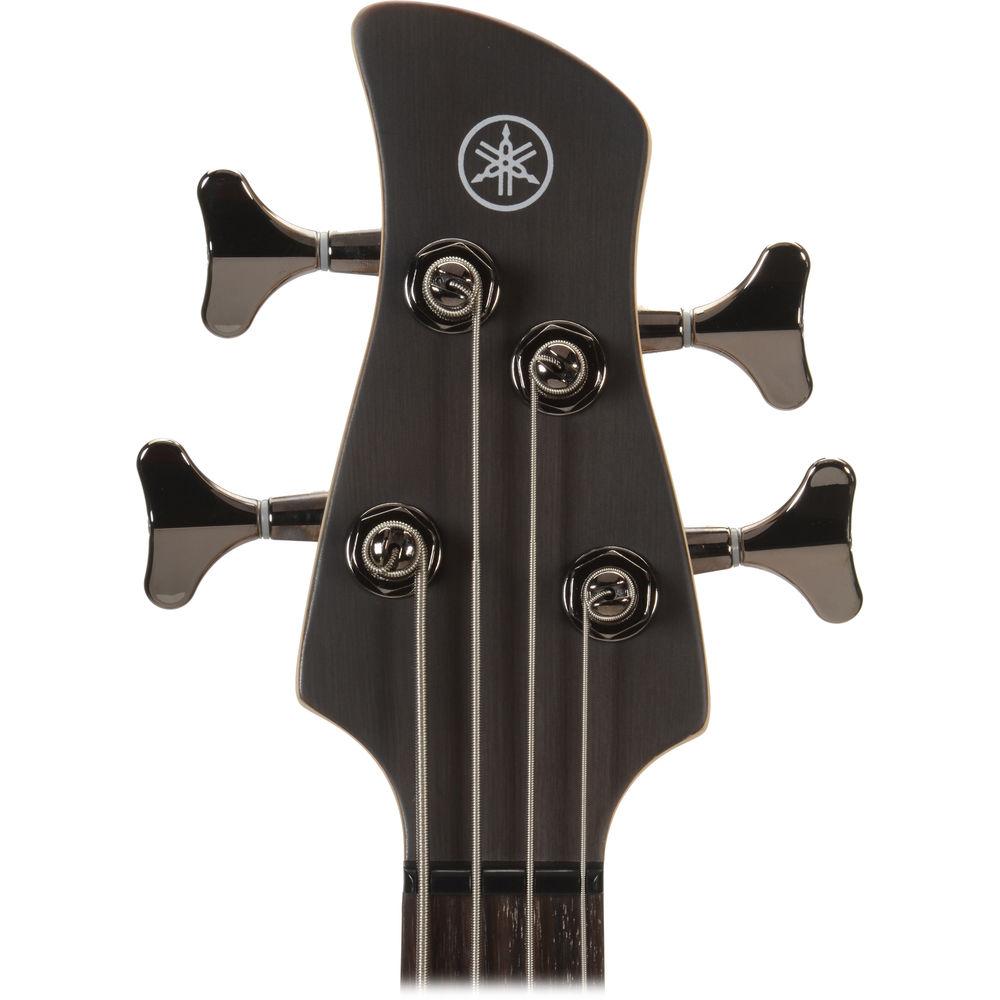

- Headstock
- Straight string pull from nut to machine head eliminates lateral tension, providing improved tuning stability and reducing overtones
- Nut
- The 38mm nut width provides fast, comfortable playability for any style
- Output Jack
- Yamaha's metal plate-mounted standard jack socket offers durability and easy maintenance
UPC: 086792975924 In the Box Yamaha TRBX504 4-String Electric Bass (Translucent Black) Limited 1-Year Warranty for Parts & Labor Lifetime Warranty for Top, Neck, Back & Sides Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha TRBX504 4-String Electric Bass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha TRBX504 TBL Specs | Scale Length | 34" (863.6 mm) | | Neck | 5-piece maple and mahogany | | Fingerboard | Rosewood | | Radius | 10" (250 mm) | | Nut Width | 1.5" (38 mm) | | Body | Solid mahogany | | Tuners | Die cast | | Bridge | Die cast (0.75" / 19 mm) | | Pickup | Neck: HHB5n (alnico V)
Bridge: HHB5b (alnico V) | | Controls | Master volume
Pickup balance
Bass
Middle
Treble
Active/Passive switch (battery alert LED on back) | | | | Package Weight | 12.4 lb | | Box Dimensions (LxWxH) | 42.0 x 18.0 x 4.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
