User Manual for Yamaha TSX-B141 Desktop Audio System Click to enlarge the picture
Contents of the user manual for the Yamaha TSX-B141 Desktop Audio System
- Product category: Tabletop Radios Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Tabletop Radios
 |
User manual for the Yamaha TSX-B141 Desktop Audio System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

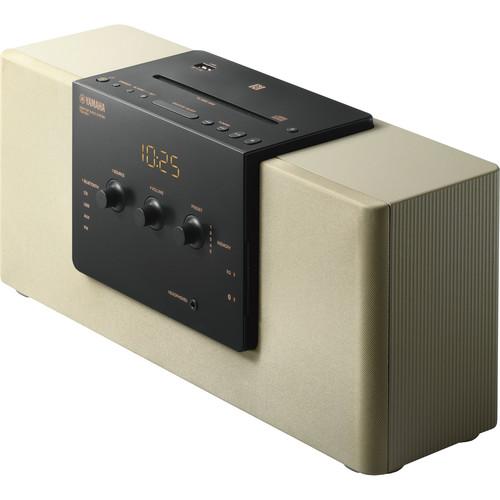

Product description Listen to a powerful and versatile desktop stereo with the champagne gold Yamaha TSX-B141 Desktop Audio System. It outputs 30 total watts and has a bass-reflex port to enhance the bass sound. Its built-in CD player will play your CDs, CD-Rs, and CD-RWs, including MP3 and WMA files. You can store your five favorite AM and FM stations as presets for quick tuning.
The system features a USB input to play audio files from a flash drive, and an ⅛" aux-in for wired devices. Bluetooth with aptX and NFC support is also available for playback from compatible smartphones, tablets, and more. The TSX-B141 also has a headphone output for private listening. To get you moving in the morning, it also features a built-in clock with IntelliAlarm, which will gradually increase the volume of your selected music to wake up to. In addition to the included IR remote control, the system can be controlled by your smart device with Yamaha's free DTA Controller app. - Powerful Sound from a Compact Unit

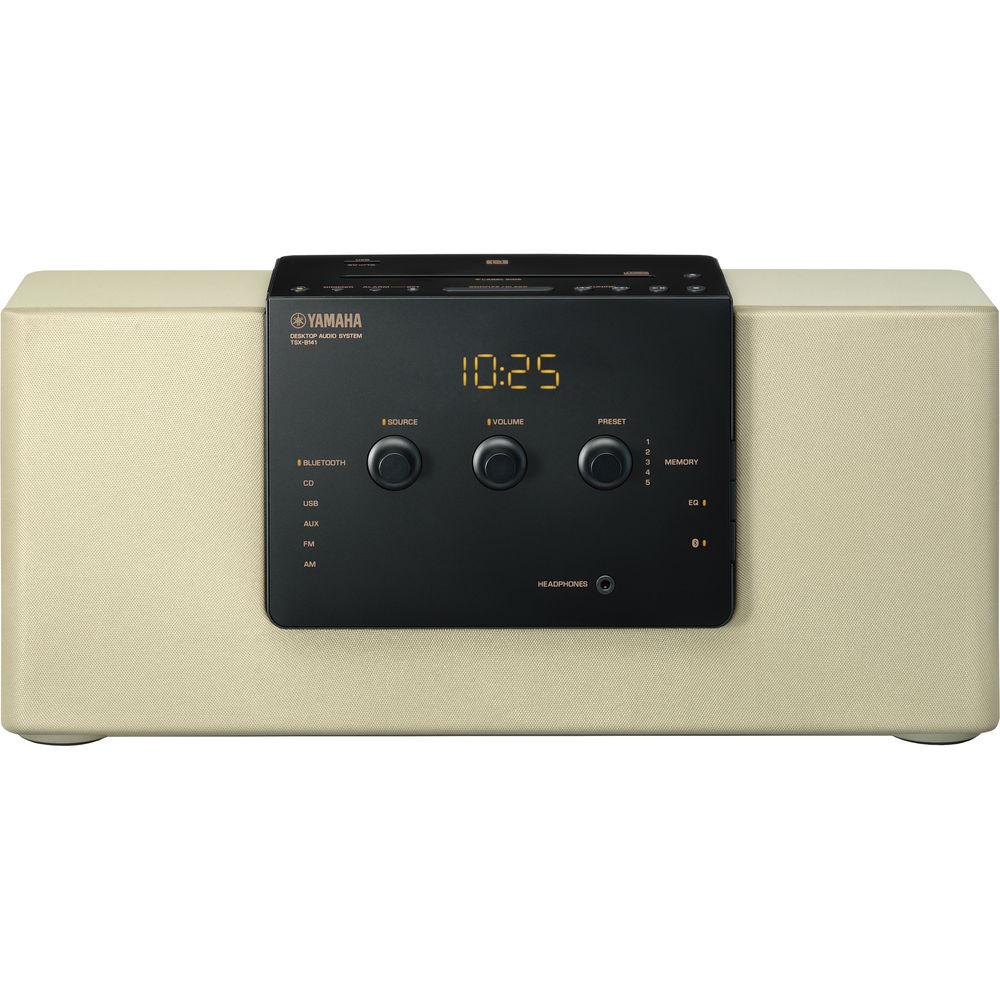

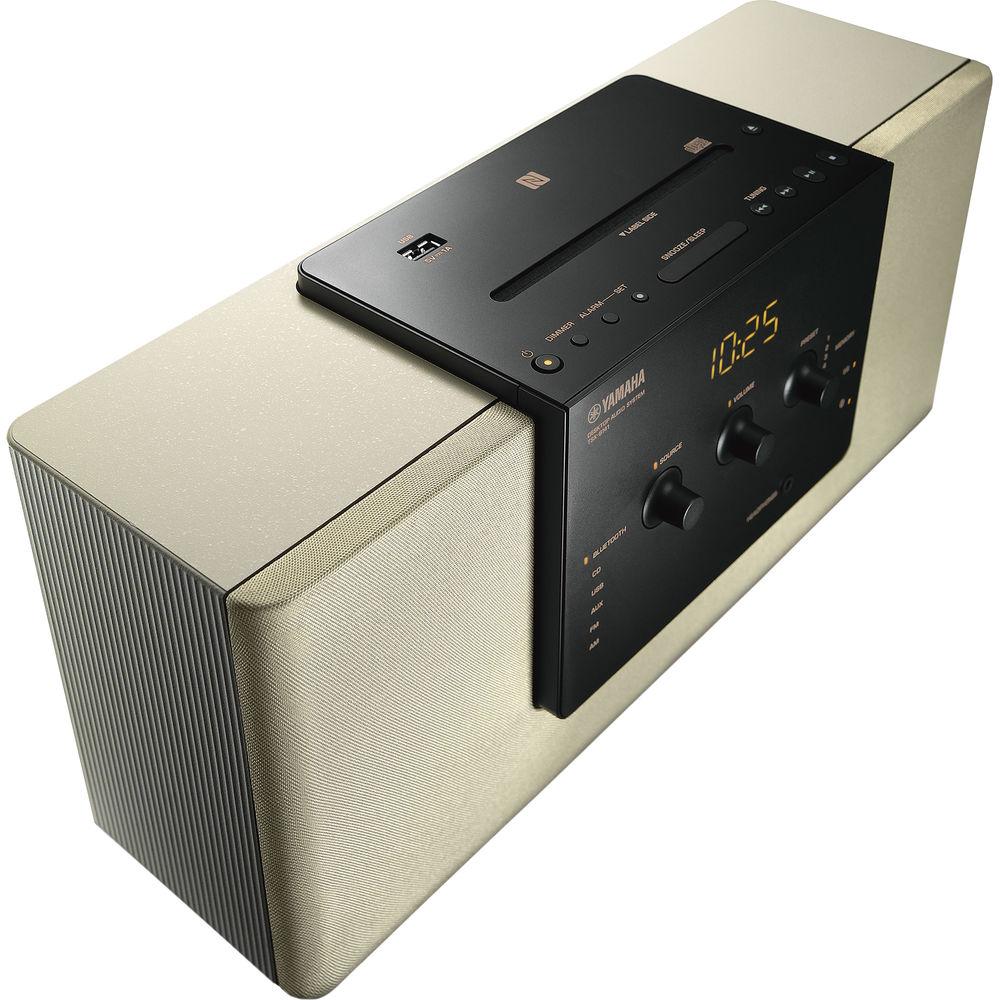

- Two full-range speakers, a bass-reflex port, and an integrated amplifier deliver full, deep sound in a compact form-factor. For ease of use, the front panel features control knobs for input source selection and sound adjustment.
- Bluetooth with aptX for High-Quality Wireless Streaming
- Bluetooth compatibility gives you wireless playback of music stored on your smartphone or tablet. In addition, the TSX-B141 is aptX-ready for full-bandwidth audio over Bluetooth.
- NFC Connectivity for Instant, Automatic Device Pairing
- For added convenience, the TSX-B141 features NFC (near field communication) compatibility to automatically pair it with your NFC-compatible smartphone or tablet for the enhanced simplicity.
- USB Connectivity
- This unit is equipped with a USB port that allows you to enjoy audio files from a USB memory device (USB flash drive).
- Easy-to-Use Remote Control App and Clock Functions

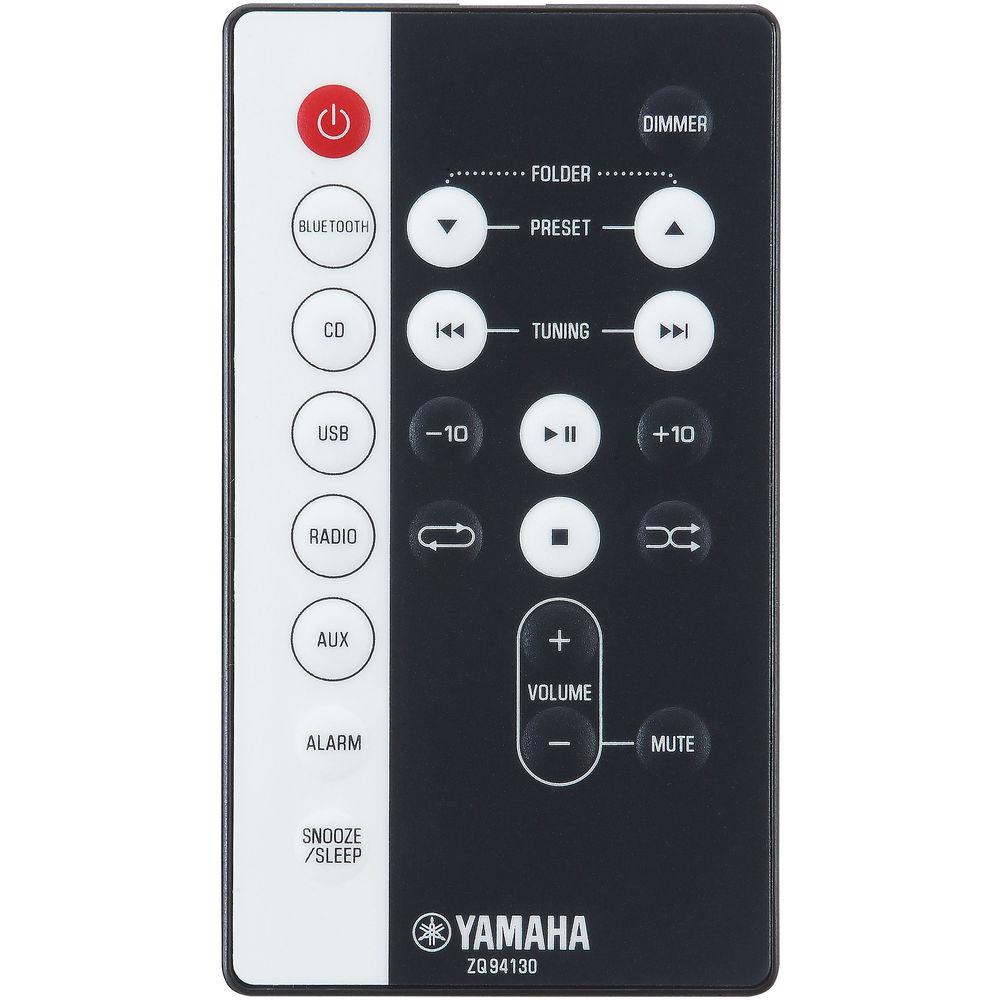

- By downloading Yamaha's free DTA Controller app, you can remotely operate the TSX-B141, including its clock functions, using a smartphone or tablet. An IR remote control is also included. With the built-in alarm clock, you can wake up to your favorite music from a CD, a USB-connected device, or a radio station. Wake up using the IntelliAlarm function, which gently increases the volume of the music.
UPC: 027108951652 In the Box Yamaha TSX-B141 Desktop Audio System (Champagne Gold) FM Antenna AM Antenna USB Cap Remote Control with Battery Power Cable AC Adapter Limited 1-Year Warranty User Manual PDF 3.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha TSX-B141 Desktop Audio System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha TSX-B141 Specs | | | Tuner Type | AM/FM | | Frequency Range | FM: 87.5 to 107.9 MHz
AM: 531 to 1611 kHz | | AM/FM Presets | 5/5 | | | | Laser | Type: Semiconductor laser GaAs/GaAlAs
Wavelength: 790 nm
Output Power: 7 mW | | CD Support | CD, CD-R/RW | | CD Playback Format | Audio CD, MP3, WMA | | | | Speaker | 2 x 3.0" (7.6 cm) full-range drivers with bass-reflex port | | Power Output | 15 W per channel at 6 Ohms, 1 kHz, 10% THD | | | | Connectors | 1 x USB input
1 x ⅛" (3.5 mm) stereo mini input
1 x ⅛" (3.5 mm) headphone output (adaptive impedance 16 to 32 Ohms) | | Bluetooth | NFC: Yes, via NFC-ready Android devices Ver. 4.1 or later
Version: 2.1 + EDR
Profile: A2DP
Audio Codec: SBC, AAC, aptX
Wireless Output: Bluetooth Class 2
Range: 32.8' (10.0 m) without interference | | USB Support | MP3, WMA | | | | Alarm | Alarm, Snooze, Sleep | | Power Requirements | 100 to 120 VAC, 50/60 Hz | | Power Consumption | Operational: 17 W
Standby (Clock Display On, Bluetooth Ready): 2.4 W
Eco Standby (Clock Display Off): 0.4 W | | Auto Standby | No Signal Input: ~20 minutes
No Operation: ~8 hours | | Dimensions (W x H x D) | 15.8 x 7.1 x 5.4" (40.0 x 18.0 x 13.7 cm) | | Weight | 6.6 lb (3.0 kg) | | | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 18.0 x 10.5 x 7.5" |
