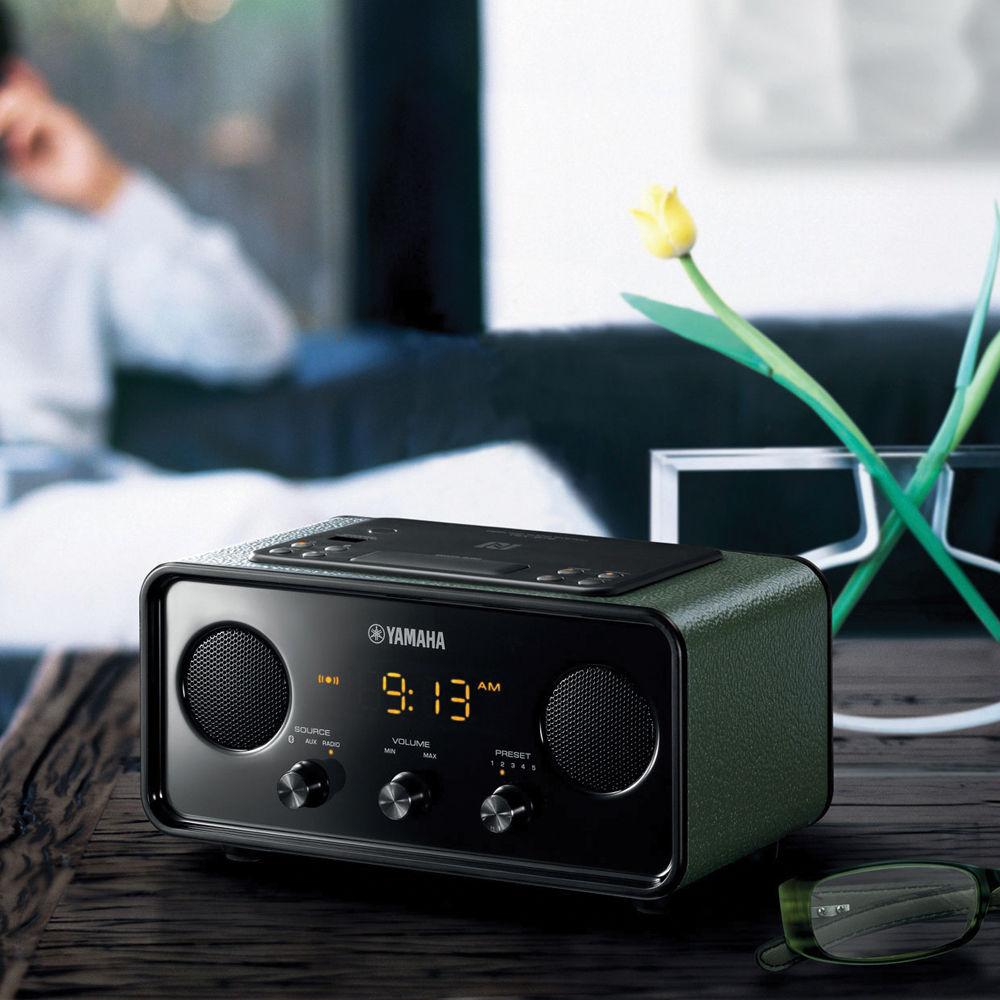

User Manual for Yamaha TSX-B72 Desktop Audio System Click to enlarge the picture
Contents of the user manual for the Yamaha TSX-B72 Desktop Audio System
- Product category: Tabletop Radios Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Tabletop Radios
 |
User manual for the Yamaha TSX-B72 Desktop Audio System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

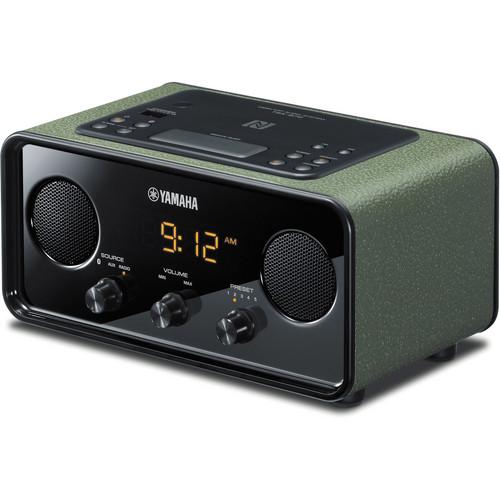

Product description The dark green Yamaha TSX-B72 Desktop Audio System is a compact audio system that supports Bluetooth wireless as well as NFC touch-to-pair technology. You can listen to local programming on AM/FM radio, or connect an audio device to the aux input. No matter what the source, SR-Bass technology ensures full-range audio with deep bass. The system also features a top-panel USB port for charging. Choose from multiple alarm options, and utilize a free app to command the alarm functions and sound playback from a mobile device. - Wireless Streaming
- Stream audio wirelessly from Bluetooth capable devices like a smartphone or tablet. Near Field Communications (NFC) technology allows you to touch-to-pair with compatible devices
- Additional Options
- Listen to AM/FM radio, or connect an audio device using the aux input
- SR-Bass Technology
- Delivers full-range audio with rich, deep bass
- Charging

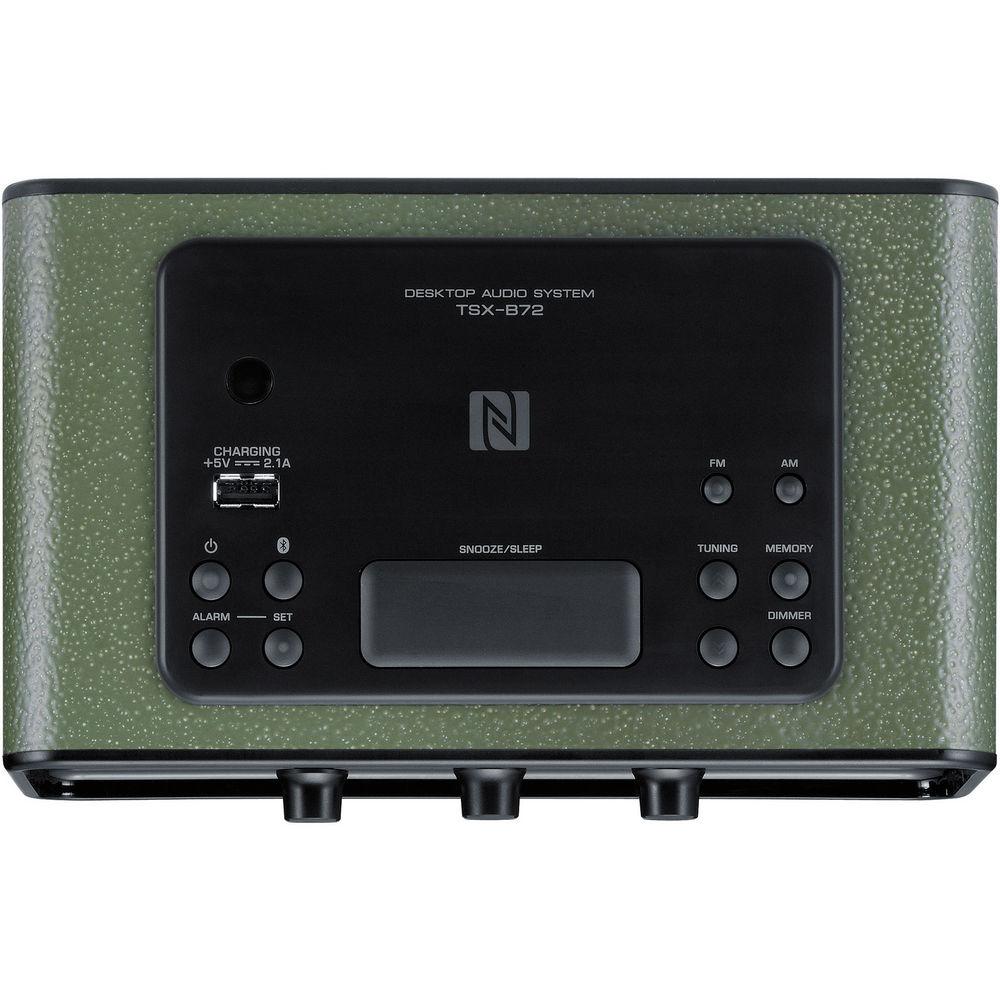

- Use the USB charging port on the top panel to keep a smartphone, tablet or other USB powered device charged
- IntelliAlarm
- Wakes you gradually - three minutes before your alarm sounds at the time you set, the radio starts to play. The sound fades in gently, filtering out high frequencies first and then gradually filling out the entire audio spectrum to wake you naturally
- Free Controller App
- The DTA Controller app turns your iOS or Android mobile device into a full-function remote control for IntelliAlarm features including setting up flexible per-day alarm times and radio presets, customizing fade-in times and frequency curves. Or change radio channels and adjust the sound from your device
UPC: 027108946955 In the Box Yamaha TSX-B72 Desktop Audio System (Dark Green) AC Adapter Power Cable AM Antenna USB Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha TSX-B72 Desktop Audio System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

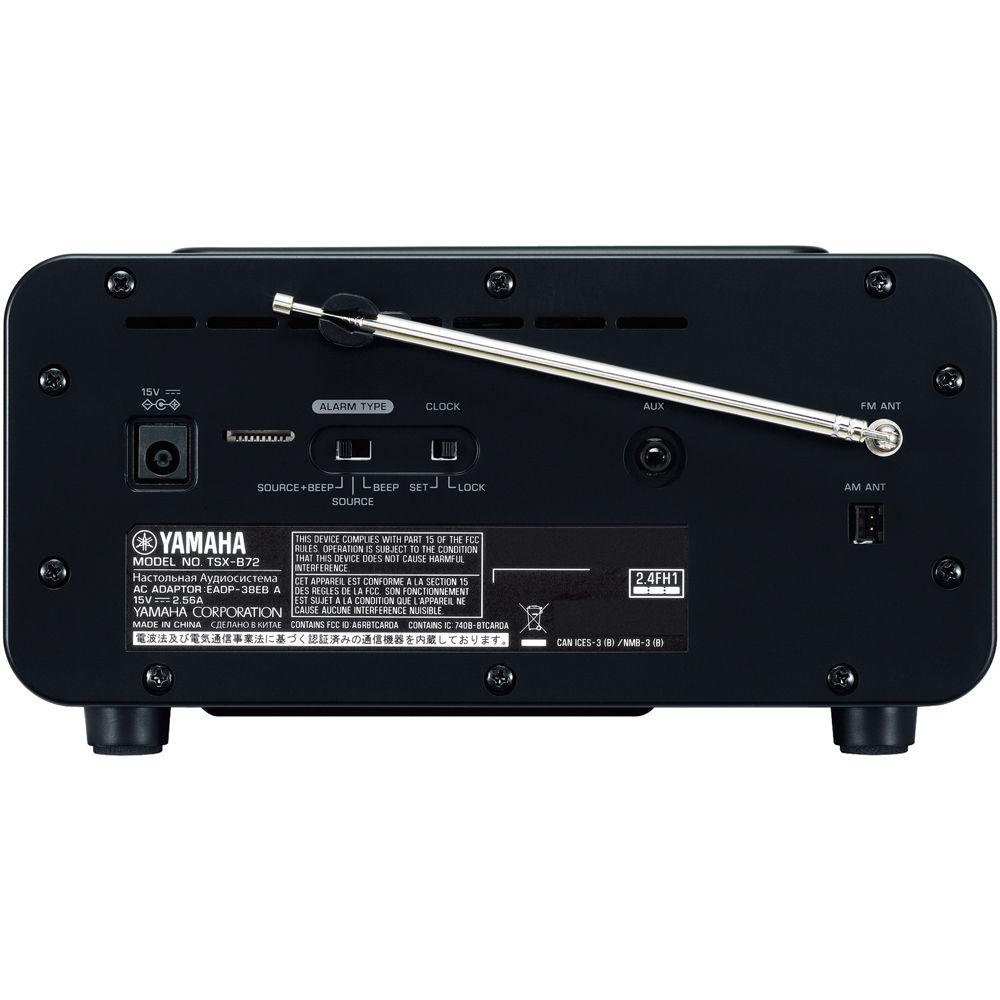

Technical parametersYamaha TSX-B72 Specs | | | Version | 2.1 + EDR | | Supported Profiles | A2DP | | Supported Codecs | SBC, AAC | | Wireless Range | Maximum wireless range of 32.8' (10.0 m) without interference | | | | Maximum Output | 16 W (4 W x 2 + 8 W) | | Drivers | 1-5/8" (41 mm) full range driver and 2-1/8" (54 mm) woofer | | Alarm | Yes, with snooze | | Tuner | AM, FM | | Preset | 5 x FM
5 x AM | | | | Input | Stereo L/R 1/8" (3.5 mm) mini-jack input | | Output | USB charging port | | | | Power Supply | AC | | Dimensions (WxHxD) | 8.3 x 4.4 x 5.6" (21.0 x 11.1 x 14.3 cm) | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 10.1 x 7.8 x 6.6" |
