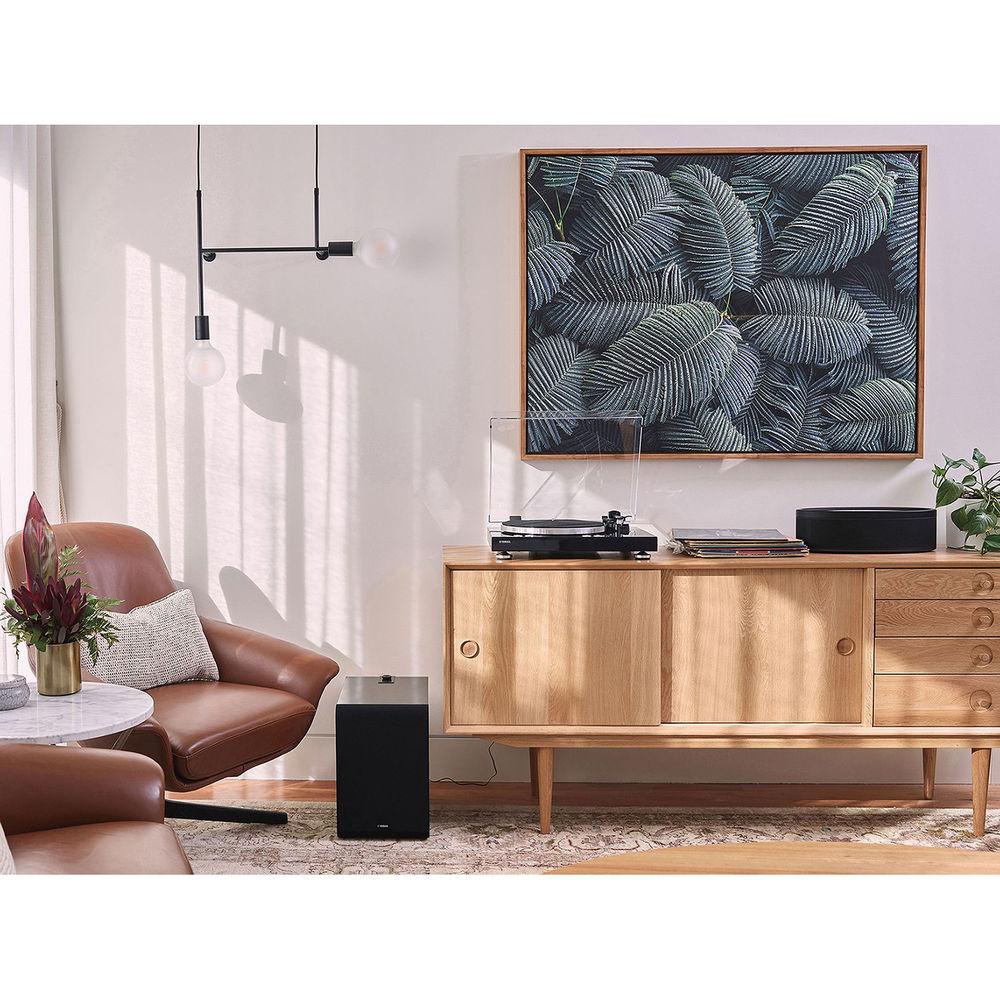

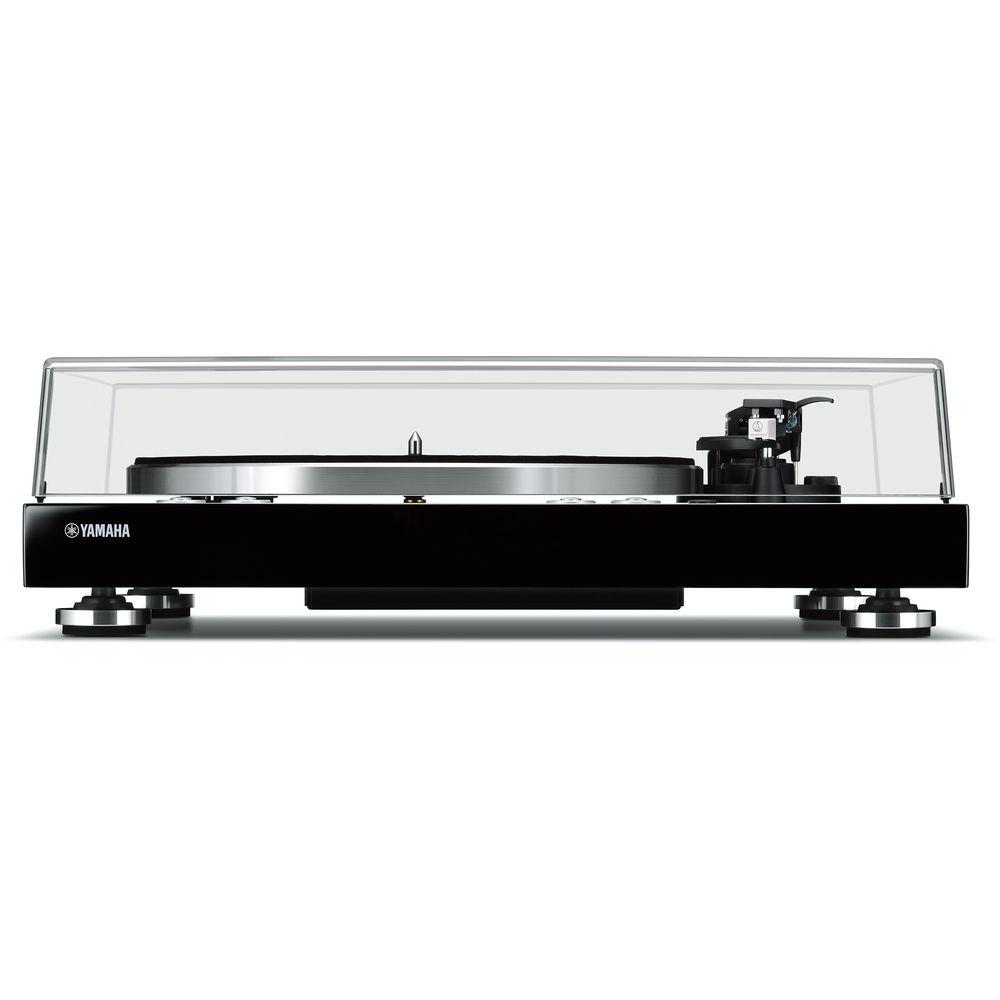

User Manual for Yamaha TT-N503BL MusicCast VINYL 500 Wireless Stereo Turntable Click to enlarge the picture
Contents of the user manual for the Yamaha TT-N503BL MusicCast VINYL 500 Wireless
- Product category: Turntables Yamaha
- Brand: Yamaha
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yamaha Turntables
 |
User manual for the Yamaha TT-N503BL MusicCast VINYL 500 Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yamaha product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yamaha user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yamaha product will considerably shorten its lifespan!
|

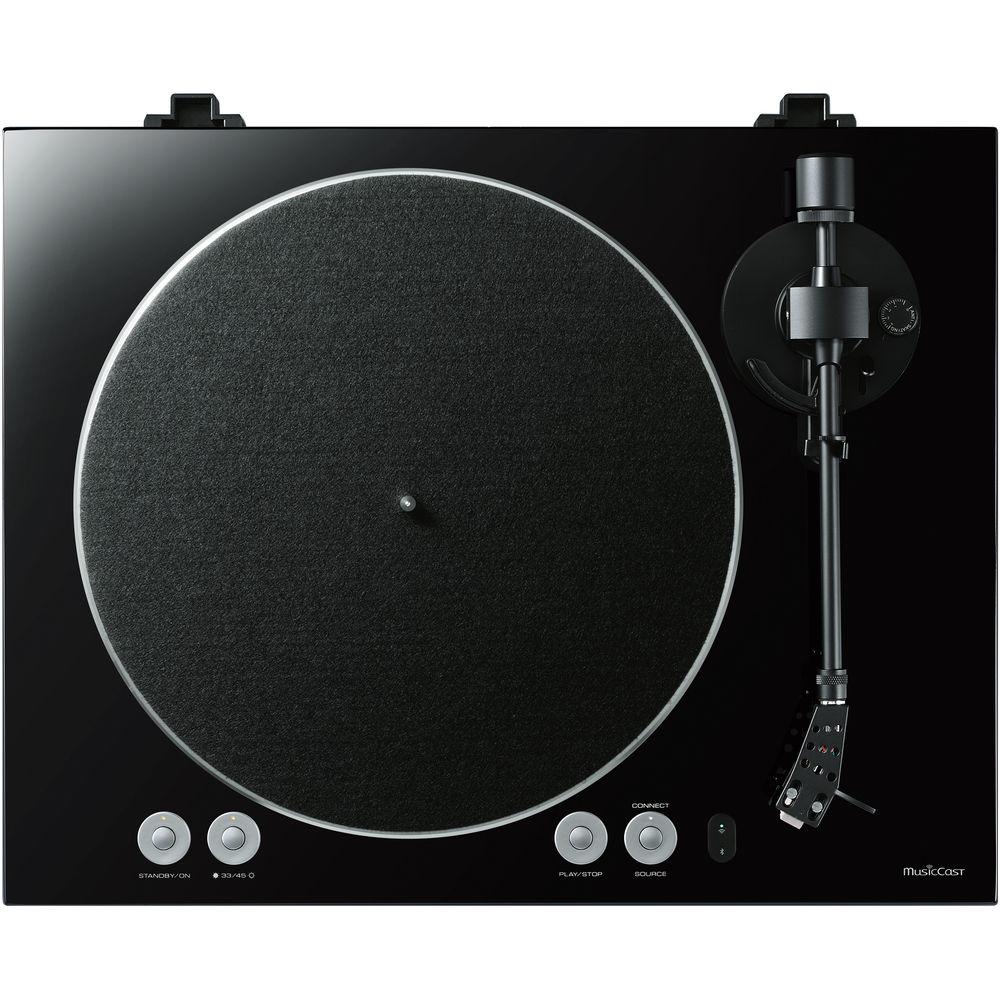

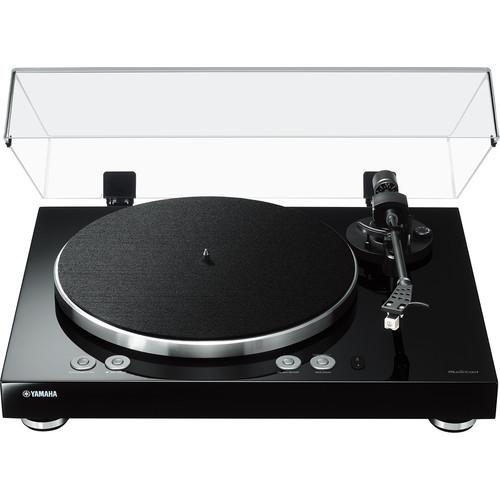

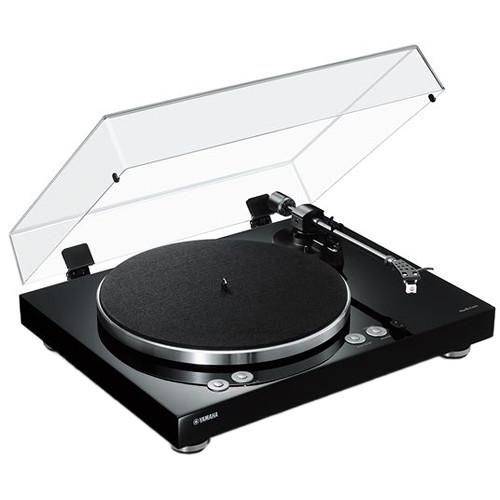

Product description Enjoy your vinyl 33 1/3 and 45 rpm records through your stereo system wirelessly or via RCA cables with the piano black Yamaha TT-N503BL MusicCast VINYL 500 Wireless Stereo Turntable. It features an 8.8" tonearm tipped with a moving magnet (MM) cartridge and is equipped with Wi-Fi, Ethernet, Bluetooth, MusicCast, and AirPlay connectivity to provide modern connection options. Spotify Connect is onboard, allowing you to stream Spotify from your compatible device through the turntable to your sound system. The turntable also has an RCA phono output with a built-in preamp and an RCA line output to provide additional connection options. - Wireless Transmission
- Adding a modern spin to an "old-school" medium, you can wirelessly connect the MusicCast VINYL 500 turntable to your MusicCast speakers, receiver, or other devices to enjoy your record collection without cables.
- Designed for Versatility
- With the VINYL 500, you can keep the music going by streaming from your music services via Wi-Fi, AirPlay, or Spotify Connect. Connect the turntable to add wireless connectivity to your existing stereo setup.
- MusicCast Multi-Room Technology
- With MusicCast multi-room technology and additional MusicCast speakers, you can share and listen to your record collection throughout the house.
- App Control
- With the MusicCast app, you can create favorites and control your multi-room music experience.
- Voice Control with Alexa and MusicCast
- Connect the VINYL 500 to your Amazon Alexa-powered device for hands-free control of your music streaming and multi-room setup.
- Additional Features
-
- Static-balanced straight tonearm helps provide an open sound
- Belt-driven platter engineered for high inertia with a DC motor for stable rotation
- Built-in phono preamp for line or phono output to your legacy stereo system
UPC: 027108957876 Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha TT-N503BL MusicCast VINYL 500 Wireless Stereo Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha TT-N503BL Specs | | | Rotation Speed | 33 1/3, 45 rpm | | Drive Method | Belt-drive | | Motor | DC | | Wow and Flutter | 0.2% | | Signal to Noise Ratio | A-Weighted, 20 kHz, LPF: ≥67 dB
IHF-A Network, Infinity Zero, Fs 44.1 kHz: ≥110 dB | | Dynamic Range | ≥100 dB (1 kHz, -60 dB, Fs 44.1 kHz | | Harmonic Distortion | ≤0.003% (1 kHz, 0 dB, Fs 44.1 kHz) | | Frequency Response | Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB)
Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB)
Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB)
Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB) | | Speed Drift | ±2% | | Turntable Platter | 11.8" / 30 cm die-cast aluminum | | | | Material | Not specified by manufacturer | | Design | Static-balanced, straight | | Effective Arm Length | 8.8" / 223.5 mm | | Arm Weight | Not specified by manufacturer | | Overhang | 0.75" / 19 mm | | Cartridge Weight | Acceptable: 0.55 to 0.67 oz / 15.5 to 19 g (including headshell) | | | | Cartridge Type | MM-type | | Frequency Range | Not specified by manufacturer | | Output Voltage | 2.5 mV @ 1 kHz, 3.54 cm/sec | | Output Level | 450 mV (-7 dBV with RIAA EQ, 1 kHz, 3.54 cm/sec)
2.5 mV (±3 dBV, without RIAA EQ, 1 kHz, 3.54 cm/sec) | | Height | 17 ± 0.7 mm | | Weight | Cartridge: 5 ±0.3 g
Headshell: 10 g (including hardware) | | | | Replacement | Not specified by manufacturer | | Pressure Level | 3.5 ± 0.5 g | | Stylus Pressure Adjustment | 0 to 4 g | | | | Wi-Fi | Dual-band (2.4/5 GHz) Wi-Fi with MusicCast connectivity and Spotify Connect | | Bluetooth | Version: 4.2
Profiles: A2DP, AVRCP
Codecs: SBC, AAC

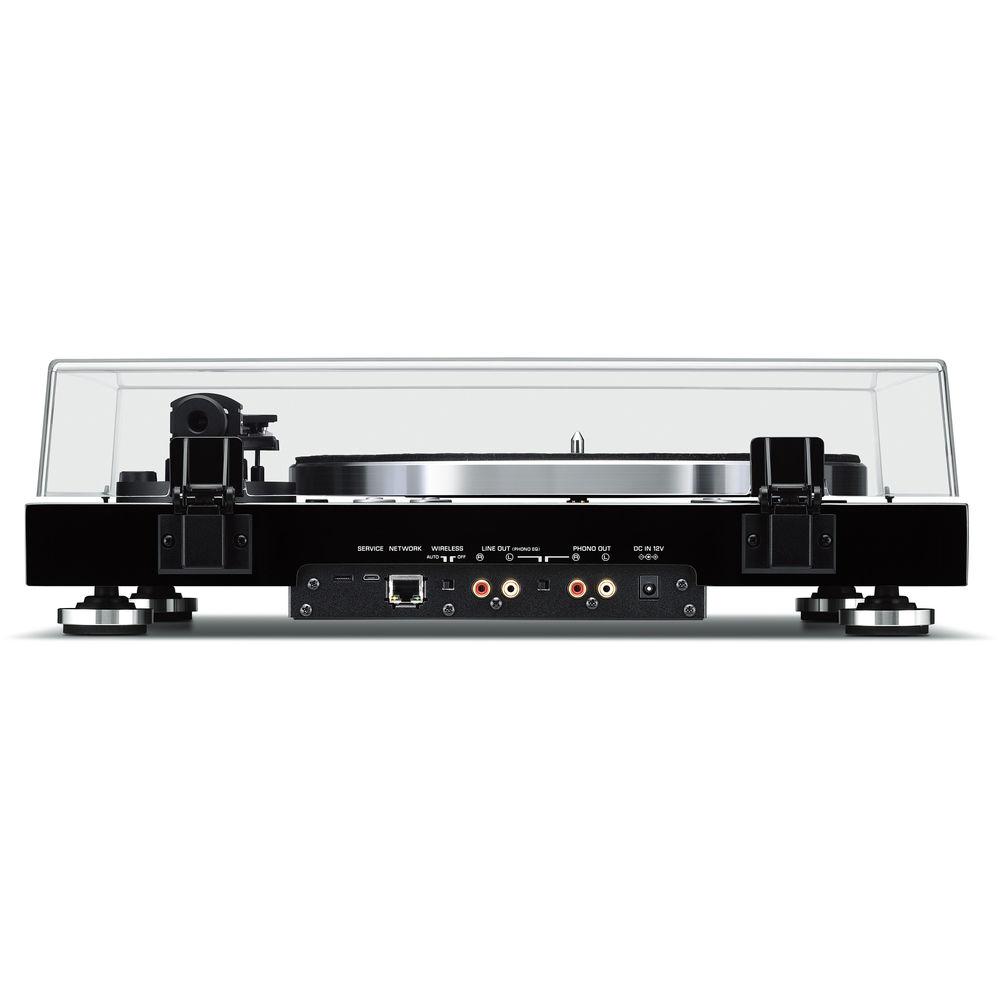

Range: Up to 32.8' / 10 m | | AirPlay | Yes | | Output | 1 x stereo RCA phono
1 x stereo RCA line | | Output Level | RCA: 2 ± 0.3 V (1 kHz, 0 dB, fS 44.1 kHz) | | Other Connections | 1 x RJ45 Ethernet LAN
1 x micro-USB (service) | | File Formats | MP3, WMA, FLAC, WAV, MPEG-4 AAC (up to 48 kHz / 16-bit), ALAC (up to 96 kHz / 24-bit), AIFF (up to 192 kHz / 24-bit), DSD (up to 11.2 MHz) | | | | Power Requirements | Not specified by manufacturer | | Operating Power Consumption | 6 W | | Standby Power Consumption | Network Standby On, Bluetooth Standby Off, Wired: 1.4 W
Network Standby On, Wi-Fi On: 1.8 W
Network Standby On, Bluetooth Standby On, Wired: 1.6 W | | Dimensions (W x H x D) | 17.75 x 5.38 x 14.5" / 45.09 x 13.65 x 36.83 cm | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 17.45 lb | | Box Dimensions (LxWxH) | 24.0 x 12.0 x 10.0" |
