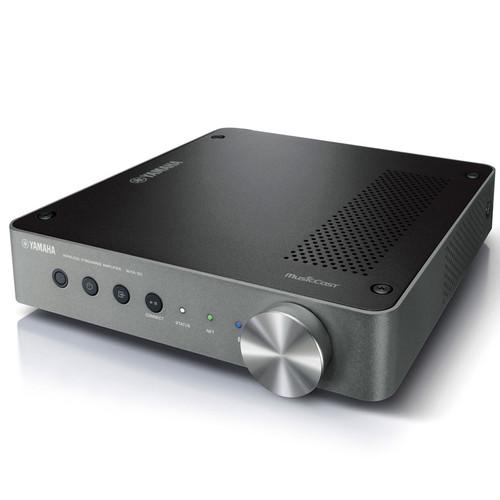

Product description Stream wirelessly to your favorite speakers with the dark silver Yamaha WXA-50 MusicCast Wireless Streaming Amplifier. It outputs up to 55W per channel at 8 Ohms and has Wi-Fi, AirPlay, Bluetooth, and DLNA connectivity built-in for a wireless connection to your compatible smart device. Its optical and stereo RCA inputs allow for a wired connection while its USB input will play digitally stored files from a compatible USB drive. - Compact Design

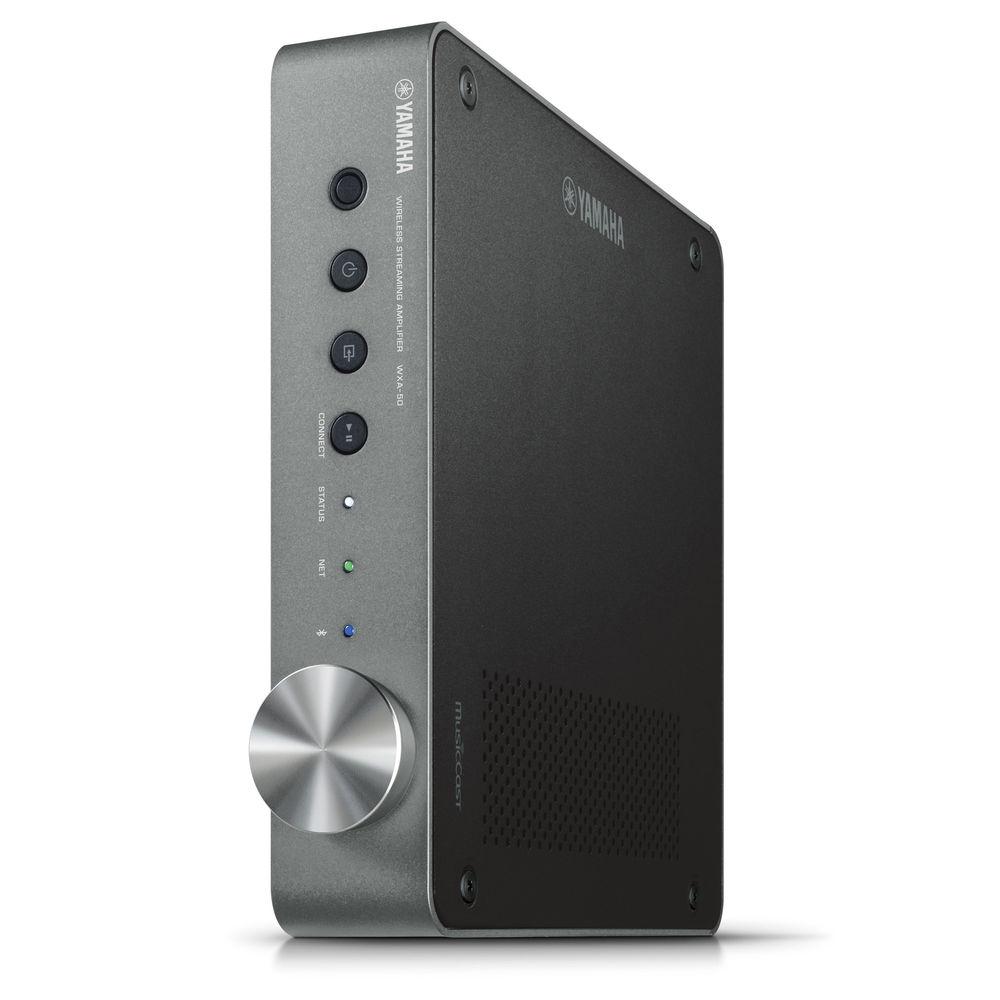

- The WXA-50 features a metal body with an aluminum cover and a slim design that fits just about anywhere. Only 2" tall and 8.4" wide, it can be placed horizontally or vertically, allowing it to fit neatly in almost any space.
- Control at Your Fingertips
- Connect the WXA-50 to any pair of traditional wired speakers (bookshelf, tower, in-ceiling, or outdoor speakers), then download the free MusicCast app to connect it to your existing home Wi-Fi to create a powerful streaming audio system. Quickly select sources, browse your music library, and control playback right from your smartphone or tablet. You can also control sound EQ settings from the app.
- All Your Content
- Access streaming music and Internet radio stations, music files on your mobile devices and computers, Bluetooth sources, and external sources such as a TV, Blu-ray Disc player, or a turntable.
- MusicCast
- A single WXA-50 can be used with speakers to create a standalone streaming audio system, or multiple units can be used throughout the home. Play different music in each room or get everyone listening to the same thing. It can also be used with other MusicCast speakers, sound bars, A/V receivers, or Hi-Fi gear, providing more connectivity options.
- Bluetooth and AirPlay
- Stream virtually any audio source via Bluetooth as an input to the WXA-50. Bluetooth sources can be redistributed through Wi-Fi to other MusicCast devices. Or stream using AirPlay from an Apple device to a single unit.
- Rack Shelf Friendly
- With the feet removed, the WXA-50 is only 1.6" high, allowing it to be placed on a rack shelf within a 1 RU rack space. Two units can be placed side-by-side on a 19" wide shelf.
- Design Detail
- The 48-bit digital volume control provides precision while the metal chassis is designed to supply the stability necessary for clear, powerful music reproduction.
- High-Resolution Audio
- The WXA-50 supports high-resolution audio – including FLAC/WAV/AIFF up to 192 kHz/24-bit, Apple Lossless (ALAC) up to 96 kHz/24-bit, and DSD up to 5.6 MHz – for more accurate reproduction of sonic details, presence, and atmosphere.
- Yamaha Proprietary Sound Processing
- The Compressed Music Enhancer is designed to improve sound reproduction from smartphones or other compressed sources, like MP3 files. Volume-adaptive EQ automatically adjusts the bass/treble balance according to the volume level. Advanced Bass Extension provides a deeper, richer low-end sound – designed to work well with compact or in-wall speakers. Direct Mode allows you to play back high-resolution audio sources just as they are, without any processing.

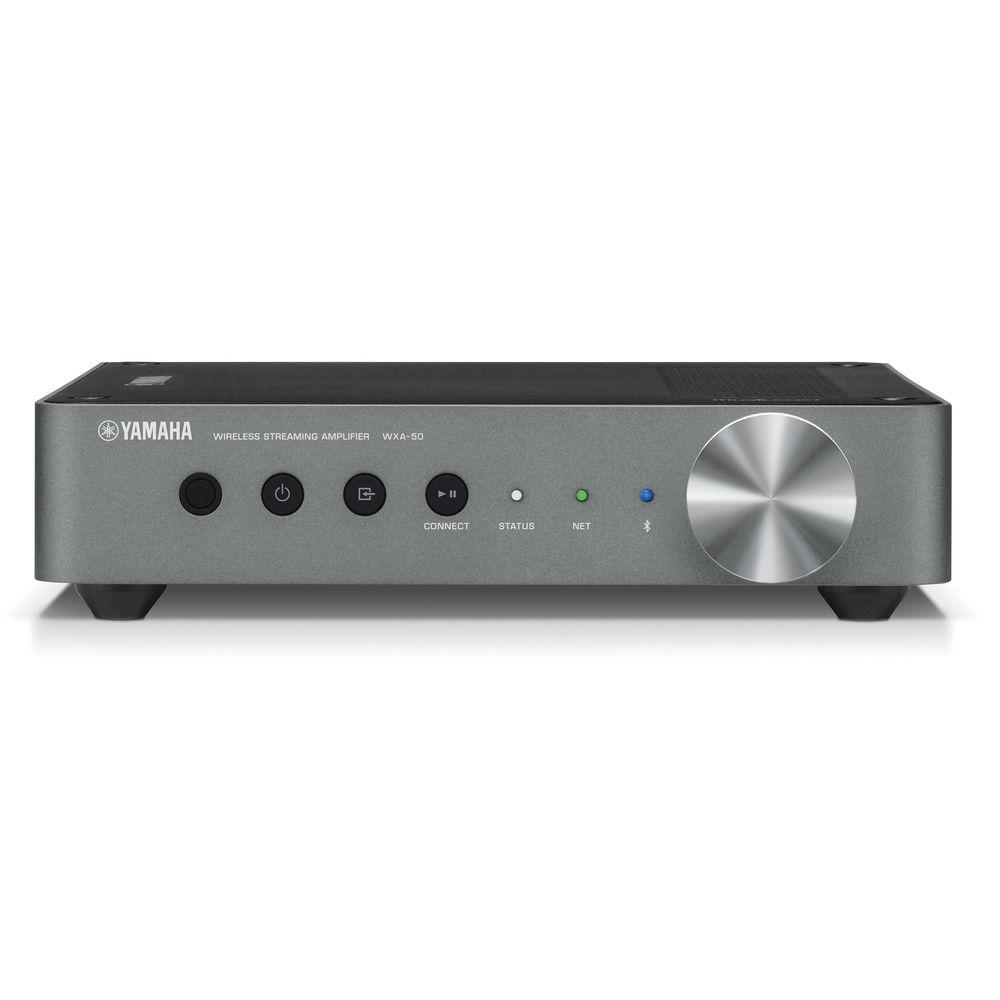

- One-Touch Controls
- Pressing any button on the front panel turns the unit on and initiates playback of the previously selected source providing quick and easy access to your favorite music. The WXA-50 also comes with a slim remote offering six presets, so you can quickly access your favorite Internet radio stations even when your smartphone or tablet isn't handy.
- Low Power Consumption
- The WXA-50 consumes less than two watts of power in standby mode. When the power is on, power consumption is still a low 15 watts. In addition, the Auto Power Standby feature lets you save energy by automatically turning the power off after two, four, eight or 12 hours.

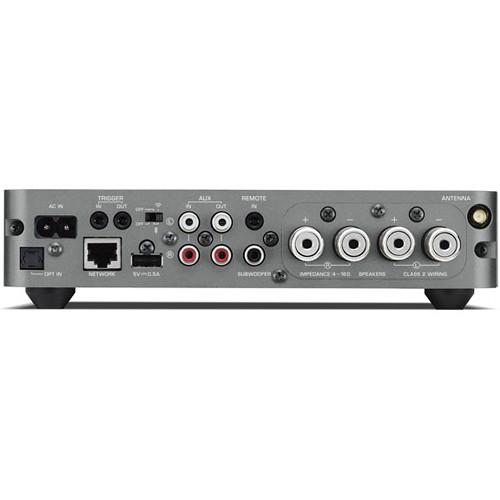

- Connectivity and Control
-
- Binding post speaker connectors
- Wired Ethernet port
- Wireless off switch
- Optical and analog inputs
- Subwoofer out
- Trigger in/out
- Remote in
UPC: 027108954288 In the Box Yamaha WXA-50 MusicCast Wireless Streaming Amplifier (Dark Silver) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha WXA-50 MusicCast Wireless Streaming Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYamaha WXA-50 Specs | | | Rated Output Power | 55 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.06% THD, 2-ch driven
70 W per channel @ 6 Ohms, 20 Hz to 20 kHz, 0.06% THD, 2-ch driven | | Maximum Output Power | 90 W @ 6 Ohms, 1 kHz, 0.9% THD, 1-ch driven | | Channels | 2.1 | | Total Harmonic Distortion | 0.02% at 20 Hz to 20 kHz, SP out | | Signal to Noise Ratio | 110 dB (optical, network, USB, Bluetooth in)
98 dB (aux in) | | | | Bluetooth | Yes (SBC/AAC) | | AirPlay | Yes | | Wi-Fi | Yes | | DLNA Certified | Yes, version 1.5 | | Pure Direct | Yes | | Inputs | 1 x Optical TOSLINK
1 x Stereo RCA
1 x USB | | Outputs | 1 x Stereo RCA
1 x RCA subwoofer pre-out | | Other Ports | 1 x Trigger in
1 x Trigger out
1 x IR remote in
1 x Ethernet in
1 x AC in | | Speaker Connectors | 2 x Binding post pairs | | | | Power Consumption | Typical: 15 W

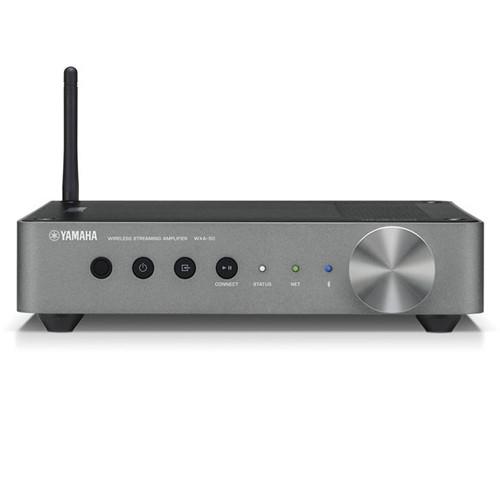

Standby: 1.8 W | | Dimensions (W x H x D) | With Feet, No Antenna: 8.4 x 2 x 9.6" (21.3 x 5.1 x 24.4 cm)
With Antenna and Feet: 8.4 x 4.9 x 9.6" (21.3 x 12.4 x 24.4 cm)
No Antenna or Feet: 8.4 x 1.6 x 9.6" (21.3 x 4.1 x 24.4 cm) | | Weight | 4.28 lb (1.9 kg) | | | | Package Weight | 6.05 lb | | Box Dimensions (LxWxH) | 16.5 x 11.4 x 4.5" |
