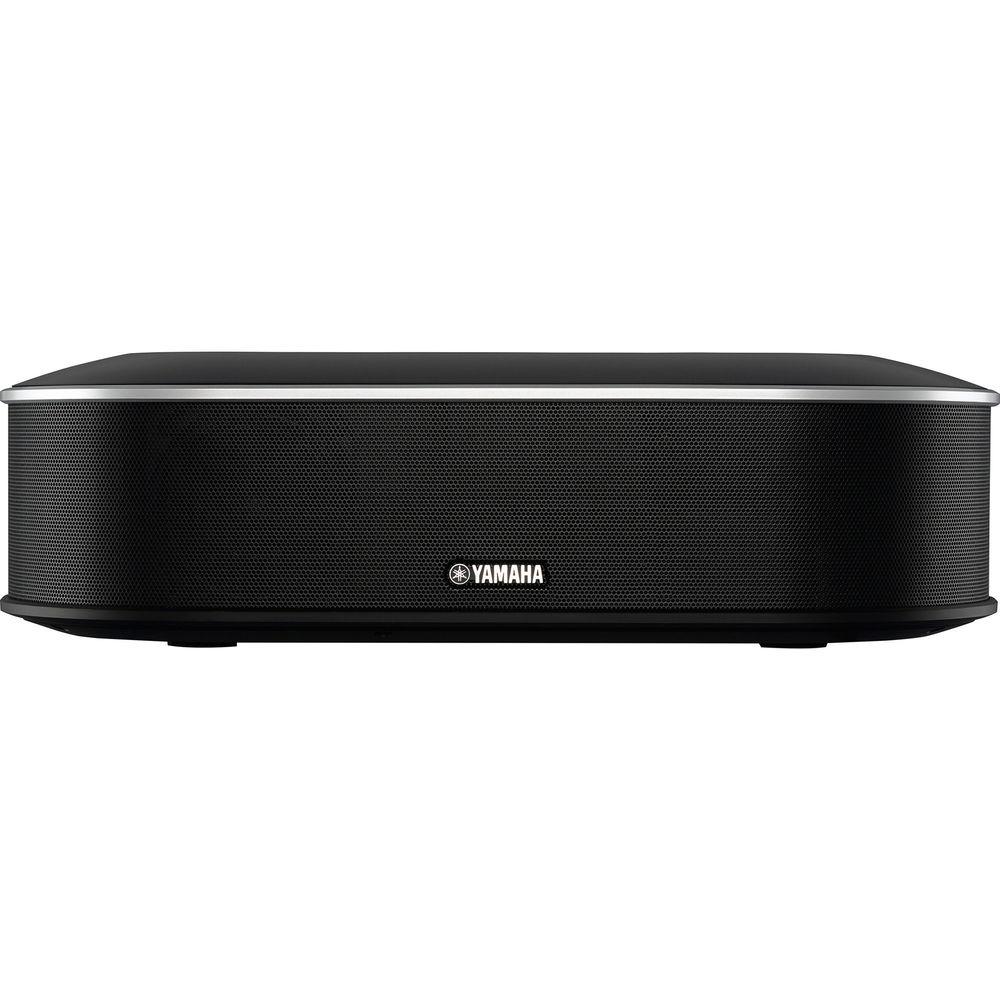

Product description With the expandable YVC-1000 Unified Communications Microphone & Speaker System from Yamaha, you can conduct meetings ranging in size from 6 to 40 participants.

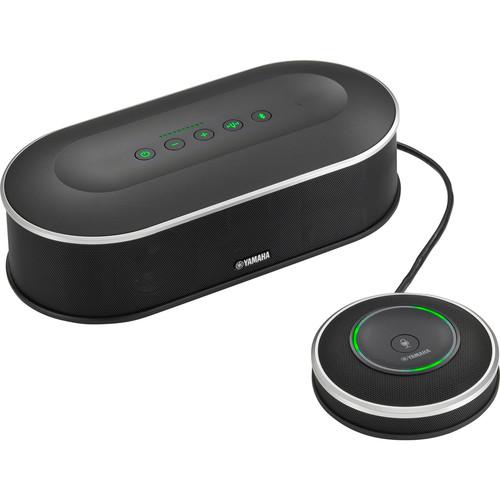

The YVC-1000 microphone and speaker system features a single speaker unit and single omnidirectional microphone unit with the ability to add an additional four microphones to the system. The control unit offers a variety of connection options including USB 2.0, stereo RCA, and Bluetooth version 2.1 with NFC. Once configured, this microphone and speaker system works seamlessly with Skype for Business, or connect the speaker to your smartphone via the phone's Bluetooth connection to conduct conference calls even when on the go. Yamaha has also included Human Voice Activity Detection (HVAD) into this system for added call clarity and reduced background noise. - Bring Skype for Business to Life
- This scalable and flexible solution is engineered to support the audio requirements of large meeting rooms and rooms with special table configurations. You can daisy-chain up to five distinct microphones to cover large or oddly sized meeting rooms. The YVC-1000MS is ideal for applications such as remote education classes or seminars where a handheld microphone may be preferable within the Skype for Business application.
- Easy Connection So You're Ready to Go
- Start your Skype for Business meeting by connecting your YVC-1000MS with a single USB connection. Don't have your laptop with you? The user-friendly design provides fast, intuitive connection to a smartphone by Bluetooth. No matter how you connect, the specially engineered auto-tuning function developed by Yamaha detects and monitors the acoustics of the environment to optimize sound processing for enhanced audio in Skype for Business meetings.
- Optimized Sound for Natural, Comfortable Skype for Business Meeting
- The sound is also optimized using high-quality sound technologies that Yamaha has developed over the years, including a unique Human Voice Activity Detection (HVAD) capability used to detect human voices. "HVAD" is an important element of several different sound processing features that require fast and efficient sorting and helps minimize background noise during calls.
UPC: 889025116756 In the Box Yamaha YVC-1000 Unified Communications Microphone & Speaker System 9.8' Power Cable 16.4' USB Cable 16.4' Microphone Cable More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha YVC-1000 Unified Communications Microphone & Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

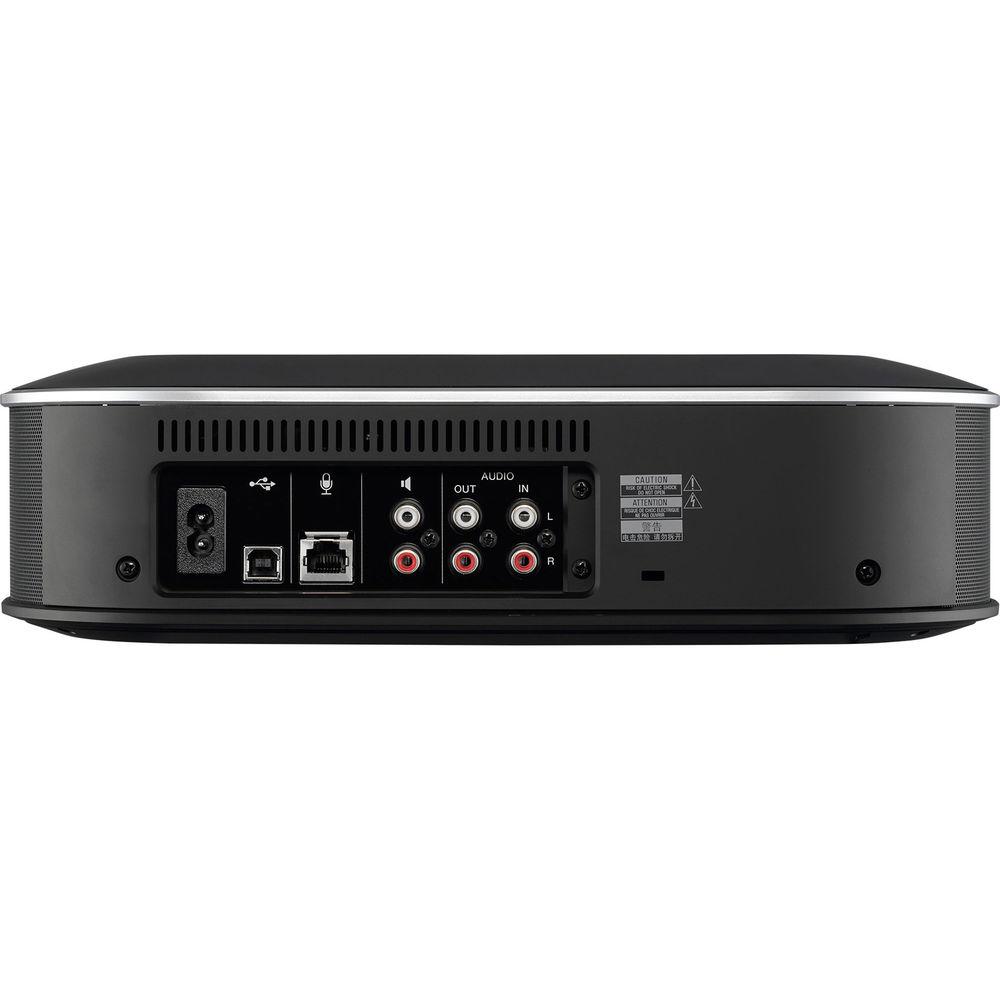

Technical parametersYamaha 10-YVC1000MS-NA Specs | Interface | Control Unit
1 x USB 2.0 Type-B
1 x stereo RCA audio input
1 x stereo RCA audio output
1 x stereo RCA speaker output
Power terminal
Microphone terminal
Microphone

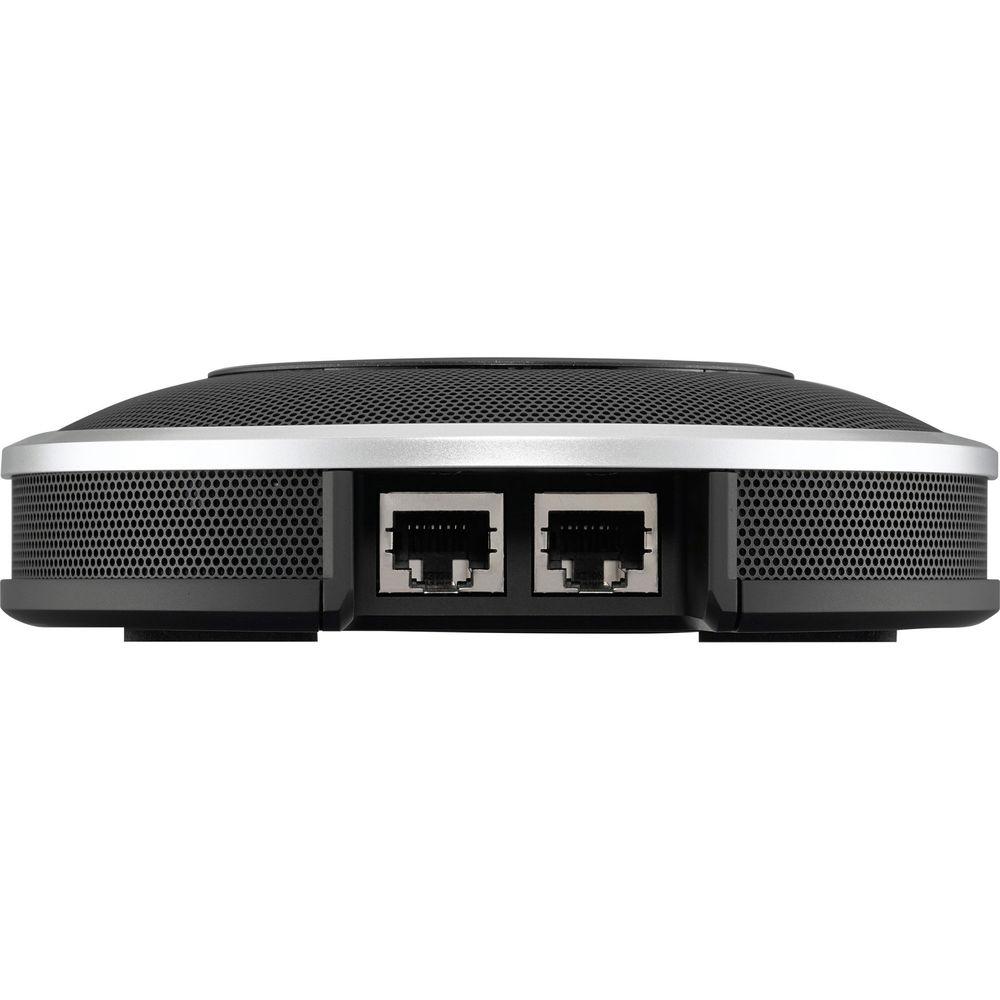

Input (daisy chain) and output (to control unit) terminals | | Power Consumption | 20 W (one connected microphone)
35 W (five microphones connected) | | Certifications | Radio Interference Standard
FCC (Part 15B) Class A, ICES-003, EN55020, EN55024, EN55032 | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
20 to 85% non-condensing | | System Requirements | Operating System
Windows 7, 8.1, 10 (32- or 64-bit)
Mac OS X 10.10, 10.11, 10.12
USB
USB 2.0 or later | | Bluetooth | Bluetooth Specification Version
2.1 + EDR
Supported Profile
HFP (1.6), A2DP
Supported Codec
CVSD, mSBC, SBC
Wireless Output
Class 2
Maximum Communication Distance
32.8' / 10 m | | NFC | Compatible Devices: NFC-compatible Android devices | | Voice Guidance | English, Japanese, Chinese, Korean, French, Spanish, German | | Other Specifications | Firmware update (transfer from PC through USB) | | Microphone | 1 x omnidirectional microphone

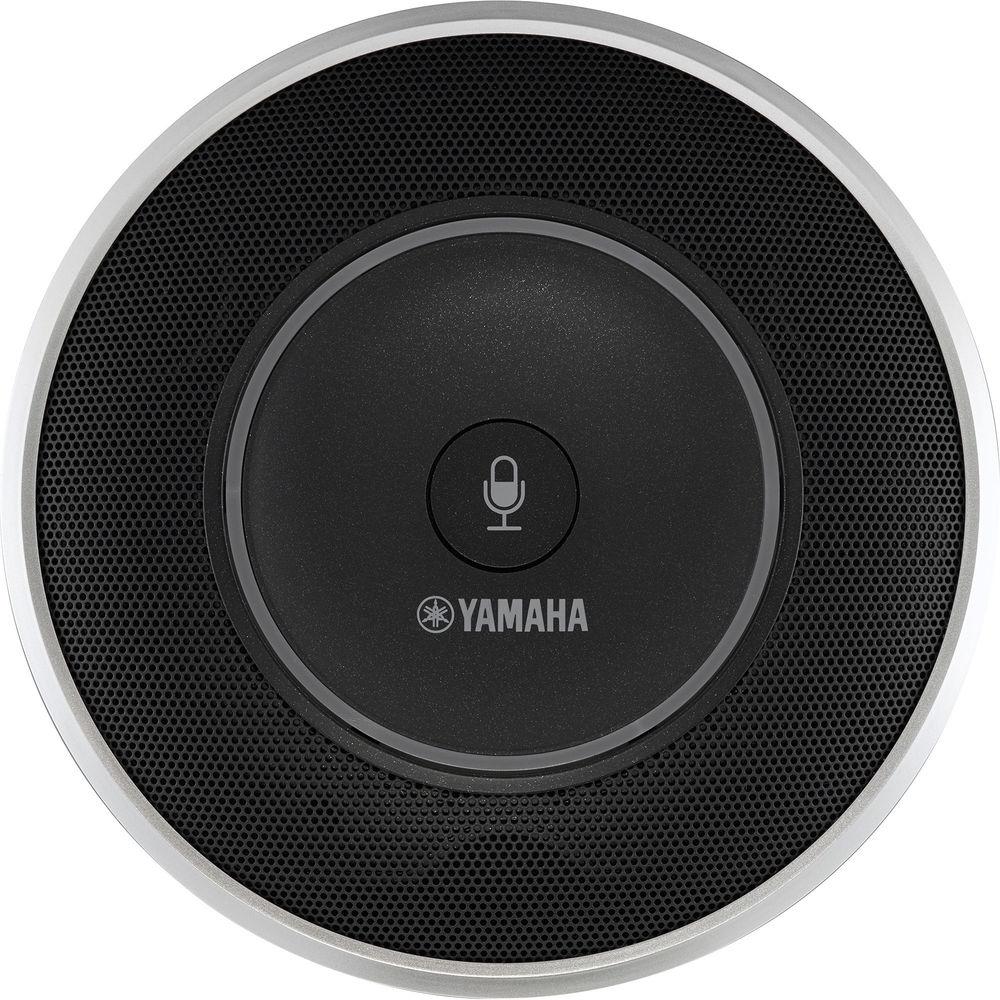

(Supports up to 4 more optional microphones) | | Speakers | 1 x full-range speaker | | Volume | 95 dB (1.6' / 0.5 m) | | Frequency Bandwidth | For Sound Pickup
100 to 20,000 Hz
For Playback
100 to 20,000 Hz | | Signal Processing | Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, Automatic audio tuning | | Dimensions | Control Unit
13.10 x 3.74 x 6.38" / 332 x 95 x 162 mm
Microphone
5.35 x 1.42 x 5.35" / 136 x 36 x 136 mm | | Weight | Control Unit
4.0 lb / 1.8 kg
Microphone
0.9 lb / 0.4 kg | | | | Package Weight | 8.9 lb | | Box Dimensions (LxWxH) | 15.5 x 9.9 x 9.7" |
