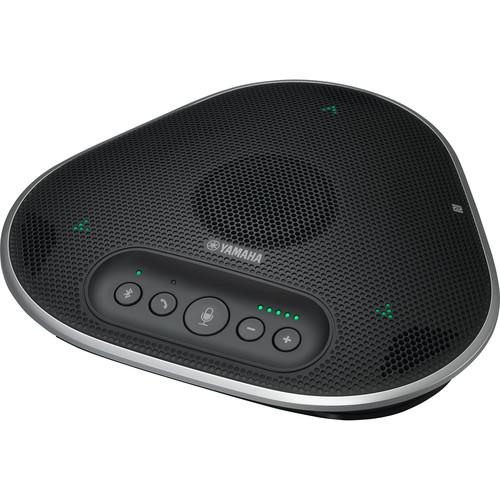

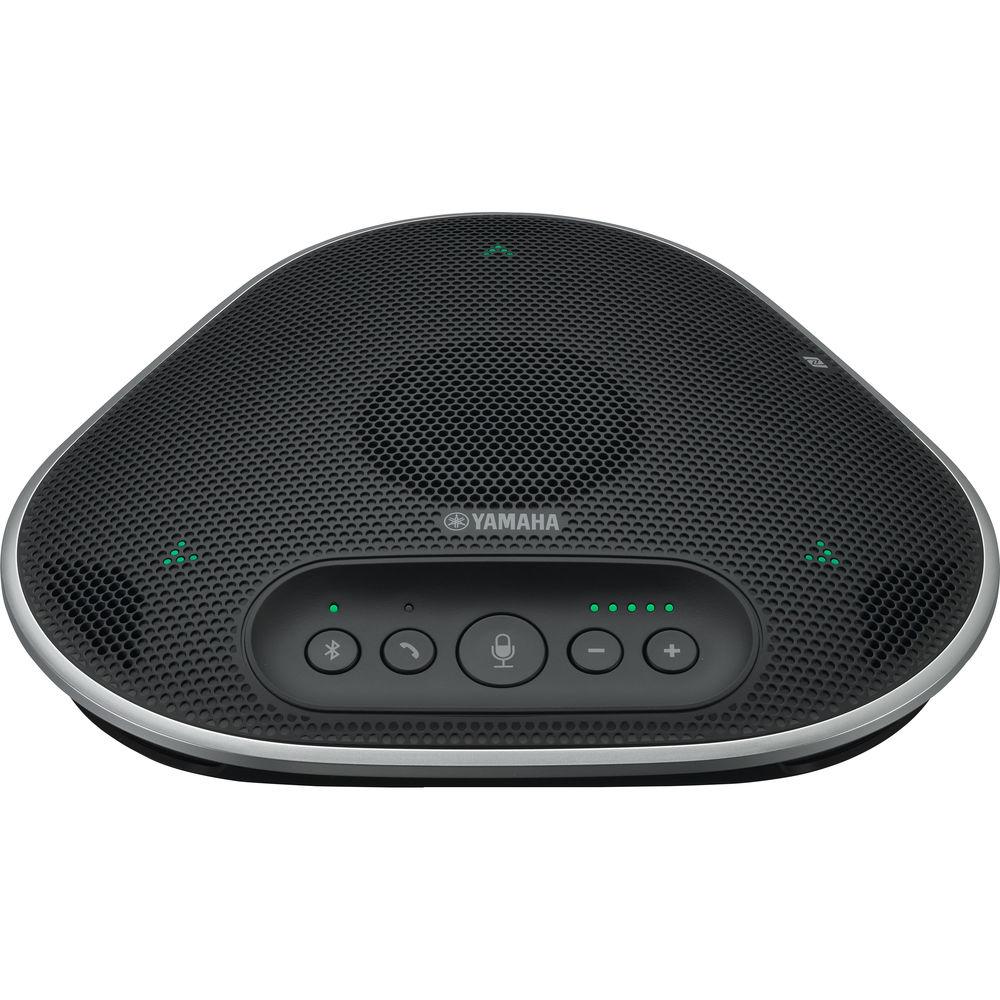

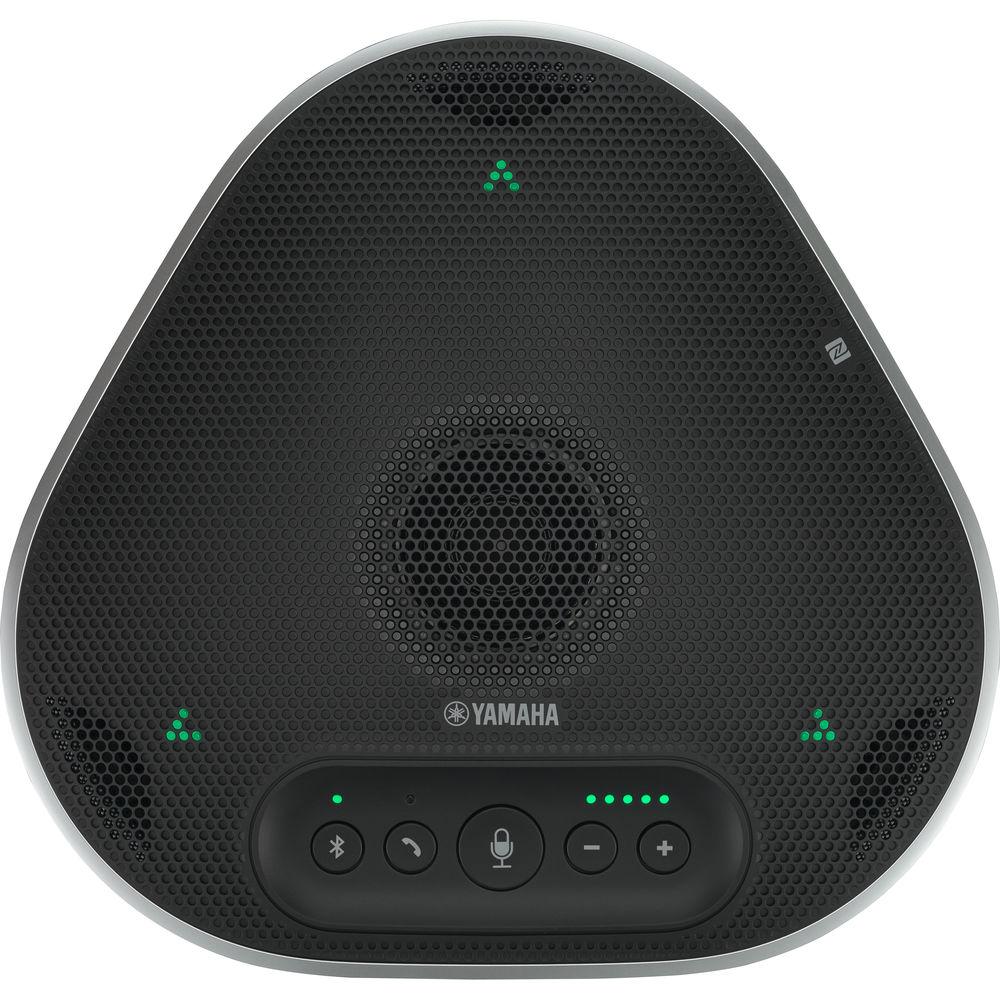

Product description Who Knew Audio Conferencing Systems Could Be Cool? Yamaha Did. Read More The YVC-300 from Yamaha is a portable conference phone optimized for high-quality remote group communication for 4-6 people, in huddle rooms, collaboration areas or even in unequipped conferencing spaces. It easily connects to communication equipment such as Mac/Windows computers, smartphones, tablets or video-conference systems, via Bluetooth, USB, and analog audio I/O. The unit is equipped with a powerful speaker which delivers clear sound and high output volume (up to 91 dB), making it easier to recognize voices. It also features the company's sound processing technologies designed to ensure comfortable communication, including three microphones with voice-activity detection and automatic tracking, adaptive echo cancellation, dereverberation, and background noise reduction. For convenience, the YVC-300 is USB powered and supports fast pairing for NFC-enabled (near field communication) devices. - Portable, lightweight design optimized for remote, small-group conferencing, even in unequipped conferencing spaces
- USB, Bluetooth, and audio in/out options to connect to computers, smartphones, and video-conference systems
- Supports automatic pairing of NFC-enabled devices
- Calls placed simultaneously over multiple connection interfaces bridge into a single call
- Three microphones with Human Voice Activity Detection (HVAD) and automatic tracking – high-precision detection of the person speaking, for clearer communication
- One full-range speaker with clear sound and high-output volume
- Adaptive echo canceler removes echo to achieve smoother reciprocal conversations
- Noise reduction eliminates noise and conveys only voice
- Automatic gain control adjusts the volume of people close to and far from the microphones
- Dereverberation conveys clear voice by reducing reverberation caused by the acoustics of the room
- Conveniently powered by USB
- Compatible with Mac OS X and Windows
UPC: 889025110945 In the Box Yamaha YVC-300 USB and Bluetooth Portable Conference Phone USB Cable (9.8') Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Yamaha YVC-300 USB and Bluetooth Portable Conference Phone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

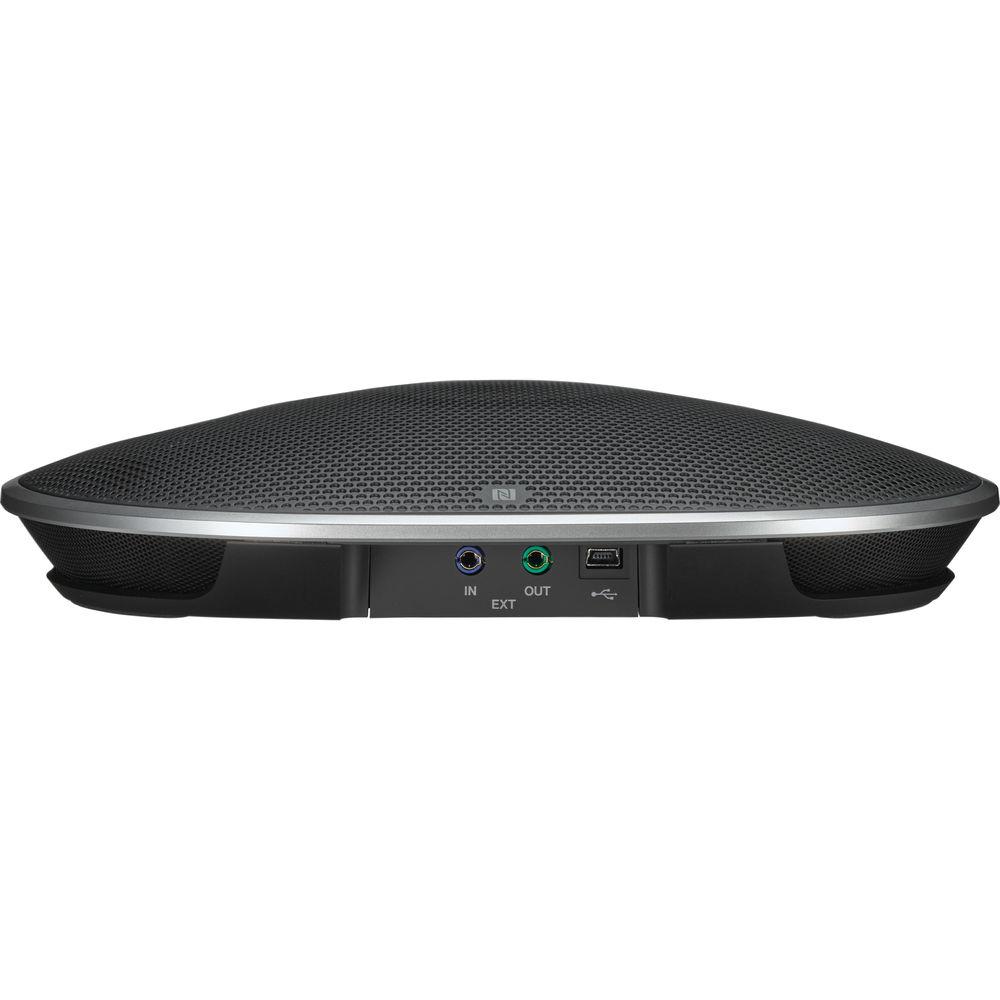

Technical parametersYamaha YVC-300 Specs | External Interface | USB 2.0, full speed
Bluetooth
Near Field Communication (NFC)

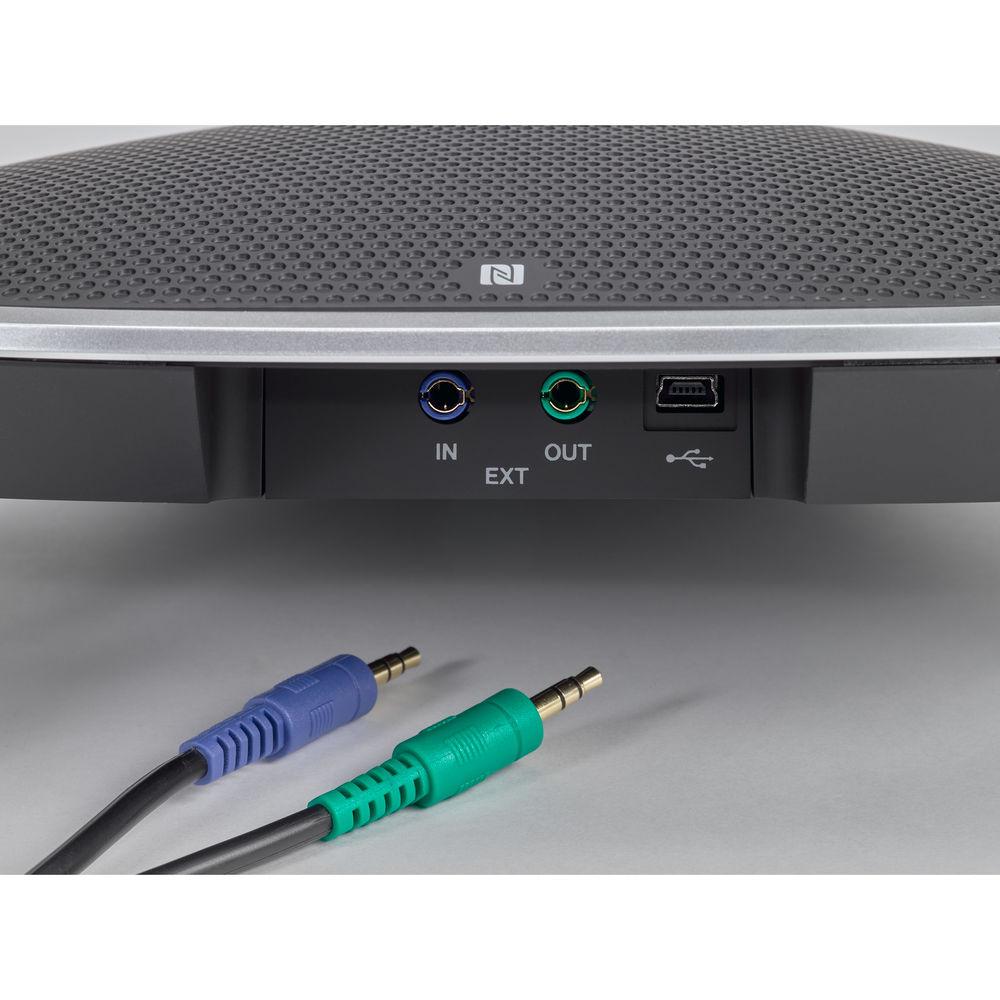

1 x stereo mini plug analog input (3.5 mm)
1 x stereo mini plug analog output (3.5 mm) | | Bluetooth | Version: 2.1 + EDR
Profiles: HFP (1.6), A2DP
Codecs: SBC, mSBC, CVSD
Wireless Output: Class 2
Maximum Communication Distance: 32.8" / 10 m (no obstacles) | | NFC | Compatible Devices: NFC-compatible Android devices versions 4.1,4.2, 4.3, 4.4, and 5.0 | | Microphone | 3 x unidirectional microphones | | Speaker | 1 x full-range
Output Volume: 91 dB at 1.64' /0.5 m (momentary maximum) | | Frequency Bandwidth | For Sound Pickup: 100 to 20 kHz
For Playback: 190 to 20 kHz | | Signal Processing | Adaptive echo canceller, noise reduction, automatic tracking, automatic gain control, dereverberation | | Mac OS Compatibility | Mac OS X 10.8 - 10.11
USB 2.0 or later | | Windows Compatibility | Windows 7 (32-bit/64-bit), Windows 8.1 (32-bit/64-bit), or Windows 10 (32-bit/64-bit)
USB 2.0 or later | | Power Consumption | 2.5 W, maximum | | Power | USB powered | | Certification | Radio Interference Standard: FCC (Part15B) Class A, ICES-003 | | Operating Environment | Temperature: 32 to 104° F / 0 to 40° C
Humidity: 20 to 85% (no condensation) | | Storage Environment | Temperature: -4 to 122° F / -20 to +50° C
Humidity: 10 to 90% (no condensation) | | Dimensions (W × H × D) | 9.3 x 1.8 x 8.9" / 235.0 x 46.0 x 226.0 mm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 12.2 x 11.7 x 3.9" |
