User Manual for YI Technology 1080p Wi-Fi Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the YI Technology 1080p Wi-Fi Camera with
- Product category: Wireless Cameras YI Technology
- Brand: YI Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for YI Technology Wireless Cameras
 |
User manual for the YI Technology 1080p Wi-Fi Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any YI Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official YI Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a YI Technology product will considerably shorten its lifespan!
|
Product description Monitor your home with the 1080p Wi-Fi Camera with Night Vision 4-pack from YI Technology. These cameras each have a 1/2.7" CMOS sensor to capture 1920 x 1080 resolution video at 15 fps. The 8 IR LEDs on each camera provide up to 29.5' of night vision. Each camera's wide-angle lens delivers a 112° diagonal field of view. Two-way audio communication is possible thanks to built-in speakers and microphones. Baby crying detection technology alerts you when your baby makes a sound and sends you 6-second video clips. Sound can be picked up within approximately 16'. In addition, motion detection is also supported. An onboard memory card slot supports microSD cards up to 32GB. microSD cards are available separately.
Remote viewing and setting adjustments can be made through the free app for iOS and Android devices, as well as via Windows and Mac PCs. For an added level of secure storage, these Wi-Fi cameras support YI Cloud storage. New users get a free 1-month trial. A service plan is required from the manufacturer after the trial period if you want to continue with cloud storage. - 2.4 GHz Wi-Fi connectivity
- IEEE 802.11b/g/n wireless standards
- WEP, WPA, and WPA2 wireless encryption
- Lens distortion correction
- Optional YI Cloud service plan
- Loop recording with YI Cloud service
- Receive baby crying and motion detection alerts to your mobile device
- Compatible with iOS 7.0 or higher, Android 4.0 or higher, and Windows & Mac PCs
- USB cable and power adapter included
In the Box YI Technology 1080p Wi-Fi Camera with Night Vision (4-Pack) AC Adapter USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the YI Technology 1080p Wi-Fi Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

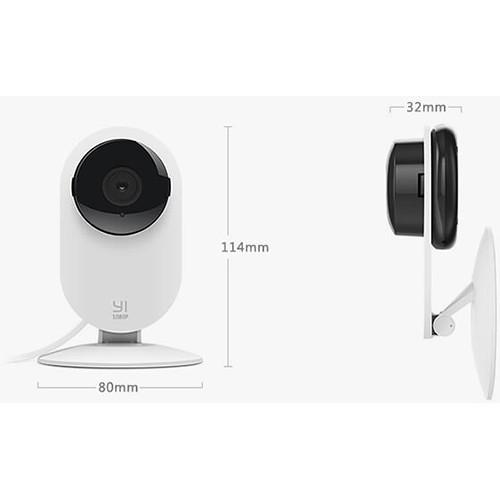

Technical parametersYI Technology 87058 Specs | Image Sensor | 2 MP 1/2.7" CMOS | | Resolution | 1920 x 1080 at 15 fps | | Diagonal Field of View (FOV) | 112° | | Digital Zoom | 4x | | Number of IR LEDs | 8 | | IR Wavelength | 940 nm | | Night Vision Range | 29.5' / 9 m | | Digital Noise Reduction | 3D-DNR | | Built-In Microphone | Yes | | Built-in Speaker | Yes | | Lens Distortion Correction | Yes | | Detection | Baby crying, motion | | Wi-Fi Connectivity | 2.4 GHz | | Wireless Encryption | WEP, WPA, and WPA2 | | Wireless Standards | IEEE 802.11b/g/n | | Minimum Bandwidth | 1 Mb/s upstream | | Supported Mobile Devices | iOS 7.0 or higher, Android 4.0 or higher | | Storage | Supports Class 4 microSD cards from 8 to 32 GB | | Power | 5 VDC, 1 A (via micro-USB) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | <80% | | Color | White | | Dimensions | 3.1 x 4.5 x 1.3" / 80 x 114 x 32 mm | | Weight | 4.8 oz / 135 g | | | | Package Weight | 2.685 lb | | Box Dimensions (LxWxH) | 12.55 x 8.45 x 2.95" |
