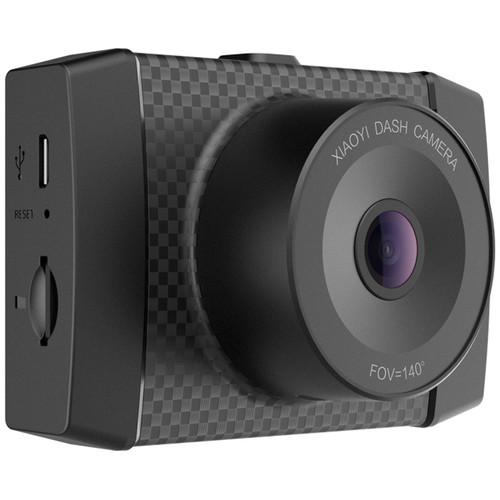

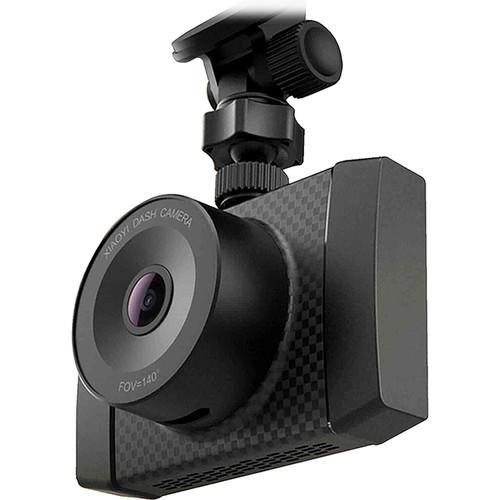

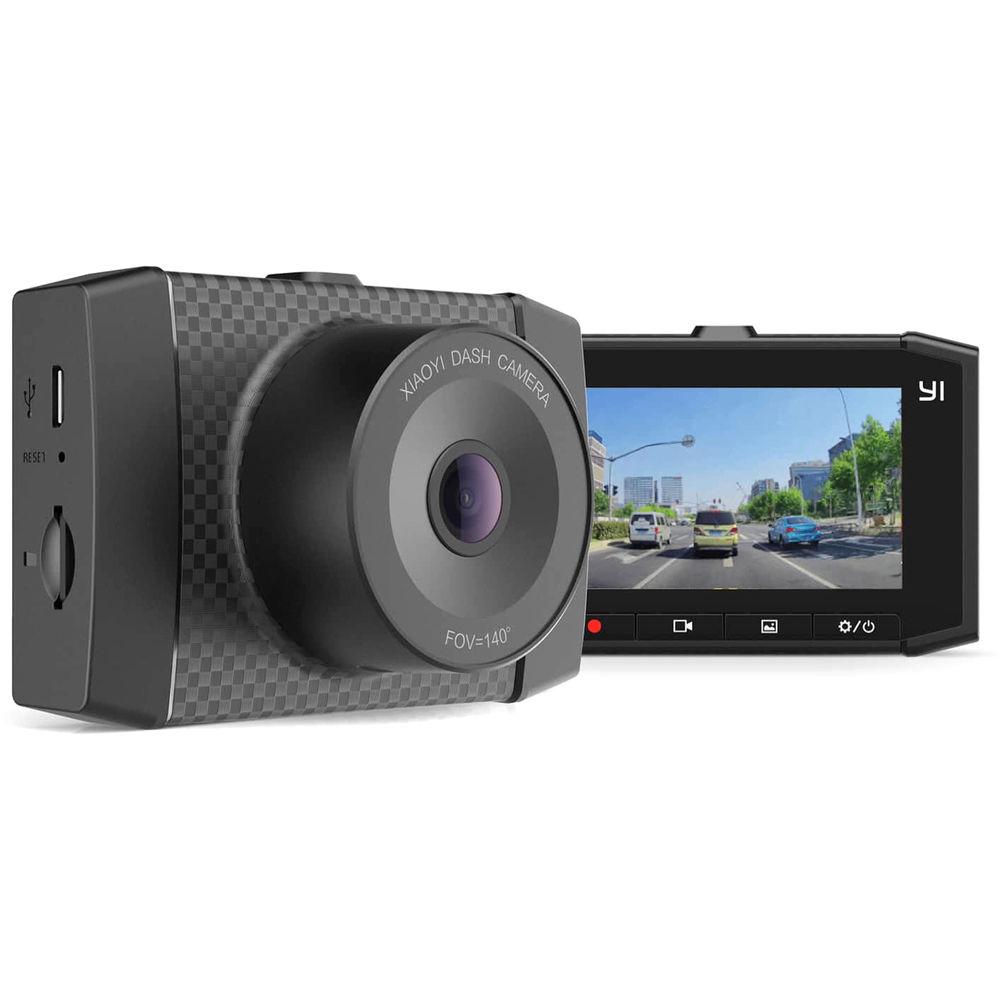

Product description Monitor what's in front of your vehicle with the 4MP Ultra Dash Camera from YI Technology on its 2.7" TFT LCD screen. This camera features a resolution of 2688 x 1520 at 30 fps. The lens has a 140.6° diagonal field of view that enables you to see the road ahead of you across three lanes without distortion.

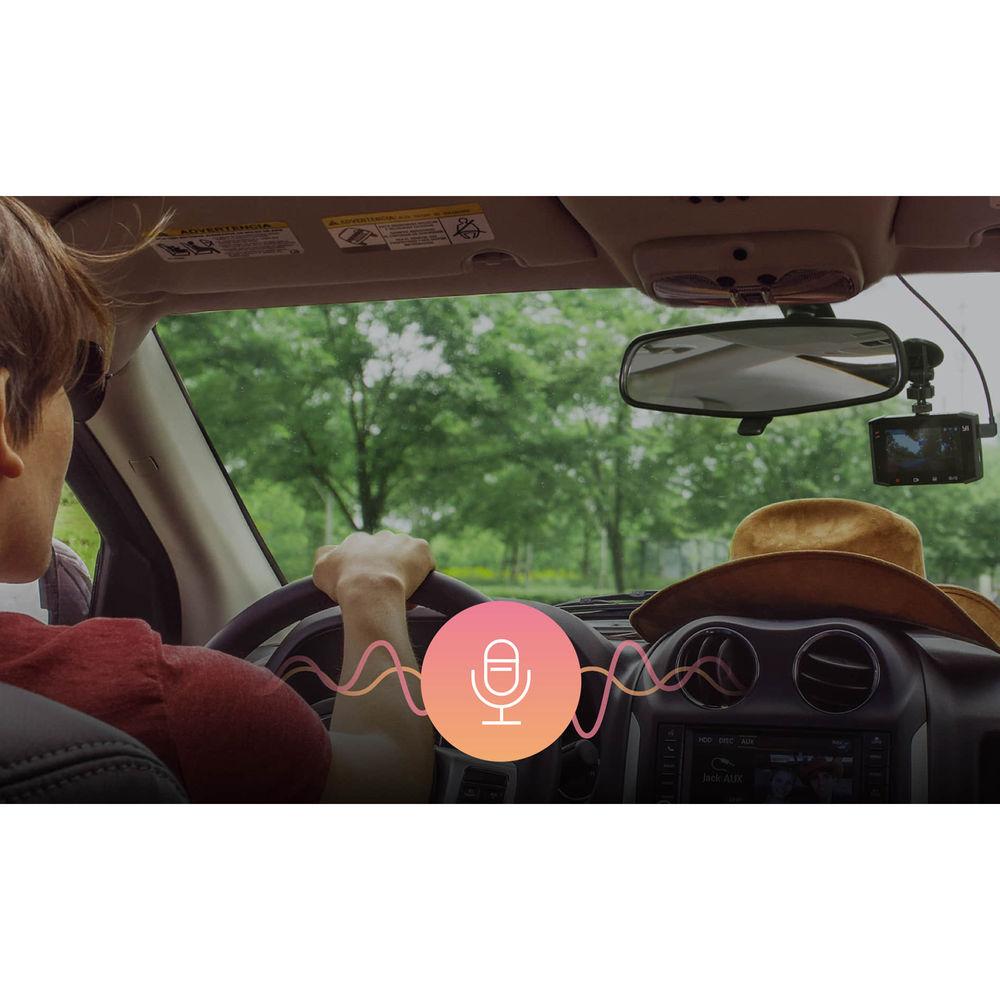

This device is equipped with a built-in 3-axis G-sensor that will automatically save video footage in the event of a collision. Audio recording and playback are possible thanks to a built-in microphone and speaker. Additionally, this device has a built-in rechargeable 400mAh lithium battery. Integrated 802.11n wireless networking standard enables real-time video playback and remote viewing via the free app for iOS and Android devices. An onboard slot supports microSD cards up to 128GB. A 16GB microSD card is included. - A17 + A7 dual-core processor
- H.264 real-time multi-stream coding capability
- 140.6° field of view delivers coverage across three lanes
- Built-in 3-axis G-sensor with high, medium, and low sensitivity settings
- Captures clear images of license plates, road signs, and street names

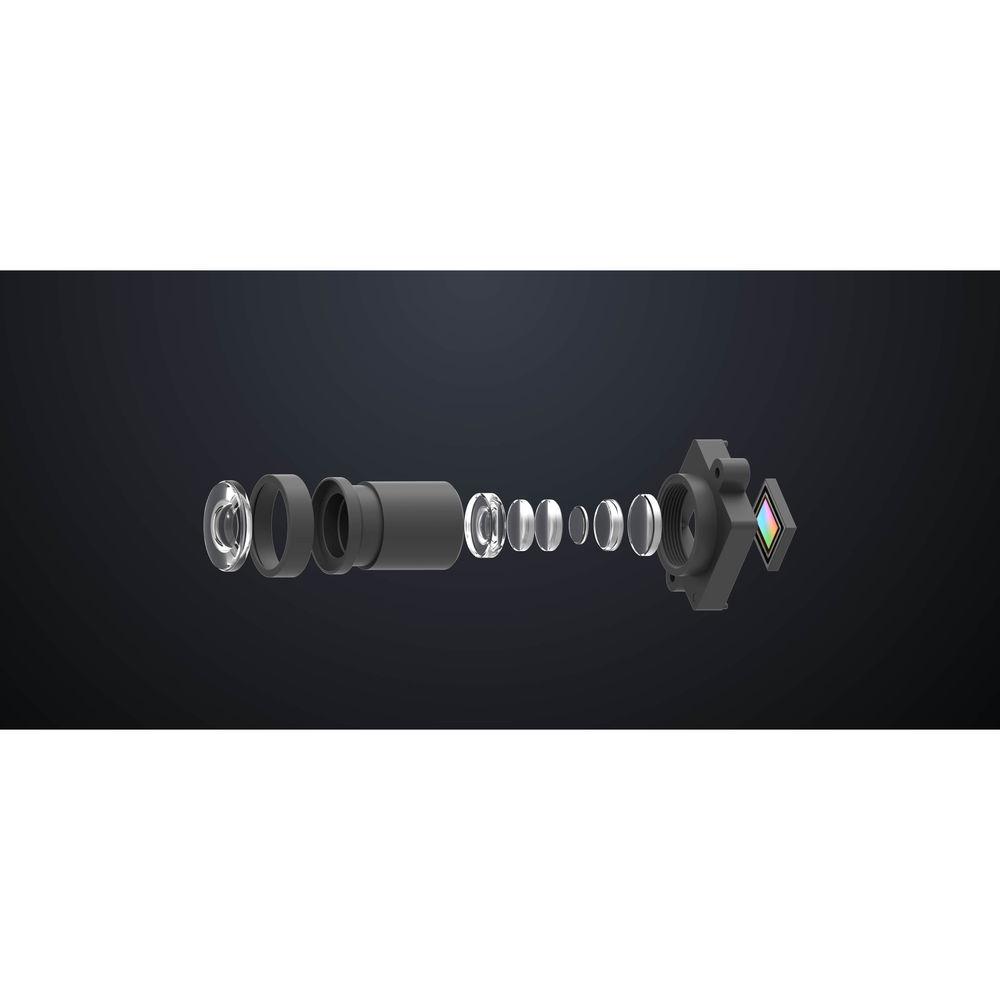

- f/1.9 aperture and a light sensor enable visibility in low-light conditions

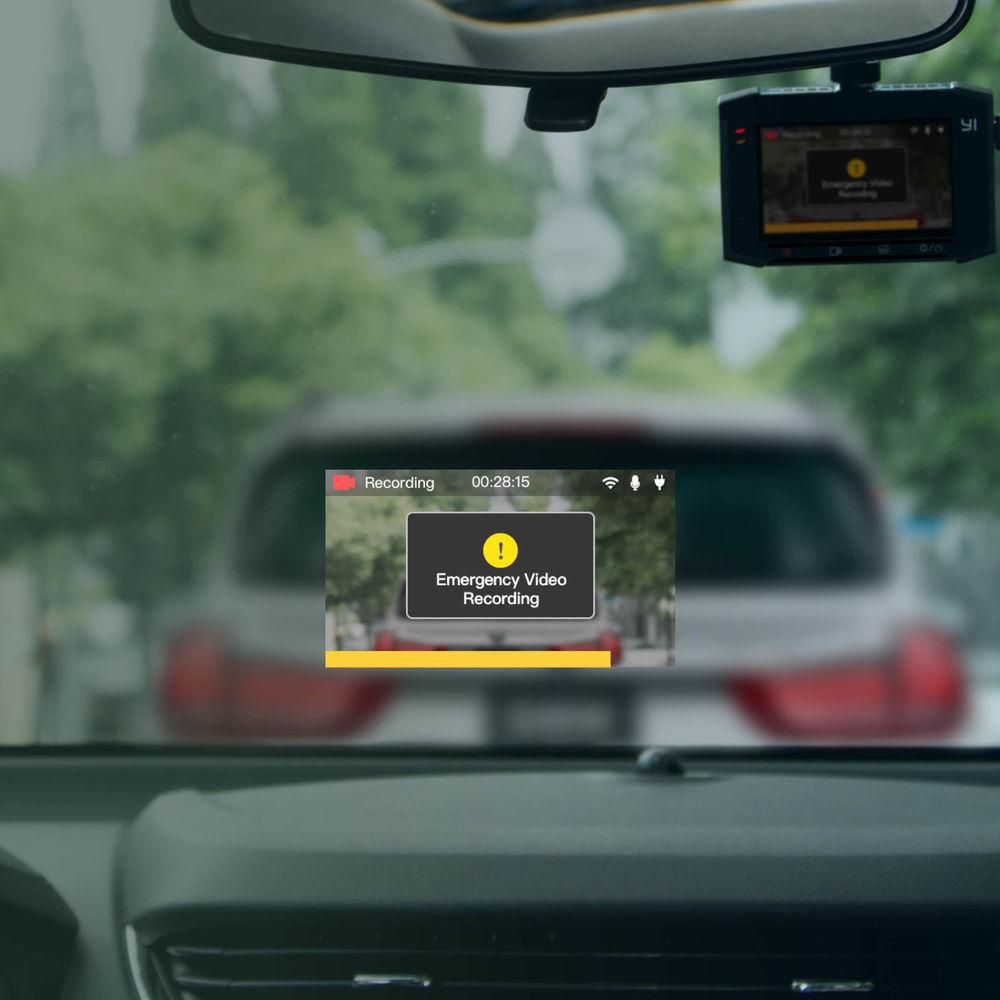

- Emergency recording button
- LED indicators for status and charging

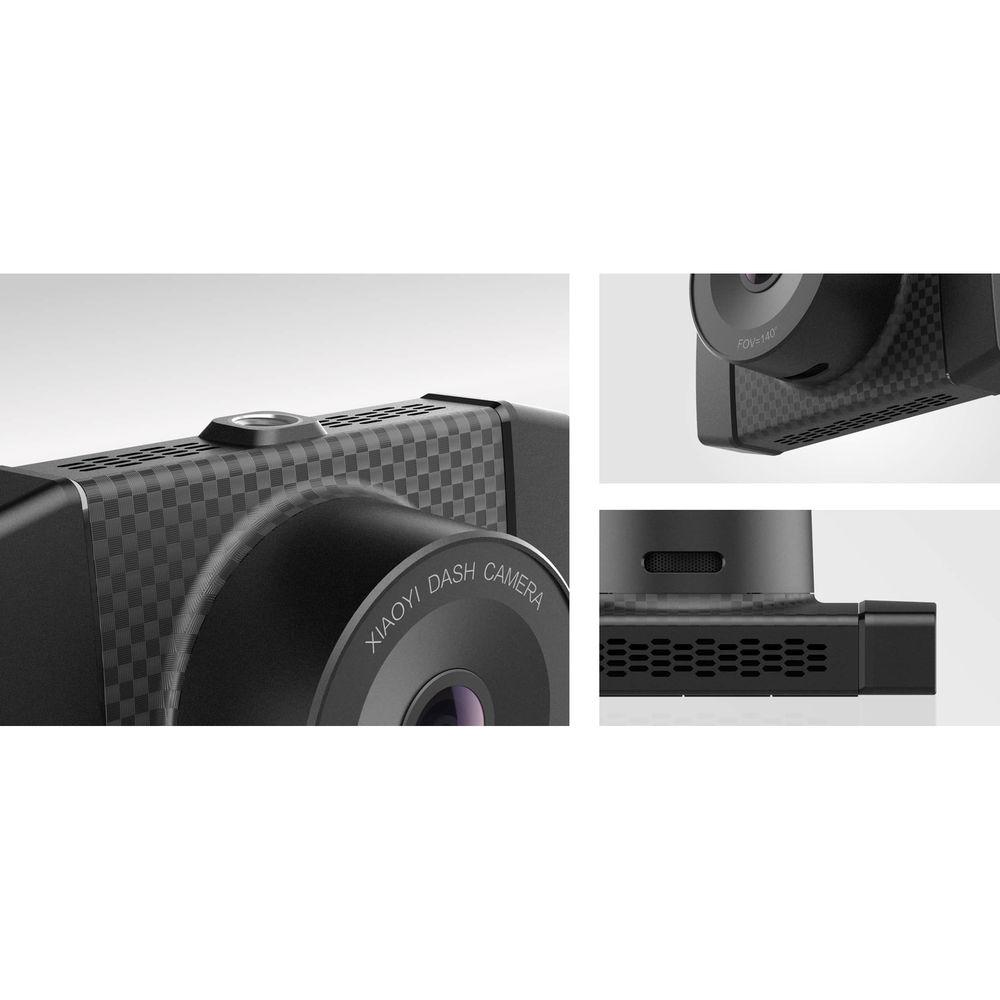

- Honeycomb design for ventilation in warmer temperatures
- Compatible with iOS 8.0 or above & Android 4.1 or above
In the Box YI Technology 4MP Ultra Dash Camera 3M Adhesive Mount Suction Cup Mount 16GB microSD Card Car Charger 11.5' Micro-USB Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the YI Technology 4MP Ultra Dash Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYI Technology 89108 Specs | Screen | Type: 2.7" / 68.6 mm TFT LCD
Widescreen 960 x 240 dot matrix delta | | Processor | Built-in ISP, A17 at 1.25 GHz + A7 at 800 MHz dual-core configuration
Built-in neon acceleration and integrated high-speed FPU processing unit
28 nm advanced process technology
Run Memory: 128 MB, 16-bit (2 Gb) | | Image Sensor | 4 MP high-sensitivity image sensor | | Lens Type | 6G glass | | Aperture | f/1.9 | | Diagonal Field of View (FOV) | 140.6° | | Video Codec | H.264 | | Resolutions and Frame Rates | 2688 x 1520 at 30 fps
2560 x 1440 at 30 fps
1920 x 1080 at 60 fps
1920 x 1080 at 30 fps
1280 x 720 at 30 fps | | G-Sensor | Built-in MEMS 3-axis sensor | | Wide Dynamic Range | Super WDR 2.0 | | Wireless Standard | 802.11n | | Wireless Encryption | WPA2 | | Built-In Microphone | Yes, omnidirectional noise reduction microphone | | Built-in Speaker | Yes | | Mobile App | For iOS 8.0 or above & Android 4.1 or above | | Storage | Supports microSD cards from 16 to 128 GB, 16 GB card included
Class 10 (U1) cards with 80 MB/s speed recommended | | Battery Type | Built-in temperature-resistant lithium battery | | Battery Capacity | 400 mAh | | Power | 5 V / 2 A micro-USB interface
Car Charger Input: 12-24 V
Car Charger Output: 5 VDC | | Power Consumption | ≤4 W | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Housing Material | SABIC flame-retardant PC/ABS material | | Dimensions | 3.3 x 1.4 x 2.2" / 85 x 34.8 x 55 mm | | Weight | 3.4 oz / 96.4 g with battery | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.5 x 4.7 x 2.5" |
