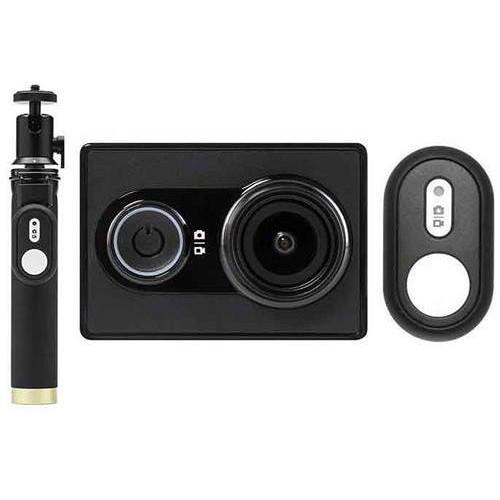

Product description This YI Technology Action Camera Kit bundles the easy-to-use YI Action Camera, in black, with a multi-function selfie stick and Bluetooth remote control.

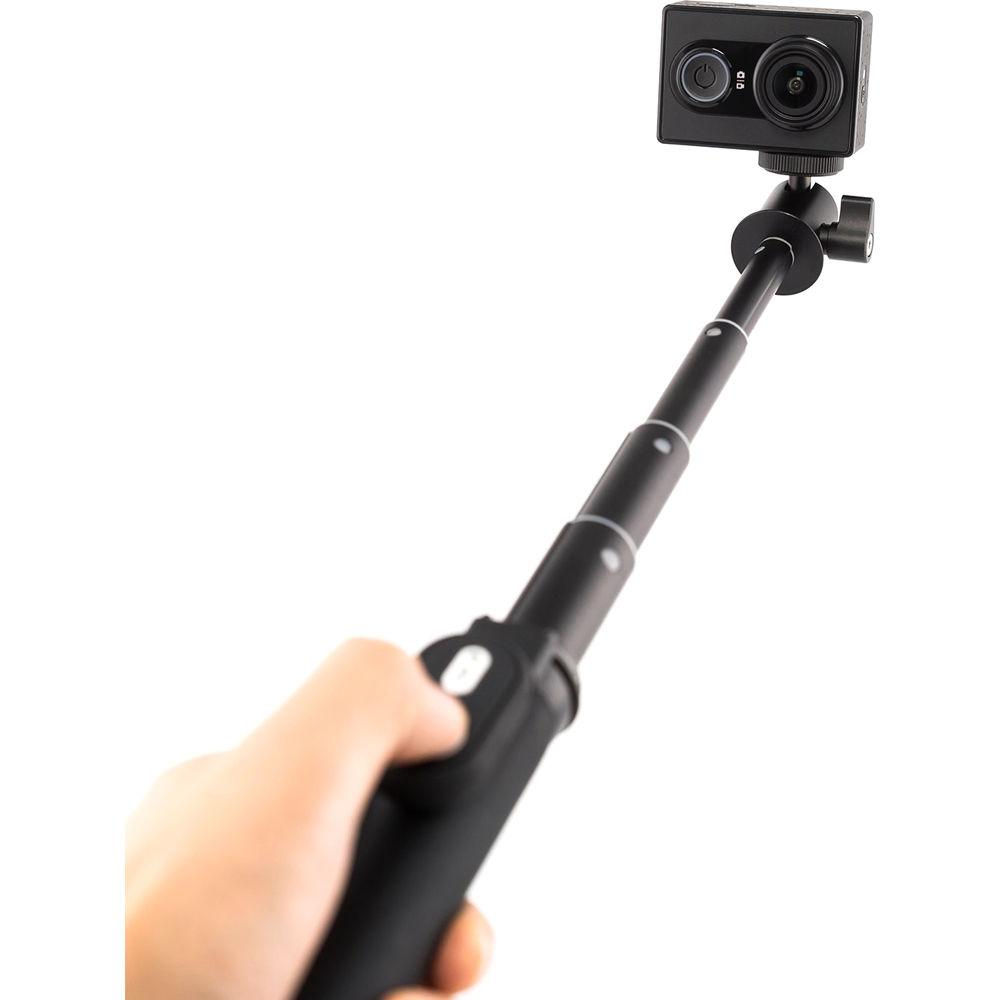

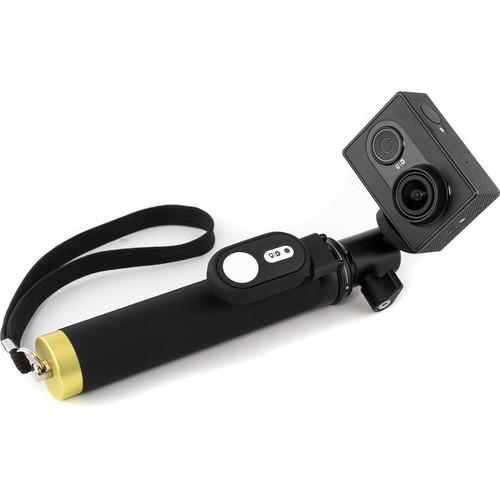

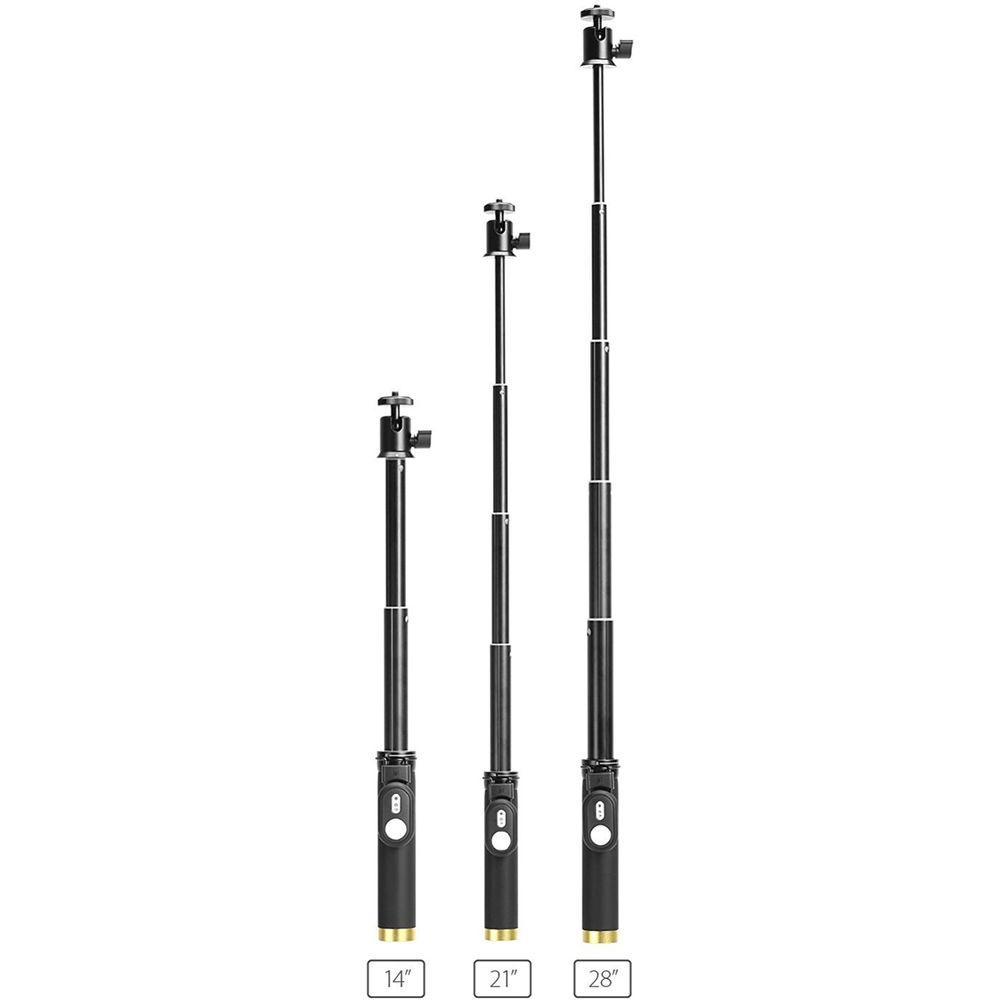

Use the Bluetooth remote to take photos or start/stop video recording from up to 33 ft away, such as when you have the camera mounted somewhere at a distance. The remote is wearable and can also be secured to a metal clip on the handle of the selfie-stick and operated from the handle. The selfie-stick extends out in three stages from 7 - 28" via a twist-and-lock mechanism, and offers 360° pan and 180° tilt rotation. It only weighs approximately 0.5 lb. During transport you can carry it clipped to your belt via the built-in metal clip or around your wrist with an integrated wrist strap. The selfie-stick has a 1/4"-20 mounting screw to which you can attach the camera directly. - Action Camera (Black) Capture high-quality video wherever you go with the YI Technology Action Camera, in black. Featuring a backside-illuminated Sony Exmor R CMOS sensor, the camera records up to 1080p video at 60 fps and 720p video at 120 fps to microSD memory cards. It is equipped with an ultra-wide lens that provides a 155° angle of view to capture nearly everything in front of it. A single LED-backlit button on the front of the camera activates recording, making the camera easy to use. You can also use the camera's built-in Wi-Fi and Bluetooth connectivity to pair it with your smartphone for remote control using the free Yi Camera app. Additionally, the app enables you to sync files to your phone, cut clips together, apply filters, chose a soundtrack, and then share videos on your favorite social networks.
Compact in size and weighing only 2.5 ounces, the Action Camera can accompany you on any journey; from vacation travels to everyday excursions around town. Despite its weight, the camera is reasonably durable thanks to its ABS polycarbonate body. A variety of optional mounting options are available, including options for wearing the camera on your wrist, attaching it to a helmet or bike, or even strapping to your pet. - Key Features
-
- 16MP backside-illuminated Sony Exmor R CMOS sensor for enhanced low-light performance
- Records 1080p video up to 60 fps and 720p video up to 120 fps
- 155° ultra-wide lens with glass optics
- LED back-lit record button on front of camera
- Built-in Wi-Fi for transferring files to phone
- Remote control over Bluetooth using smartphone and Yi Camera app
- Micro-HDMI output
- Micro-USB interface (USB cable included)
- microSDXC card slot
- Rechargeable 3.7V 1010mAh battery
- Weighs only 2.5 oz
- ABS polycarbonate body
- Wide range of optional mounting accessories

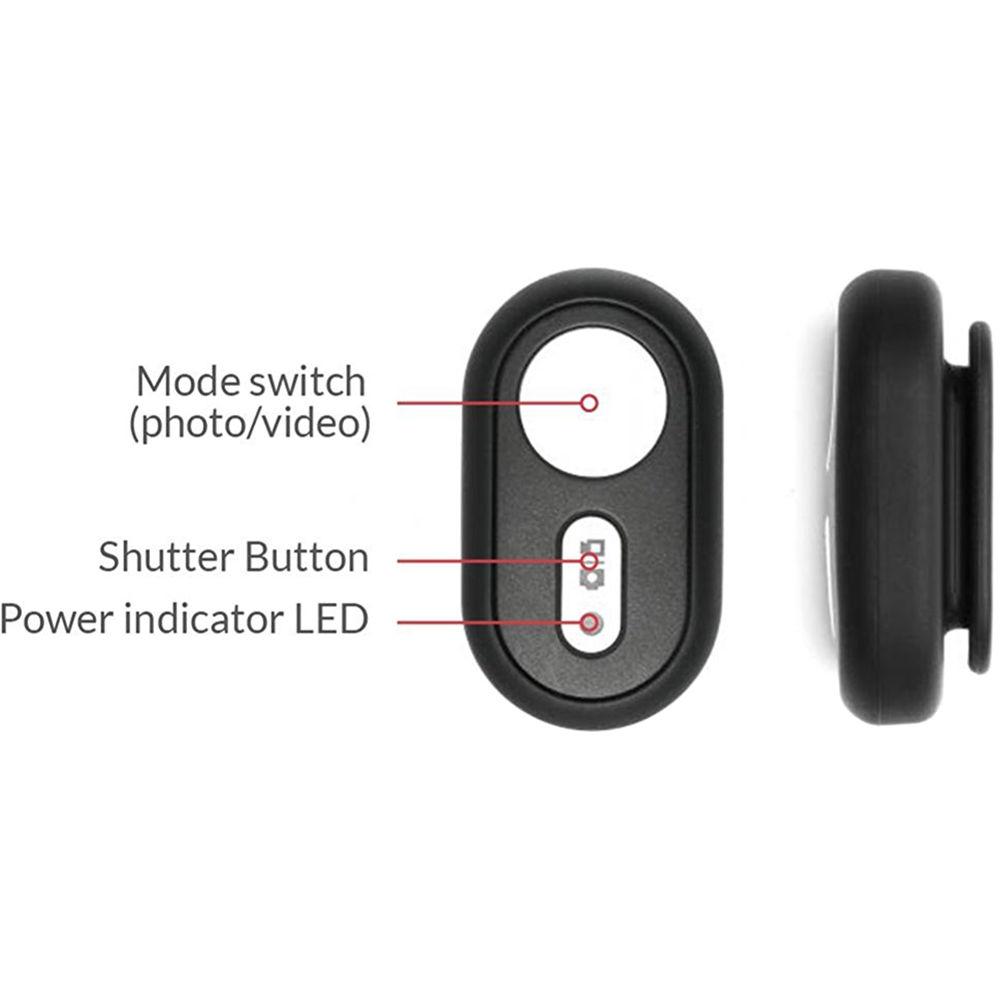

- Bluetooth Remote Control The compact Yi Bluetooth Remote Control pairs with your Yi Sport Camera using Bluetooth, allowing you to remotely take photos or start/stop video recording from up to 32.8' away. It feature a simple interface consisting of a shutter button and a video/photo mode switch button. A silicone cover is included to help protect it from moisture.
In the Box Bundle Items Action Camera (Black) - 3.7V Rechargeable Lithium-Ion Battery Pack
Bluetooth Remote Control
Also Includes User Manual PDF 1.6mbvsqrsvefcewuuzxuddzevcddyadscbverc Table of Contents
|
Upload User Manual
Have you got an user manual for the YI Technology Action Camera with Selfie Stick & Bluetooth Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Action Camera (Black)
| | | Sensor | 1-Chip CMOS | | Sensor Resolution | 16 MP | | | | Angle of View | Ultra Wide: 155° | | | | Recording Media | x microSD/HC/XC (64 GB Maximum) | | Video Format | 1920 x 1080p at 24/30/48/60 fps (MP4)
1280 x 960p at 48/60 fps (MP4)
1280 x 720p at 48/60/120 fps (MP4)
848 x 480p at 240 fps (MP4) | | Aspect Ratio | 16:9
4:3 | | Channels | 2.0-Channel | | Sampling Frequency | AAC: 96.0 kHz | | | | Built-In Mic | Yes | | Wi-Fi | Yes | | Tripod Mount | 1/4" - 20 | | | | Outputs | 1 x Micro-HDMI (Type D)
1 x USB Micro-B | | | | Supported Languages | English
Simplified Chinese
Traditional Chinese | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1010 mAh | | Charging Method | USB | | Dimensions (W x H x D) | 2.4 x 1.7 x 0.8" / 60.4 x 42.0 x 21.2 mm | | Weight | 2.54 oz / 72 g | | | | Box Dimensions (LxWxH) | 4.1 x 4.1 x 2.0" | - Bluetooth Remote Control
| Material | Plastic with silicone cover | | Range | 32.8' (10 m) | | Dimensions | 1.77 x 0.98 x 0.59" (4.5 x 2.5 x 1.5 cm) | | Weight | 0.46 oz (13 g) | | | | Box Dimensions (LxWxH) | 4.5 x 4.0 x 1.0" |
