User Manual for YI Technology HALO Click to enlarge the picture
Contents of the user manual for the YI Technology HALO
- Product category: All 360 Video Cameras YI Technology
- Brand: YI Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for YI Technology All 360 Video Cameras
 |
User manual for the YI Technology HALO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any YI Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official YI Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a YI Technology product will considerably shorten its lifespan!
|

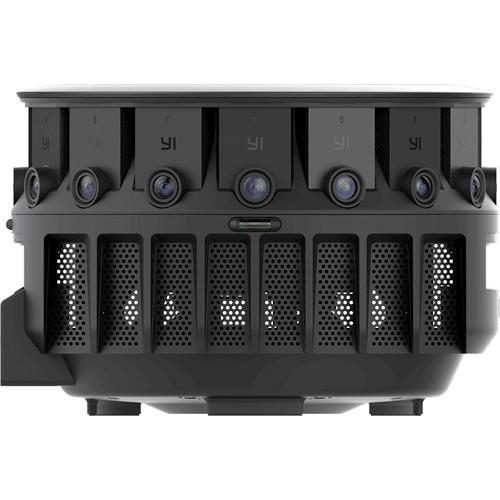

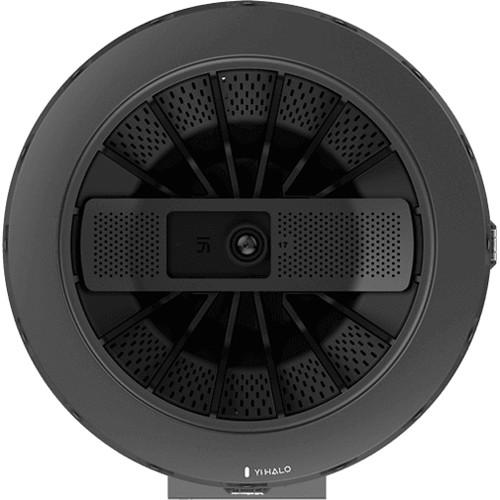

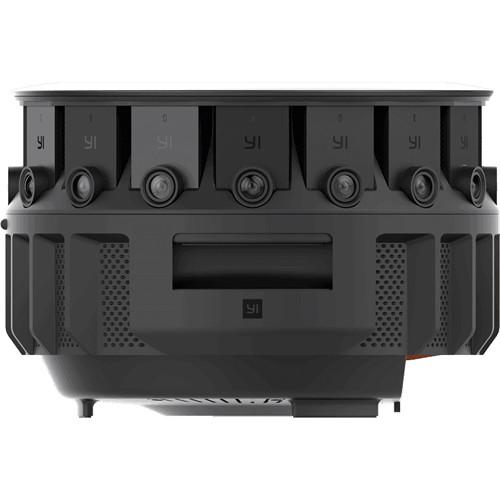

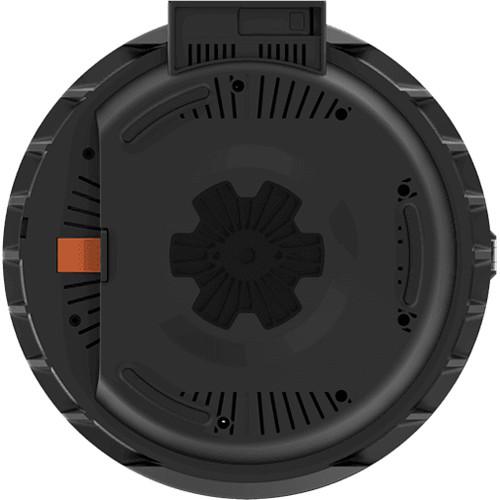

Product description Capture and realize immersive 8K 360° video with the YI Technology HALO. Comprising of 17 individual camera modules, 16 around the perimeter and one upward-facing, inside a lightweight unifying chassis, the HALO can record everything around it, and with Google's Jump Assembler stitch it to create high-resolution 2D or 3D video for playback on mobile devices, computers, and VR headsets.Using the LCD touchscreen, exposure can be controlled, media can be managed, and general settings can be changed. If video is not your thing, the HALO can also be set up to record time-lapses of varying lengths, or take photos that allow your audience to look around the camera and see the entire space. Recording and shutter release can be activated using the included Bluetooth wireless remote, or with an Android smartphone.Right out of the box, the HALO requires minimal setup. Use the 1/4"-20 and 3/8"-16 threads to mount it to a tripod, connect the included battery or power supply, pop in your memory cards, and begin shooting. When you're done, the HALO unit and all the included accessories can be packed away inside the Pelican 1610 waterproof hard case for storage and transport. - Exposure Settings
- Image quality settings such as ISO, white balance, exposure compensation, shutter speed, and flat color are supported in the HALO to empower filmmakers to capture how they like. The HALO has a built-in touchscreen for these settings, as well as status monitoring with a dashboard which issues smart alerts if it detects that a microSD card is nearly full, battery power is low, or other similar issues to minimize downtime and protect your recordings.
- Included 93Wh Battery
- While recording, the HALO consumes 50 watts of power. The included rechargeable battery can last over 100 minutes during continuous shooting and can be swapped with a spare when depleted. The included AC Adapter can power the HALO while charging the battery at the same time. The HALO supports external batteries with a separately available D-Tap cable.
- Control via Android App
- Built-in 5 GHz Wi-Fi allows you to securely and remotely control your HALO with the Android smartphone app. You don't need to be at the camera to set up and shoot. The app also lets you preview your frame so that you get the right shot every time. The HALO also comes with a built-in LCD touchscreen control panel for local control.
- Stitch with Google Jump Assembler
- The HALO is fully compatible and optimized for the Jump Assembler. The metadata generated by the HALO helps Jump understand the shooting situation to create a high-quality stitch. The stitching workflow is completely automatic so you're free to concentrate on your shoot.
- Easy to Transport
- The assembled HALO unit weighs less than 8 pounds, including the battery. It can be easily moved by itself, or inside the included Pelican 1610 hard case.
- Modular Design
- The HALO was designed to be upgradable with replaceable parts. Two extra camera units are included, in case one fails during a shoot. If a firmware update is released, all cameras can be updated through the control panel.
In the Box YI Technology HALO 2 x Backup Camera Module Battery microSD Card Case Bluetooth Remote Control Power Cable AC Adapter with Power Cord Backup Cable Pack 2 x Screwdriver Pelican 1610 Hard Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the YI Technology HALO in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYI Technology HALO Specs | | | Stitching Resolution | 8K | | Internal/External Stitching | External Stitching | | 360 Stitched Video Format | External 2D:
8192 x 8192 at 25, 29.97 fps (MP4 via H.264)
5760 x 5760 at 50, 59.94 fps (MP4 via H.264) | | Still Image Resolution | JPEG: 8192 x 8192 | | Number of Lenses | 17 | | | | Sensor | 1-Chip 1/2.3" CMOS | | Sensor Resolution | 12 MP | | | | Focal Length | 2.66mm | | Maximum Aperture | f/2.8 | | Angle of View | 155° | | | | Video Format | 2560 x 1920 at 25/29.97 fps
1920 x 1440 at 50/59.94 fps | | Aspect Ratio | 4:3 | | | | Recording Media | x microSD (64 GB Maximum) | | Built-In Mic | Yes | | | | Shutter Speed | 2 - 30 Seconds (Photo) | | Photo ISO Range | 100 - 800 (Manual) | | Video ISO Range | 400 - 6400 (Manual) | | Interval Recording | .5 Seconds
1 Second
2 Seconds
5 Seconds
10 Seconds
30 Seconds
60 Seconds | | Burst Photo | None | | | | Screen Size | 2.2" | | Resolution | 640 x 360 | | Touchscreen | Yes | | | | Wi-Fi | Yes | | Tripod Mount | 3/8" - 16 | | | | Inputs | None | | Outputs | None | | Microphone Input | None | | Headphone Jack | None | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 24 VDC, 3875 mAh
Max Runtime: 1.5 Hours per Charge | | Charging Method | AC Adapter | | Power Consumption | Recording: 50 W | | | | Package Weight | 36.4 lb | | Box Dimensions (LxWxH) | 25.6 x 19.6 x 13.0" |
