User Manual for Yongnuo 300-II LED Variable-Color On-Camera Light Click to enlarge the picture
Contents of the user manual for the Yongnuo 300-II LED Variable-Color On-Camera Light
- Product category: On Camera Lights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo On Camera Lights
 |
User manual for the Yongnuo 300-II LED Variable-Color On-Camera Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

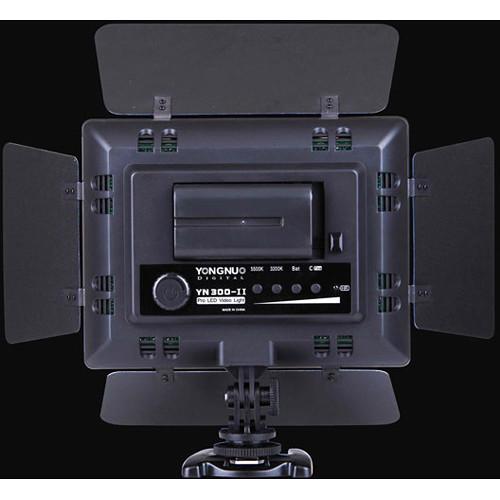

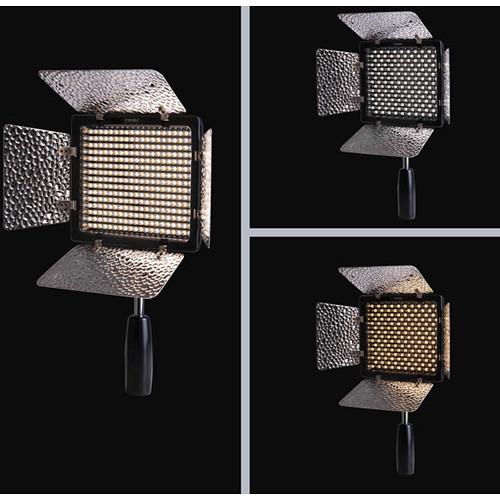

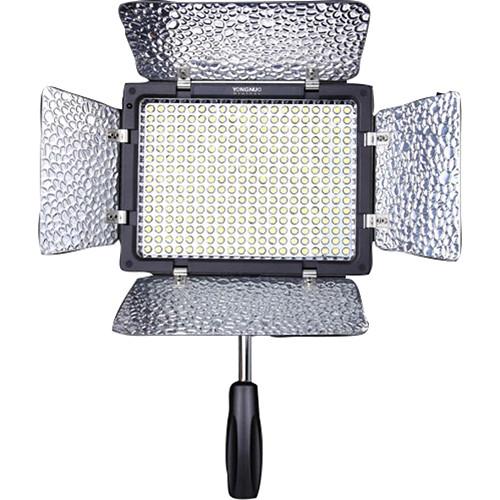

Product description The 300-II LED Variable-Color On-Camera Light is one of a series of on-camera LED lights from Yongnuo Digital. This compact, 3200–5500K tungsten/daylight-adjustable unit offers two dimming modes (rough and fine), an IR remote control, four barndoors, a power-on/luminance adjustment knob, and four filter panels. Up to eight lights can be grouped via the IR remote control.Designed to work with most DSLRs and small camcorders, the 300-II LED Variable-Color On-Camera Light can be powered using a Sony NP-F series battery (not included) or an optional AC adapter (not included). A push-button LED status bar shows the remaining battery power. A 5800mAh NP-F battery (not included) will power the light for up to 130 minutes. The 300-II LED Variable-Color On-Camera Light has three mounting options to your camera via a hot shoe, on a flat surface using the mini plate, or handheld using the included handle. - 150 daylight and 150 tungsten–balanced LEDs, 3200–5500K variable color temperature
- Barndoors, four filter panels, CT filters, remote control, and handle are included
- Requires an L-series type battery (not included), or an optional 8V, 5A DC power supply (not included)
- Included 8-channel IR remote control works up to 49' away
- Up to 130 minutes of runtime when using a 5800mAh NP-F battery (not included)
- Push-button remaining battery-charge LED display
- Mount directly onto a camera via the hot shoe, or use the mini-plate mount on flat surfaces
- Power/luminance adjustment knob
In the Box Yongnuo 300-II LED Variable-Color On-Camera Light IR Remote Control Hot Shoe Flat Mini-Plate Handle 4 x Filter Panel Limited 1-Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo 300-II LED Variable-Color On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN-300II Specs | | | Beam Angle | 55° | | Color Temperature | 3200 to 5500K | | Color Accuracy Standard | CRI 90 | | Lumens | 2280 | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 300 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 8 VDC at 5 A | | Max Power Consumption | 18 W | | | | Wireless Range | 49.2' / 15 m | | | | Dimensions | 6.8 x 6 x 1.7" / 17.3 x 15.3 x 4.3 cm | | Weight | 1.6 lb / 0.73 kg | | | | Package Weight | 1.74 lb | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 2.95" |
