User Manual for Yongnuo 300-IIIW LED On-Camera Video Light Click to enlarge the picture
Contents of the user manual for the Yongnuo 300-IIIW LED On-Camera Video Light
- Product category: On Camera Lights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo On Camera Lights
 |
User manual for the Yongnuo 300-IIIW LED On-Camera Video Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

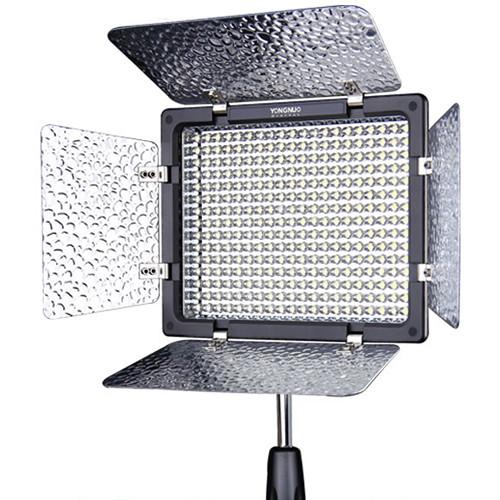

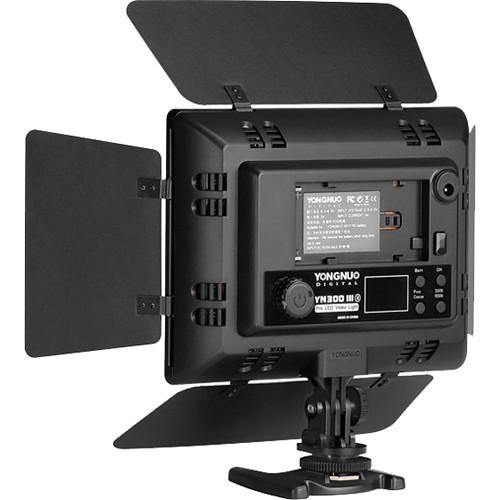

Product description The 300-IIIW LED On-Camera Video Light is one of a series of on-camera LED lights from Yongnuo Digital. This compact unit features a 5500K output and offers two dimming modes (rough and fine), an IR remote control, barndoors, a power-on/luminance adjustment knob, and two filters. The 300-IIIW also features Bluetooth-based smartphone remote control (via the downloadable app), which allows you to independently control up to eight fixtures or group of fixtures.
Designed to work with most DSLRs and small camcorders, the 300-IIIW LED On-Camera Light can be powered using Sony NP-F series batteries or via an AC adapter (not included). A push button numerical LED display shows the remaining battery power. A 5200mAh NP-F750 battery (not included) will power the light for up to 120 minutes. The 300-IIIW has three mounting options: to your camera via the hot shoe, onto a flat surface using the mini plate, or handheld using the included handle. - 300 daylight-balanced (5500K) LEDs.
- Barndoors, two filters, remote control, and handle are included.
- Power using a Sony NP-F series battery or via an optional AC adapter (not included).
- Eight-channel IR remote control and smartphone RC work up to 49' away.
- Up to 120 minutes of runtime when using a 5200mAh NP-F750 battery (not included).

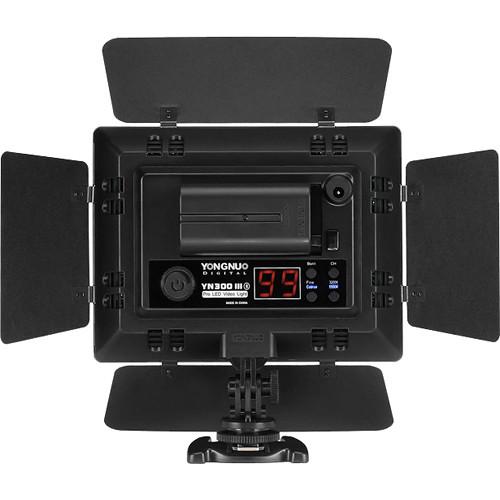

- Push button for remaining battery charge LED display.
- Dimmer adjusts in 10% increments in Coarse Mode, and 1% increments in Fine Mode. This allows you to quickly reach a dimming percentage (e.g. 50%), then fine tune it up or down from there.
- Mount directly to a camera via the hot shoe, or use the mini-plate mount on flat surfaces.
- Power/luminance adjustment knob.
- The barndoors feature built-in intensifiers.

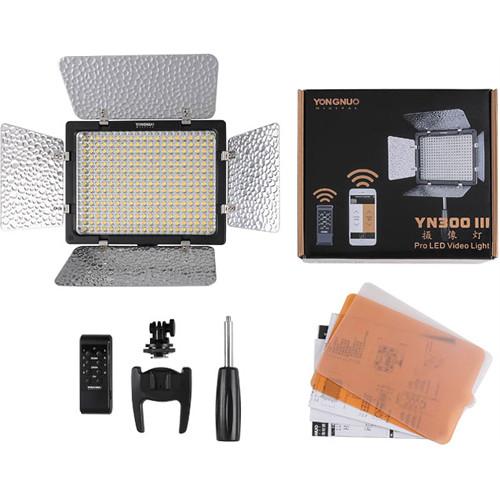

In the Box Yongnuo 300-IIIW LED On-Camera Video Light (5500K) IR Remote Control Hot Shoe Flat Mini-Plate Handle Orange Filter Diffusion Filter Limited 1-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo 300-IIIW LED On-Camera Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN-300IIIW Specs | | | Beam Angle | 55° | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 95 | | Lumens | 2280 | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 300 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 8 VDC at 5 A | | Max Power Consumption | 18 W | | | | Wireless Range | 49.2' / 15 m | | | | Dimensions | 6.8 x 6 x 1.8" / 17.3 x 15.3 x 4.6 cm | | Weight | 1.4 lb / 0.65 kg | | | | Package Weight | 1.605 lb | | Box Dimensions (LxWxH) | 8.1 x 7.0 x 3.0" |
