User Manual for Yongnuo Speedlite YN600EX-RT II for Canon Cameras Click to enlarge the picture
Contents of the user manual for the Yongnuo Speedlite YN600EX-RT II for Canon
- Product category: On Camera Flashes Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo On Camera Flashes
 |
User manual for the Yongnuo Speedlite YN600EX-RT II for Canon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

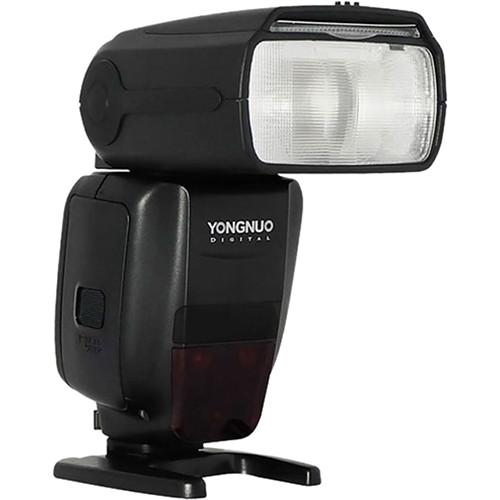

Product description A Guide to On-Camera Flash Read More Fully compatible with Canon's 2.4 GHz radio flash trigger system and E-TTL / E-TTL II metering, the Speedlite YN600EX-RT II from Yongnuo is a useful accessory for your Canon camera. It features a powerful guide number of 197' at ISO 100 and 200mm as well as an impressive zoom range of 20-200mm, along with a wide-angle panel for 14mm coverage on full-frame cameras. Bounce lighting is also possible with tilt from -7 to 90° and rotation left and right 180°.
Along with radio transmission and reception for wireless triggering, the wireless TTL master and slave functionality of this flash also extends to standard optical pulse triggering, where the YN600EX-RT II is compatible with both Nikon and Canon flash systems. It has a recycle time of about three seconds and high-speed 1st and 2nd curtain synchronization settings. And, it has a multi flash stroboscopic mode for multiple flashes during a single exposure. It runs on four AA batteries and comes with a case and mini stand. - PC sync port for wired off-camera firing
- Wireless radio system works with up to 15 channels in 5 groups
- Optical transmission has access to 4 channels and 3 groups
- Built-in pull-out bounce card for reflecting light forward when the flash is tilted upwards
- Manual power settings from 1/1 to 1/128 with 29 total levels
- Stroboscopic mode of 1-100 Hz for 1-100 flashes
- Power saving mode and overheat protection
- Automatic setting saving remembers your last settings
In the Box Yongnuo Speedlite YN600EX-RT II for Canon Cameras Protective Bag Mini Stand Limited 1-Year Warranty User Manual PDF 8mbaxacrsdzuryrfdtudatxftcsa Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo Speedlite YN600EX-RT II for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN600EX-RT II Specs | Mount | Shoe | | Guide No. | 196.85' / 60 m ISO 100 at 200 mm Position | | Exposure Control | E-TTL / E-TTL II, Manual | | Vari-Power | 1/1 to 1/128 | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 14 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 20 - 200 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 3 Seconds | | Flash Duration | 1/200 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -3 EV to +3 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: Optical Pulse
Distance: Up to 82.02' / 25 m
Method: RF
Distance: Up to 328.08' / 100 m | | Wireless Communication Channels | 15 Channels | | Wireless Groups | 5 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Battery | | Dimensions (W x H x D) | 2.4 x 3.1 x 8.1" / 62.0 x 78.0 x 205.0 mm | | Weight | 15.17 oz / 430 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.7 x 4.0 x 3.8" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
