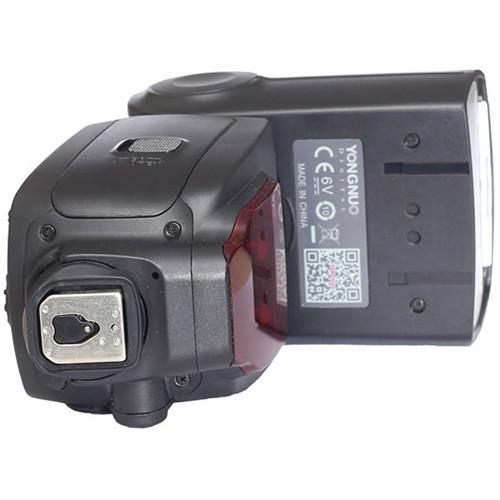

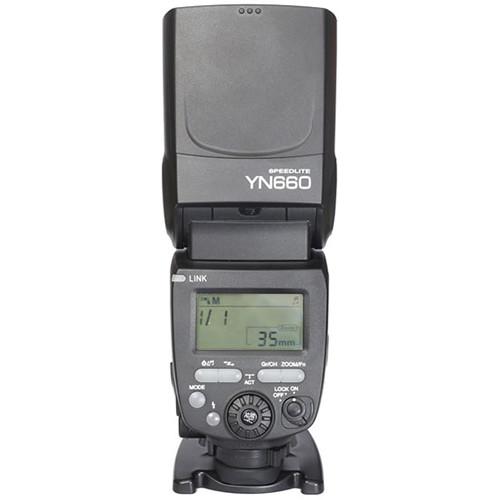

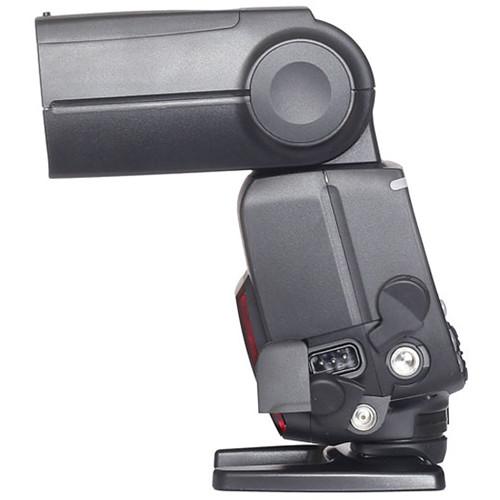

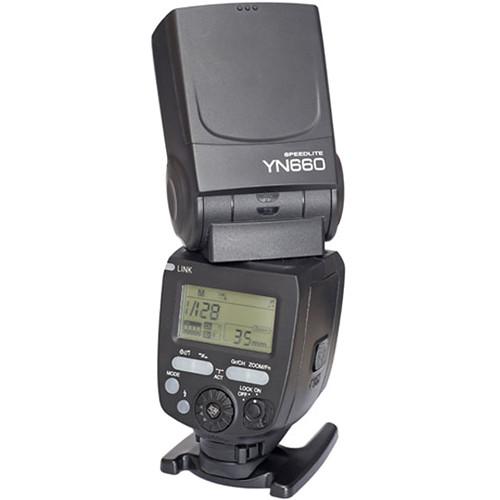

User Manual for Yongnuo Speedlite YN660 Click to enlarge the picture
Contents of the user manual for the Yongnuo Speedlite YN660
- Product category: On Camera Flashes Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo On Camera Flashes
 |
User manual for the Yongnuo Speedlite YN660 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|
Product description With a 2.4 GHz radio system, a powerful guide number, and full manual operation, the Speedlite YN660 from Yongnuo is an excellent tool for photographers who desire the utmost control from their lighting equipment. This radio system builds upon the previous generation with a total of six groups and 16 channels, as well as a range of 328'. This system can also be used as a master trigger for YN660, YN560-IV, and YN560-III flashes as well as RF602, RF603 II, and RF605 triggers for maximum compatibility. In terms of pure output, this manual flash has a rated guide number of 217' at ISO 100 and 199mm and has a zoom head with a range of 20-199mm. This zoom range can be expanded to 14mm with use of the pull-out diffuser in the head.
For added versatility, the YN660 has bounce capabilities which include tilting from -7 to 90° and rotation of 270°, allowing users to have more control over light placement. In addition, this flash can be used as a radio slave to other units and has a optical triggering & slave settings for use with other flashes. It runs on four AA batteries which provide a recycle time of three seconds at full power. And, it has an external power socket and a PC sync port for added functionality. - 2.4 GHz radio system has range of 328' and works as a master to YN560 and RF603 systems and as a slave to YN560, RF603, and RF602 systems.
- Manual power control from 1/1 to 1/128 in 1/3 EV steps
- Instant sync and skip preflash optical slave modes
- Numerous custom functions are available
In the Box Yongnuo Speedlite YN660 Mini Stand Carrying Bag Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo Speedlite YN660 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Yongnuo Speedlite YN660 can be downloaded in PDF format at the link stated below.
Technical parametersYongnuo YN660 Specs | Mount | Shoe | | Guide No. | 216.54' / 66 m ISO 100 at 199 mm Position | | Exposure Control | Manual | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | -7 to 90° | | Swivel Head | 270° | | Coverage | 14 - 199 mm (Full Frame) | | Zoom Head | Full Frame: 20 - 199 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 3 Seconds | | Flash Duration | 1/200 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 328.08' / 100 m
Method: Optical Pulse
Distance: Up to 82.02' / 25 m | | Wireless Communication Channels | 16 Channels | | Wireless Groups | 6 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.6 x 3.0 x 8.3" / 67.0 x 77.0 x 210.0 mm | | Weight | 15.06 oz / 427 g | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.74 x 4.095 x 3.701" |
