User Manual for Yongnuo YN-14EX-C Macro Ring Lite for Canon Cameras Click to enlarge the picture
Contents of the user manual for the Yongnuo YN-14EX-C Macro Ring Lite for
- Product category: Macro & Ringlights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo Macro & Ringlights
 |
User manual for the Yongnuo YN-14EX-C Macro Ring Lite for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

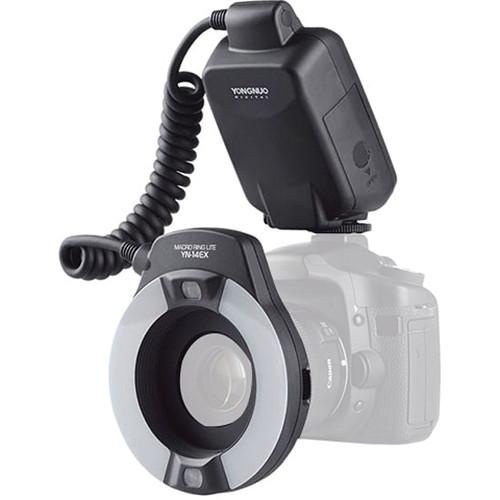

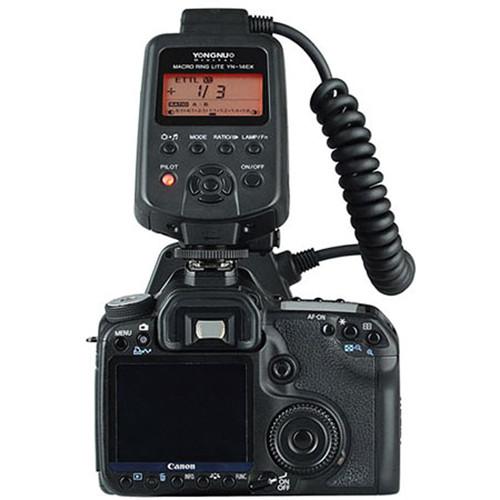

Product description Evenly illuminate close subjects with soft, flattering light from the YN-14EX-C Macro Ring Lite from Yongnuo. This model is compatible with Canon cameras featuring E-TTL / E-TTL II metering for automatically setting accurate exposures and it has a guide number of 45.9' at ISO 100 for good light output. The twin-tube design also allows users to set each side to different power ratios, enabling higher contrast lighting when desired. And, it has LED lamps for AF assist in low light.

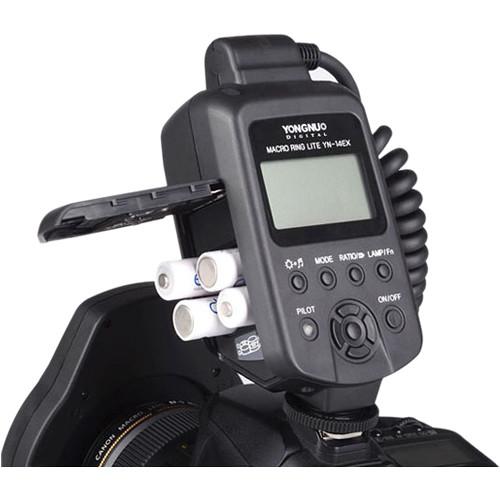

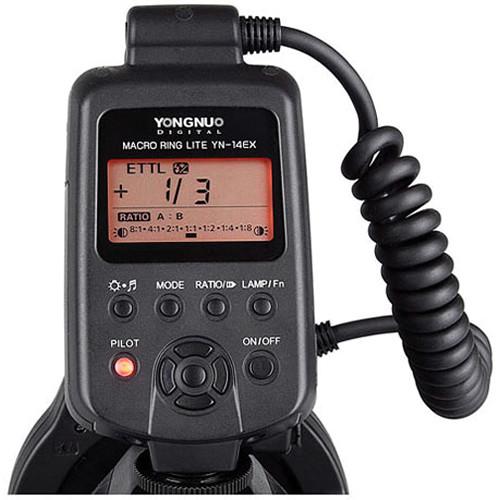

Adding to the units capabilities, the YN-14EX features both PC sync and external power ports. Also, it fully supports in-camera flash settings such as exposure compensation, flash exposure bracketing, flash exposure lock, modeling light function, and 1st & 2nd curtain sync modes. The control unit has an LCD screen for directly adjusting flash settings and it runs on 4 AA batteries. At full power, this allows for a recycle time of 3-5 seconds. Additionally, it comes with adapter rings for 52mm, 58mm, 67mm, and 72mm lens filter threads and a carrying bag.
Note: This item is not compatible with the Canon 5D Mark IV. - Manual flash settings from 1/1 to 1/64
- Flash ratio control settings from 8:1 to 1:1 to 1:8
- Sound prompt system will audibly alert you to the current status of the flash
- Settings are saved when the unit is powered off
In the Box Yongnuo YN-14EX-C Macro Ring Lite for Canon Cameras 52mm Adapter Ring 58mm Adapter Ring 67mm Adapter Ring 72mm Adapter Ring Carrying Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN-14EX-C Macro Ring Lite for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN-14EX-C Specs | Type | Flash/LED | | Mount | Shoe | | Guide No. | 45.93' / 14 m ISO 100 | | Modeling Light | Yes | | Angle of Coverage | 80° | | Vari-Power | 1/1 to 1/64 | | Color Temperature | 5600K | | TTL Dedication | Yes | | Off-Camera Terminal | PC | | Recycle Time | Approximately 3 Seconds | | Flash-Ready Indicator | Yes | | Filter Thread | 52 to 67 mm | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Ring Dimensions (WxHxD) | 5.3 x 4.8 x 1.0" / 135.0 x 123.0 x 26.0 mm | | Power Unit Dimensions (WxHxD) | 6.0 x 2.9 x 2.2" / 153.0 x 74.0 x 56.0 mm | | Weight | 14.81 oz / 420 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.6 x 6.0 x 5.2" |
