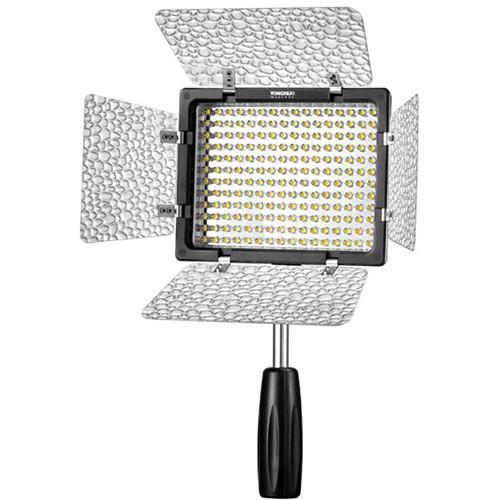

Product description The YN-160-III 5500K On-Camera Light is one of a series of on-camera LED lights from Yongnuo Digital. This slim unit features 192 daylight-balanced LEDs. The light offers two dimming modes (rough and fine), barndoors with intensifiers, a power-on/luminance adjustment knob, and two slide-in filter panels (orange and diffusion). The fixture features a push-button dimming setting; a long press stores your dimming setting, and a single press recalls and resets the fixture to the stored setting.

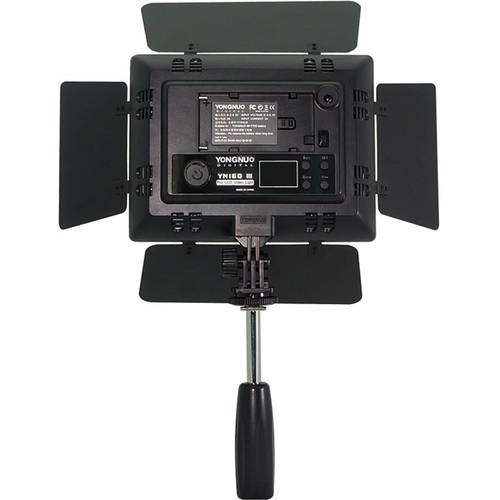

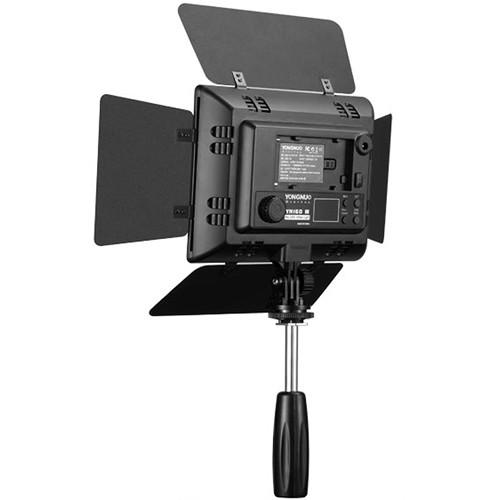

The YN-160 III 5500K On-Camera Light also features a push-button numerical LED display that shows the remaining battery power, luminance, and dimming mode information. Designed to work with most DSLRs and small camcorders, the YN-160 III 5500K On-Camera Light can be powered using Sony NP-F series batteries or via an optional AC adapter. The light has three mounting options: to your camera via the cold shoe mounting foot, on a flat surface using the mini plate, or handheld using the included handle. - 192 LEDs, 5500K color temperature
- Barndoors and one orange and one diffusion filter aid in controlling the light's output
- One-button dimming-setting memory and recall
- Power using a Sony NP-F series battery or via an optional AC adapter (not included)
- Power/luminance adjustment knob
- Dimmer adjusts in coarse and fine modes
- Push-button remaining battery-charge, light output, and dimming-mode LED display
- Mount directly to a camera via the hot shoe, use the mini-plate mount on flat surfaces, or handhold using the included handle
- The barndoors feature an intensifier interior surface, and a black exterior surface

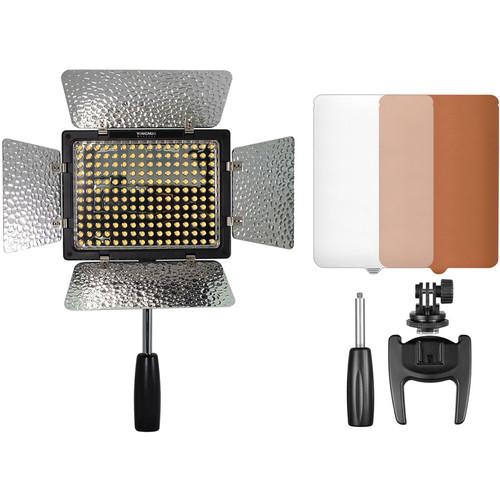

In the Box Yongnuo YN-160 III On-Camera Light (5500K) Cold Shoe Mounting Foot Flat Mini-Plate Handle Orange Filter Diffusion Filter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN-160 III On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN160III Specs | | | Beam Angle | 55° | | Color Temperature | 5500K | | Color Accuracy Standard | CRI 95 | | Lumens | 1536 | | Number of LEDs | 192 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 8 VDC at 5 A | | Max Power Consumption | 12 W | | | | Dimensions | 7.7 x 6.9 x 3" / 195 x 175 x 75 mm | | Weight | 11.6 oz / 330 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.1 x 6.9 x 2.9" |
