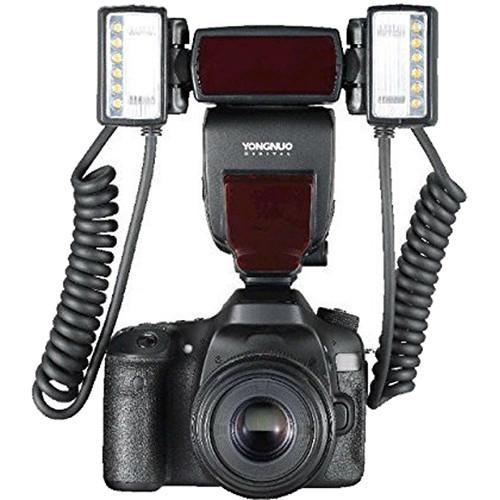

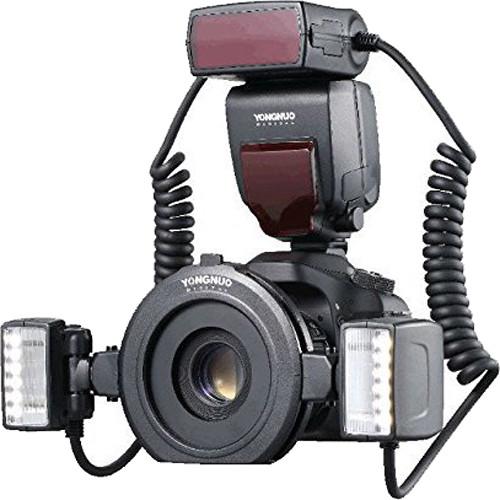

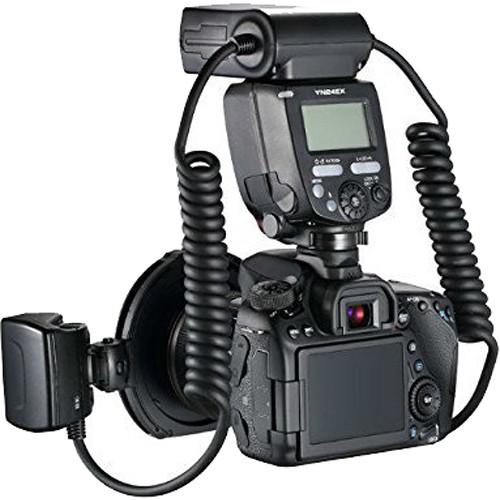

Product description Evenly illuminate the closest of subjects with the Yongnuo YN-24EX TTL Macro Flash, which supports Canon E-TTL / E-TTL II. Using a dual flash head design that is mounted to the front of your lens, this flash provides excellent control over the position of the light and how it will hit the subject. This system provides coverage of 90° upwards and downwards as well as horizontally 60° inwards and 30° outwards, with the ability to rotate the adapter ring 50° upwards and 30° downwards as well. These heads also feature excellent power with a guide number of 85' at ISO 100 for a single head or 79' at ISO 100 when both flash heads are in use.

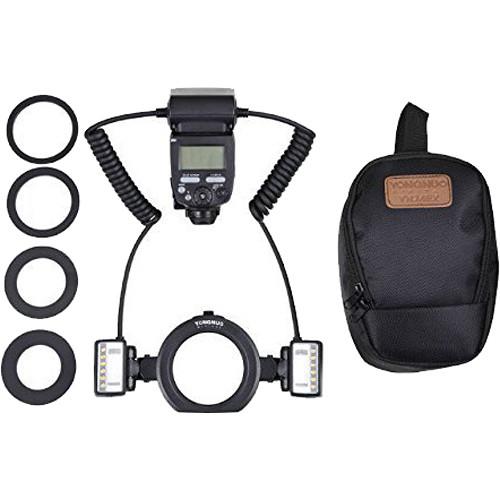

While TTL is supported, full manual control is available from 1/1 to 1/128 power in 1/3-stop increments. Users of TTL can access a ratio mode that offers a wide range of 8:1 to 1:1 to 1:8 in 1/2 EV steps. For additional help, an LED autofocus assist light is present on the YN-24EX and users have access to both 1st and 2nd curtain sync. For working with other systems, a PC sync port is available and the flash runs off four AA batteries or a HV power pack, both of which offer a recycle time of 3 seconds at max power. Additionally, it comes with 52mm, 58mm, 67mm, and 72mm adapter rings. In the Box Yongnuo YN-24EX TTL Macro Flash for Canon Cameras 52mm Adapter Ring 58mm Adapter Ring 67mm Adapter Ring 72mm Adapter Ring Travel Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN-24EX TTL Macro Flash for Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Yongnuo YN-24EX TTL Macro Flash for Canon Cameras can be downloaded in PDF format at the link stated below.
Technical parametersYongnuo YN-24EX Specs | Type | Flash | | Mount | Shoe | | Guide No. | 78.74' / 24 m ISO 100
85.3' / 26 m ISO 100 | | Angle of Coverage | 90° Vertical
90° Horizontal | | Vari-Power | 1/1 to 1/128 | | Color Temperature | 5600K | | TTL Dedication | Yes | | Off-Camera Terminal | PC | | Recycle Time | Approximately 3 Seconds | | Flash-Ready Indicator | Yes | | Filter Thread | 52 to 72 mm | | Charge Indicators | Yes | | Display | Yes | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Ring Dimensions (WxHxD) | 9.9 x 1.9 x 4.2" / 251.0 x 49.0 x 107.0 mm | | Power Unit Dimensions (WxHxD) | 6.9 x 4.1 x 6.3" / 175.0 x 105.0 x 160.0 mm | | Weight | 2.20 lb / 998 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 8.9 x 5.9 x 4.6" |
