User Manual for Yongnuo YN-308C LED Bi-Color Video Ring Light Click to enlarge the picture
Contents of the user manual for the Yongnuo YN-308C LED Bi-Color Video Ring
- Product category: LED Lights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo LED Lights
 |
User manual for the Yongnuo YN-308C LED Bi-Color Video Ring contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

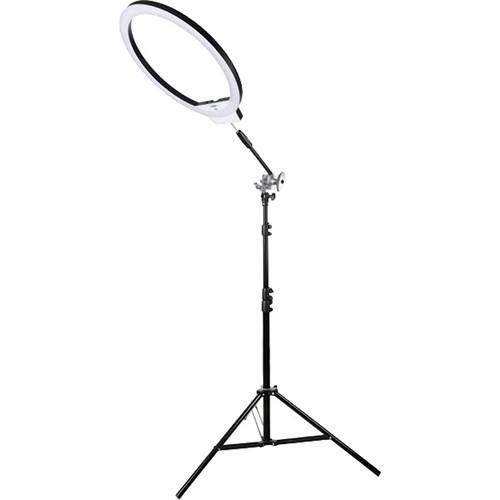

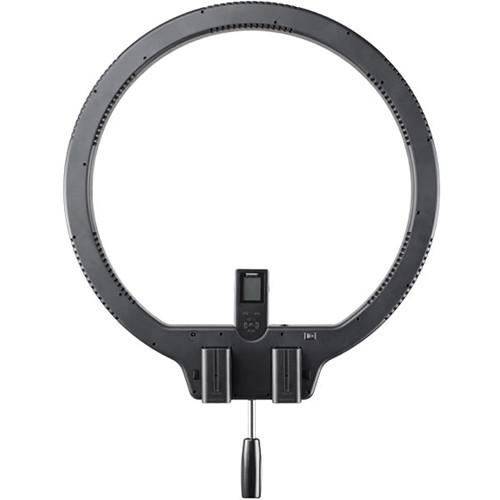

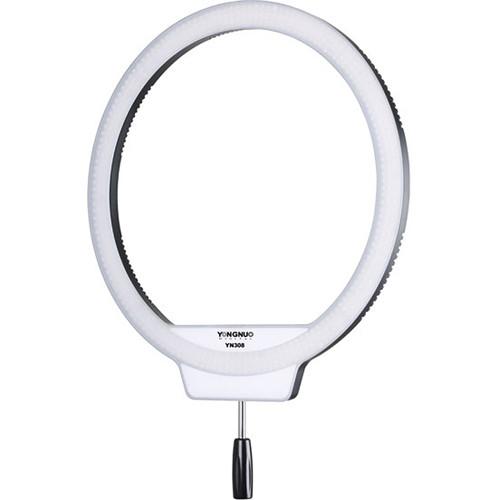

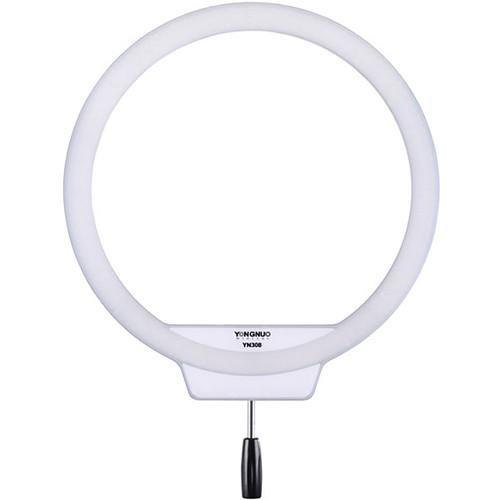

Product description The YN-308C LED Bi-Color Video Ring Light from Yongnuo features a distinctive-shaped light fixture with a variable color temperature output from 3200 to 5500K. The fixture comes with a special grip handle for hand-holding for a very soft, slightly directional look. You can also mount it to a grip head or light stand and shoot through it for a silky smooth near-shadowless effect that is flattering to your talent's complexion. A bonus is the unique circular shape pf the light that is reflected in the eyes of your subject.
The included remote control allows for quick lighting adjustments from a distance. For convenience on larger setups, up to eight YN-308C lights can be controlled with the RC. The fixture can be powered using an AC adapter (not included), or by two Sony NP-F750 series batteries. Please note that a single battery only powers half of the LEDs, full functionality requires either an AC adapter or two NP-F batteries (not included). Included with the light is the removable handle and a storage pouch. - 154 daylight-balanced (5500K) LEDs and 154 tungsten-balanced (3200K) LEDs produce a soft, flattering light
- 21" diameter ring provides a large source that can be used to create a circular light pattern in your subject's eyes

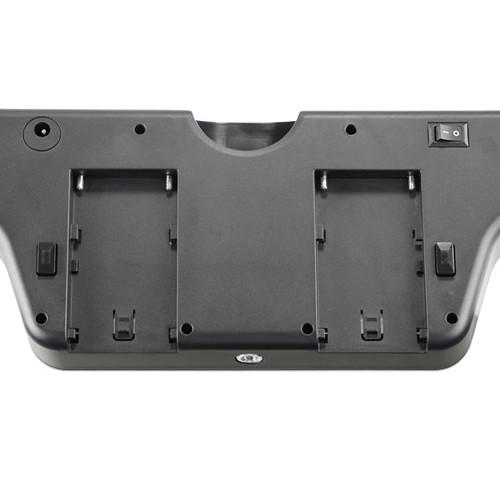

- Power using two Sony NP-F750 series batteries or via an optional AC adapter (not included)
- Each battery powers half of the fixture's LEDs, requiring two batteries to fully power the unit
- Control the color temperature and brightness of up to eight units with the included remote control, which features a coarse (adjust by 10%) and fine (adjust by 1%) control setting
- Plugging the remote control into the included slot on the fixture allows the remote to display remaining power in each battery
- A contoured handle and storage pouch are included
In the Box Yongnuo YN-308C LED Bi-Color Video Ring Light (3200-5500K) Handle Remote Control Storage Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN-308C LED Bi-Color Video Ring Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN-308 Specs | | | Beam Angle | 55° | | Color Temperature | 3200 to 5500K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Display | None | | Lumens | 2356 | | Number of LEDs | 308 | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 20.7 x 20.7 x 1.8" / 52.5 x 52.5 x 4.5 cm | | Fixture Weight | 3.7 lb / 1.68 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | 1/4"-20 Female Thread | | Accessory Mount | None | | | | Remote Control Type | IR | | Wireless Range | 49' / 15 m | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 18.5 W | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 20.7 x 20.5 x 2.0" |
