User Manual for Yongnuo YN-600II LED 3200-5500K Light Click to enlarge the picture
Contents of the user manual for the Yongnuo YN-600II LED 3200-5500K Light
- Product category: LED Lights Yongnuo
- Brand: Yongnuo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Yongnuo LED Lights
 |
User manual for the Yongnuo YN-600II LED 3200-5500K Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Yongnuo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Yongnuo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Yongnuo product will considerably shorten its lifespan!
|

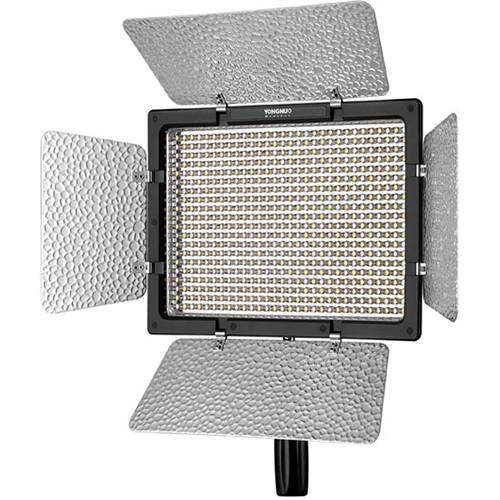

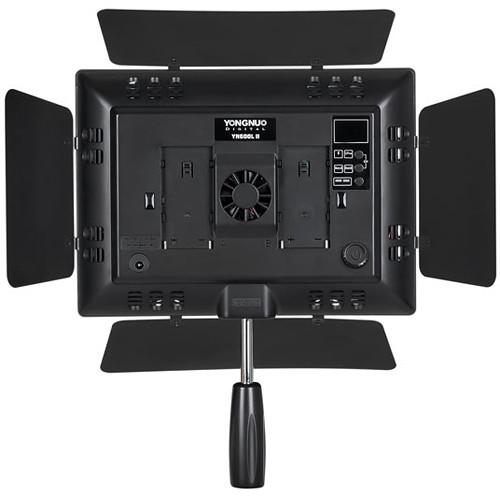

Product description The YN-600II LED 3200-5500K Light is one of a series of LED lights from Yongnuo Digital. This 3200-5500K tungston/daylight-adjustable unit offers two dimming modes (rough and fine), an IR remote control, four barndoors, a power-on/luminance adjustment knob, fan cooling, and two filter panels (one orange, one white). Up to three lights can be grouped via the IR remote control at a distance of up to 49'. A downloadable mobile phone app is available to control the light as well.Designed for DSLR and camcorders shoots, the YN-600II LED 3200-5500K Light can be powered using two Sony NP-F series batteries or via an optional AC adapter. A push-button numerical LED display shows the remaining battery power. The YN-600II LED 3200-5500K Light mounts to a stand (not included), or can be handheld using the included handle. - 300 daylight and 300 tungsten–balanced LEDs, 3200-5500K variable color temperature
- Barndoors, two filter panels (one orange, one white) CT filters, and handle are included
- Power using a Sony NP-F series battery or via an optional AC adapter
- 3-channel IR remote control (included), and mobile phone RC app (download available)
- Push-button LED display of color temperature mode, remaining battery-charge, and dimming mode

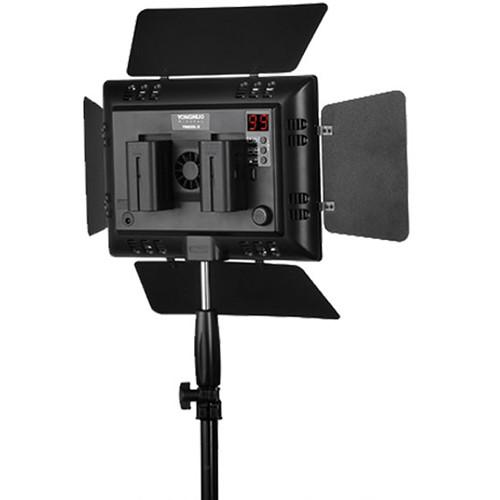

- Mount to a stand or handhold with the included handle
- Power/luminance adjustment knob

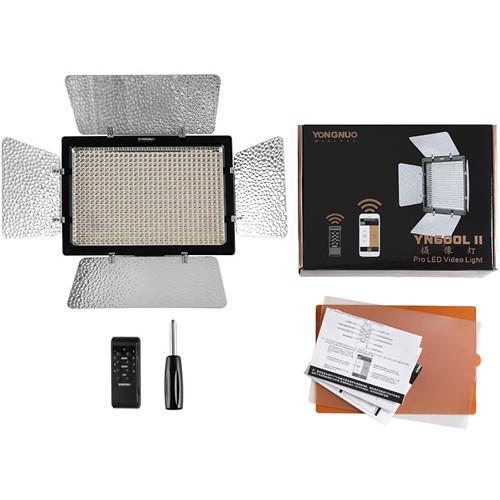

In the Box Yongnuo YN-600II LED 3200-5500K Light 2.4 GHz Remote Control Handle Orange Filter Panel White Diffusion Filter Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN-600II LED 3200-5500K Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN-600 II Specs | | | Beam Angle | 55° | | Color Temperature | 3200 to 5500K | | Color Accuracy Standard | CRI 95 | | Lumens | 4800 | | Number of LEDs | 600 | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | DC Input Power | 8 VDC at 5 A | | Max Power Consumption | 36 W | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 10.2 x 7.4 x 1.6" / 260 x 188 x 40 mm | | Weight | 1.7 lb / 0.78 kg | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 11.6 x 8.7 x 2.6" |
