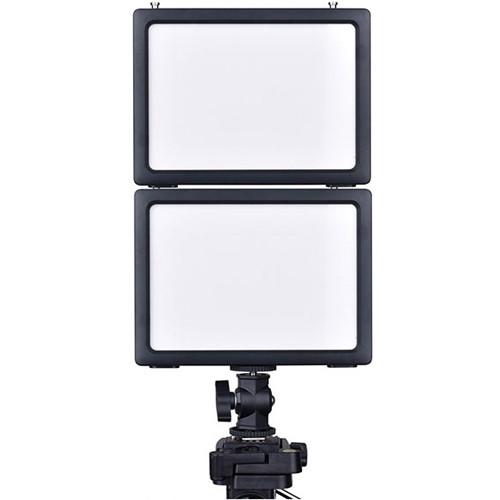

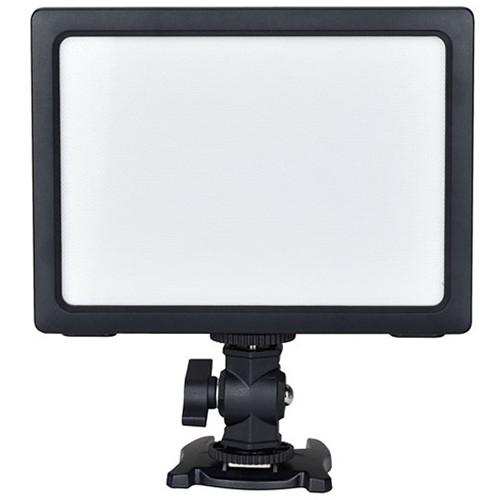

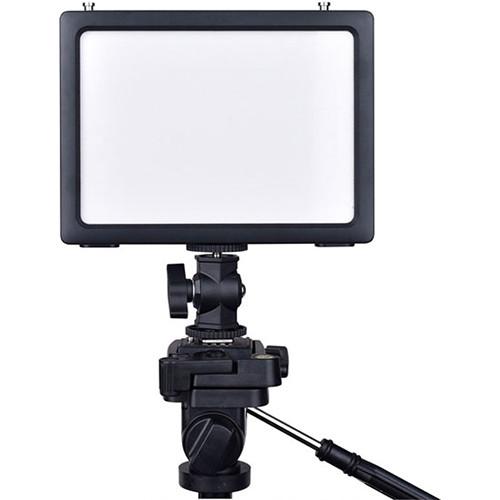

Product description The YN116 Pro LED Video Light from Yongnuo Digital offers diffused LED lighting in a compact, portable mode. Its color temperature can be adjusted from 3200 to 5500K, and a brightness knob provides stepless dimming from 10 to 100%.A diffusion panel softens and widens this LED's output, and a CRI of >95 reproduces colors accurately. When a greater light output is needed, you can stack the YN116 vertically with a second unit.Powered by a Sony L-series type battery or a 7.2 to 9V power supply (both available separately), the YN116 is suitable for working with most DSLRs and small camcorders. This compact unit can be mounted using the included tilt bracket and mini stand or via its 1/4"-20 thread. Features - 3200 to 5500K variable color temperature
- Diffusion filter panel, tilt bracket, and mini stand are included
- Requires a Sony L-series type battery or a 7.2 to 9V, 2A power supply (neither included)

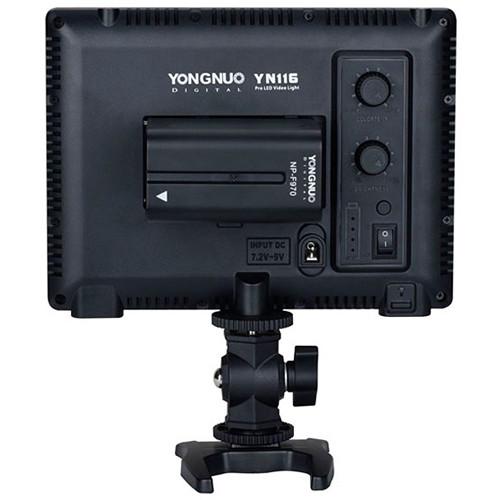

- Power-on rocker switch plus color temperature and brightness knobs
- Stepless dimming from 10 to 100%
- Low-battery indicator light

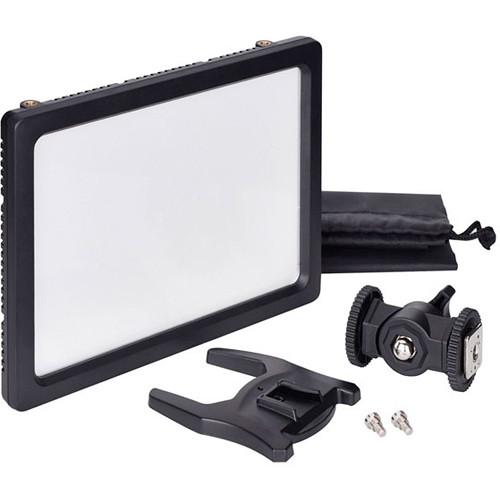

In the Box Yongnuo YN116 Pro LED Video Light Diffusion Panel Mini Stand Tilt Bracket 2 x Stacking Screw Cloth Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Yongnuo YN116 Pro LED Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersYongnuo YN116 Specs | | | Color Temperature | 3200 to 5500K | | Color Accuracy Standard | CRI 95 | | Dimming | Yes, 10 to 100% (Continuous) | | Expected Lamp Life | 50000 Hours | | Number of LEDs | 116 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7.2 to 9 VDC at 2 A | | Max Power Consumption | 12 W | | Power Input Connector | Barrel / Coax | | | | Mount Type | 1/4"-20 Female Thread | | Dimensions | 6.9 x 5.2 x 0.8" / 174 x 131 x 19.6 mm Without mounting bracket. | | Weight | 9.3 oz / 264 g | | | | Package Weight | 0.98 lb | | Box Dimensions (LxWxH) | 10.2 x 5.6 x 1.9" |
